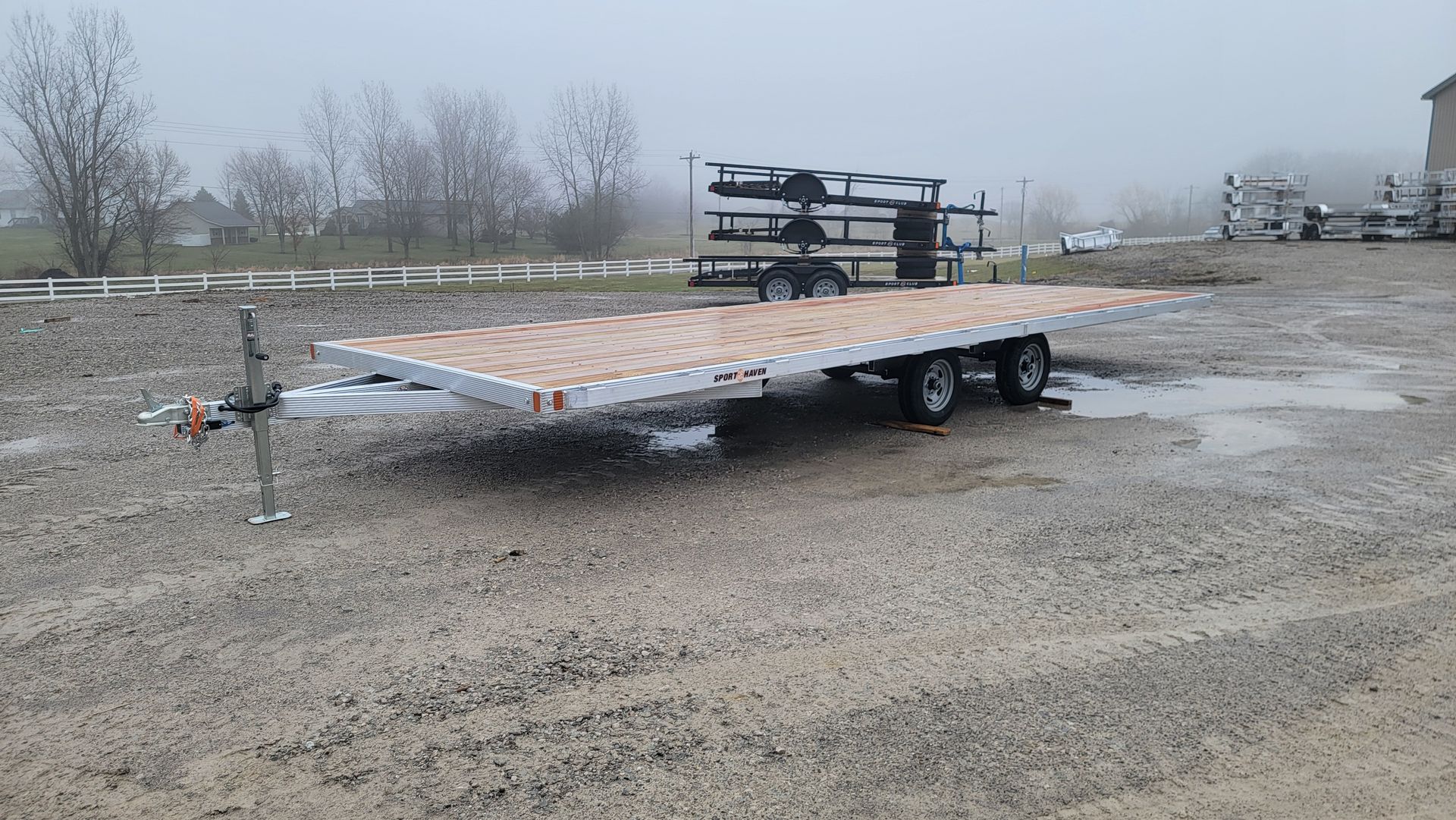

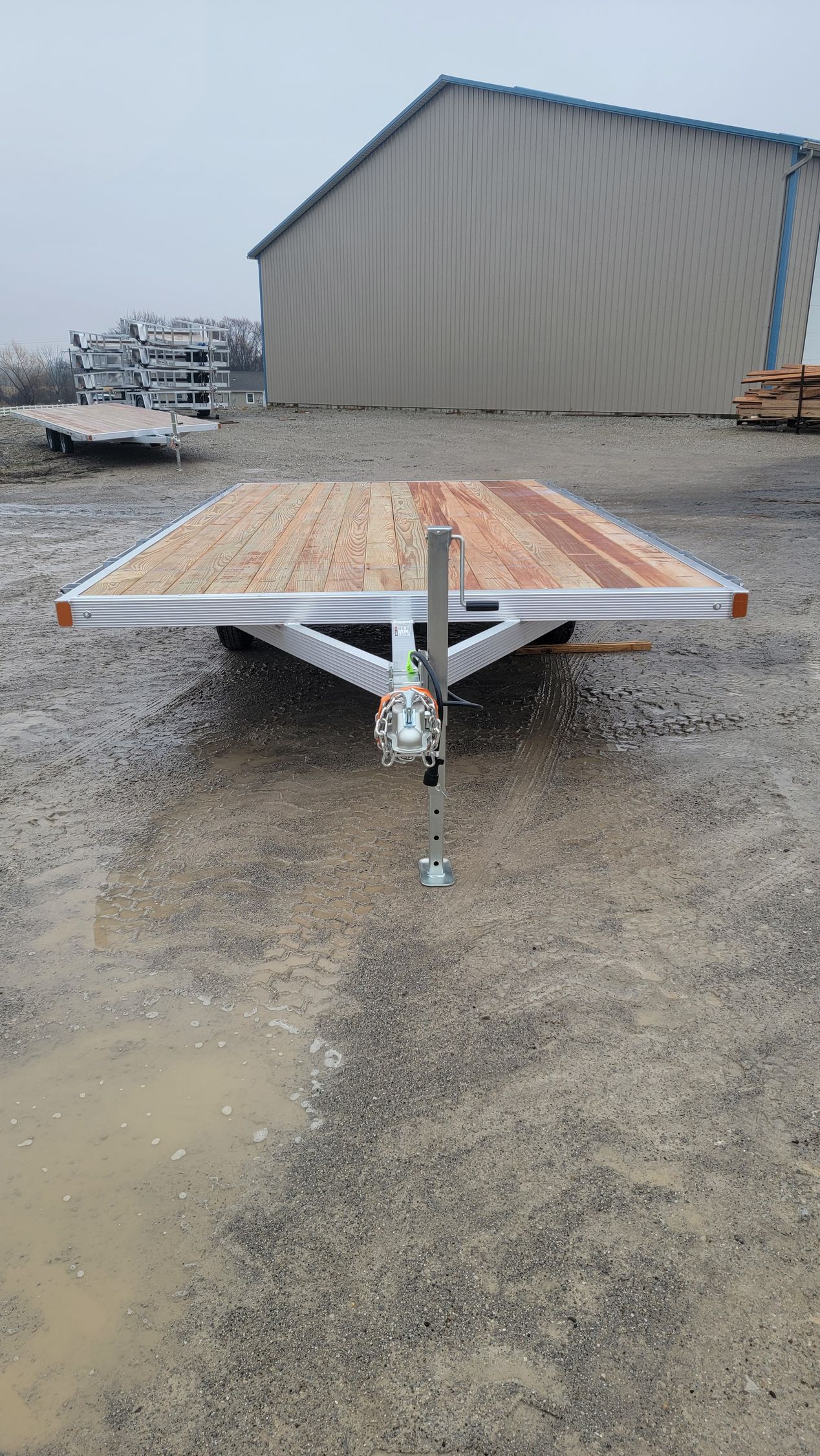

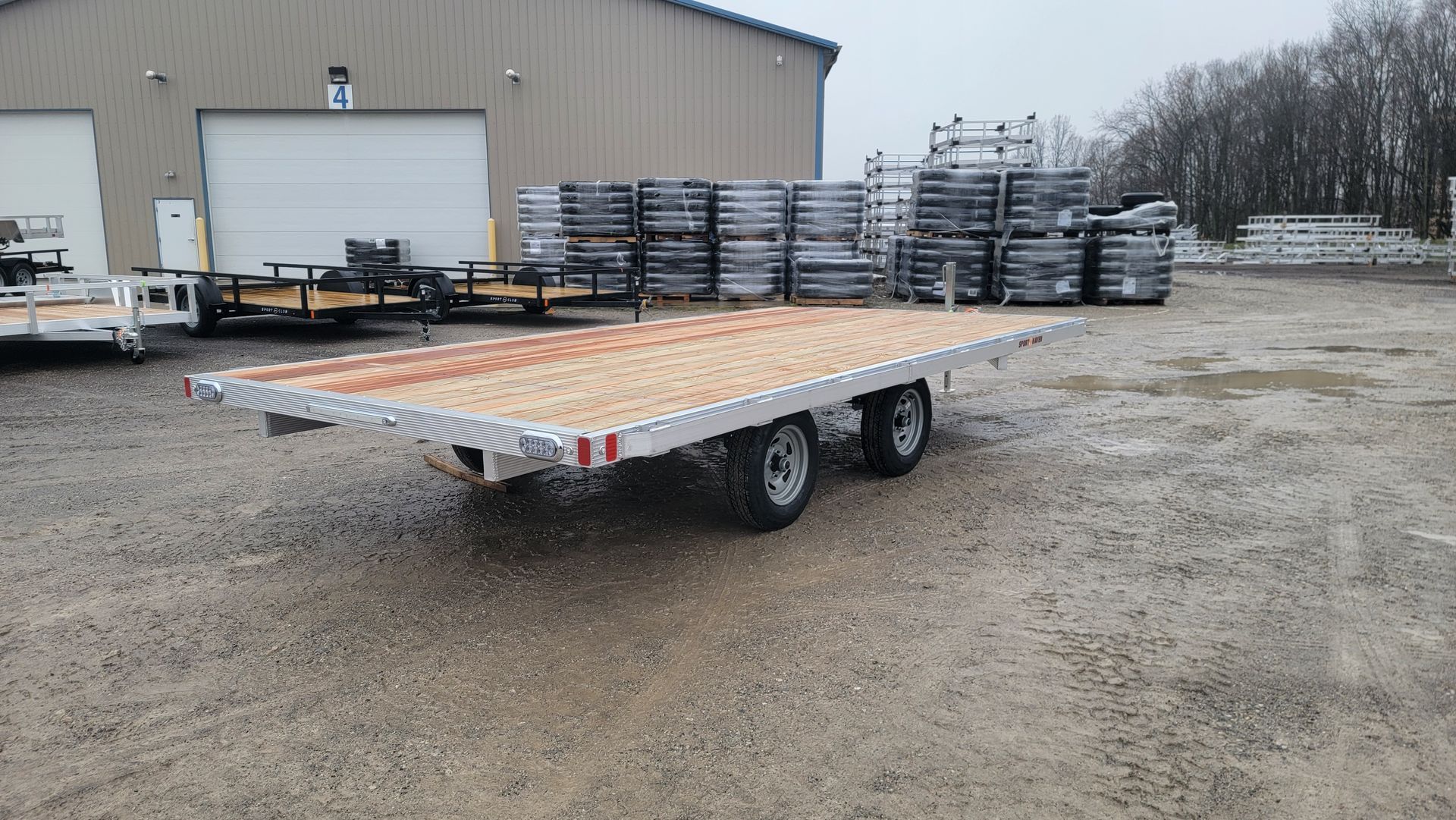

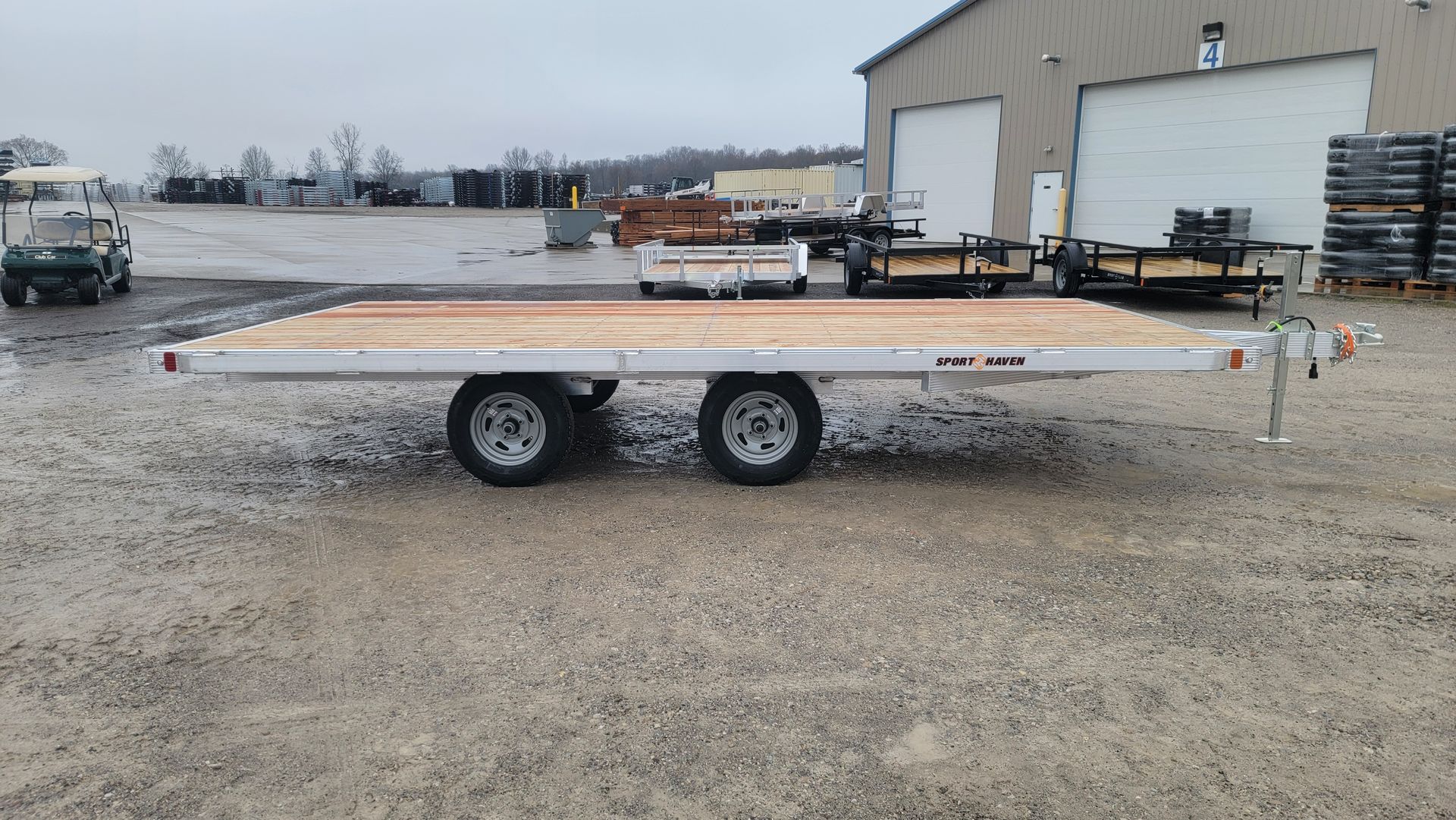

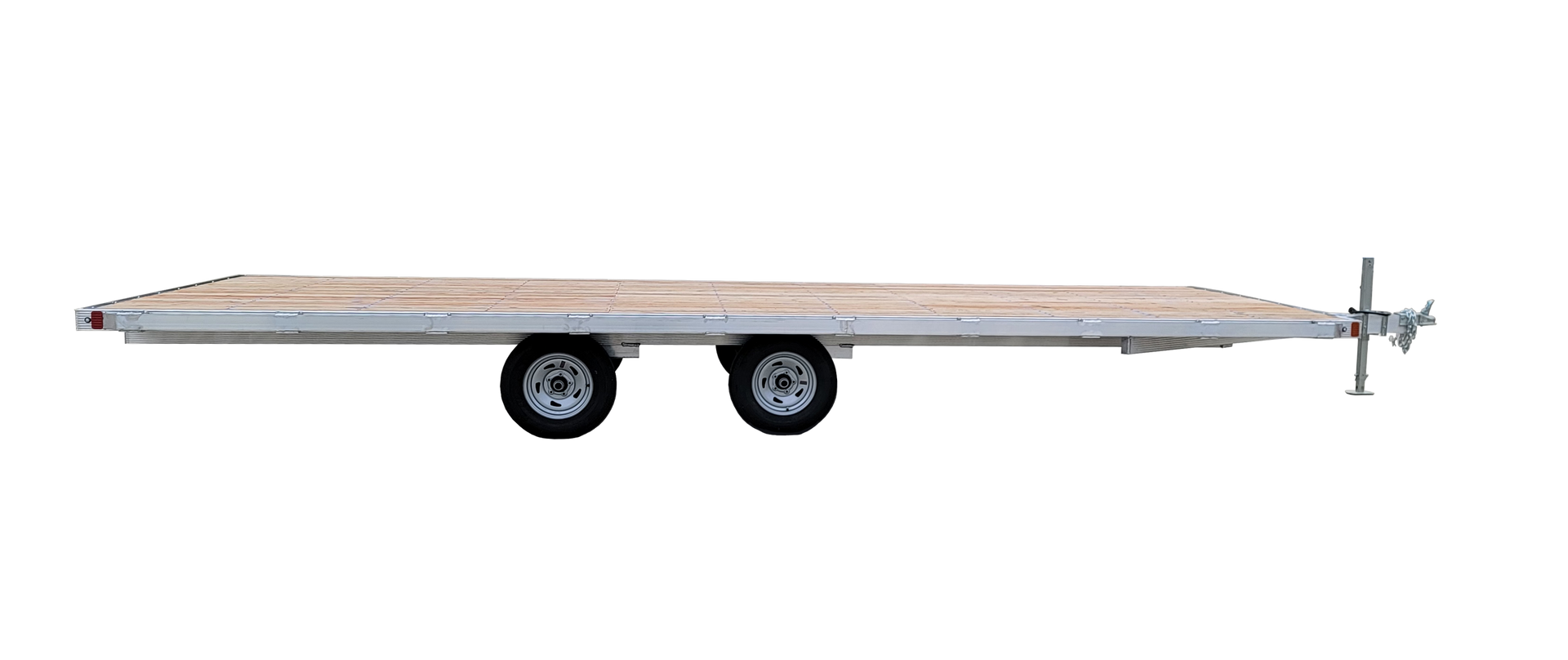

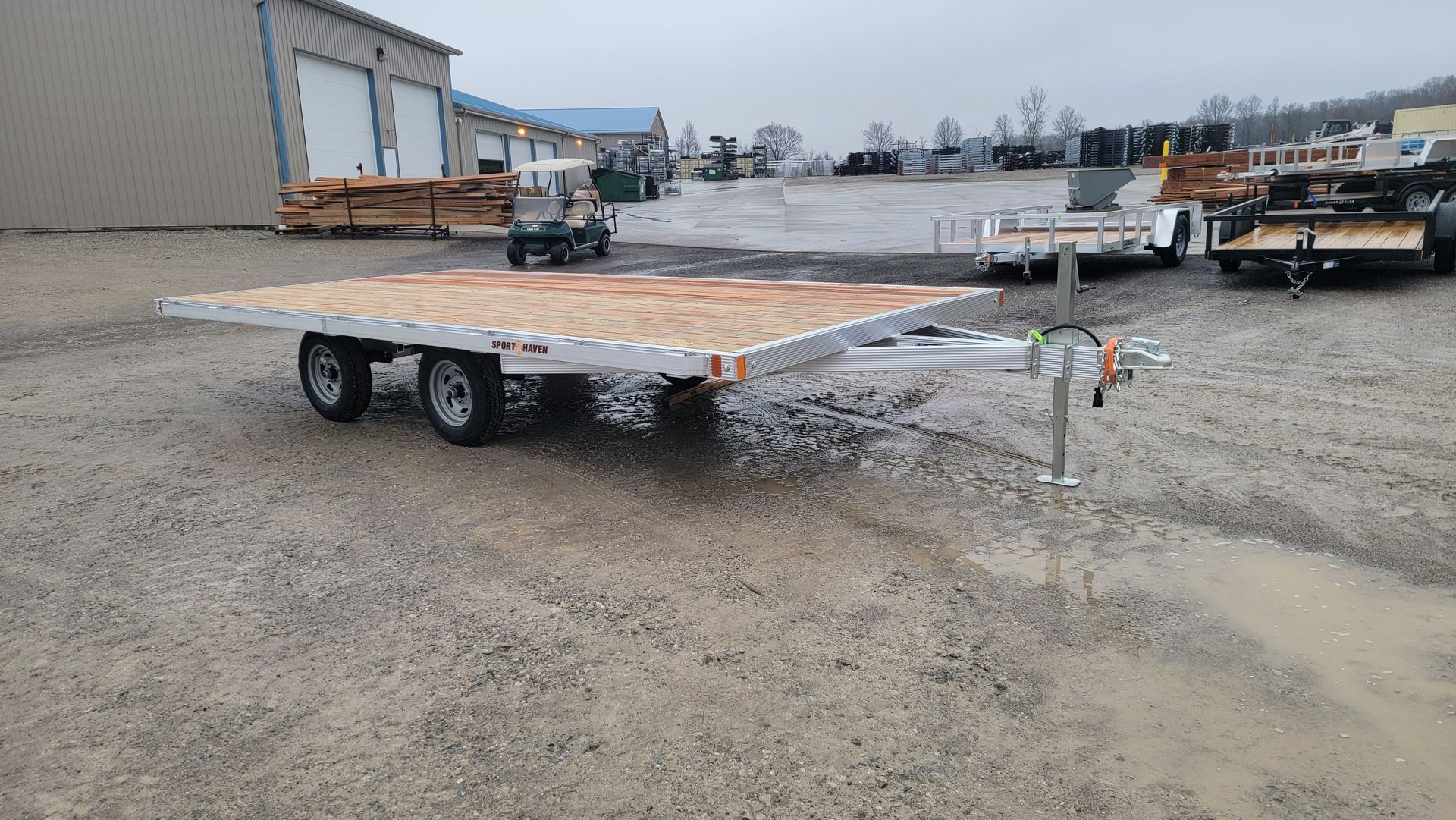

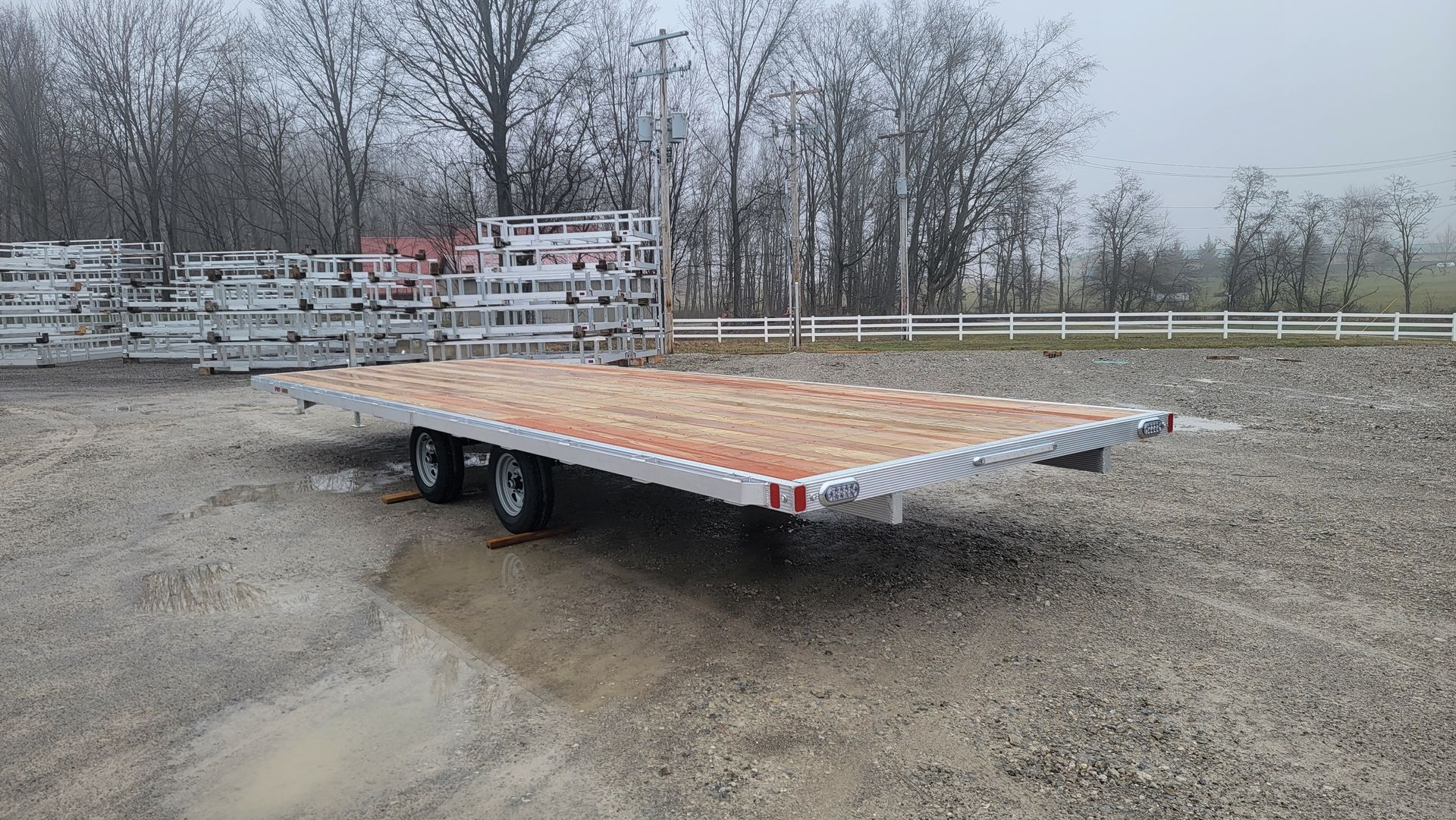

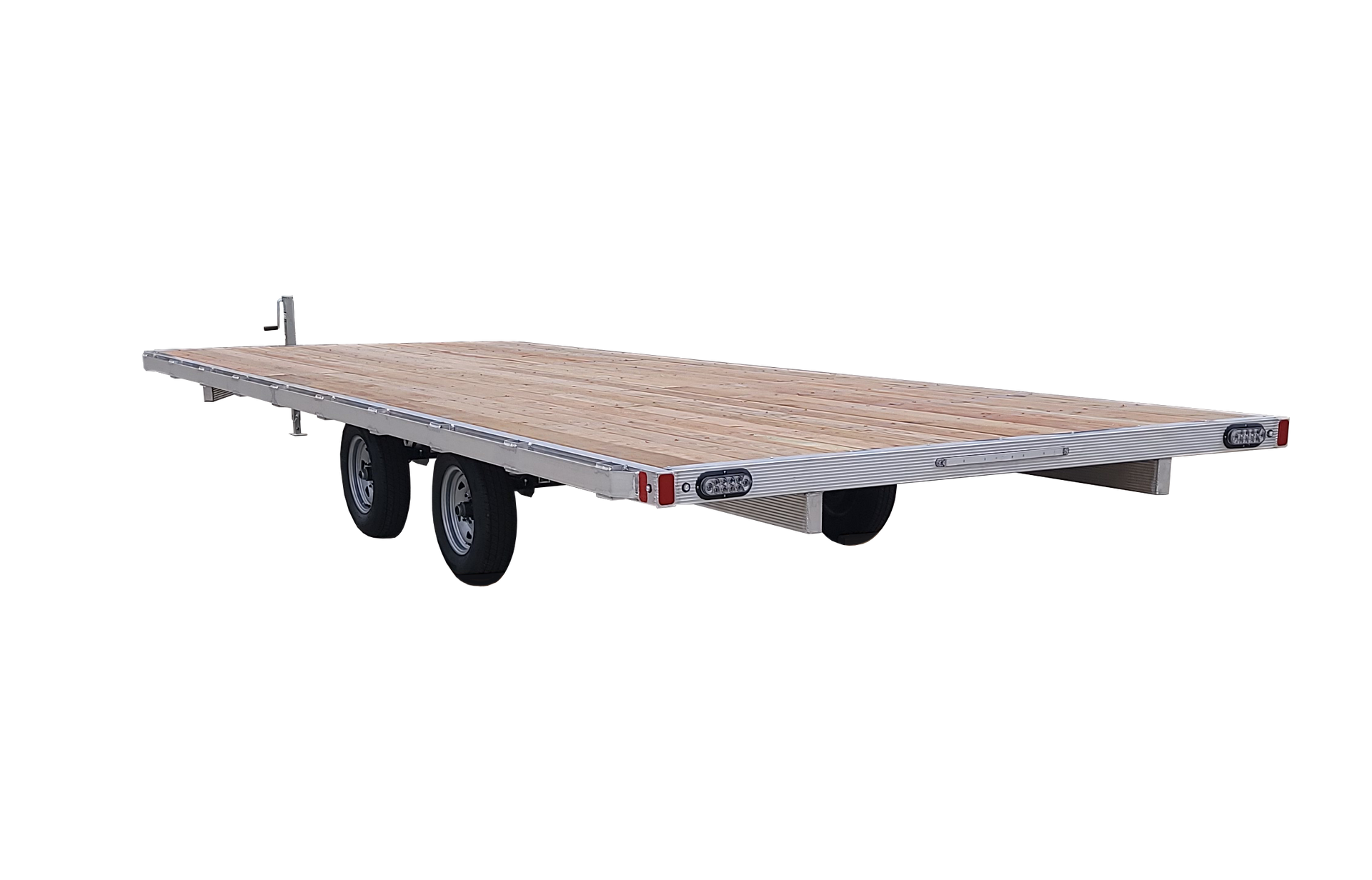

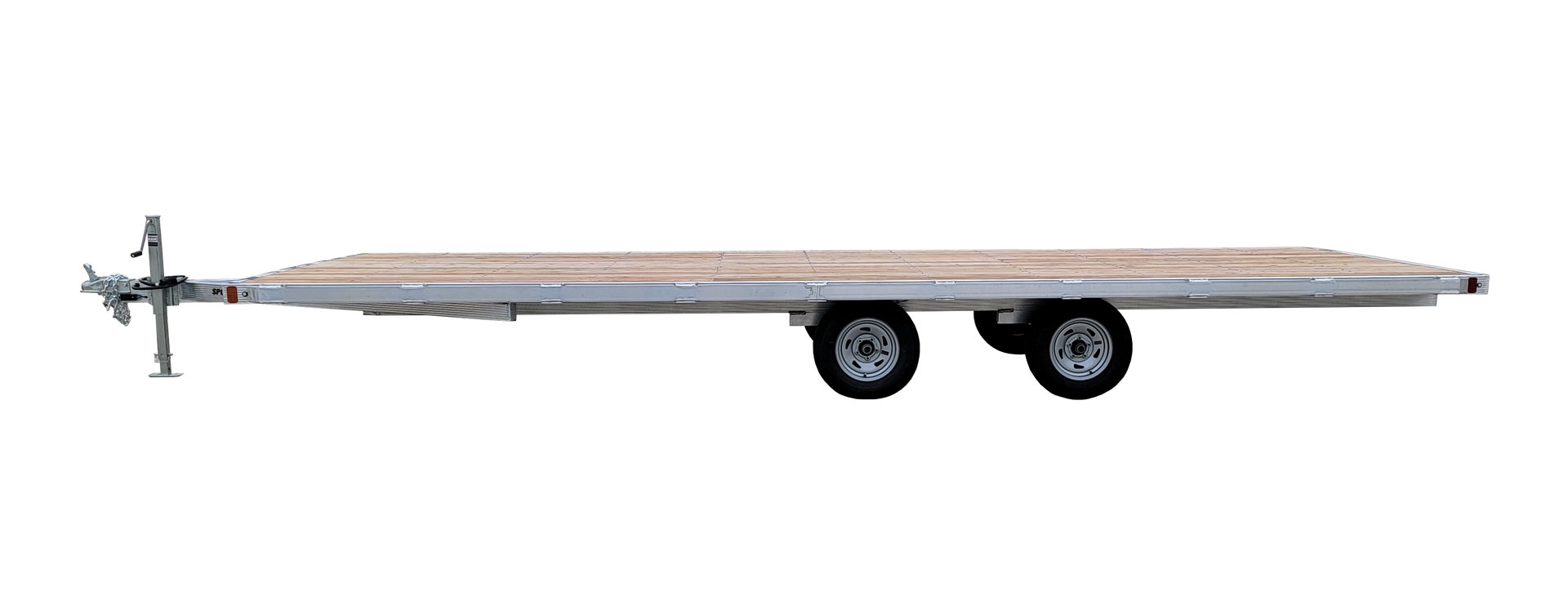

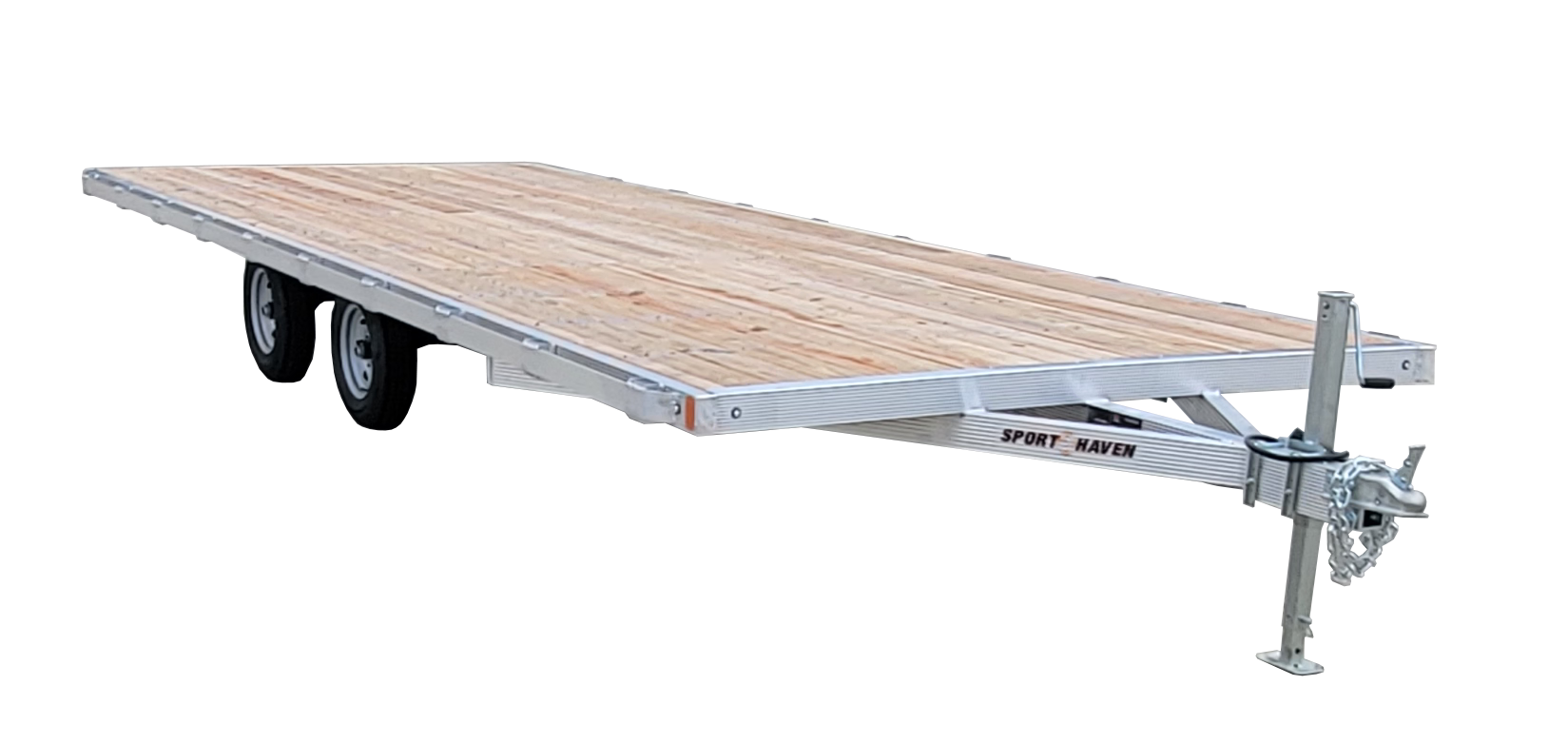

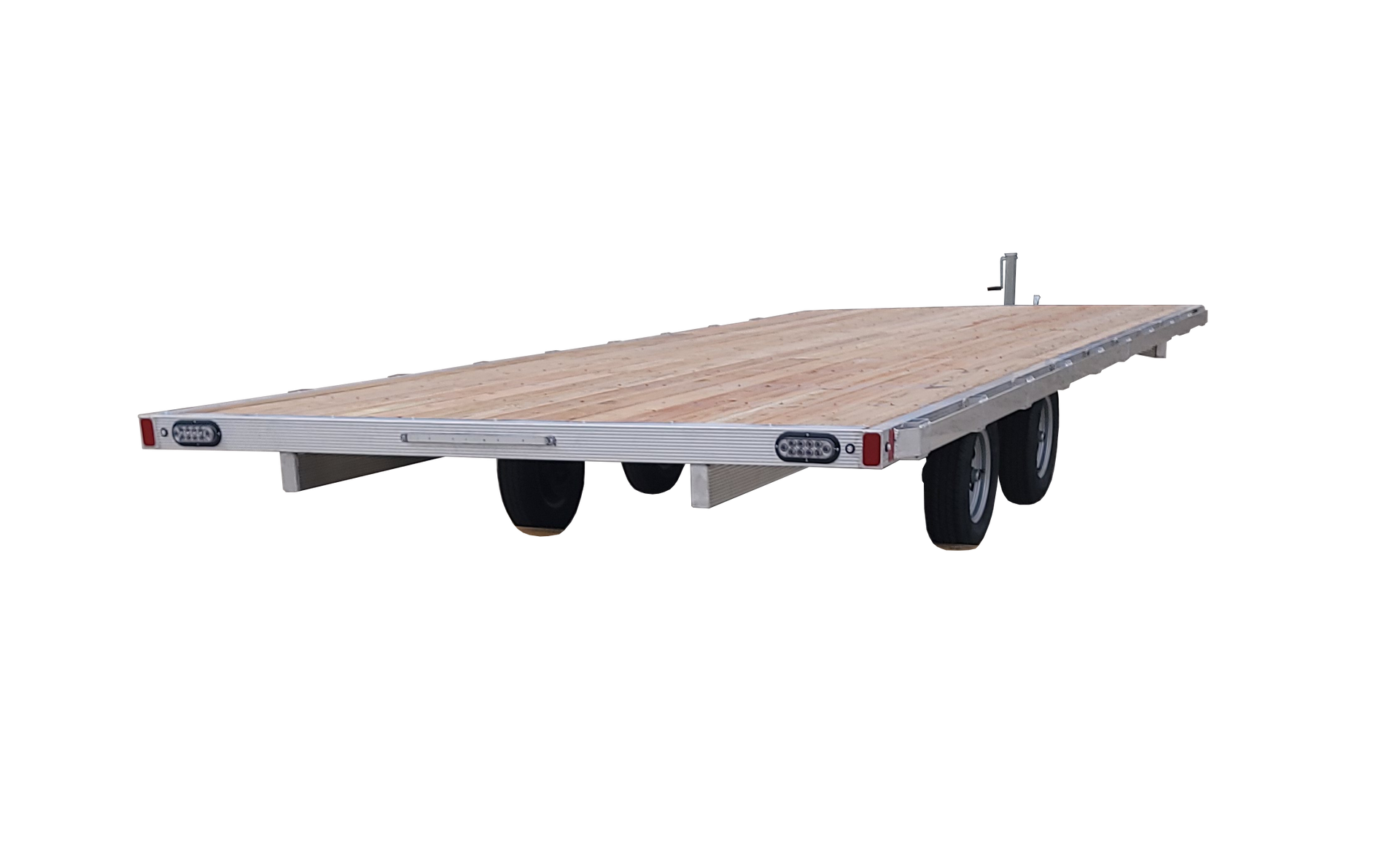

ALUMINUM DECK OVER - ADO MODELS
ADO MODEL FEATURES

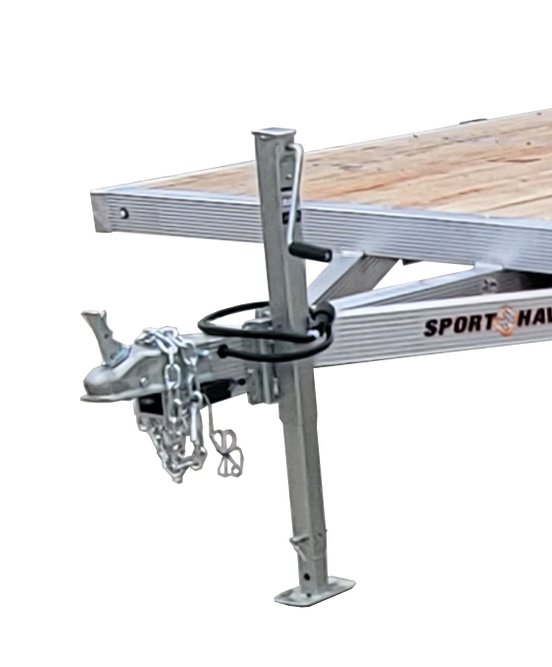

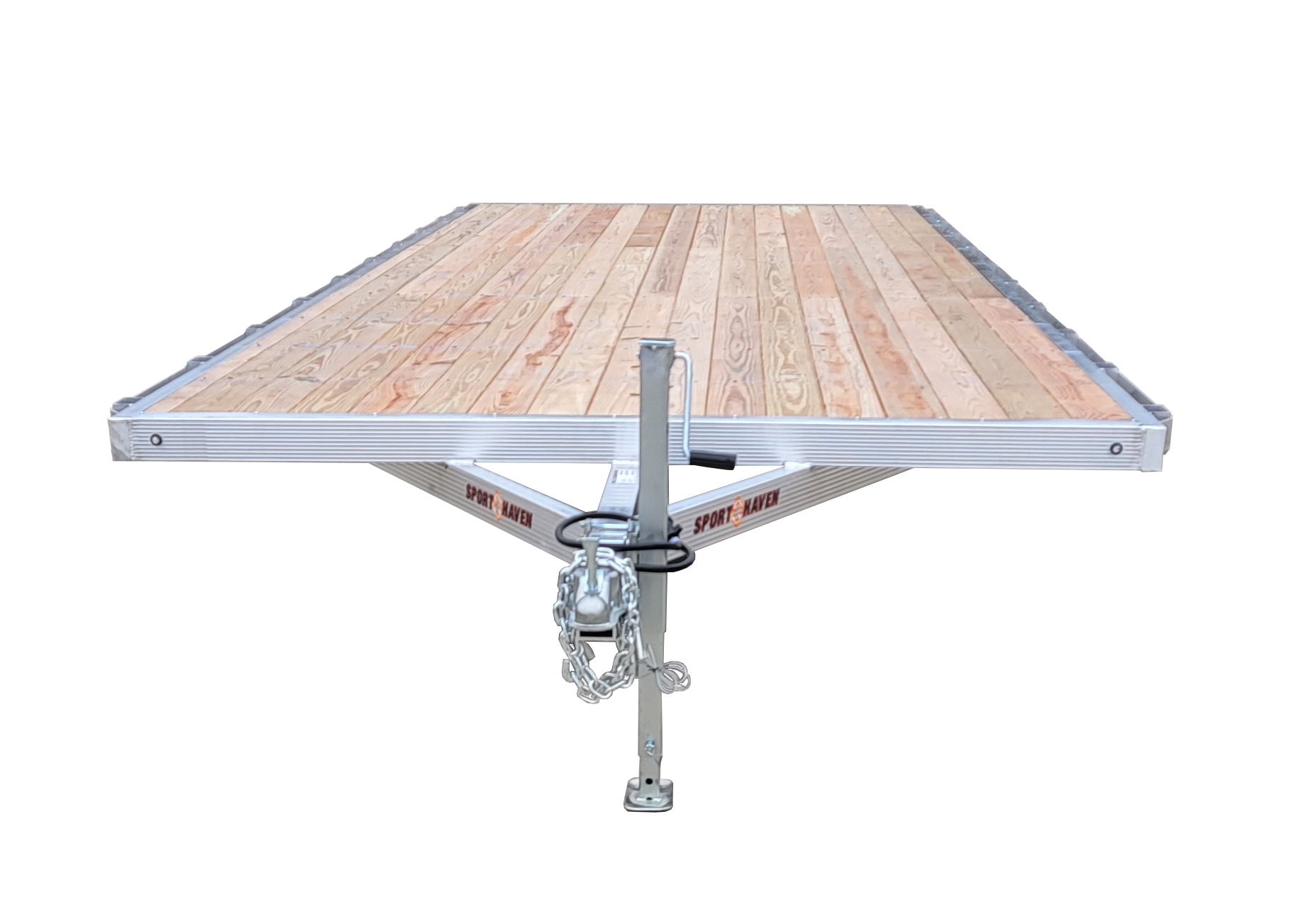

- Drop Leg Pad Tongue Jack

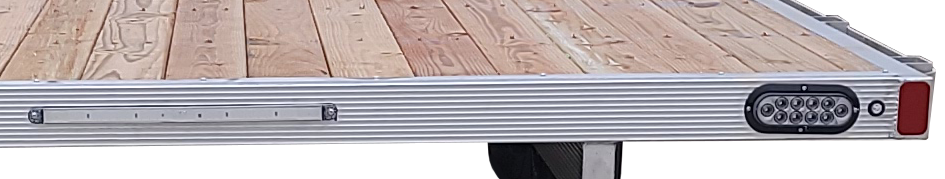

- LED Lights

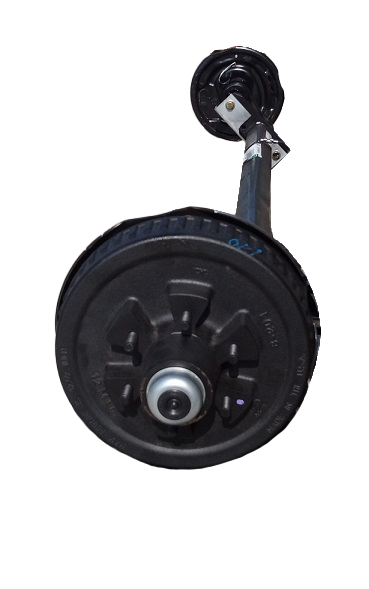

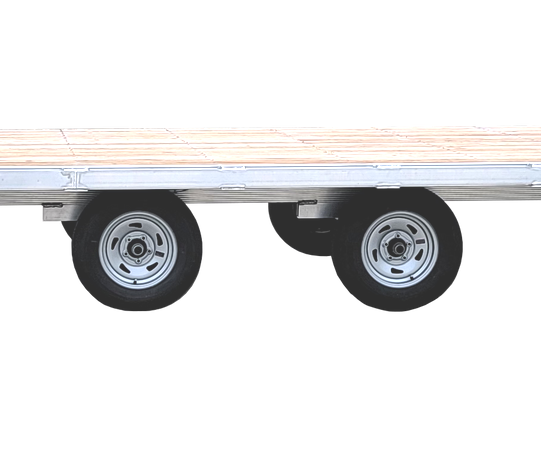

- 3500lb Dexter Torsion Axles

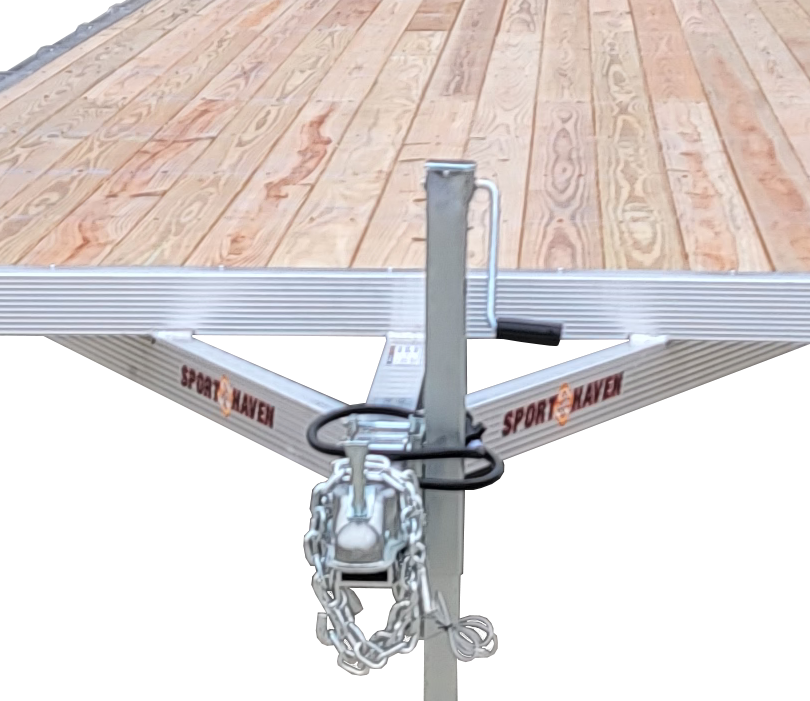

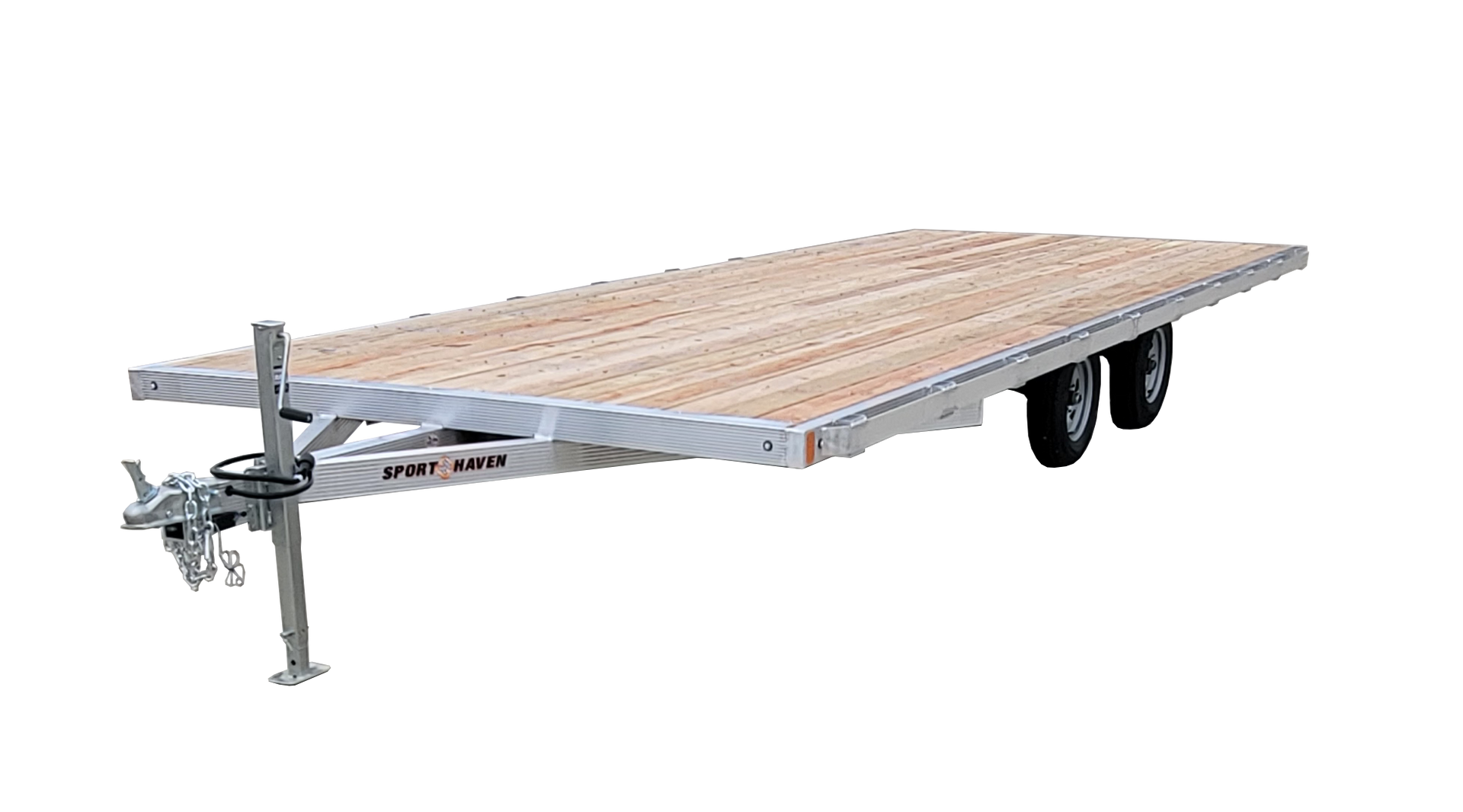

- A-Frame Tongue

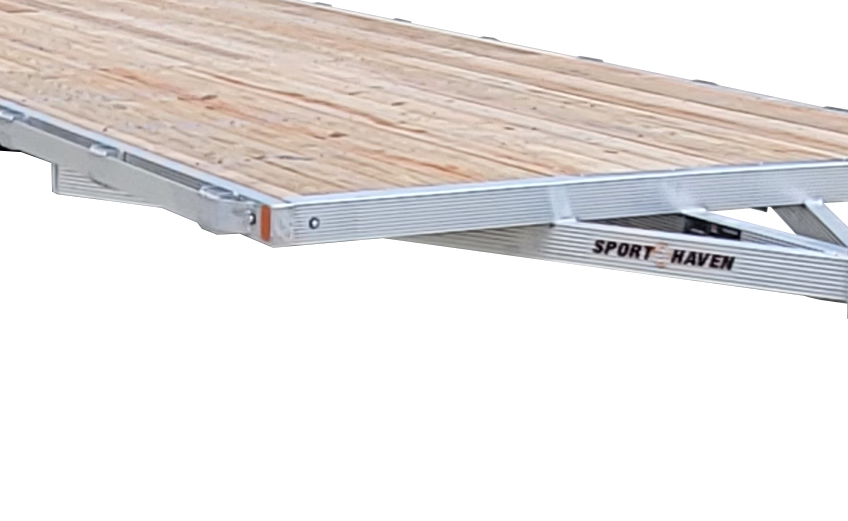

- Stake Pockets
- Rub Rail

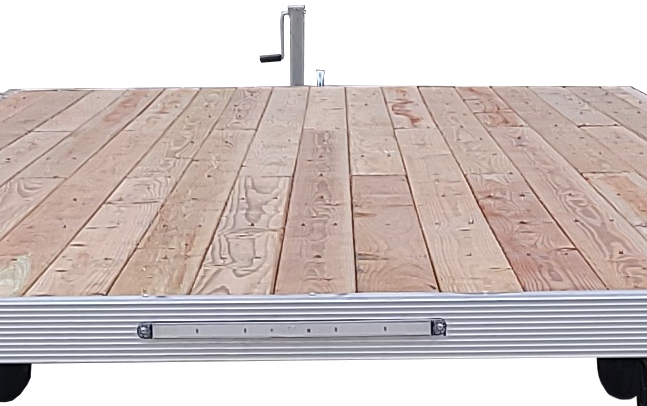

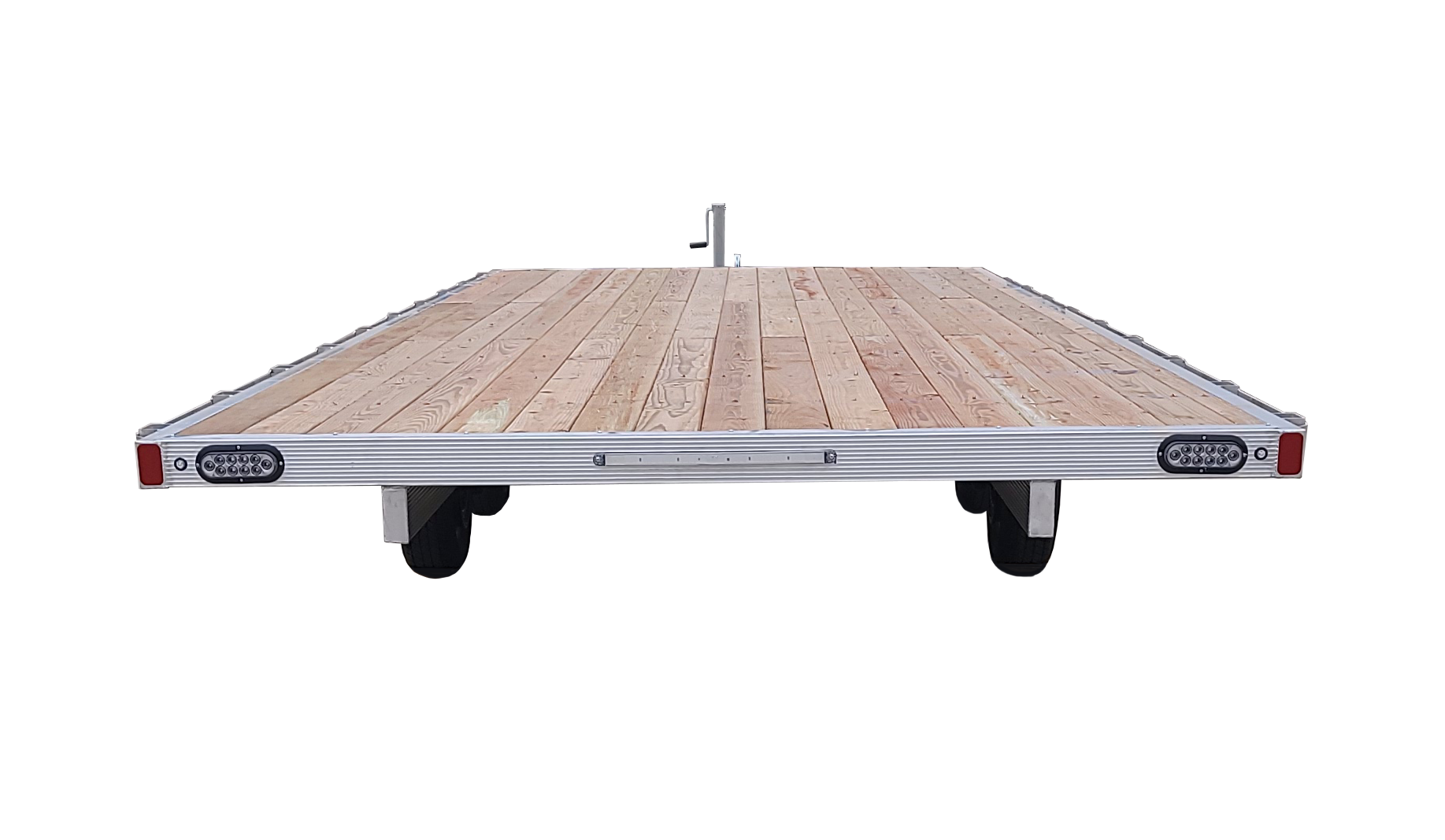

- 5/4" ProWood Dura Color Decking
- 13" Silver E-Coat Rims
- Radial Tires
ADO TANDEM AXLE MODEL SPECIFICATIONS
| MODEL | ADO1664T | ADO1864T | ADO2064T | ADO2264T | ADO2464T |
|---|---|---|---|---|---|
| Deck L x W | 192" X 97" | 258" X 97" | 282" X 97" | 306" X 97" | 330" X 97" |
| Overall L x W | 234" X 101" | 216" X 101" | 240" X 101" | 264" X 101" | 288" X 101" |
| Tongue | 3" X 5" Fluted Double Hollow | 3" X 5" Fluted Double Hollow | 3" X 5" Fluted Double Hollow | 3" X 5" Fluted Double Hollow | 3" X 5" Fluted Double Hollow |
| Tongue Supports* | 2" X 4" Fluted | 2" X 4" Fluted | 2" X 4" Fluted | 2" X 4" Fluted | 2" X 4" Fluted |
| Frame Outer Rails* | 2" X 4" Fluted | 2" X 4" Fluted | 2" X 4" Fluted | 2" X 4" Fluted | 2" X 4" Fluted |
| Frame Crossmembers* Front & Rear | (2) 2" X 4" Fluted | (2) 2" X 4" Fluted | (2) 2" X 4" Fluted | (2) 2" X 4" Fluted | (2) 2" X 4" Fluted |
| Frame Crossmembers* Middle** | (7) 1.75" X 3" Fluted | (7) 1.75" X 3" Fluted | (7) 1.75" X 3" Fluted | (7) 1.75" X 3" Fluted | (7) 1.75" X 3" Fluted |
| Curb Weight | 1516 lbs | 1592 lbs | 1450 lbs | 1600 lbs | 1788 lbs |
| Payload Capacity | 4884 lbs | 4808 lbs | 4950 lbs | 4800 lbs | 4612 lbs |
