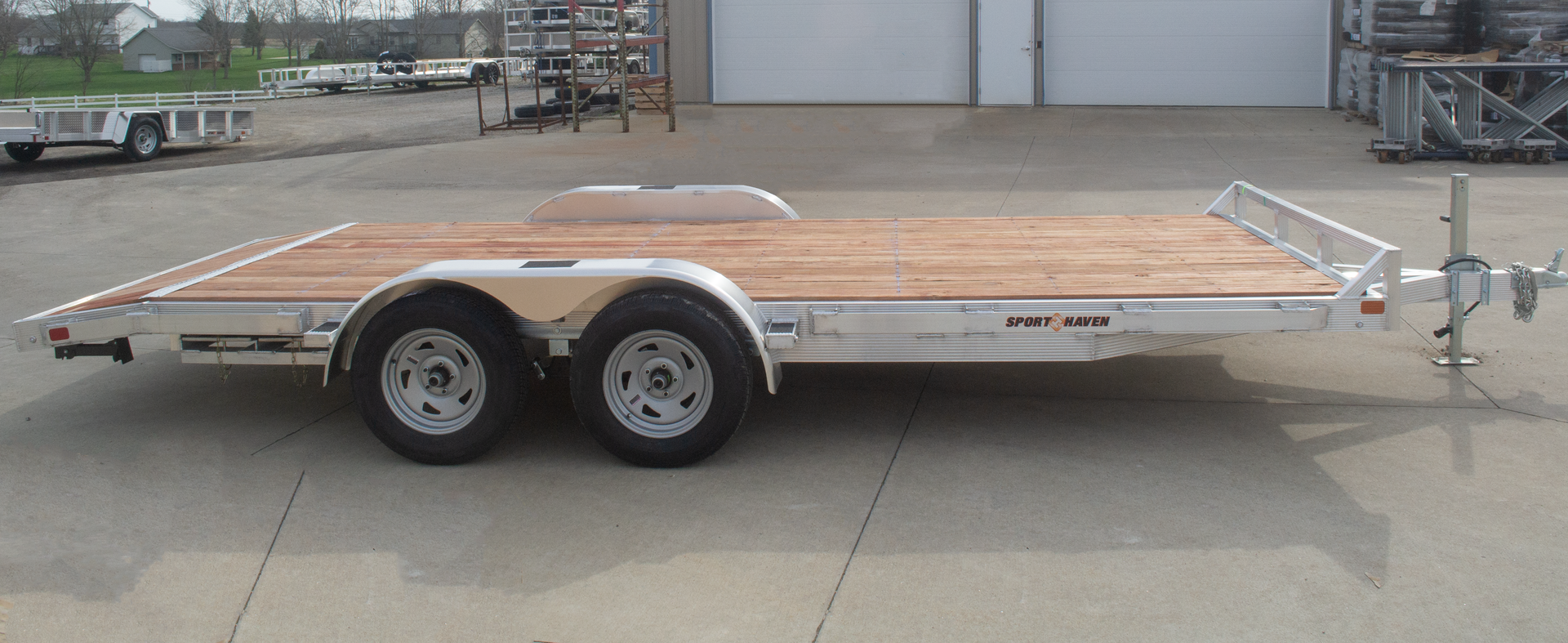

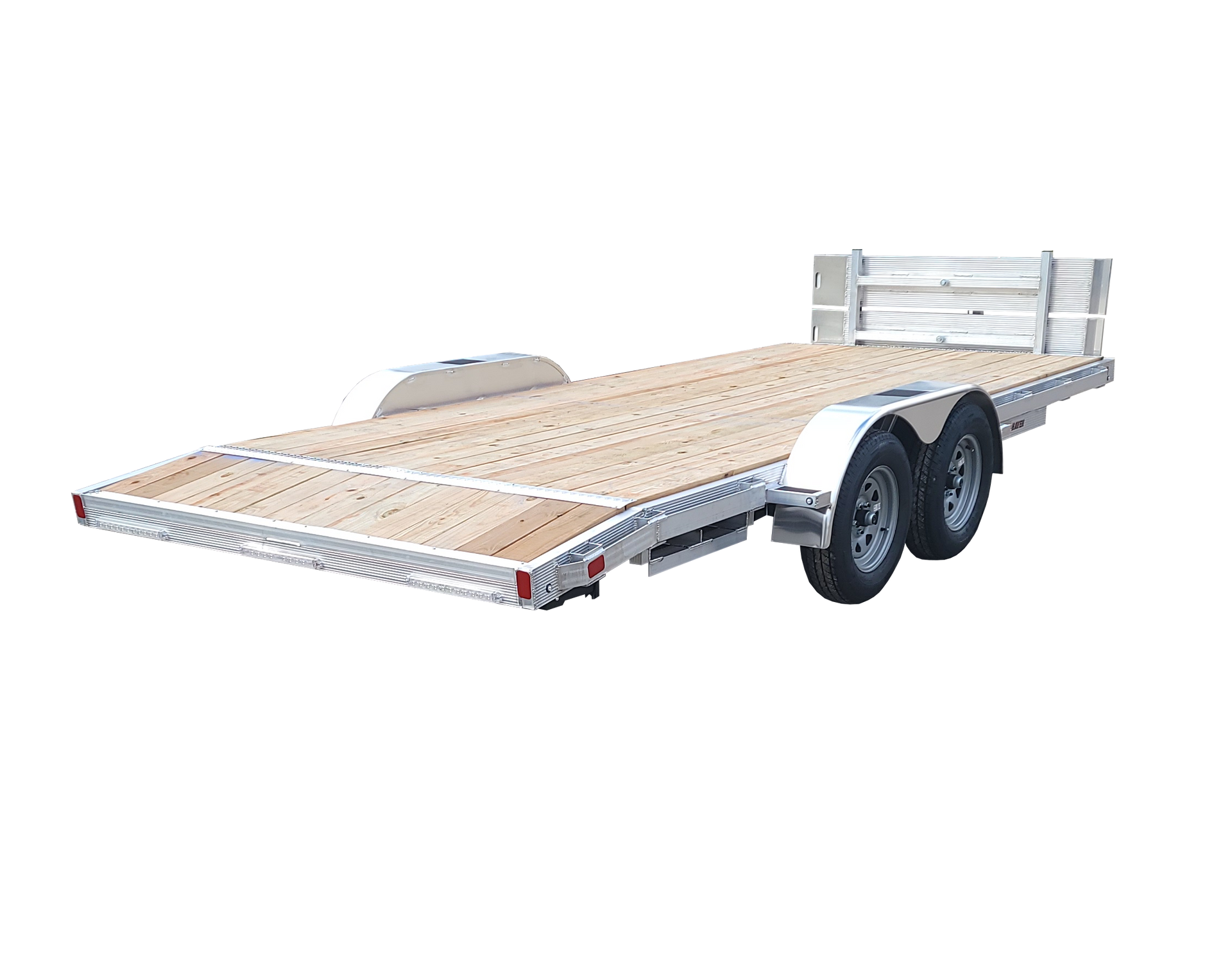

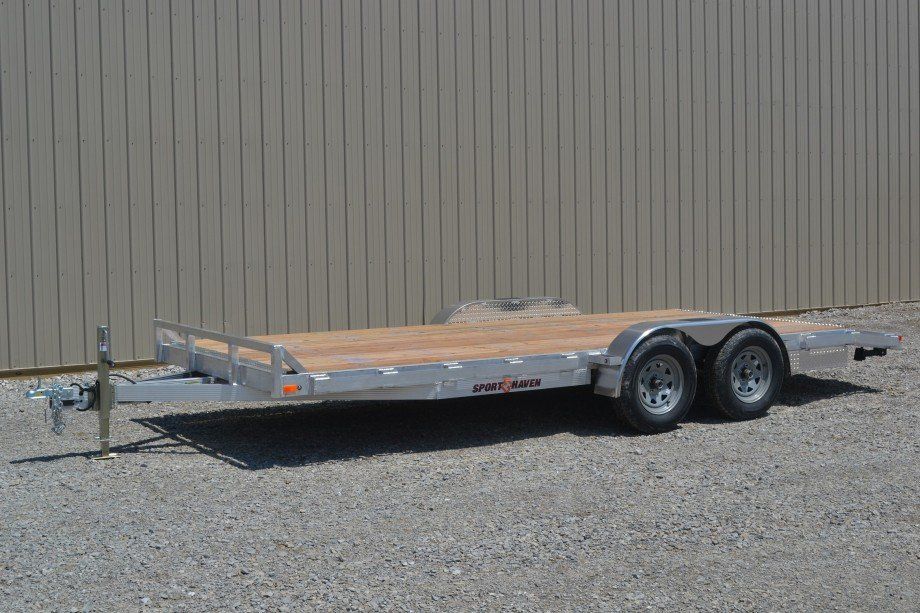

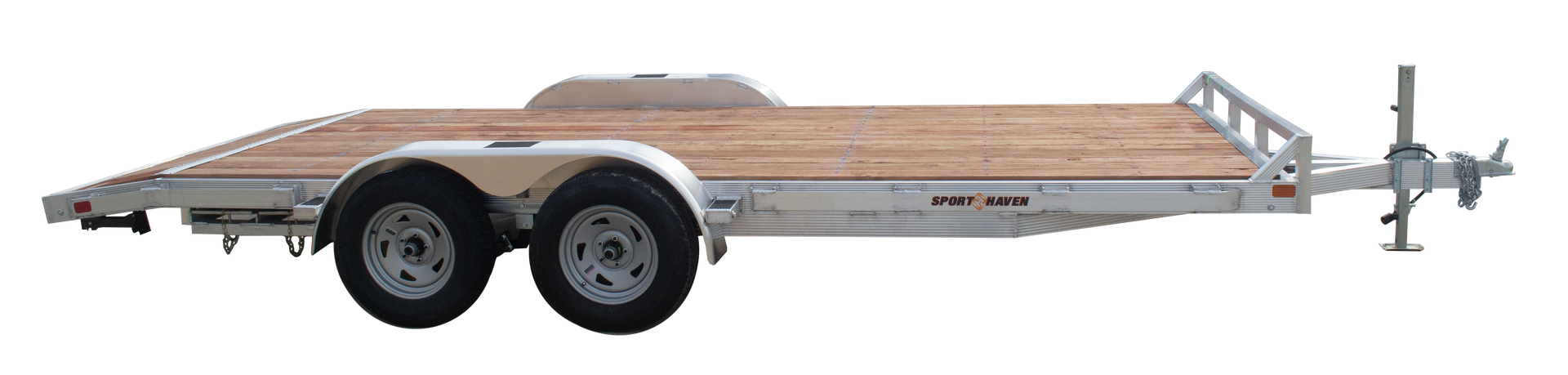

ALUMINUM OPEN CAR HAULER - AOC MODELS
ALUMINUM OPEN CAR HAULER - AOC MODELS
AOC MODEL FEATURES
AOC MODEL OPTIONS
AOC MODEL FEATURES
AOC MODEL OPTIONS
- (2) 7' Heavy Duty Ramps (Side or Front Access)
- Rear Ramp Drop Pad Stabilizers
- Stake Pockets with 3" x .25" Bar Stock Rub Rail
- 2" x 6" ProWood Dura Color Decking
Slide title

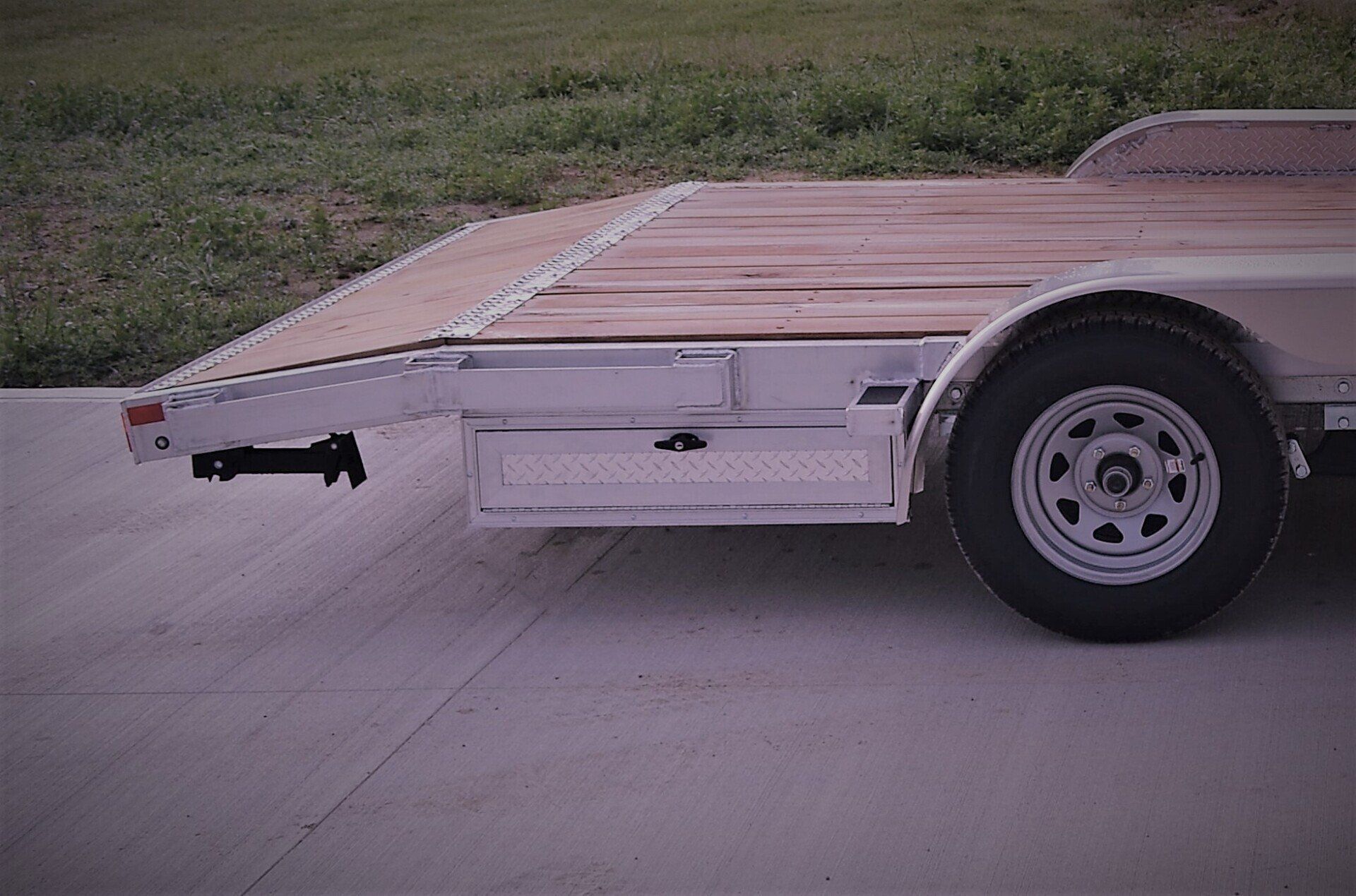

Ramp Side Access Door
Button
Slide title

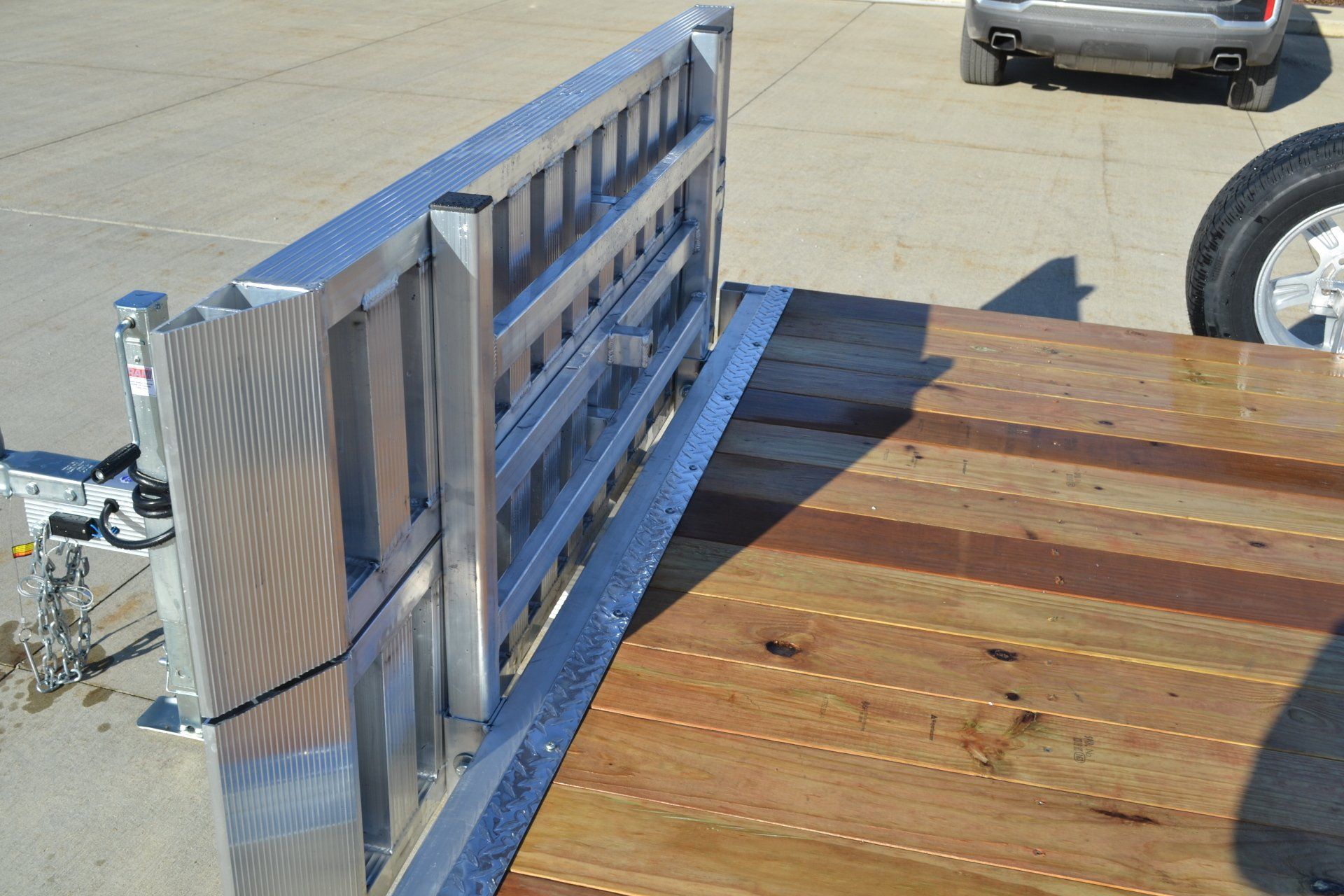

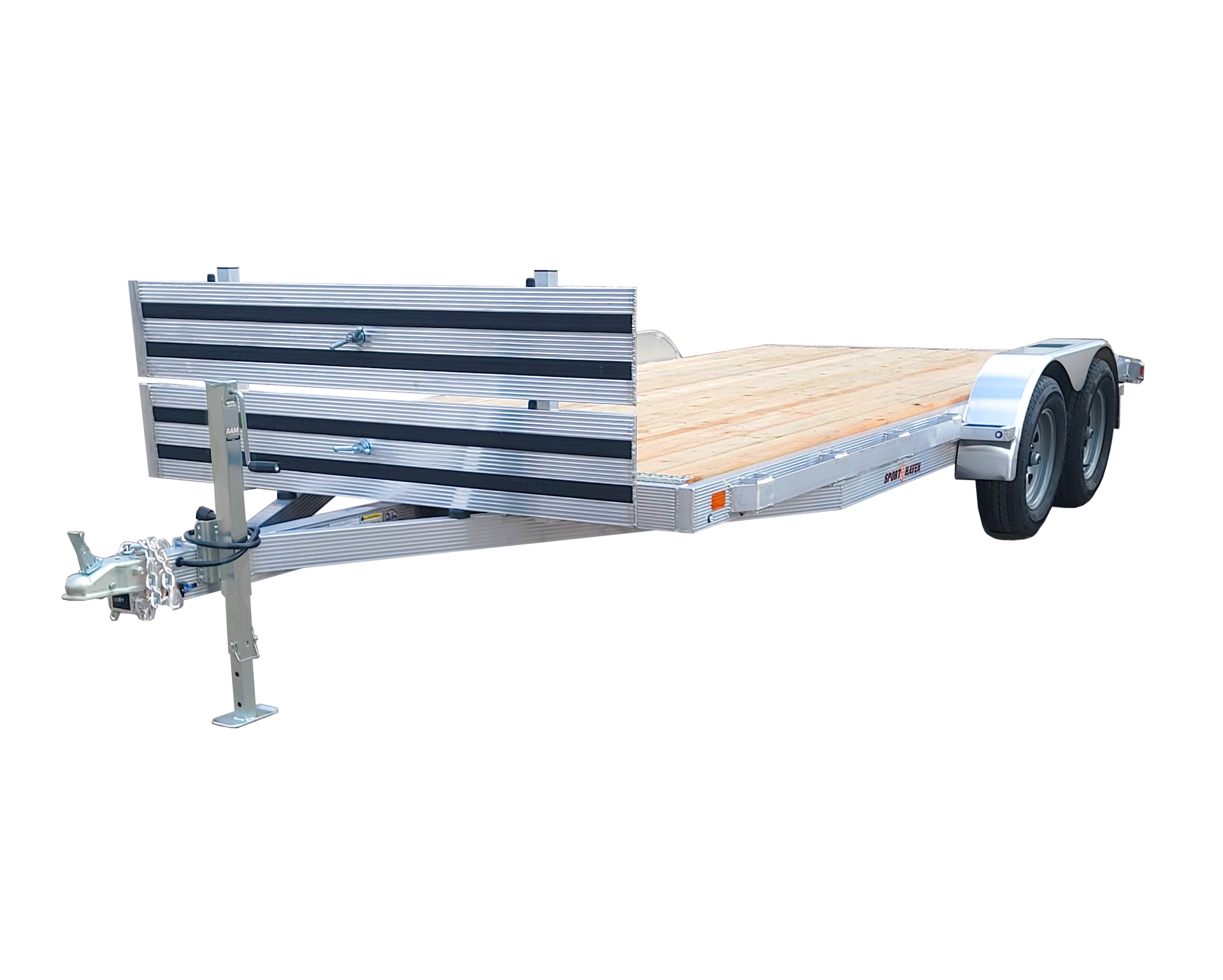

(2) 7' Heavy Duty Ramps - Front Access
Button
Slide title

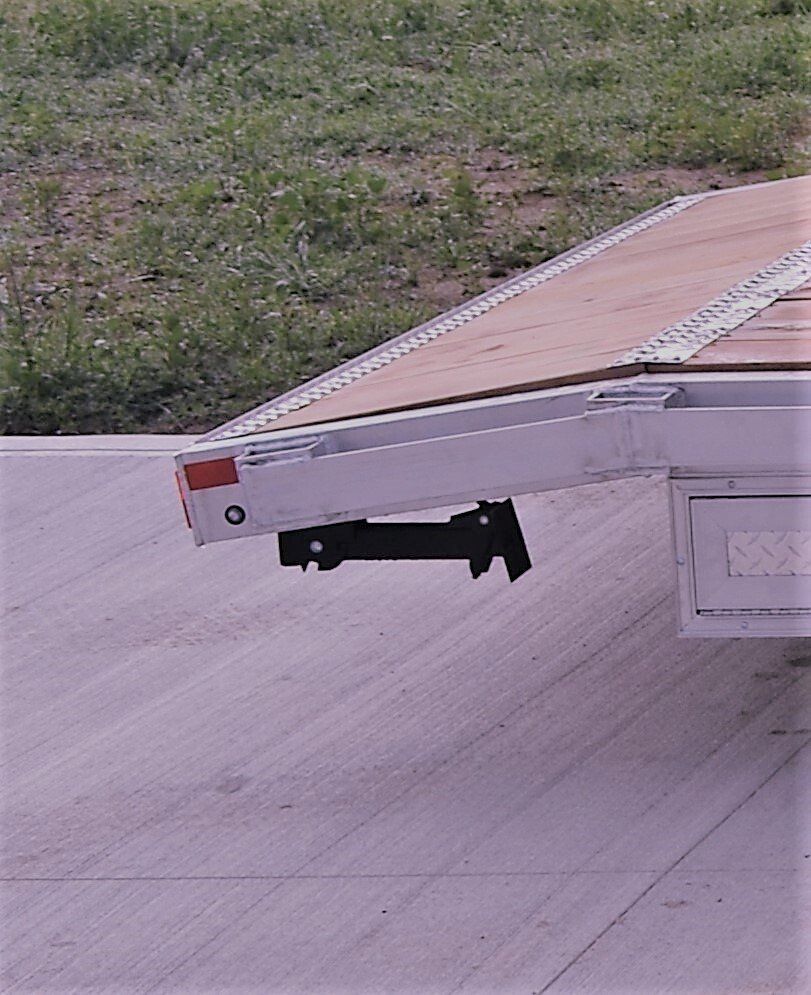

Rear Ramp Drop Pad Stabilizers
Button
Slide title

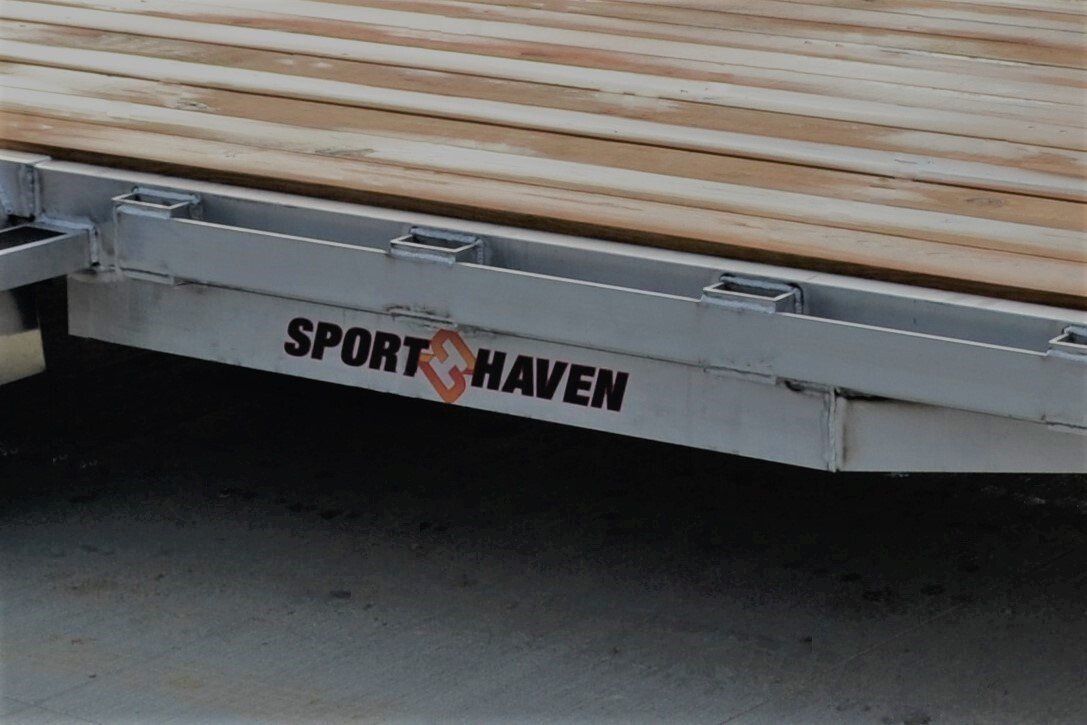

Stake Pockets with Rub Rail
Button
Slide title

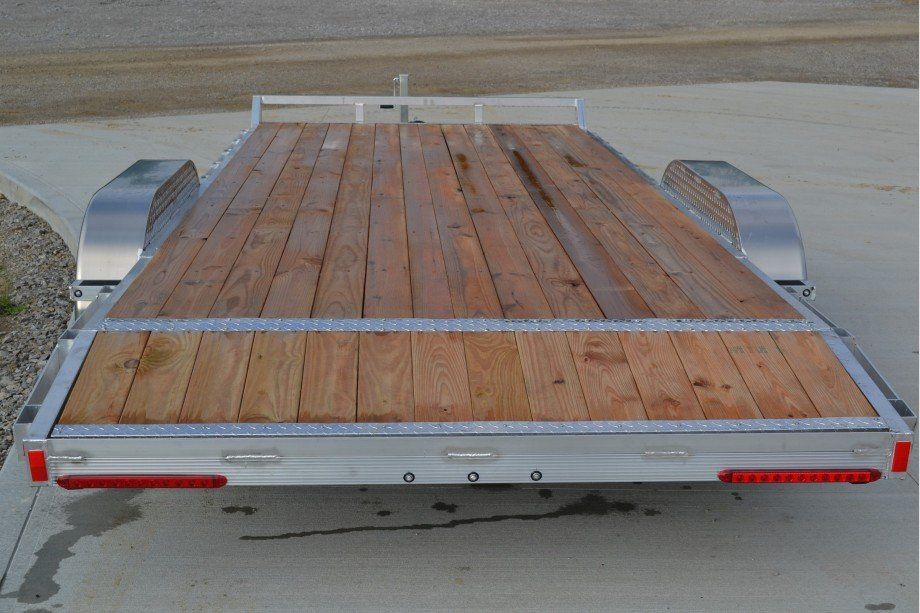

2" x 6" ProWood Dura Color Decking
Button
AOC MODEL OPTIONS
- Aluminum Wheel Upgrade
- Bolt on Spare Tire Mount
- Weld on Spare Tire Mount
- Front Ramp Access

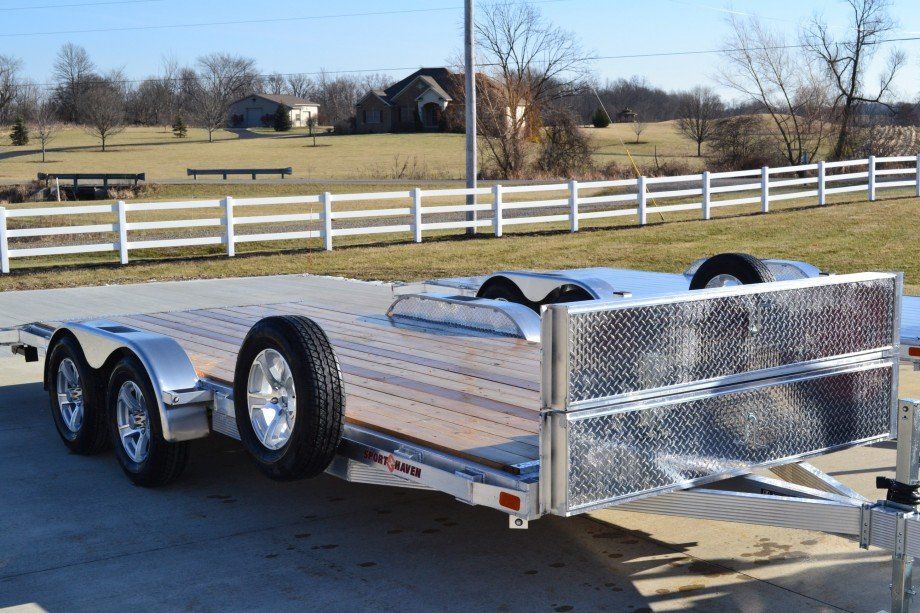

- Bolt on Rock Guard
Nature's Symphony
Bolt on Rock Guard
- (2) 7' Heavy Duty Ramps (Side or Front Access)
- Rear Ramp Drop Pad Stabilizers
- Stake Pockets with 3" x .25" Bar Stock Rub Rail
- 2" x 6" ProWood Dura Color Decking
-
Slide title
Ramp Side Access Door
Button -
Slide title
(2) 7' Heavy Duty Ramps - Front Access
Button -
Slide title
Rear Ramp Drop Pad Stabilizers
Button -
Slide title
Stake Pockets with Rub Rail
Button -
Slide title
2" x 6" ProWood Dura Color Decking
Button
AOC MODEL CONSTRUCTION
AOC MODEL CONSTRUCTION
- Jig Welded Construction for Consistency, Quality

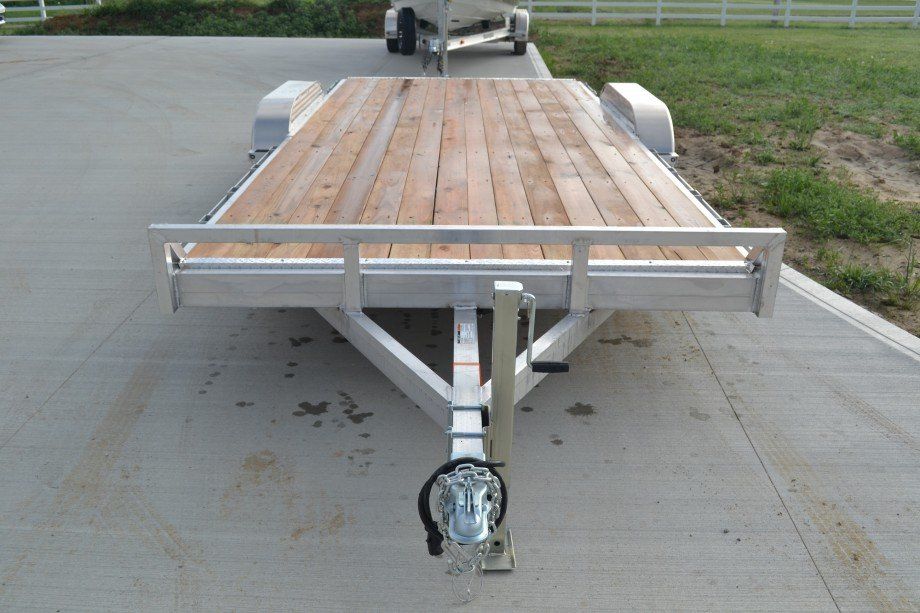

- Welded 2" x 2" Top Deck Aluminum Tube Uprights and Top Rails for Additional Strength
- 3" X 5" Double Hollow Tongue, 2" x 5" Frame Outer Rails & Frame Crossmember - Front
- 3500 lb Dexter Axles w/Leaf Springs
- 2' Rear Beaver Tail
Slide title
Jig Welded Construction
Button
Slide title

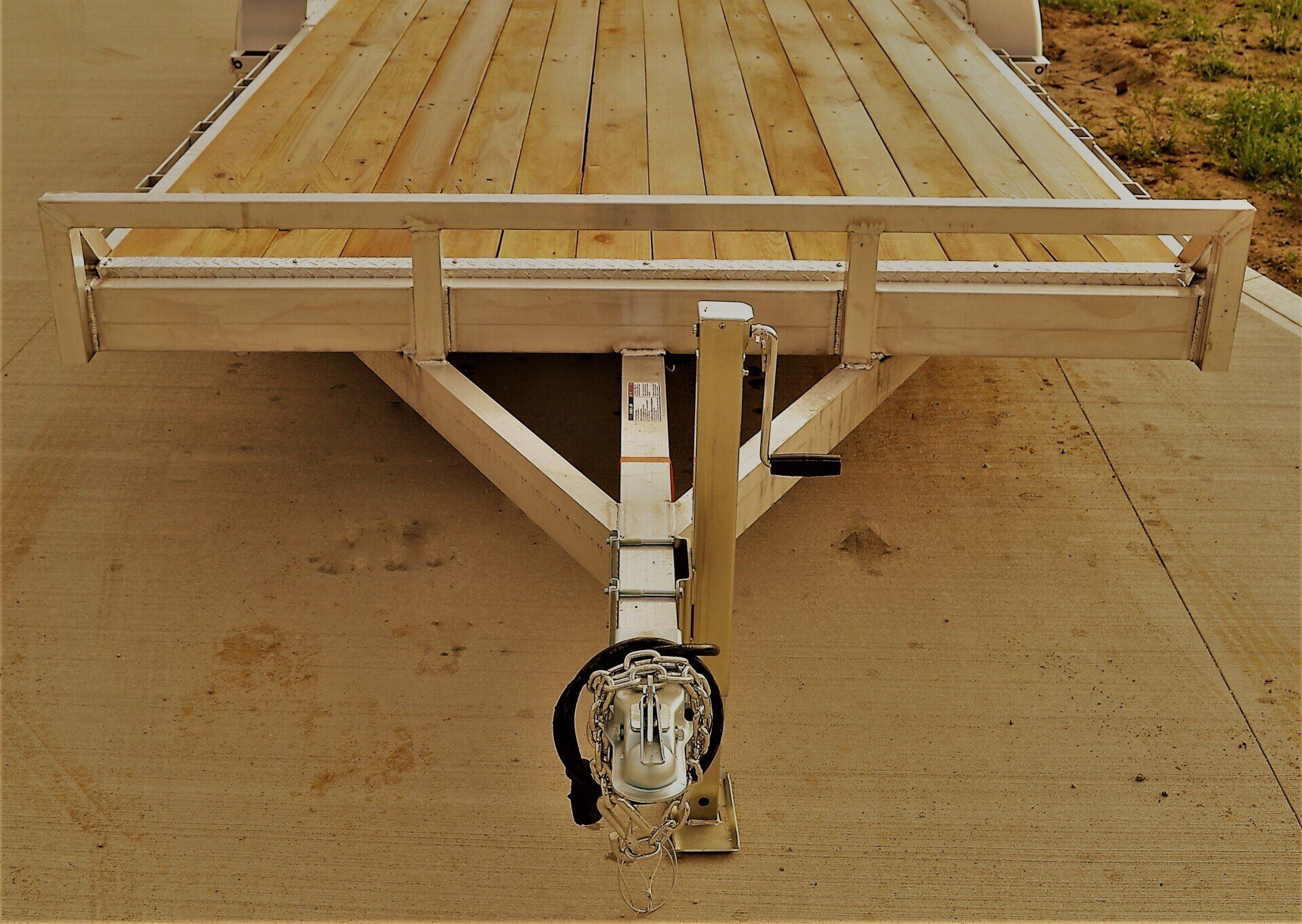

Welded Top Deck Aluminum Tube Uprights and Top Rail
Button
Slide title
Double Hollow Tube Frame Side Rails
Button
Slide title
3500 lb Dexter Axle w/Leaf Springs
Button
- Jig Welded Construction for Consistency, Quality
- Welded 2" x 2" Top Deck Aluminum Tube Uprights and Top Rails for Additional Strength
- 3" X 5" Double Hollow Tongue, 2" x 5" Frame Outer Rails & Frame Crossmember - Front
- 3500 lb Dexter Axles w/Leaf Springs
- 2' Rear Beaver Tail
-
Slide title
Jig Welded Construction
Button -
Slide title
Welded Top Deck Aluminum Tube Uprights and Top Rail
Button -
Slide title
Double Hollow Tube Frame Side Rails
Button -
Slide title
3500 lb Dexter Axle w/Leaf Springs
Button
AOC MODEL SPECIFICATIONS
AOC MODEL SPECIFICATIONS
Construction Specs
- Double Hollow Aluminum Tube Tongue, Frame Outer Rails & Front Crossmembers
- 2" x 2" Front Top Deck Rail
- 2" x 2" Front Top Deck Rail Uprights
- Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum
- 2" x 6" ProWood DuraColor Decking
- Heavy Duty Adjustable Width Loading Ramps
Component Specs
- LED Lights
- 15" Silver E-Coat Wheels
- ST205/75R15C Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 8,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb Capacity Zinc Plated Pad Jack
- 1,000 lb (ea) Support Capacity Rear Stabilizer Jacks
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball
- Electric Brakes On Both Axles
- 14" Hitch Height
- 18" Deck Height
- 7" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Double Hollow Aluminum Tube Tongue, Frame Outer Rails & Front Crossmembers
- 2" x 2" Front Top Deck Rail
- 2" x 2" Front Top Deck Rail Uprights
- Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum
- 2" x 6" ProWood DuraColor Decking
- Heavy Duty Adjustable Width Loading Ramps
Component Specs
- LED Lights
- 15" Silver E-Coat Wheels
- ST205/75R15C Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 8,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb Capacity Zinc Plated Pad Jack
- 1,000 lb (ea) Support Capacity Rear Stabilizer Jacks
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball
- Electric Brakes On Both Axles
- 14" Hitch Height
- 18" Deck Height
- 7" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)

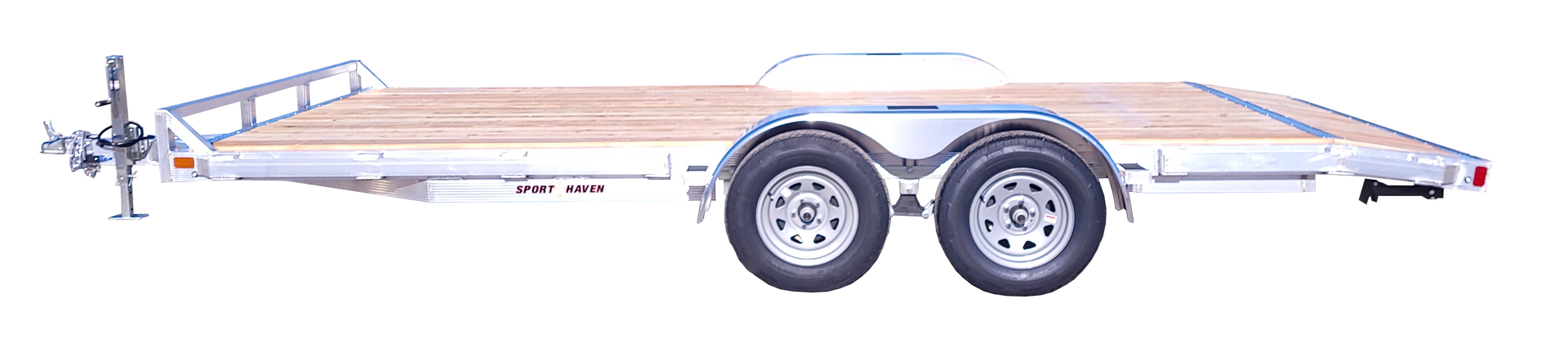

| MODEL | AOC1870T | AOC1870T-FR | AOC2070T | AOC2070T-FR |
|---|---|---|---|---|
| Deck L x W | 216” x 83” | 216” x 83” | 240” x 83” | 240” x 83” |
| Overall L x W | 267” x 102” | 267” x 102” | 291” x 102” | 291” x 102” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Outer Rails | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Outer Rail Supports - Front | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmember* Front | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Above Tongue | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted |
| Frame Crossmembers* Middle | (8) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted |
| Frame Crossmember* Rear | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted |
| Curb Weight | 1,560 lbs | 1,560 lbs | 1,840 lbs | 1,840 lbs |
| Payload Capacity | 5,440 lbs | 5,440 lbs | 5,191 lbs | 5,191 lbs |
| 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
| MODEL | AOC1870T | AOC1870T-FR | AOC2070T | AOC2070T-FR |
|---|---|---|---|---|
| Deck L x W | 216” x 83” | 216” x 83” | 240” x 83” | 240” x 83” |
| Overall L x W | 267” x 102” | 267” x 102” | 291” x 102” | 291” x 102” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Outer Rails | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Outer Rail Supports - Front | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmember* Front | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Above Tongue | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted |
| Frame Crossmembers* Middle | (8) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted |
| Frame Crossmember* Rear | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted |
| Curb Weight | 1,560 lbs | 1,560 lbs | 1,840 lbs | 1,840 lbs |
| Payload Capacity | 5,440 lbs | 5,440 lbs | 5,360 lbs | 5,360 lbs |
| 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
