DELUXE ALUMINUM UTILITY TRAILERS - AUTD MODELS
DELUXE ALUMINUM UTILITY TRAILERS - AUTD MODELS
EXCLUSIVE AUTD MODEL FEATURES
NOTABLE AUTD MODEL FEATURES
EXCLUSIVE AUTD MODEL FEATURES
NOTABLE AUTD MODEL FEATURES
Features you will not find on other brands:
- Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.
- Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

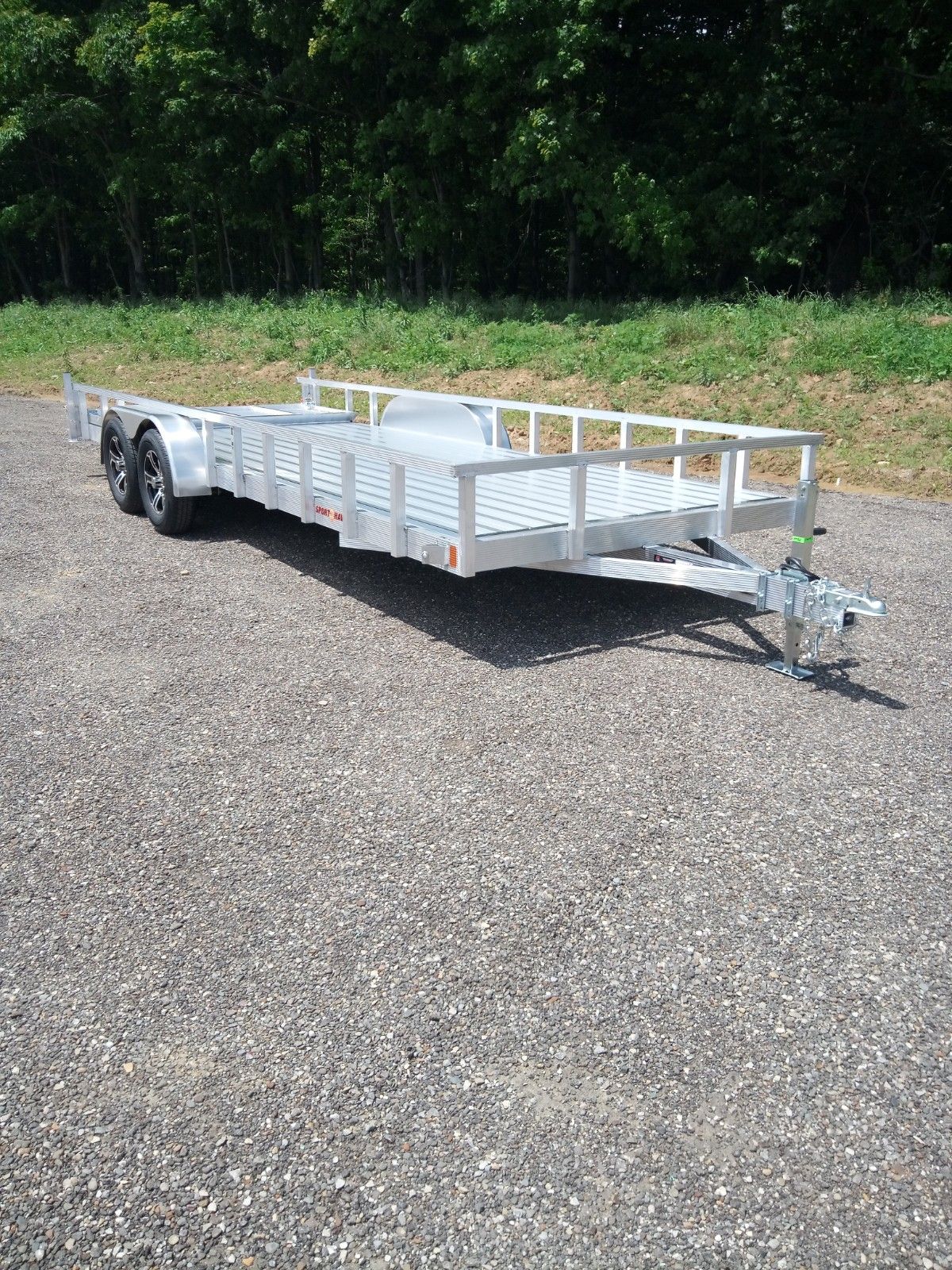

- Aluminum Decking - Anti slip aluminum plank decking
- Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
Spare Mount Side Rail Upright
Spare Mount Side Rail Upright
Button

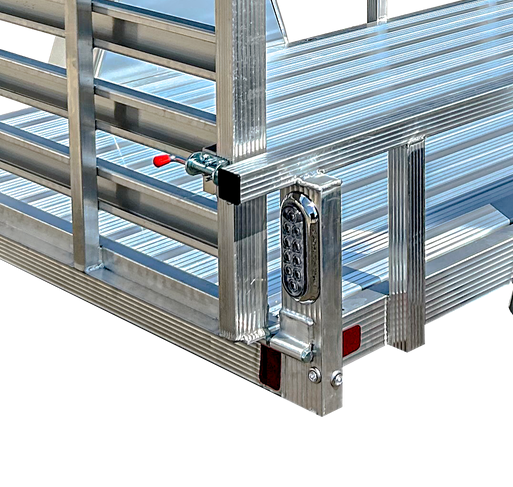

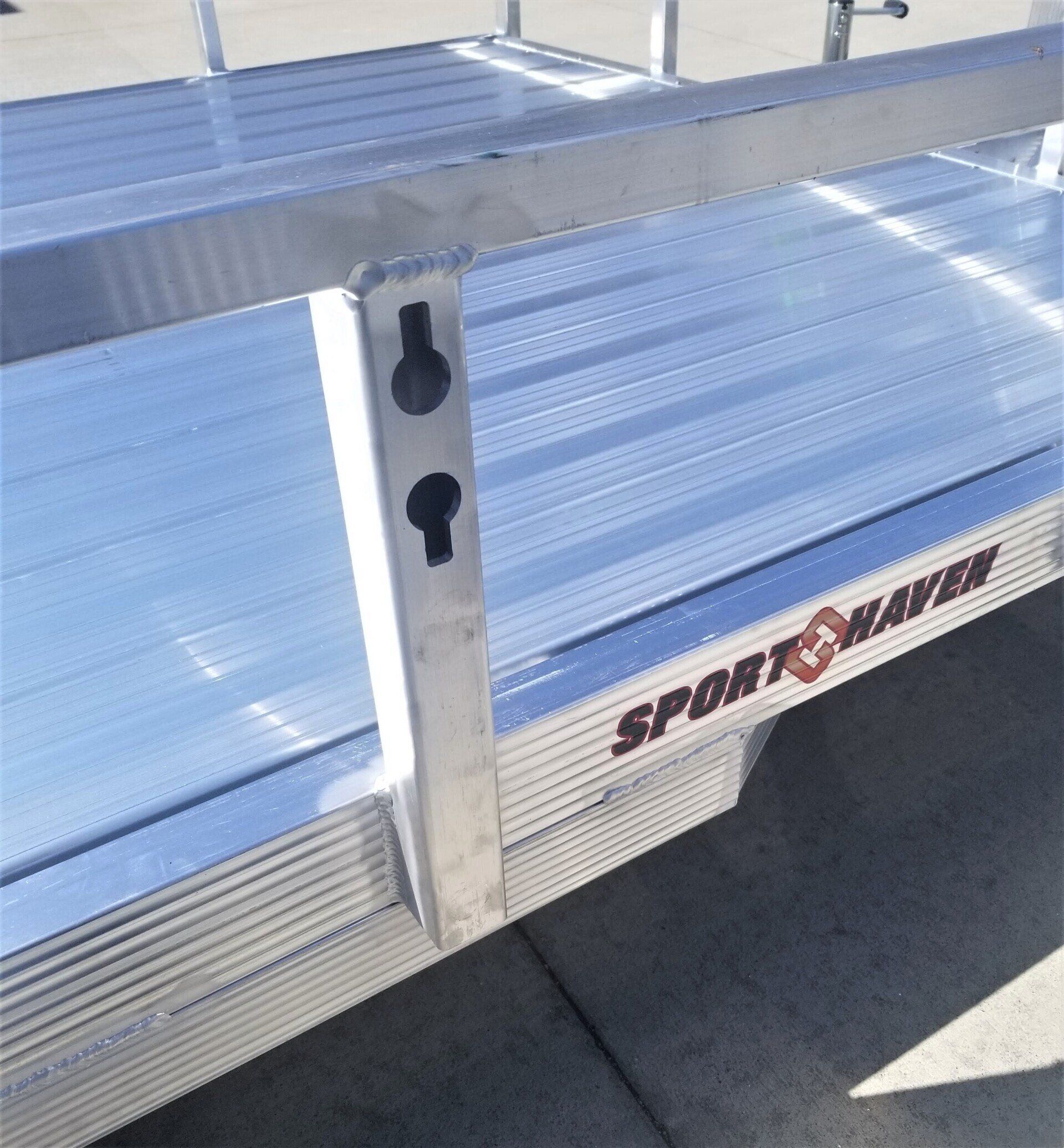

Side Rail Upright shown w/optional Spare Mount Kit

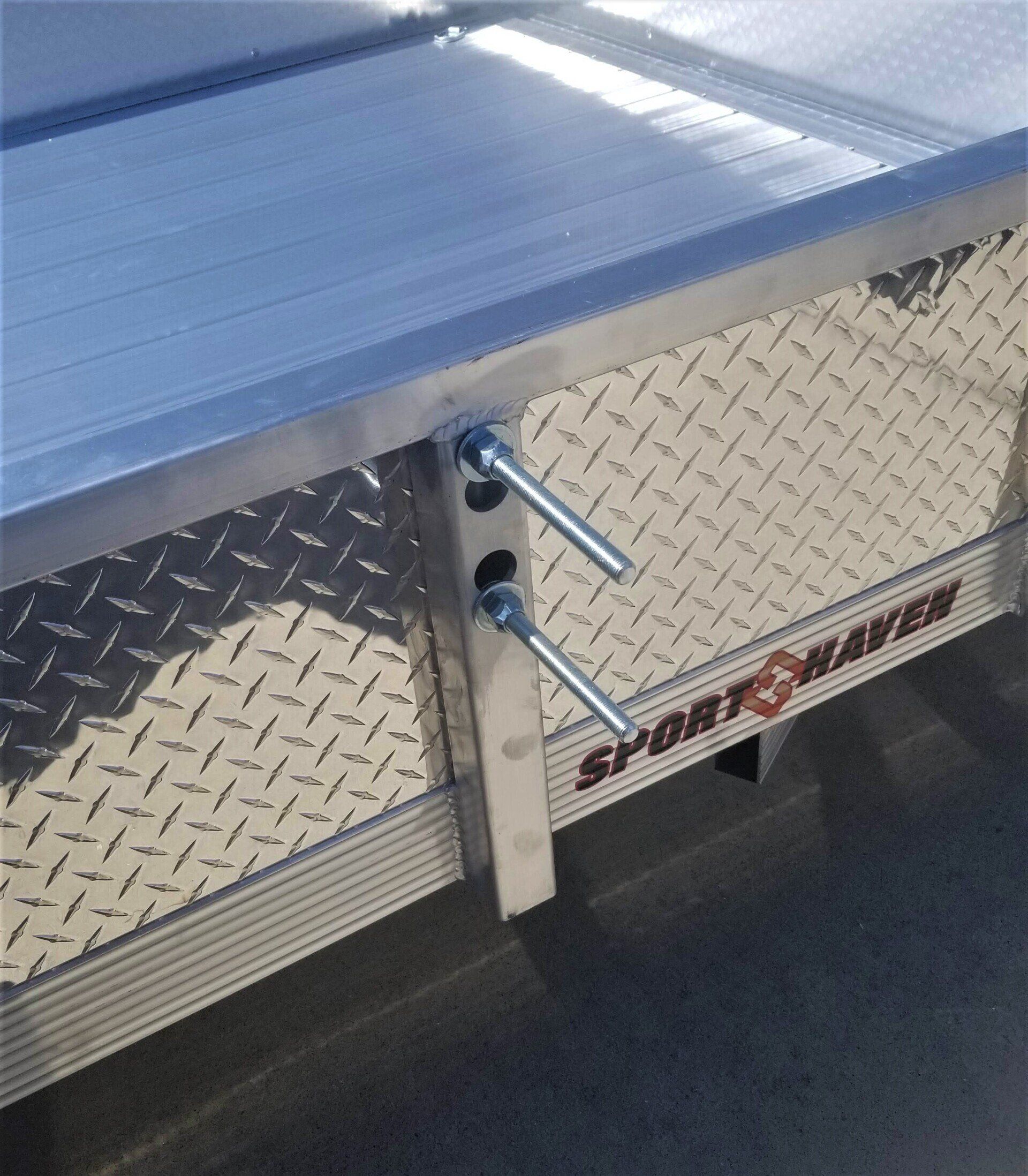

Side Rail Upright shown w/optional Spare Mount Kit & optional Treadplate Sides
Button

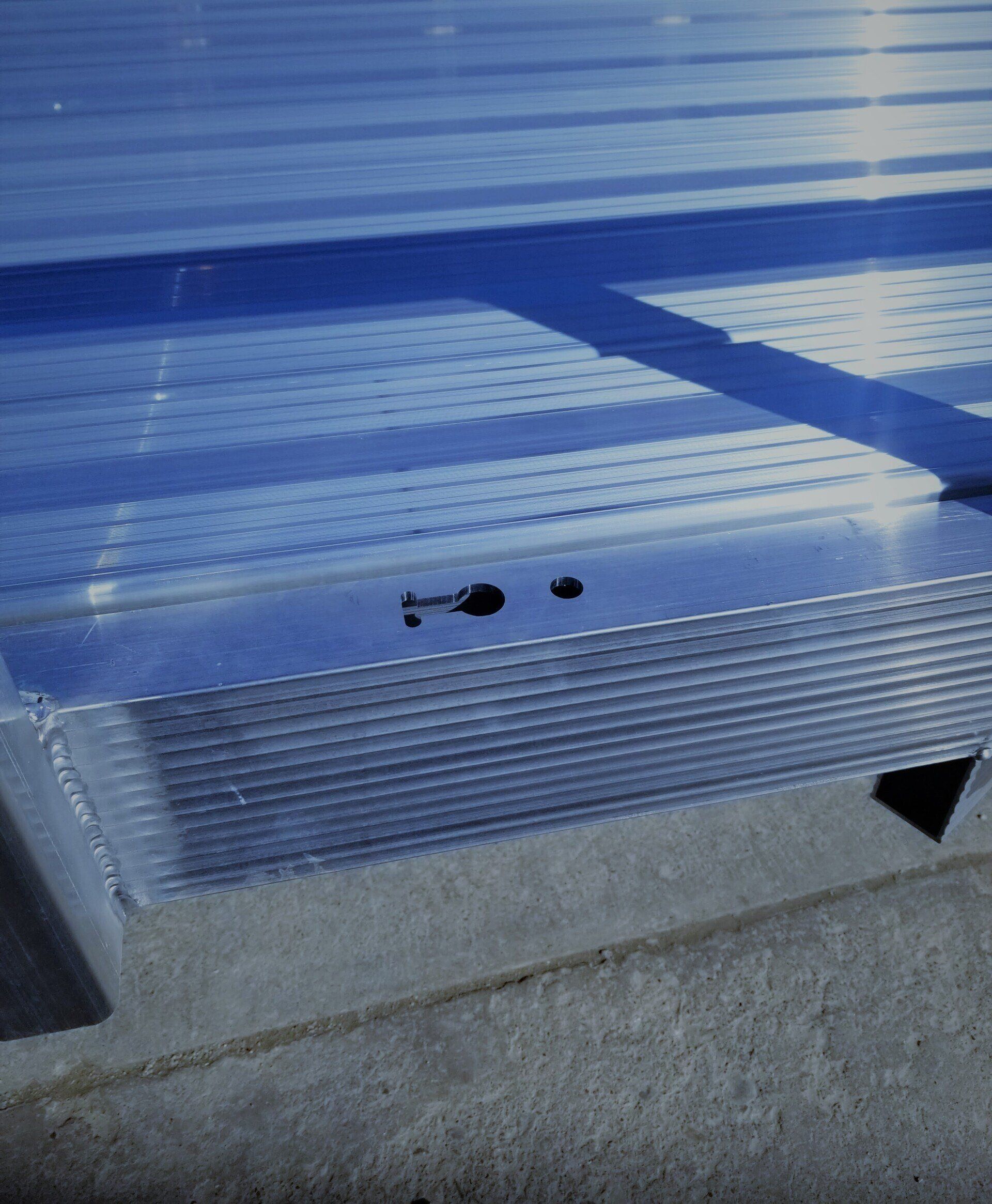

Side Frame Tie-Down Receiver
Side Frame Tie-Down Receiver
Button
Slide title

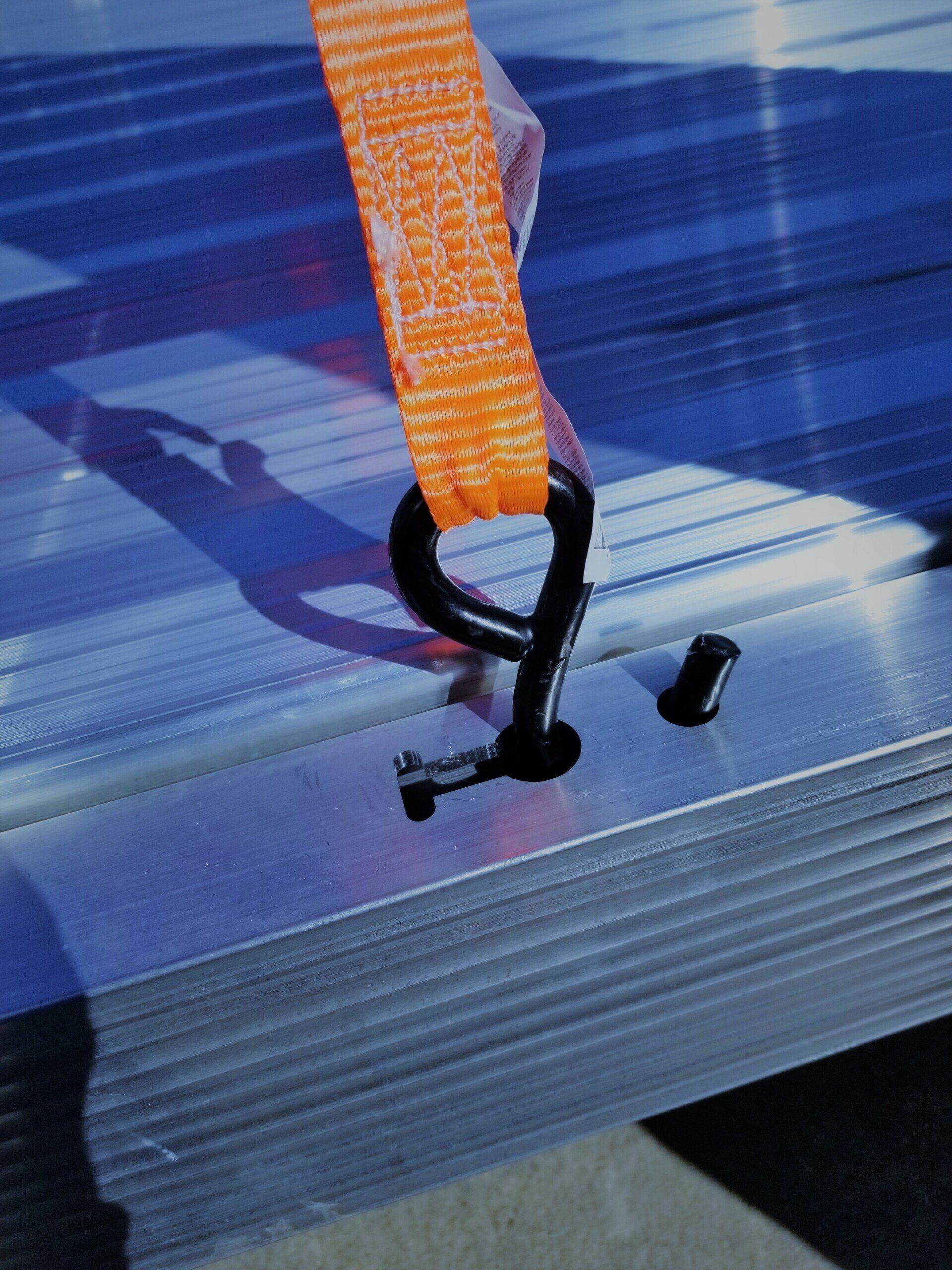

Receiver shown w/optional ratchet strap hook - 700 lb Working Load Limit
Button
Slide title
Receiver Shown w/Optional Single Stud Tie-Down - 1,000 lb Working Load Limit
Button
Slide title
Rear, Removable, 3-Position Ramp
Button
NOTABLE AUTD MODEL FEATURES
Features you might not find on other brands:
- 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting - Limited Lifetime LED warranty

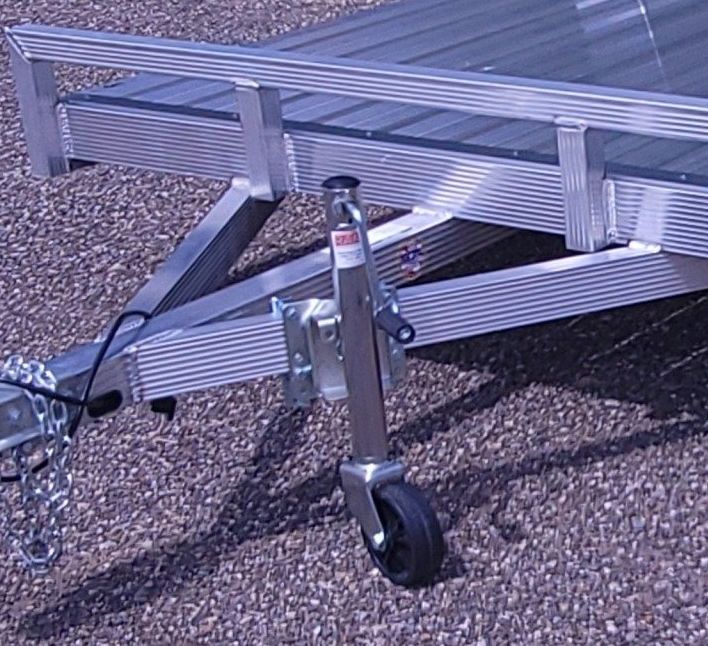

Swivel Jack
1,000 lb Capacity Swivel Jack w/Wheel
Button
Slide title
Spring Loaded Latch Gate
Button
Slide title
15" Radial Tires
Button
Slide title

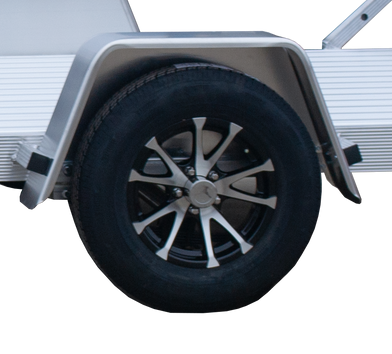

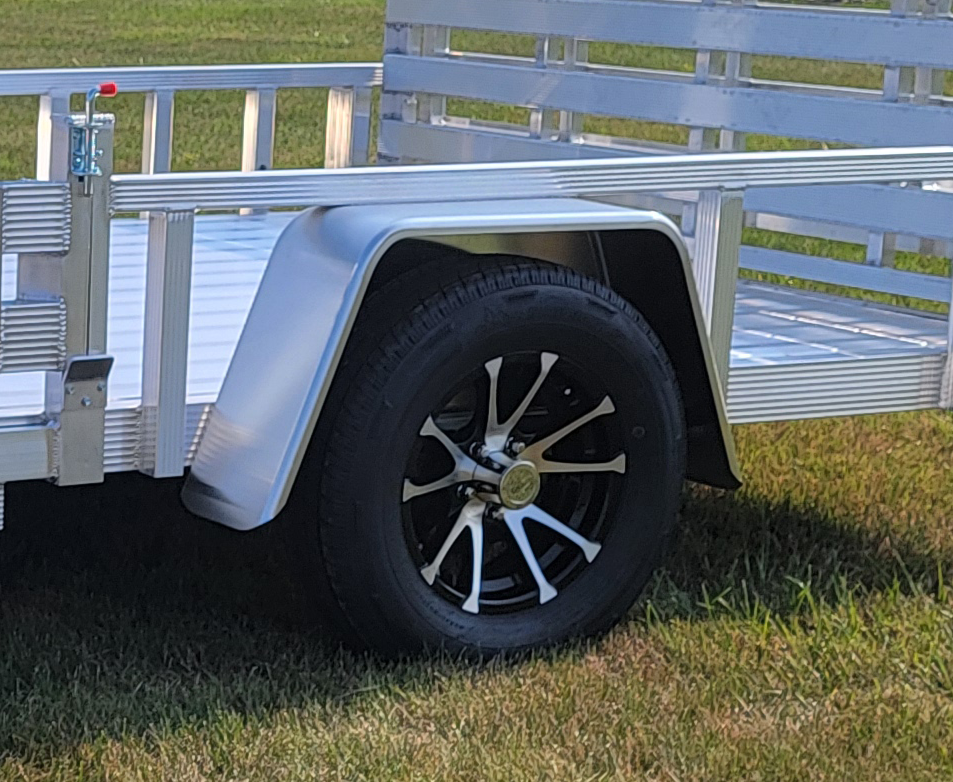

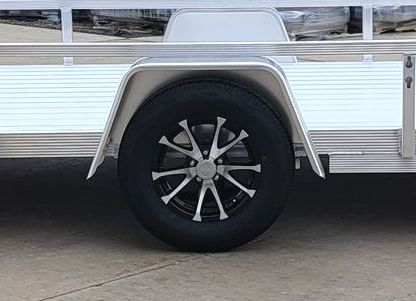

Aluminum Fenders with Fender Insert
Button
LED Lighting
Button
Features you will not find on other brands:
- Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.
- Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.
- Aluminum Decking - Anti slip aluminum plank decking
- Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
-
Spare Mount Side Rail Upright
Spare Mount Side Rail Upright
Button -
Side Rail Upright shown w/optional Spare Mount Kit
Side Rail Upright shown w/optional Spare Mount Kit & optional Treadplate Sides
Button -
Side Frame Tie-Down Receiver
Side Frame Tie-Down Receiver
Button -
Slide title
Receiver shown w/optional ratchet strap hook - 700 lb Working Limit
Button -
Slide title
Receiver Shown w/Optional Single Stud Tie-Down - 1,000 lb Working Load Limit
Button -
Slide title
Rear, Removable, 3-Position Ramp
Button
NOTABLE AUTD MODEL FEATURES
Features you might not find on other brands:
- 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting -
Limited Lifetime LED warranty
-
Swivel Jack
1,000 lb Capacity Swivel Jack w/Wheel
Button -
Slide title
Spring Loaded Latch Gate
Button -
Slide title
15" Radial Tires
Button -
Slide title

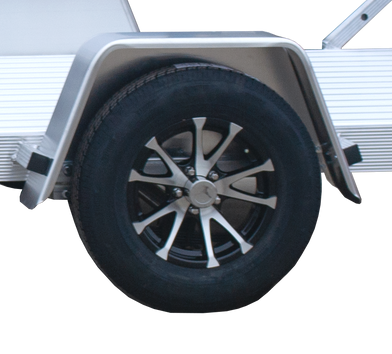

Aluminum Fenders with Fender Insert
Button -
LED Lighting
Button

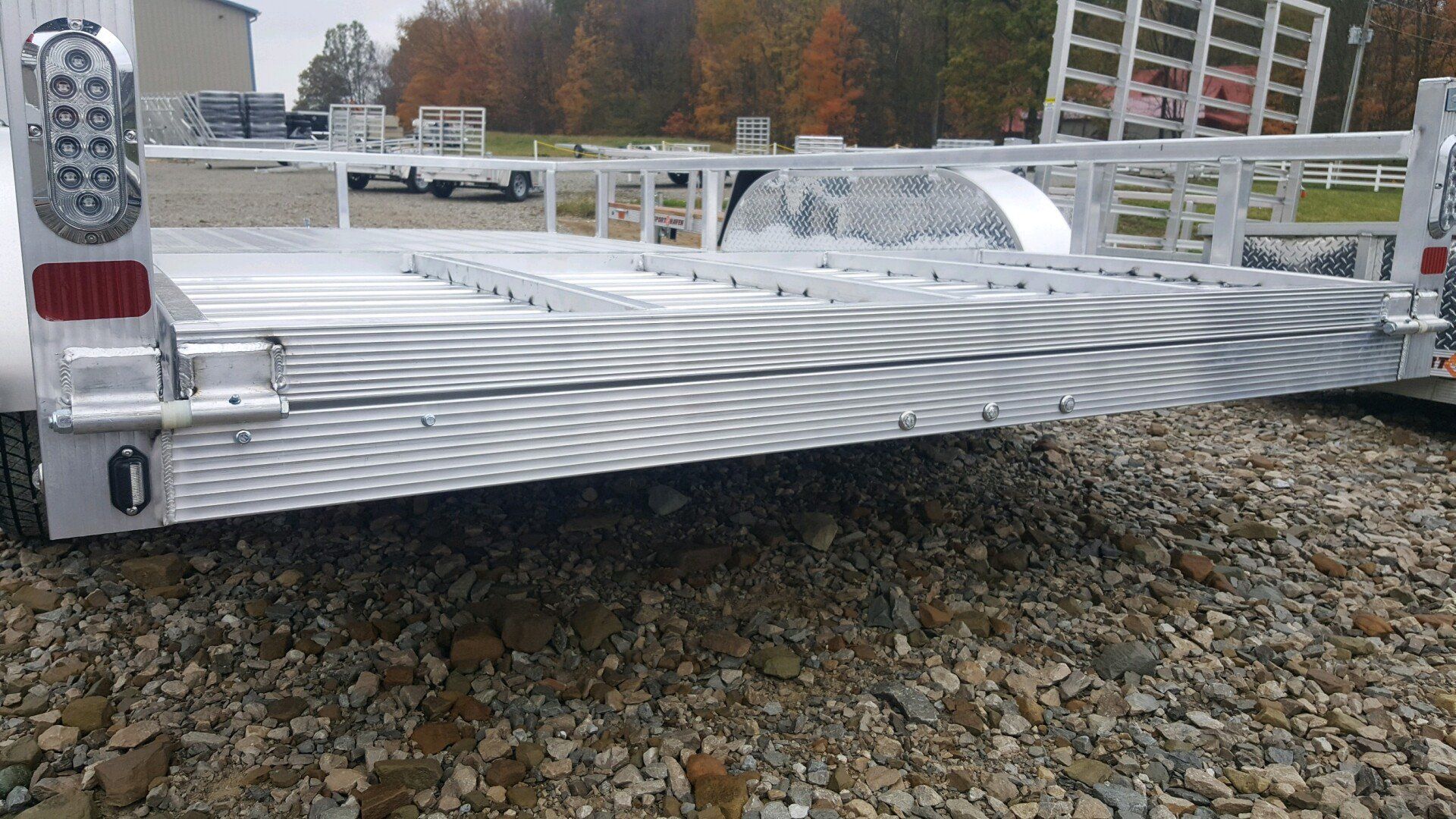

AUTD MODEL CONSTRUCTION
AUTD MODEL CONSTRUCTION
Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
Slide title
Jig Welded Construction
Button
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button
Slide title
2" Wide Top Deck Rails, Tube Top Deck Rail Uprights
Button
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
-
Slide title
Jig Welded Construction
Button -
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button -
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button -
Slide title
2" Wide Top Deck Rails, Tube Top Deck Rail Uprights
Button -
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
AUTD MODEL OPTIONS
AUTD MODEL OPTIONS
Popular Options:

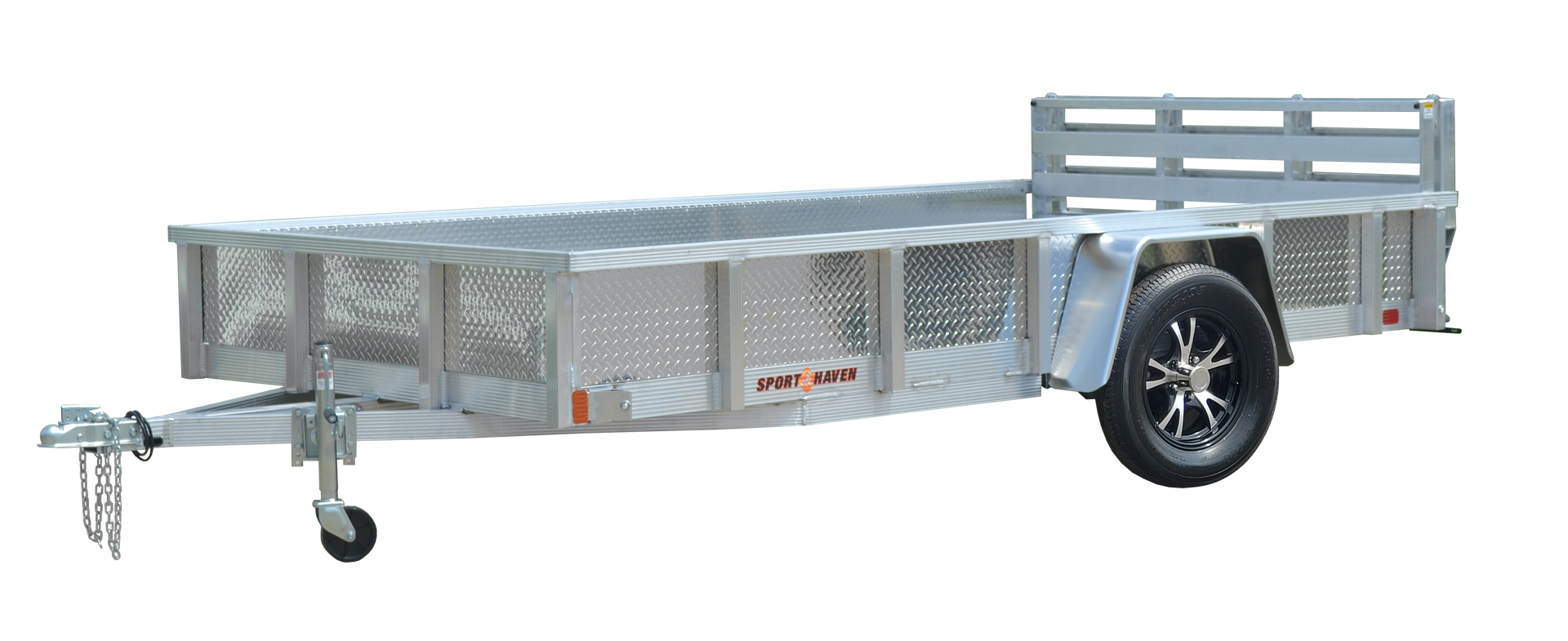

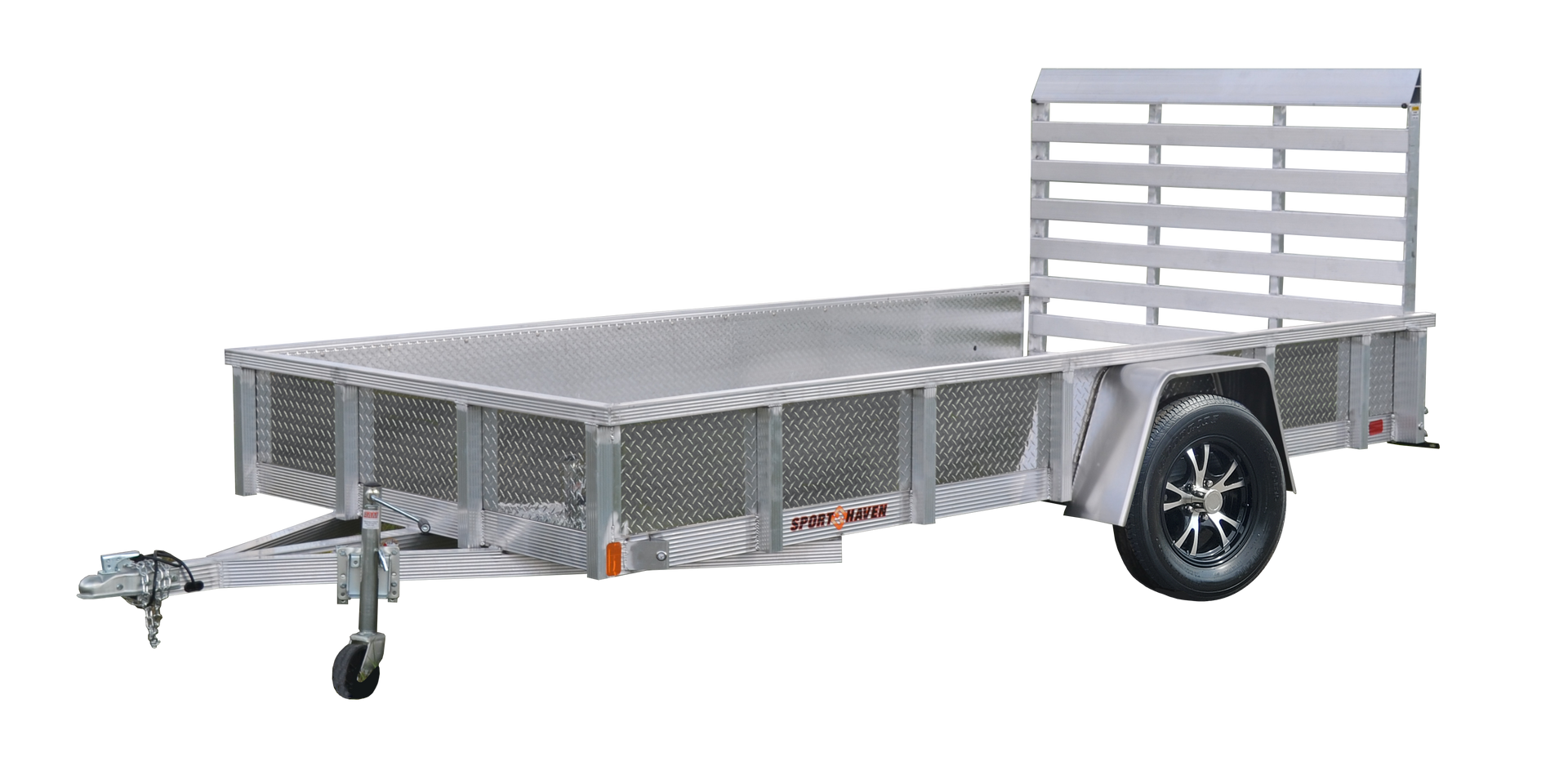

- Aluminum Treadplate Sides
- Lateral 5' Ramp (7' Wide Models)
- Bi-fold Lateral 5' Ramp (7' Wide Models)
- Bi-fold Ramp (Rear and/or Side)
- Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
Slide title

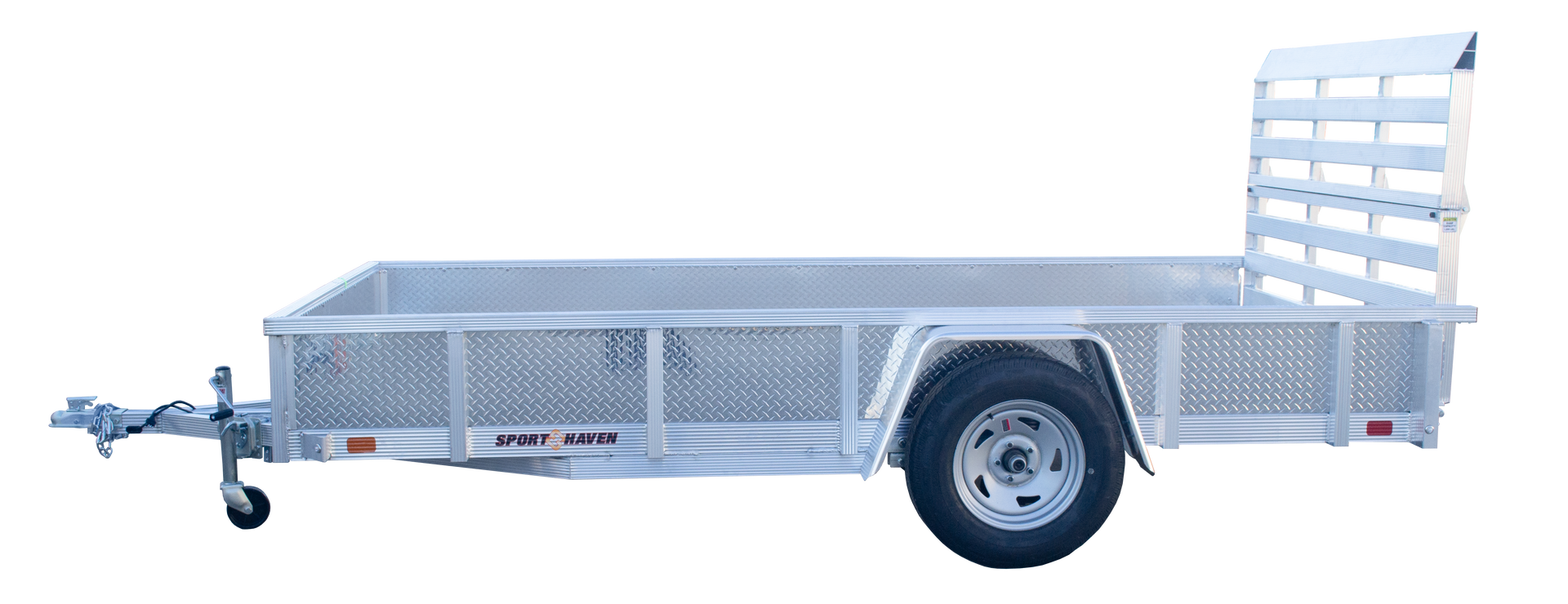

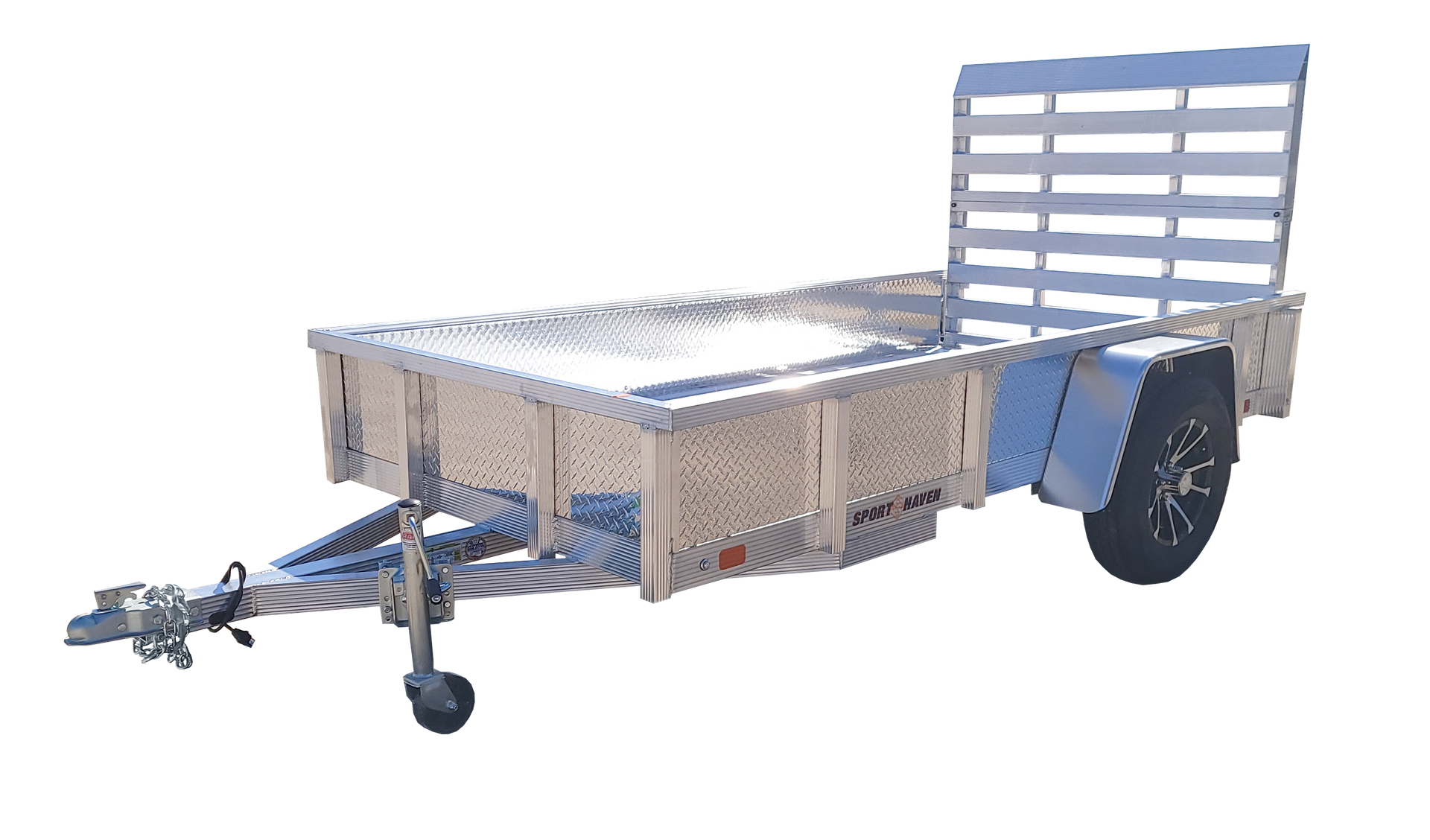

Treadplate Sides
Button
Slide title

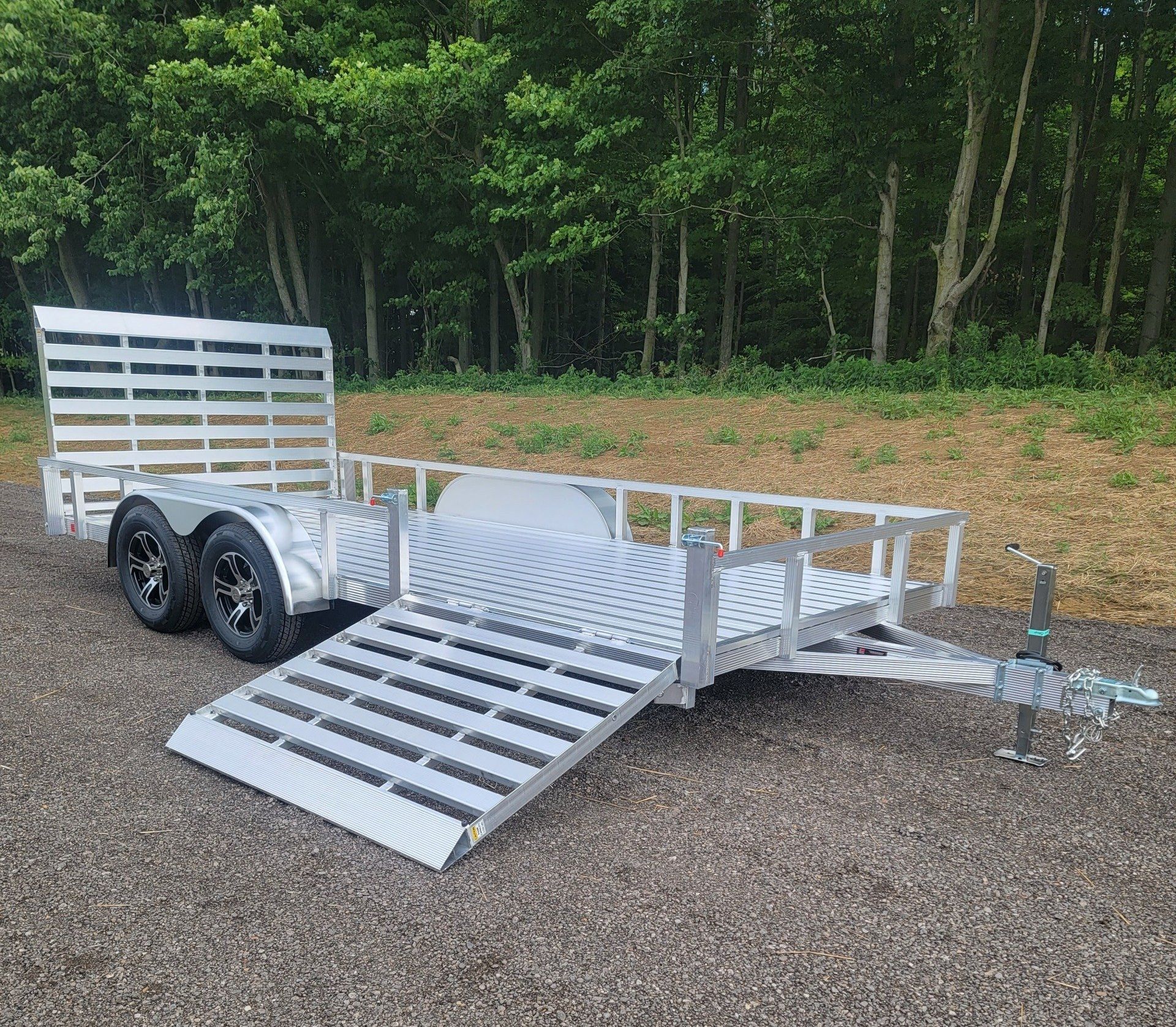

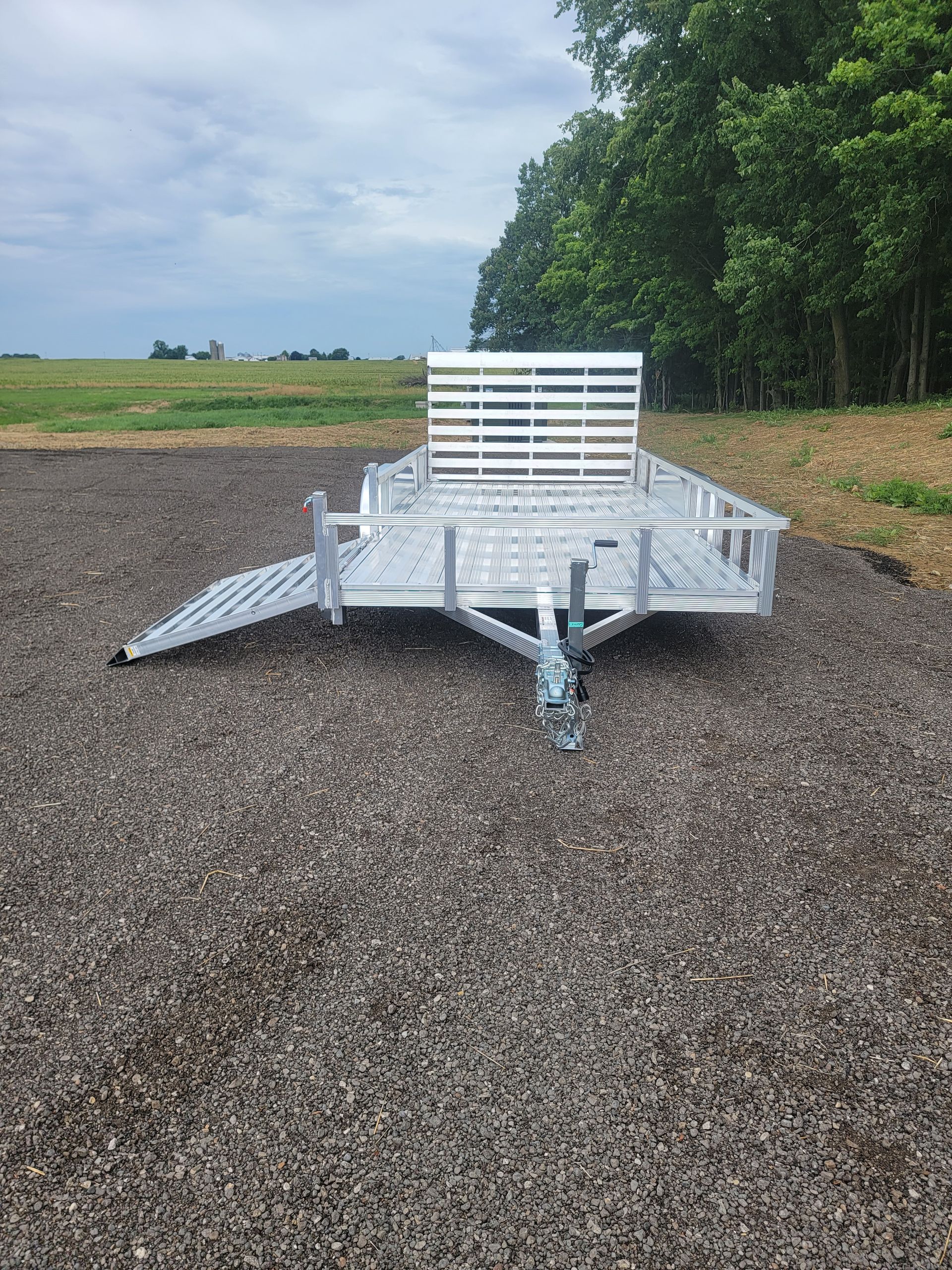

Lateral Ramp
Button
Slide title

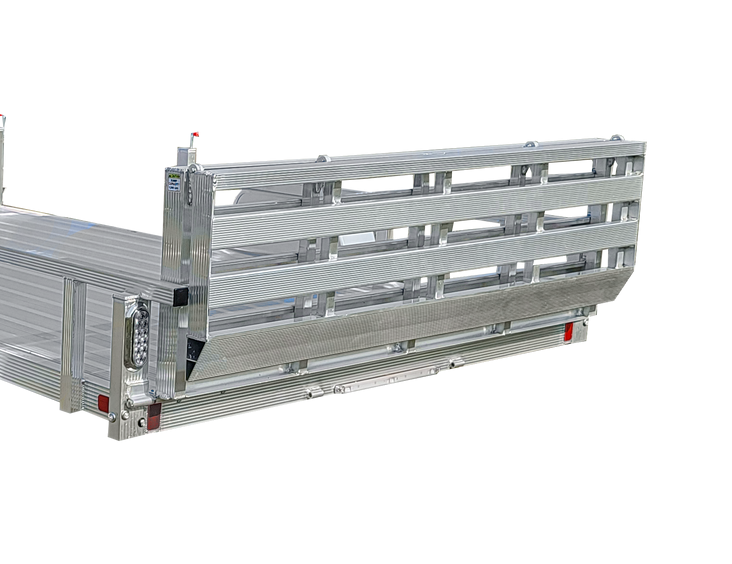

Bi-Fold Ramp
Button
Slide title
Trailer Brakes
Button

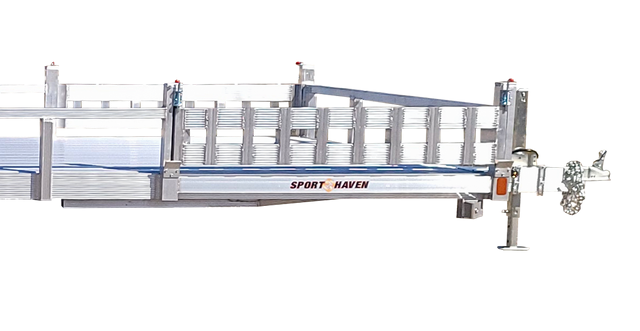

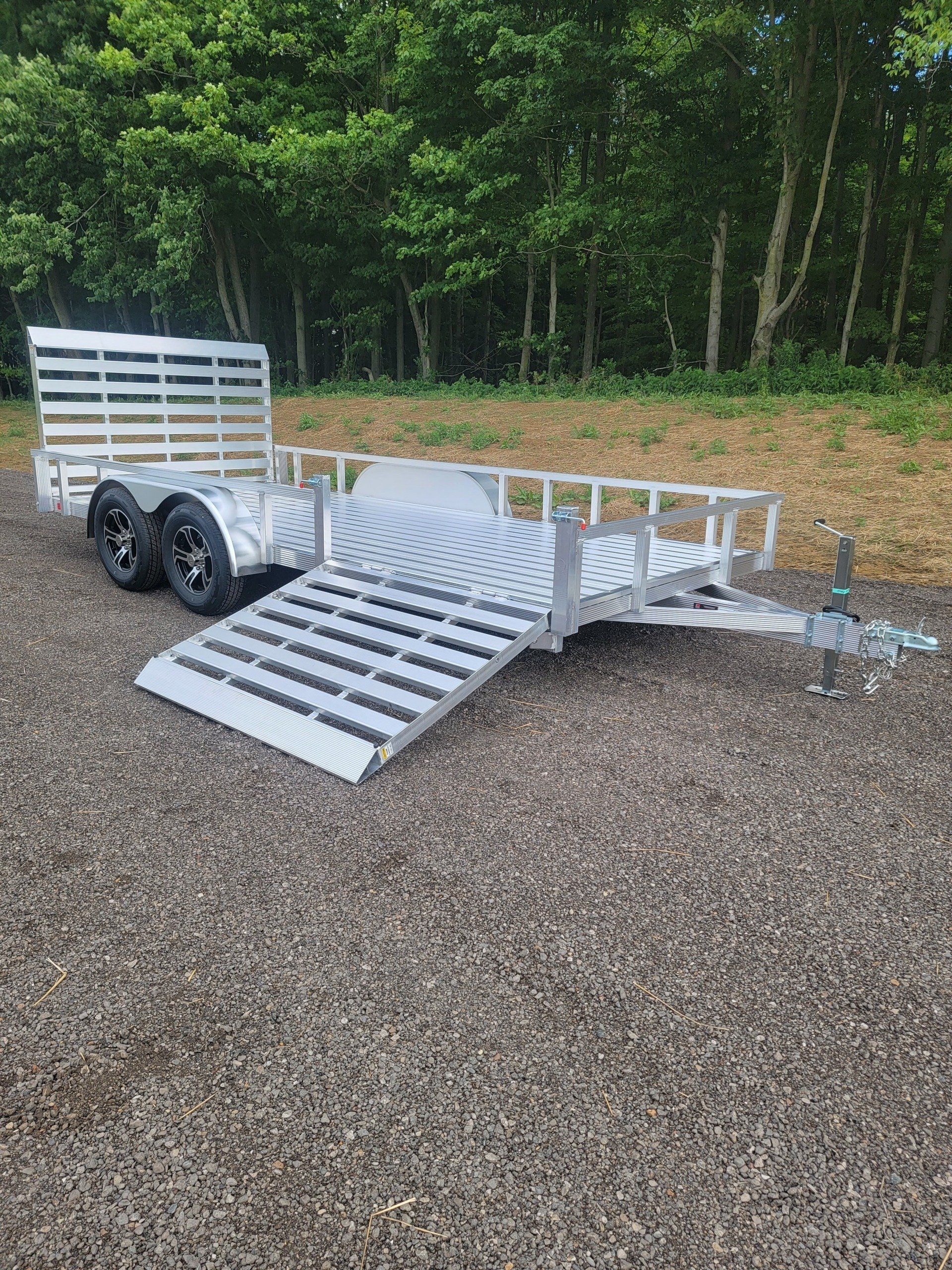

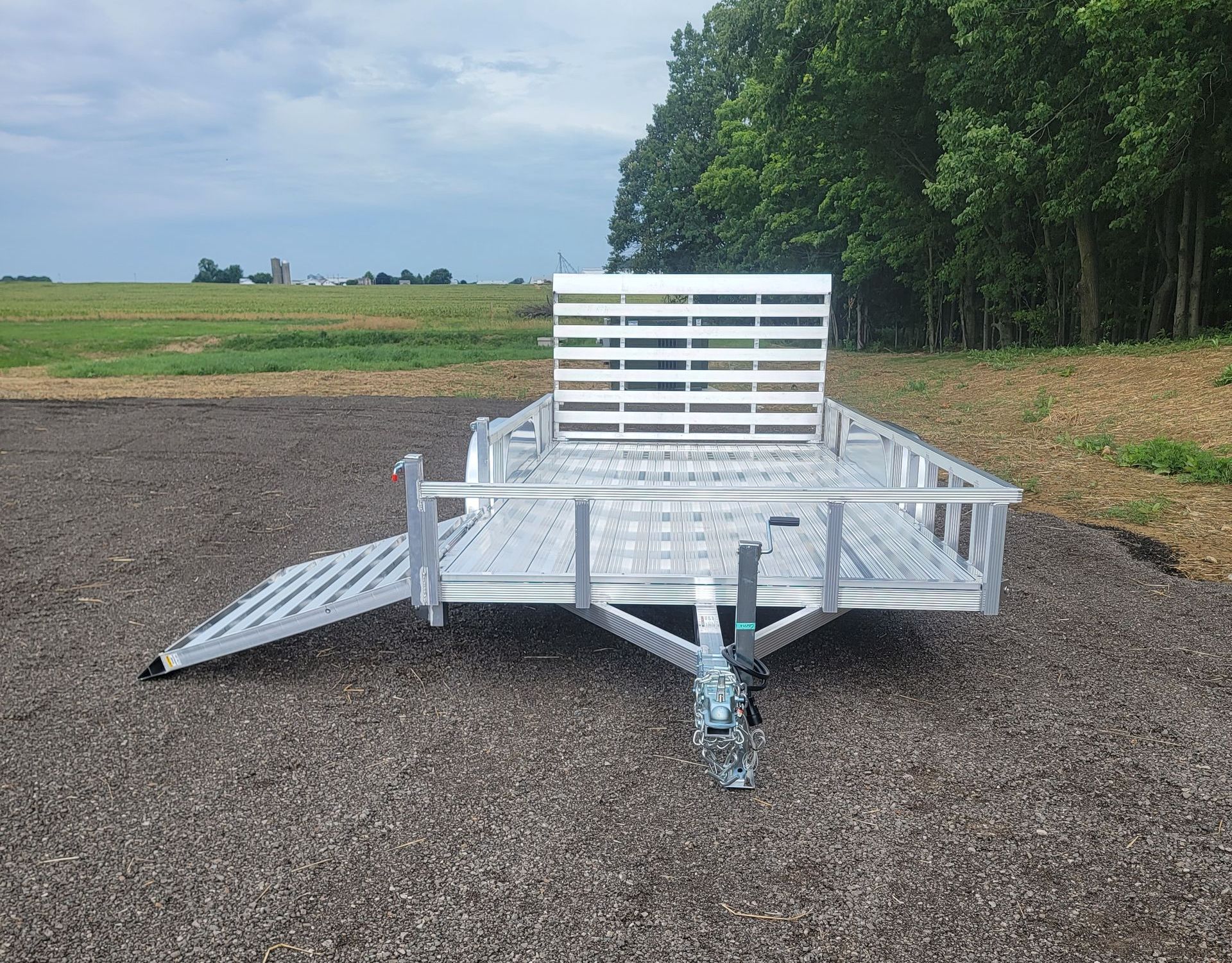

AUTD-LR:
- Aluminum Ramps built into side rails
- Side Load from either side
- Built in Spare Tire Mounting holes (kit sold separately)
- Aluminum Decking
- AUT712, AUT714, AUT714T thru AUT724T
Slide title
Loading ramps lock into side rails
Button
Slide title

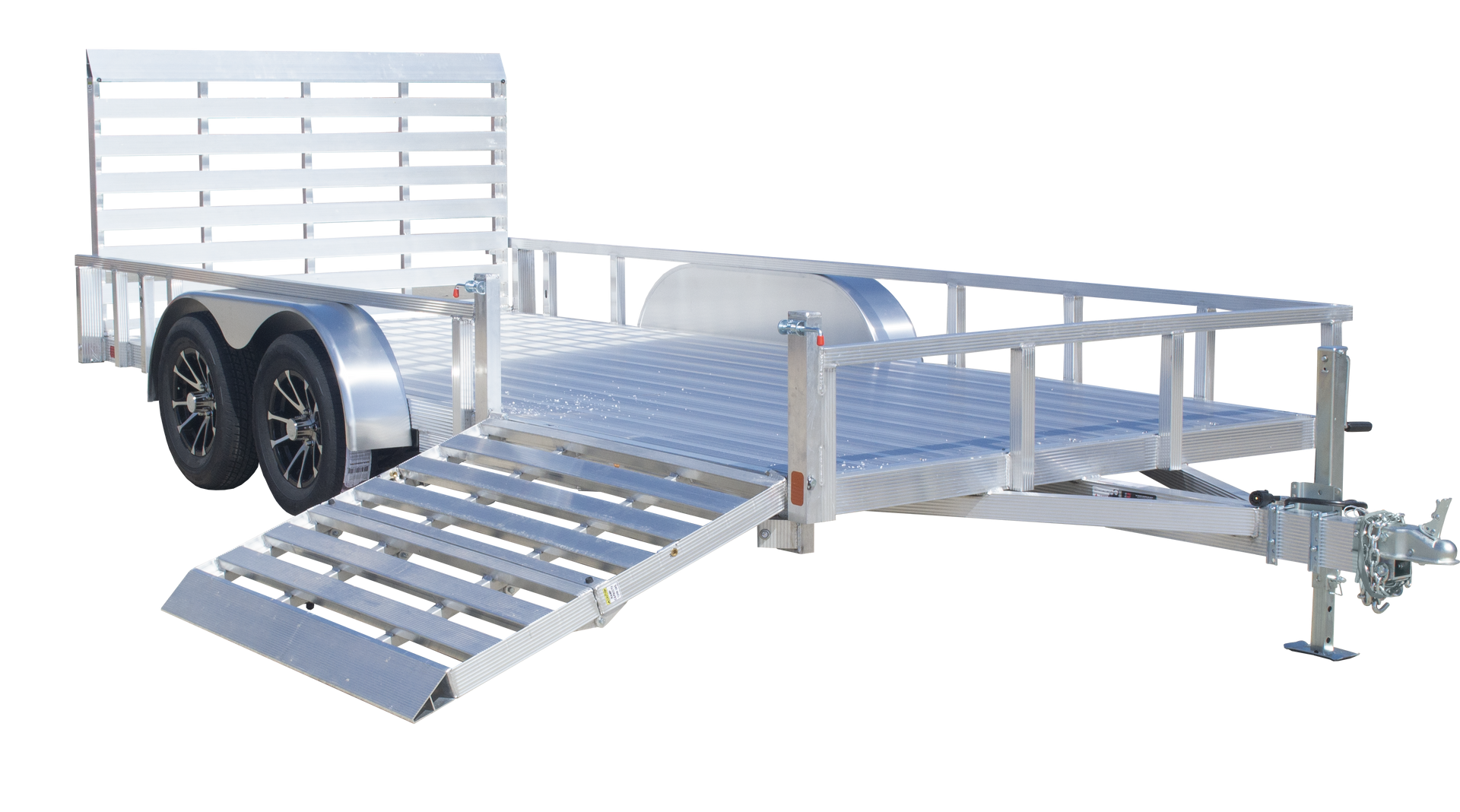

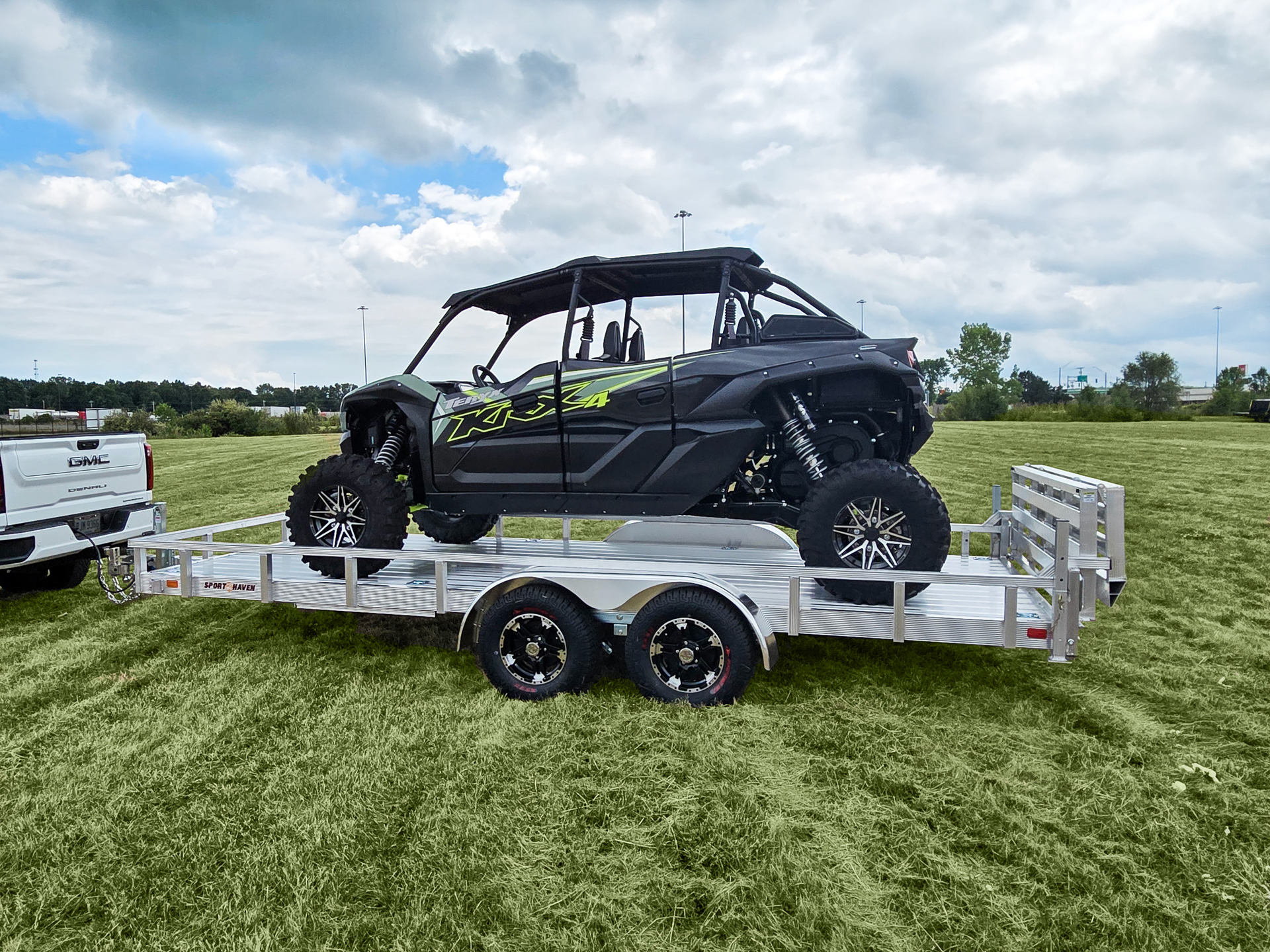

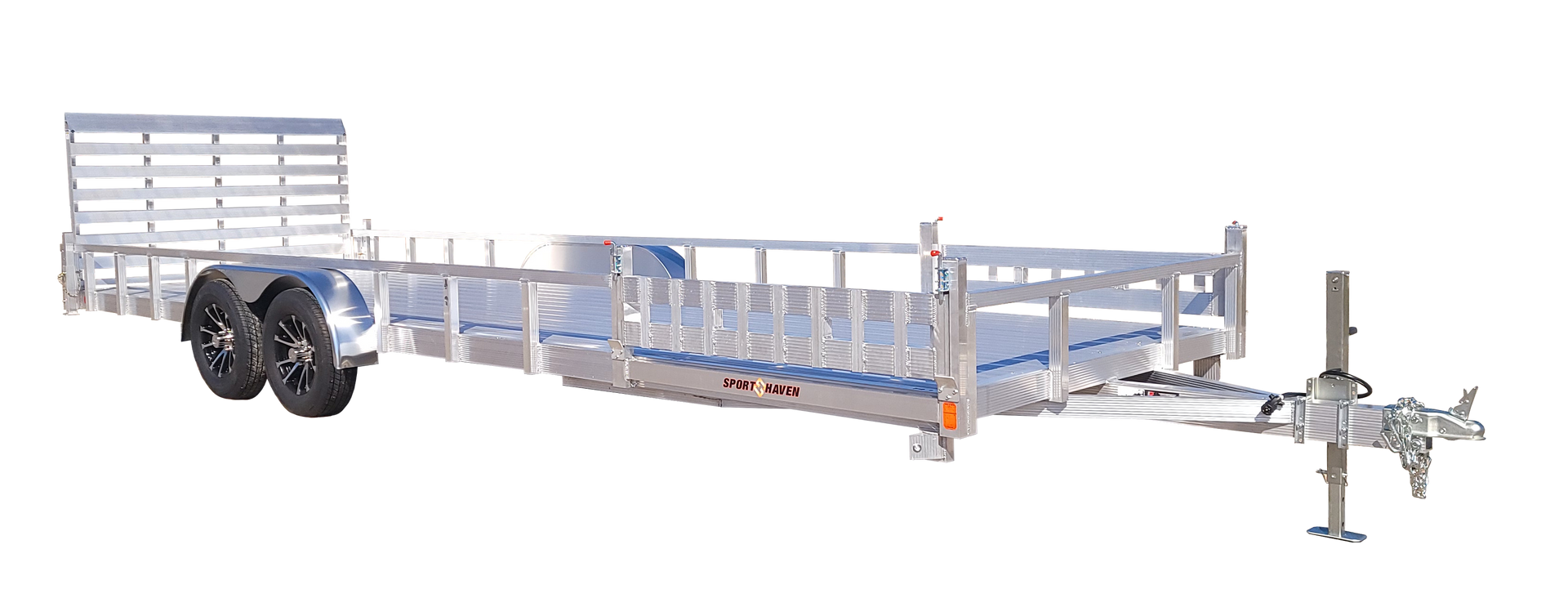

Side Loading Ramps
Button
Slide title
Spare Mount Upright
Button
Slide title
Anti Slip Aluminum Decking
Button
Popular Options:
- Aluminum Treadplate Sides
- Lateral 5' Ramp (7' Wide Models)
- Bi-fold Lateral 5' Ramp (7' Wide Models)
- Bi-fold Ramp (Rear and/or Side)
- Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
-
Slide title
Treadplate Sides
Button -
Slide title
Lateral Ramp
Button -
Slide title
Bi-Fold Ramp
Button -
Slide title
Trailer Brakes
Button
AUTD-LR:
- Aluminum Ramps built into side rails
- Side Load from either side
- Built in Spare Tire Mounting holes (kit sold separately)
- Aluminum Decking
- AUT712, AUT714, AUT714T thru AUT724T
-
Slide title
Loading ramps lock into side rails
Button -
Slide title
Side Loading Ramps
Button -
Slide title
Spare Mount Upright
Button -
Slide title
Anti Slip Aluminum Decking
Button

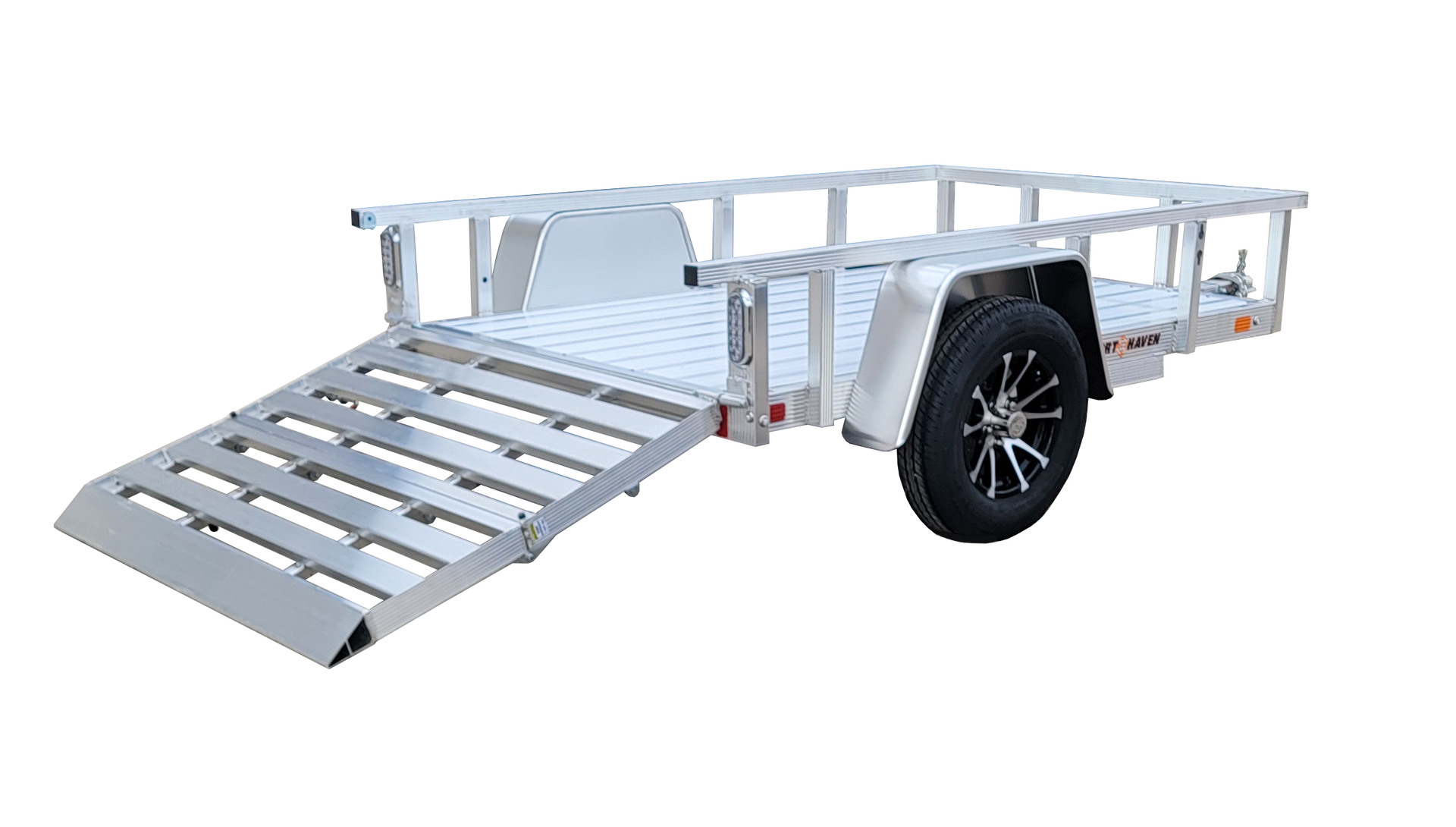

AUTD MODEL SINGLE AXLE TRAILER SPECIFICATIONS
AUTD MODEL SINGLE AXLE TRAILER SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- 3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
- 3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Aluminum Wheels
- 15" Radial Tires
- 3,500 lb Capacity Axles
- Torsion Axles 5' & 6' Models
- Double Eye Spring Suspension 7' Models
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
| Model | AUT508D | AUT510D | AUT512D | AUT514D | AUT610D | AUT612D | AUT614D | AUT712D | AUT714D |
|---|---|---|---|---|---|---|---|---|---|
| Deck L x W | 96” x 60” | 120” x 60” | 144” x 60” | 168” x 60” | 120” x 72” | 144” x 72” | 168” x 72” | 144" x 83” | 168" x 83" |
| Overall L x W | 138” x 78” | 162” x 78” | 186” x 78” | 210” x 78” | 162” x 90” | 186” / 90” | 210” x 90” | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" | (1) 3" x 4" Fluted | (1) 3" x 4" Fluted |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted |
| Curb Weight | 440 lbs | 460 lbs | 520 lbs | 580 lbs | 520 lbs | 540 lbs | 616 lbs | 620 lbs | 660 lbs |
| Payload Capacity | 2,550 lbs | 2530 lbs | 2470 lbs | 2410 lbs | 2470 lbs | 2450 lbs | 2374 lbs | 2370 lbs | 2330 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing Is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
| Model | AUT508D | AUT510D | AUT512D | AUT514D | AUT610D | AUT612D | AUT614D | AUT712D | AUT714D |
|---|---|---|---|---|---|---|---|---|---|
| Deck L x W | 96” x 60” | 120” x 60” | 144” x 60” | 168” x 60” | 120” x 72” | 144” x 72” | 168” x 72” | 144" x 83” | 168" x 83" |
| Overall L x W | 138” x 78” | 162” x 78” | 186” x 78” | 210” x 78” | 162” x 90” | 186” / 90” | 210” x 90” | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" | (1) 3" x 4" | (1) 3" x 4" |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted |
| Curb Weight | 440 lbs | 460 lbs | 520 lbs | 580 lbs | 520 lbs | 540 lbs | 616 lbs | 620 lbs | 660 lbs |
| Payload Capacity | 2,550 lbs | 2530 lbs | 2470 lbs | 2410 lbs | 2470 lbs | 2450 lbs | 2374 lbs | 2370 lbs | 2330 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing Is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

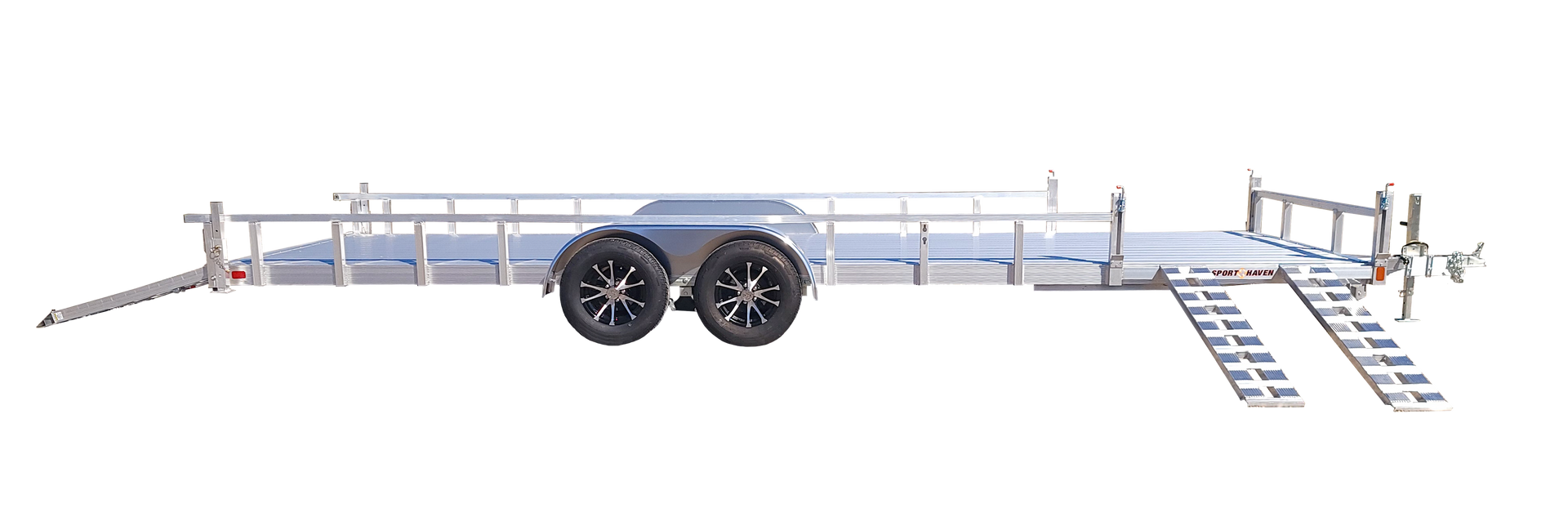

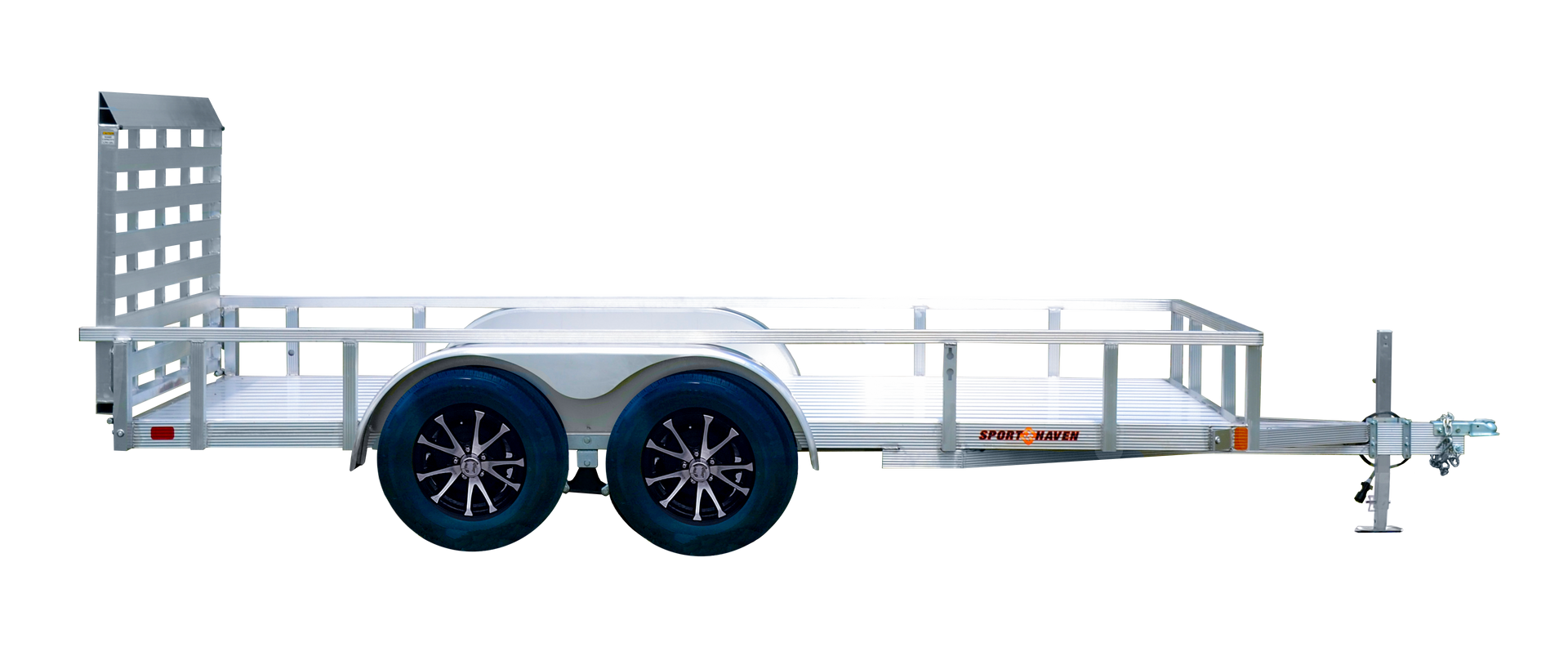

AUTD MODEL TANDEM AXLE TRAILER SPECIFICATIONS
AUTD MODEL TANDEM AXLE TRAILER SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 5/4" x 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- 4" Drop Axles
- Double Eye Spring Suspension
- 7,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball Compatible
- Electric Brakes On Both Axles
- 13" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 5/4" x 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Silver Powder Coated Wheels
- 15" Radial Tires
- 3,500 lb Capacity Axles
- 4" Drop Axles
- Double Eye Spring Suspension
- 7,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball Compatible
- Electric Brakes On Both Axles
- 13" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
| MODEL | AUT712TD | AUT714TD | AUT716TD | AUT718TD | AUT720TD | AUT722TD | AUT724TD |
|---|---|---|---|---|---|---|---|
| Deck L x W | 144" x 83” | 168” x 83” | 192” x 83” | 216” x 83” | 240” x 83” | 264” x 83” | 288” x 83” |
| Overall L x W | 195” x 101” | 219” x 101” | 240” x 101” | 264” x 101” | 282” x 101” | 306” x 101” | 330” x 101” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Above Tongue | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted |
| Frame Crossmembers* Middle | (2) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (7) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted |
| Curb Weight | 920 lbs | 940 lbs | 980 lbs | 1,080 lbs | 1,120 lbs | 1,220 lbs | 1,524 lbs |
| Payload Capacity | 6080 lbs | 6060 lbs | 6020 lbs | 5920 lbs | 5880 lbs | 5780 lbs | 5680 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Stabilizer Jacks | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
| MODEL | AUT712TD | AUT714TD | AUT716TD | AUT718TD | AUT720TD | AUT722TD | AUT724TD |
|---|---|---|---|---|---|---|---|
| Deck L x W | 144" x 83” | 168” x 83” | 192” x 83” | 216” x 83” | 240” x 83” | 264” x 83” | 288” x 83” |
| Overall L x W | 195” x 101” | 219” x 101” | 240” x 101” | 264” x 101” | 282” x 101” | 306” x 101” | 330” x 101” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Above Tongue | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted |
| Frame Crossmembers* Middle | (2) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (7) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted |
| Curb Weight | 920 lbs | 940 lbs | 980 lbs | 1,080 lbs | 1,120 lbs | 1,220 lbs | 1,524 lbs |
| Payload Capacity | 6080 lbs | 6060 lbs | 6020 lbs | 5920 lbs | 5880 lbs | 5780 lbs | 5680 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Stabilizer Jacks | Optional | Optional | Optional | Optional | Standard | Standard | Standard |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
