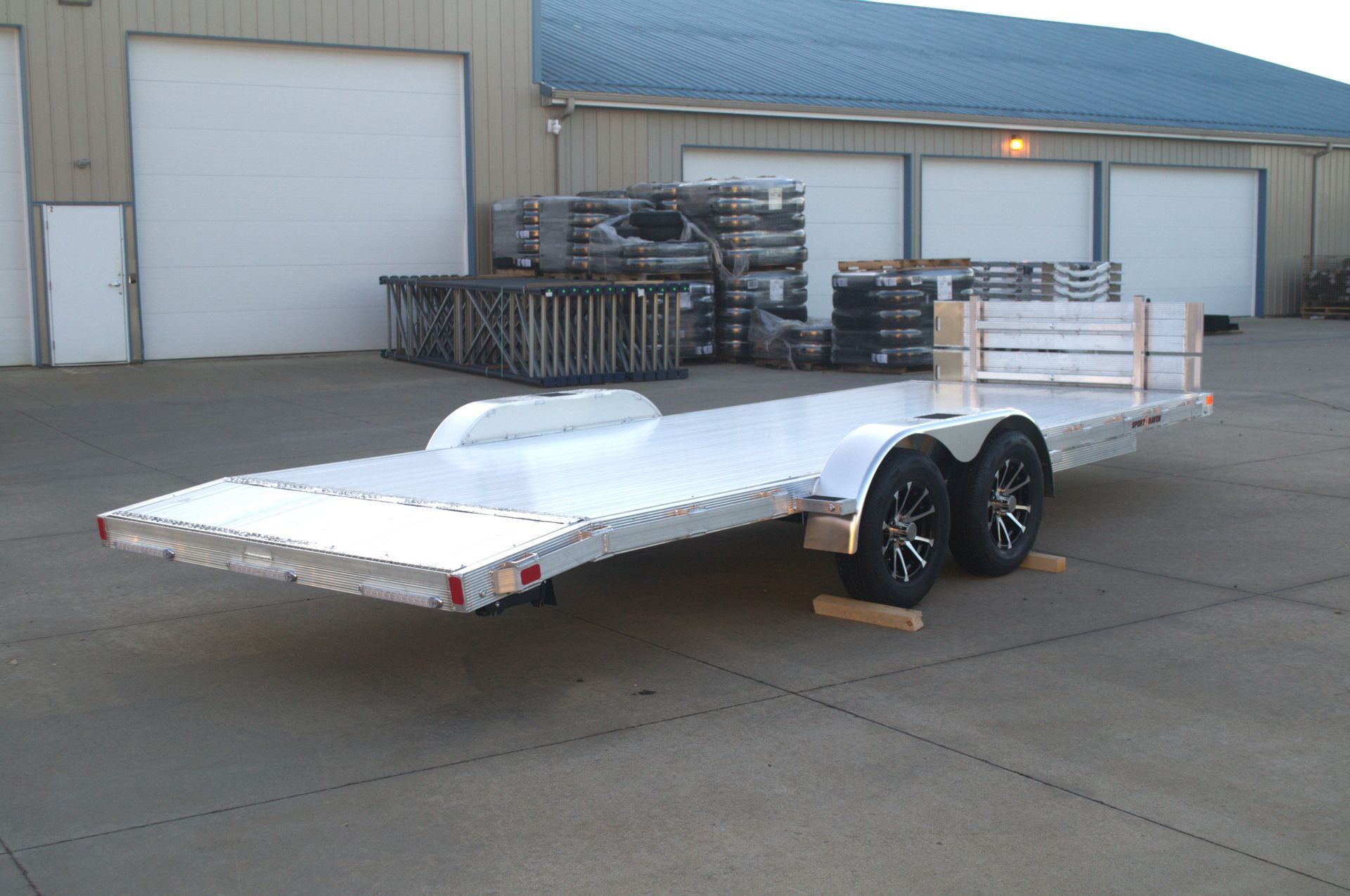

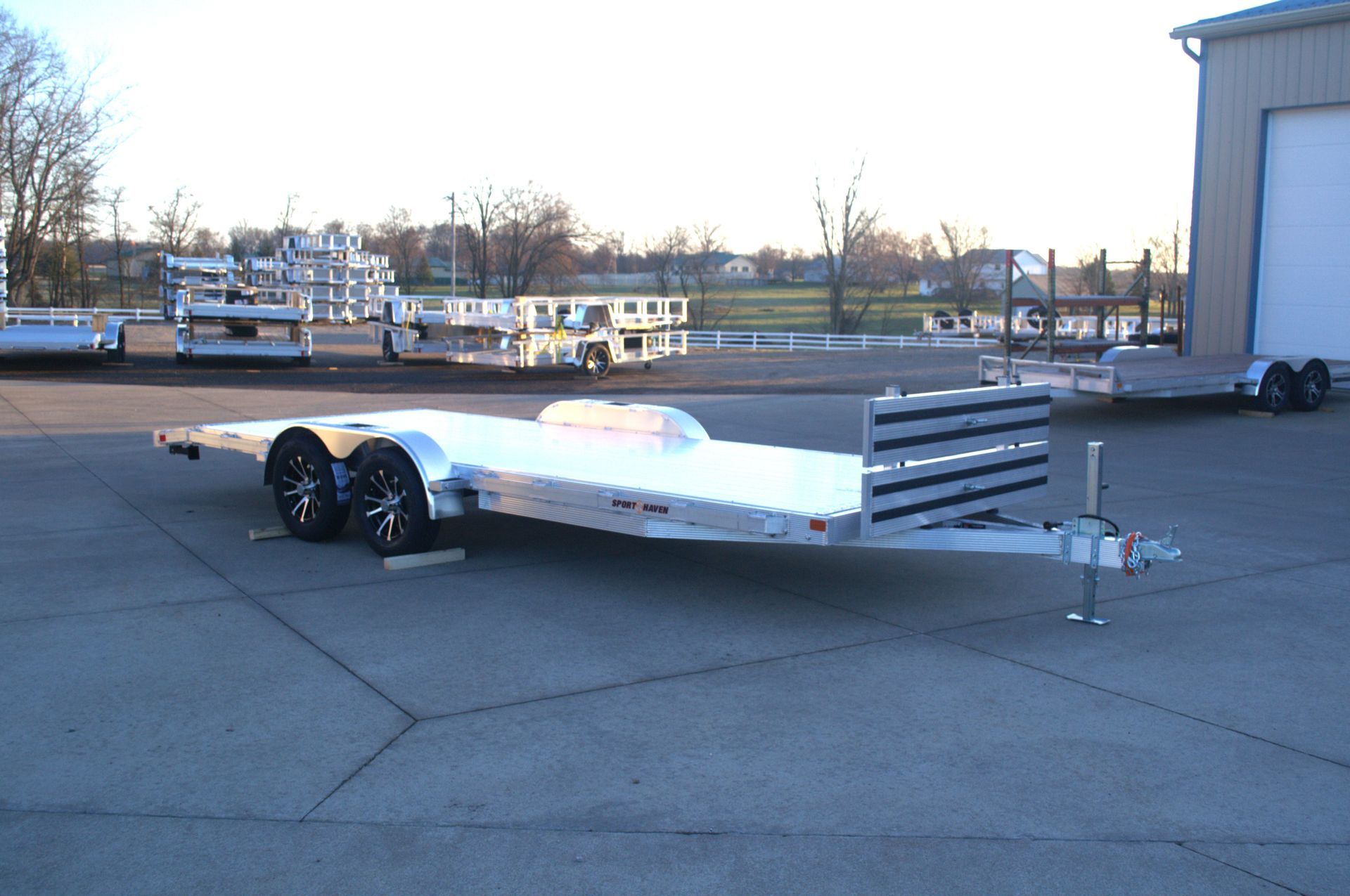

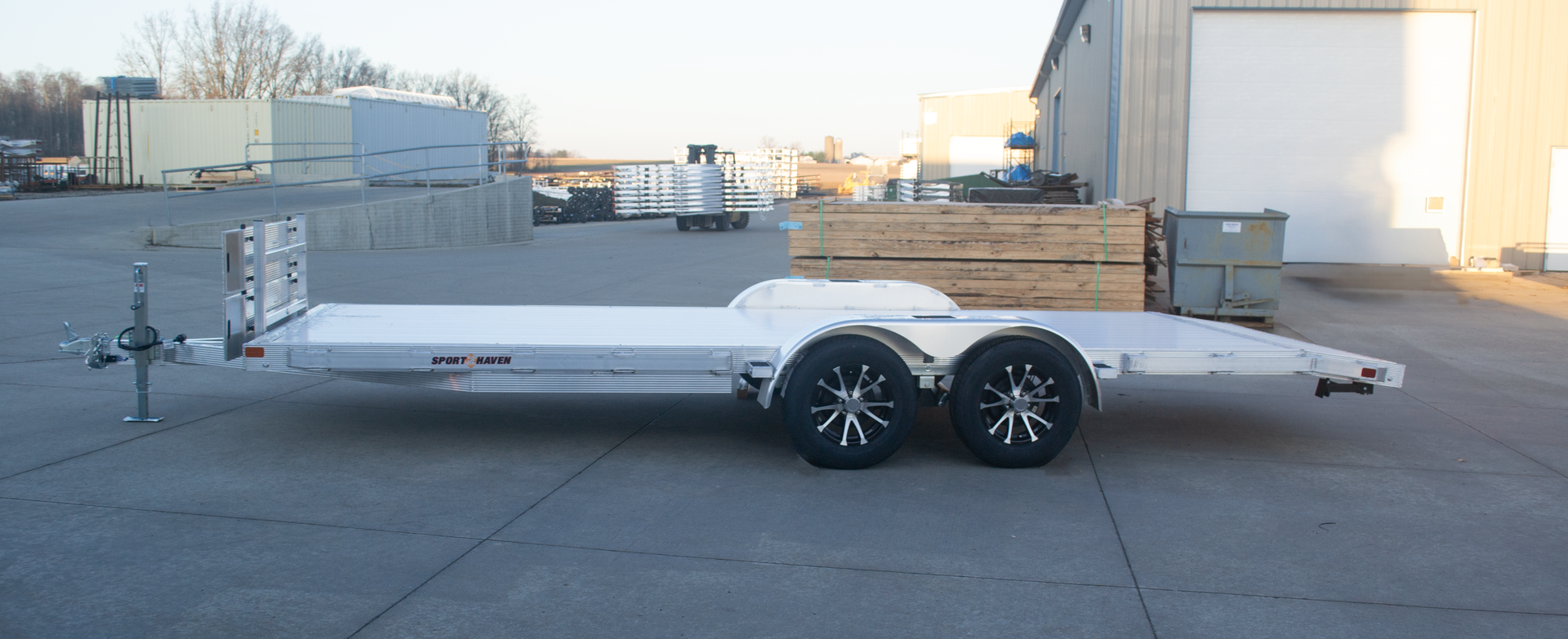

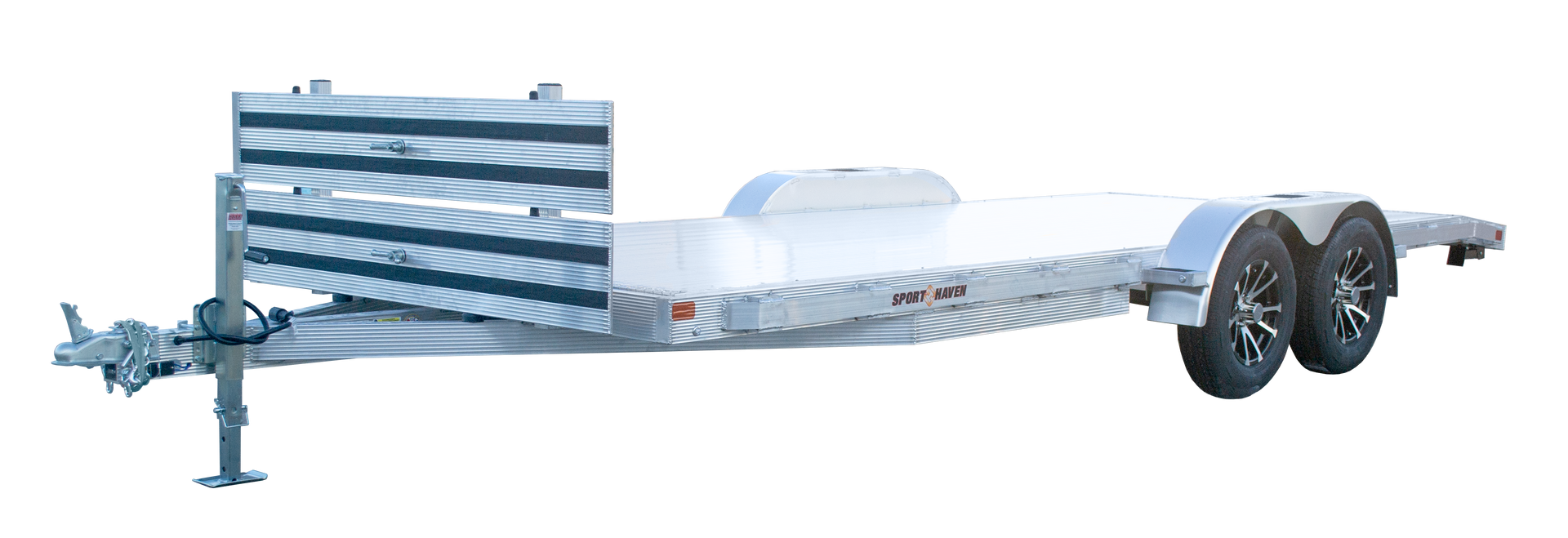

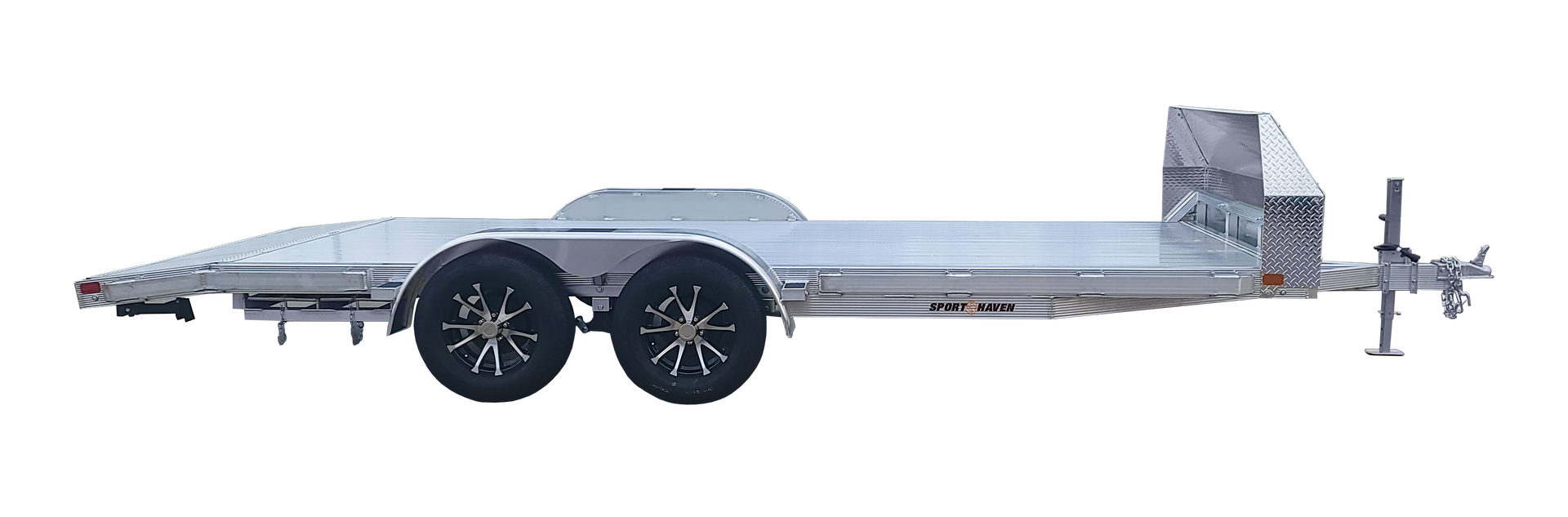

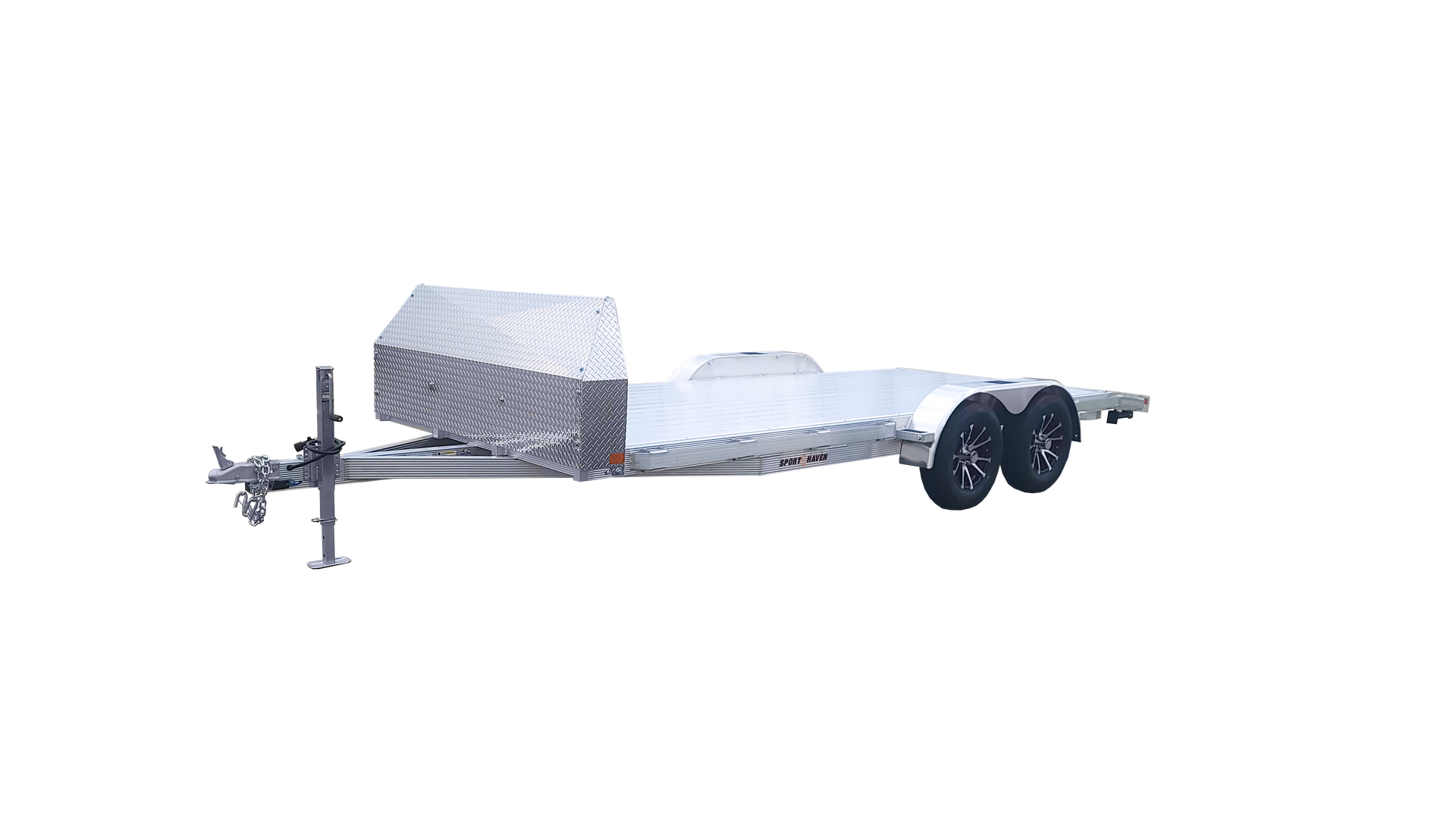

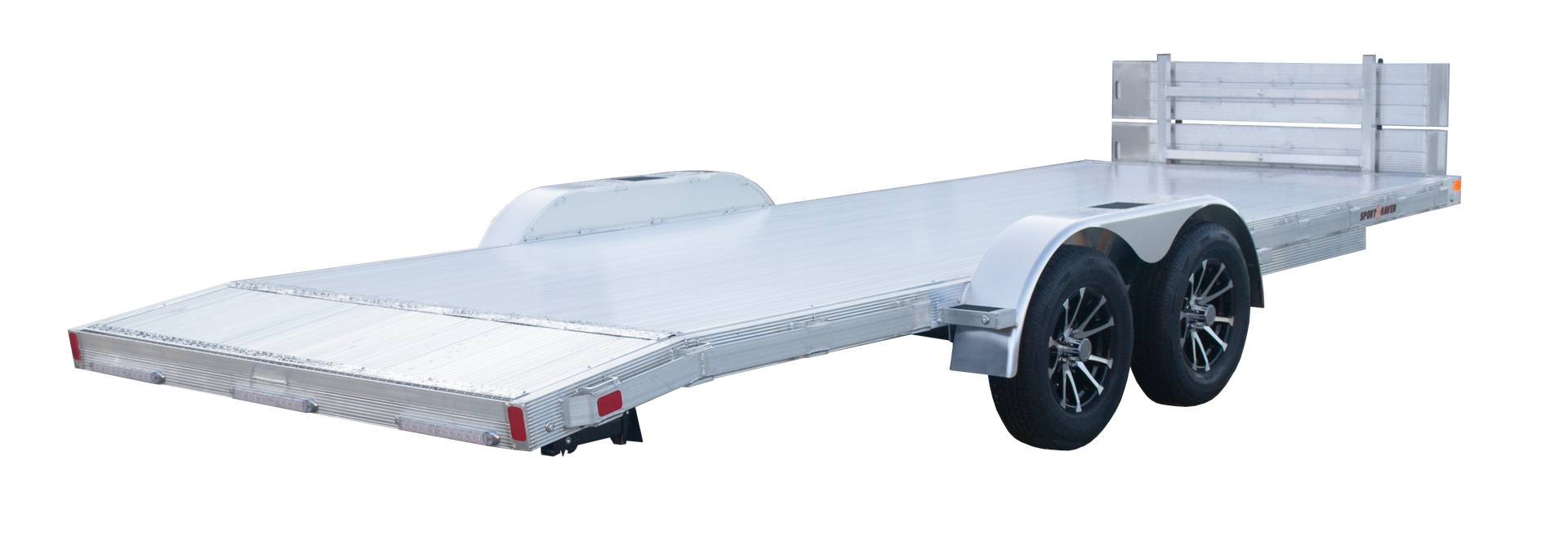

DELUXE ALUMINUM OPEN CAR HAULER - AOCD MODELS
DELUXE ALUMINUM OPEN CAR HAULER - AOCD MODELS
AOCD MODEL FEATURES
AOCD MODEL OPTIONS
AOCD MODEL FEATURES
AOCD MODEL OPTIONS
- (2) 7' Heavy Duty Ramps (Side or Front Access)
- Rear Drop Pad Stabilizers
- Stake Pockets with 3" x .25" Bar Stock Rub Rail
- 6" Interlocking Aluminum Decking
Slide title

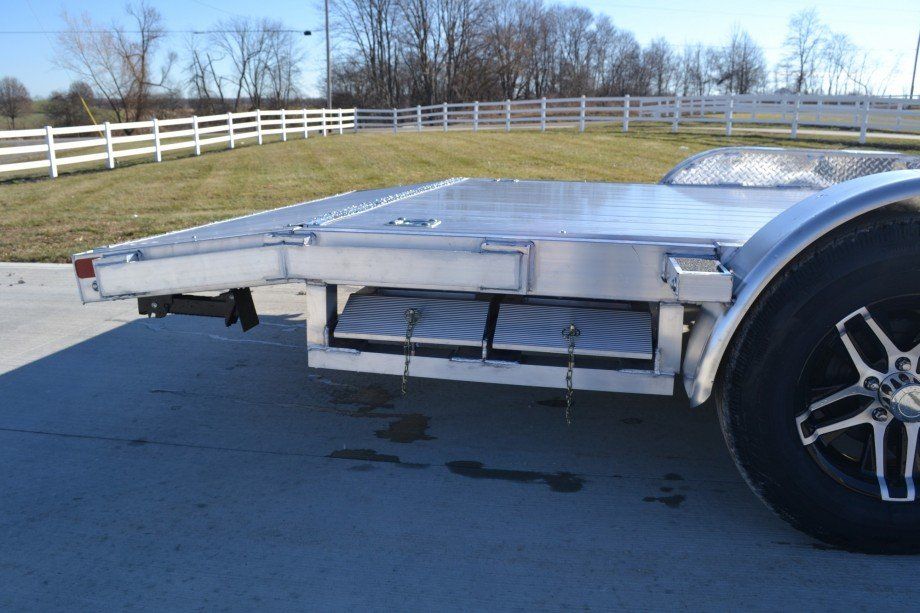

(2) 7' Heavy Duty Ramps - Side Access
Button
Slide title

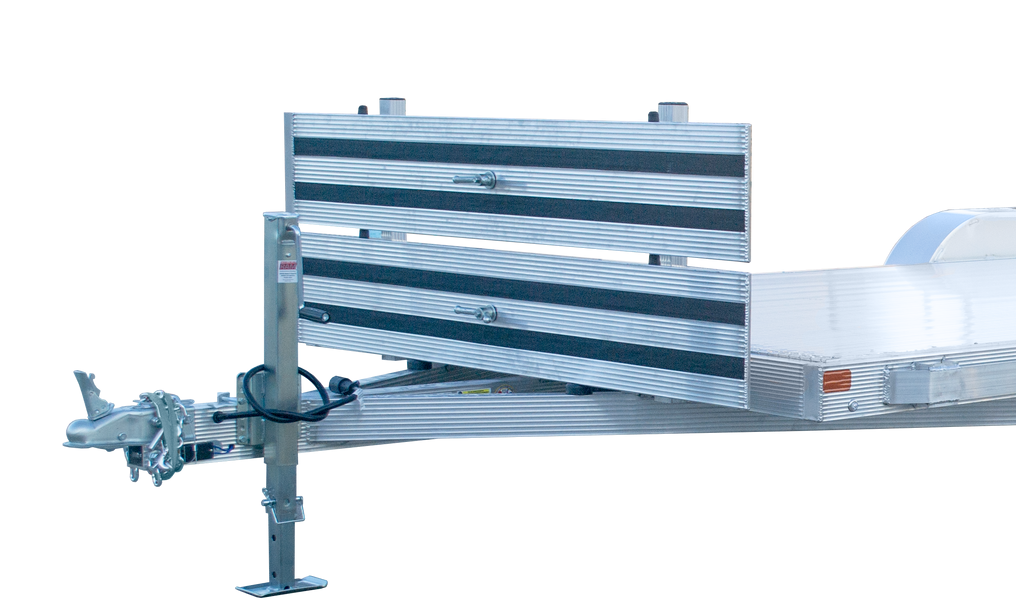

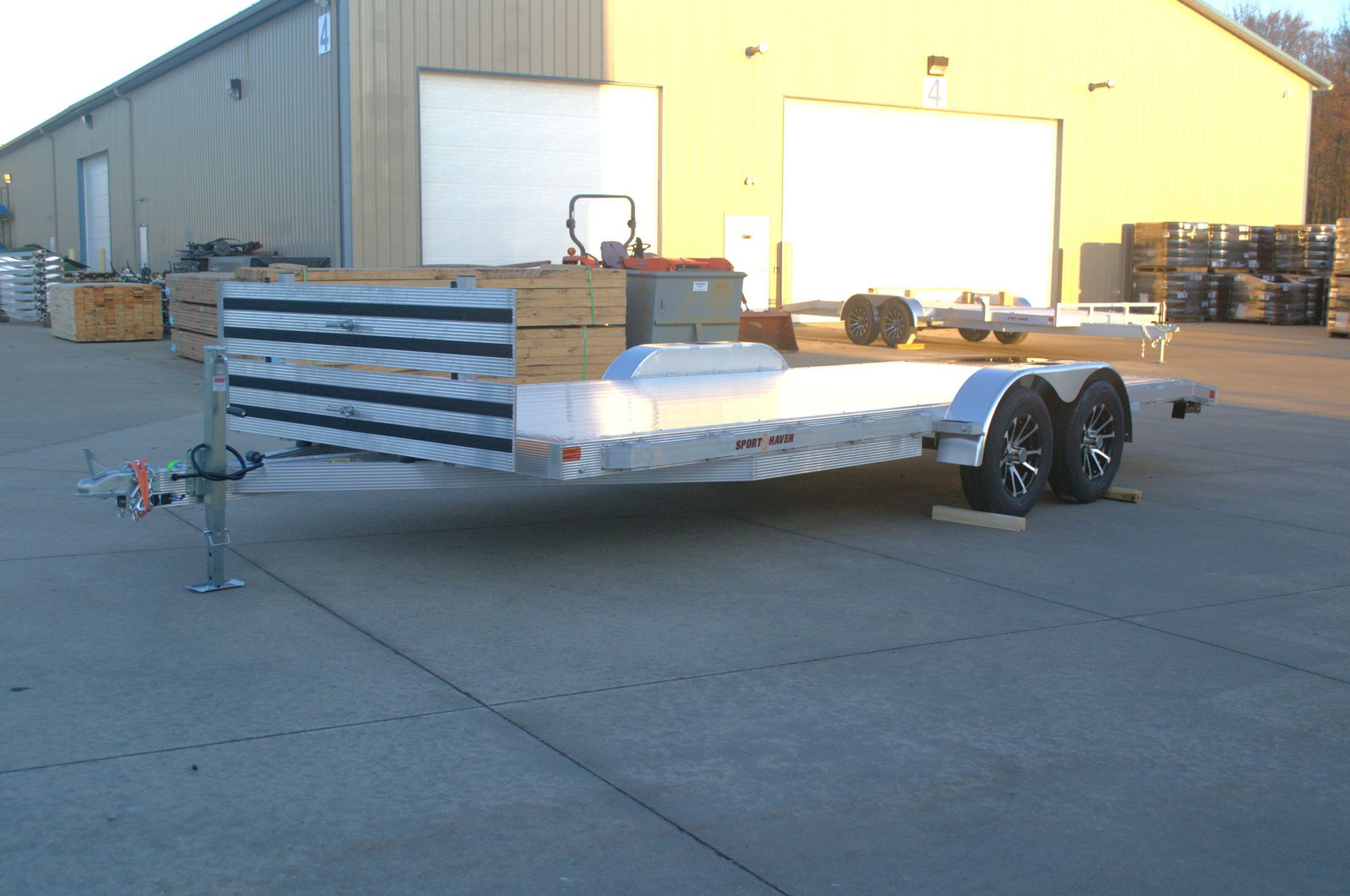

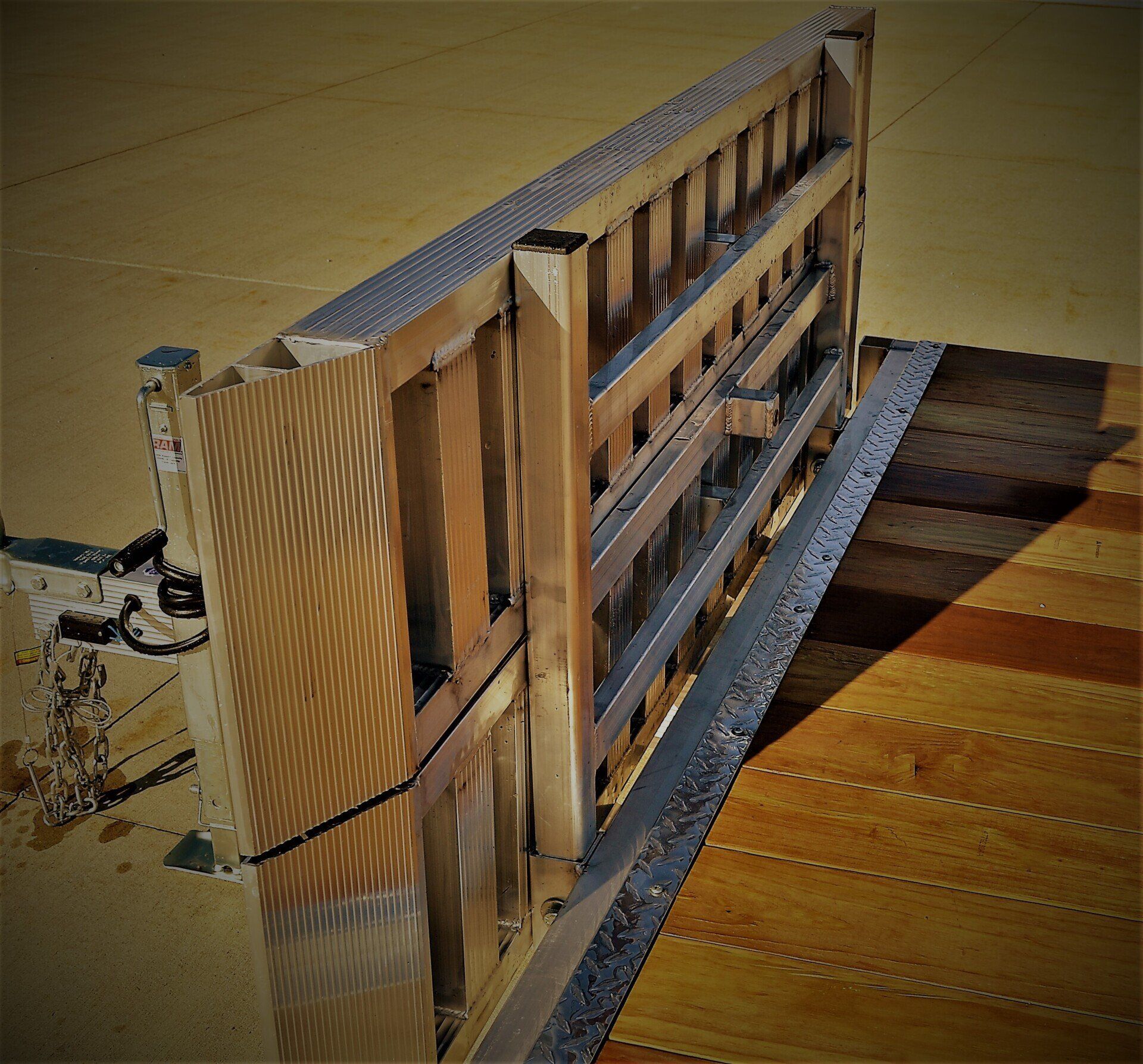

(2) 7' Heavy Duty Ramps - Front Access
Button
Slide title

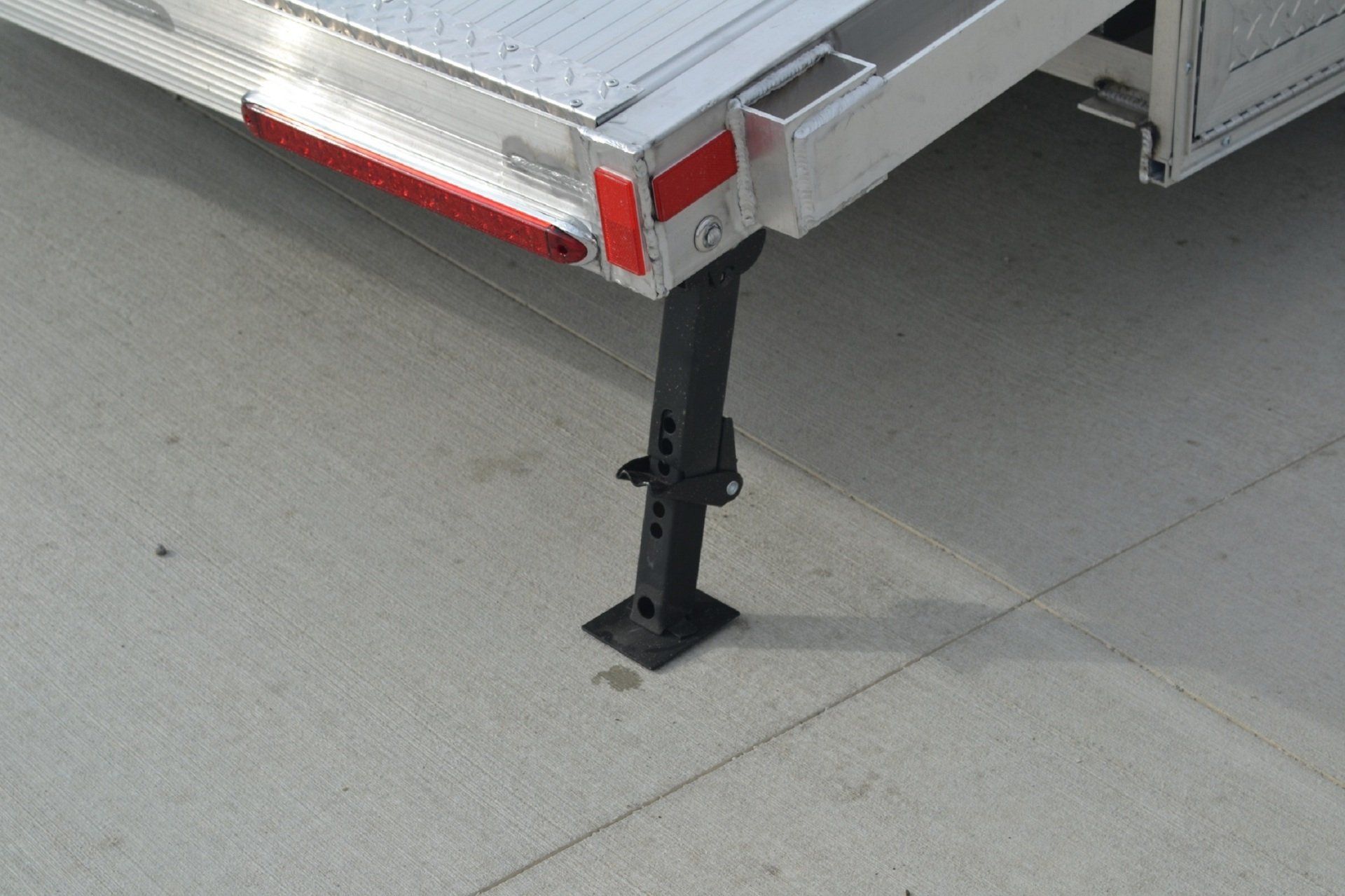

Rear Drop Pad Stabilizers
Button
Slide title

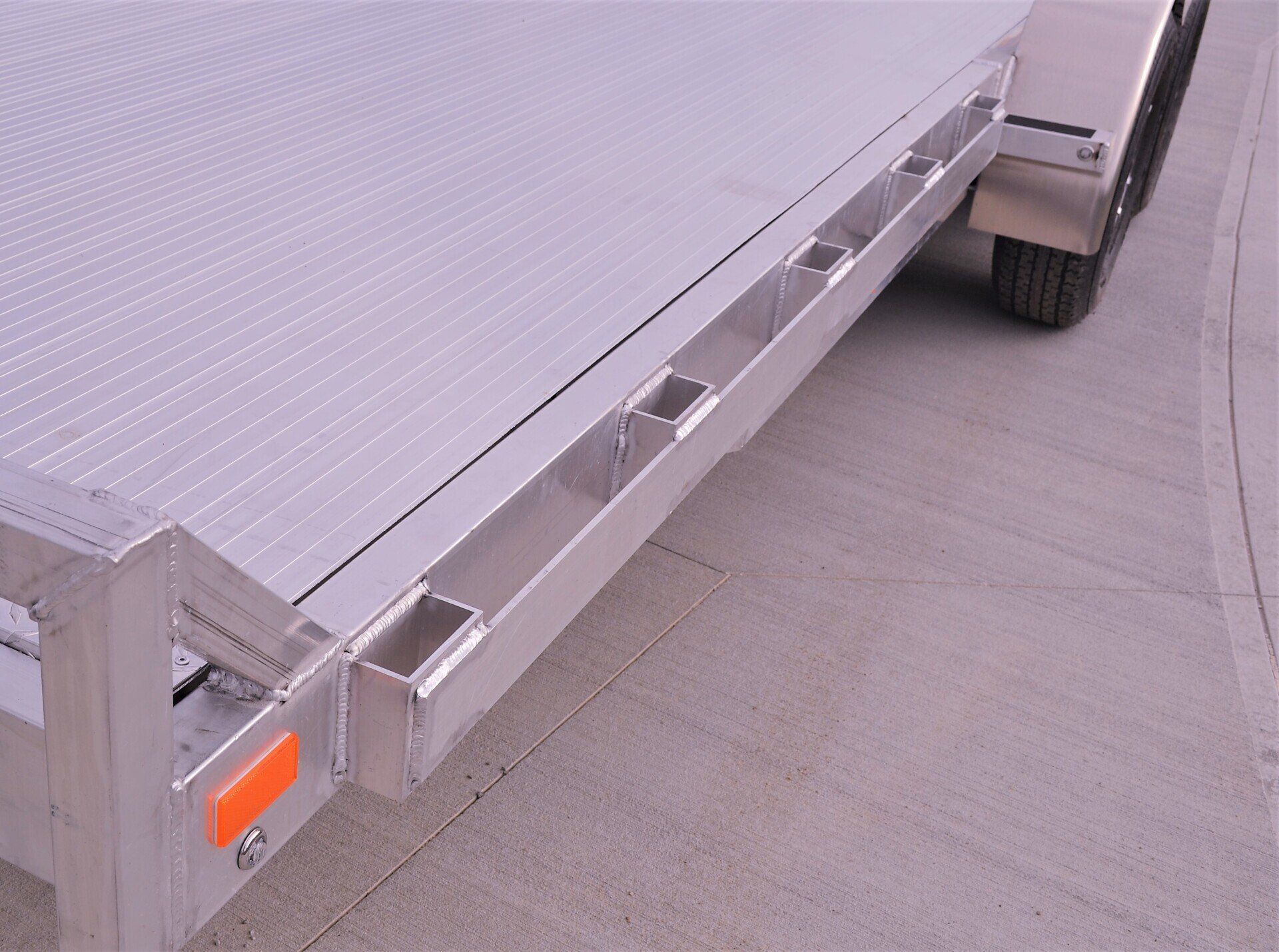

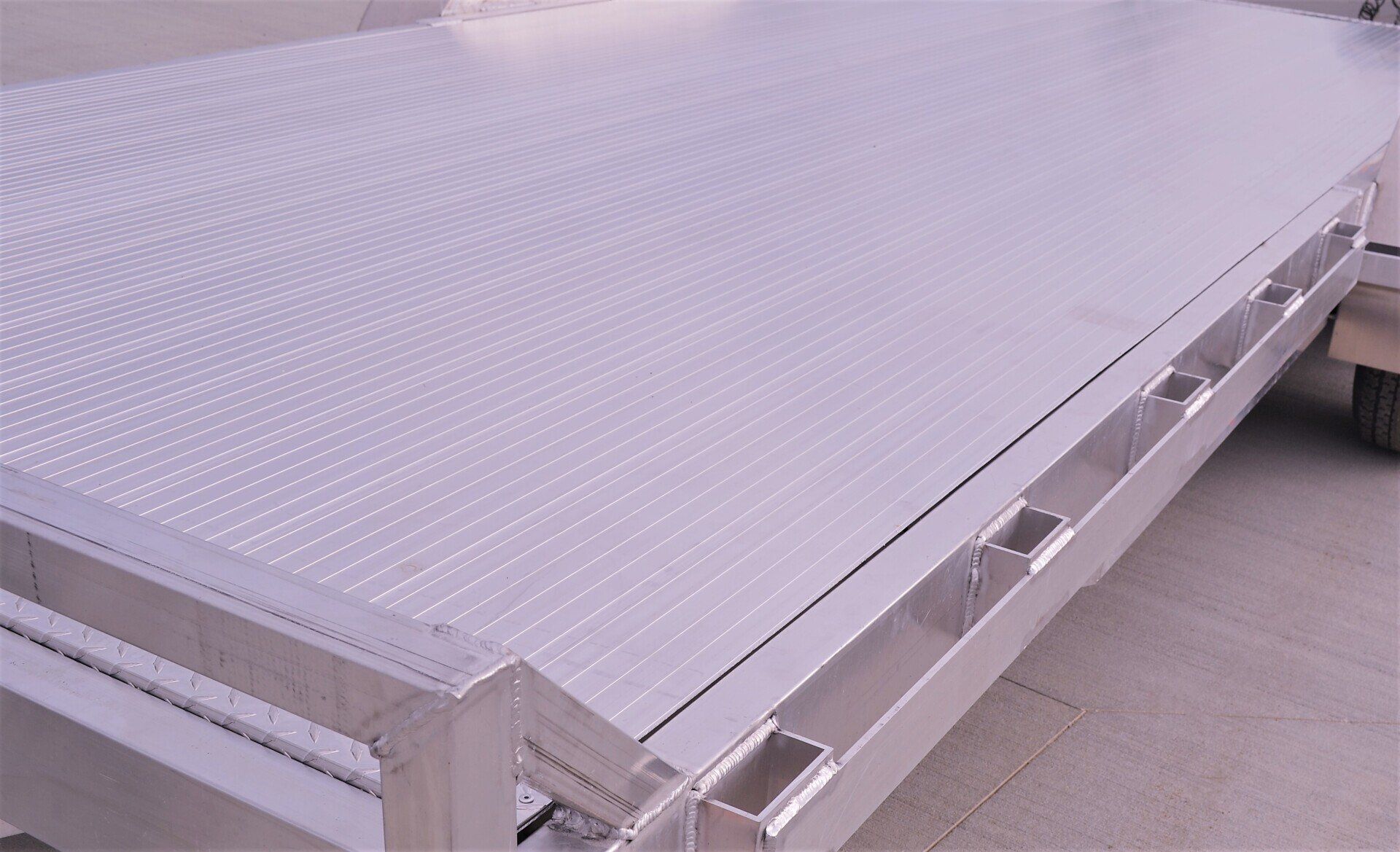

Stake Pockets w/3" x .25" Bar Stock Rub Rail
Button
Slide title
6" Interlocking Aluminum Decking
Button
Slide title

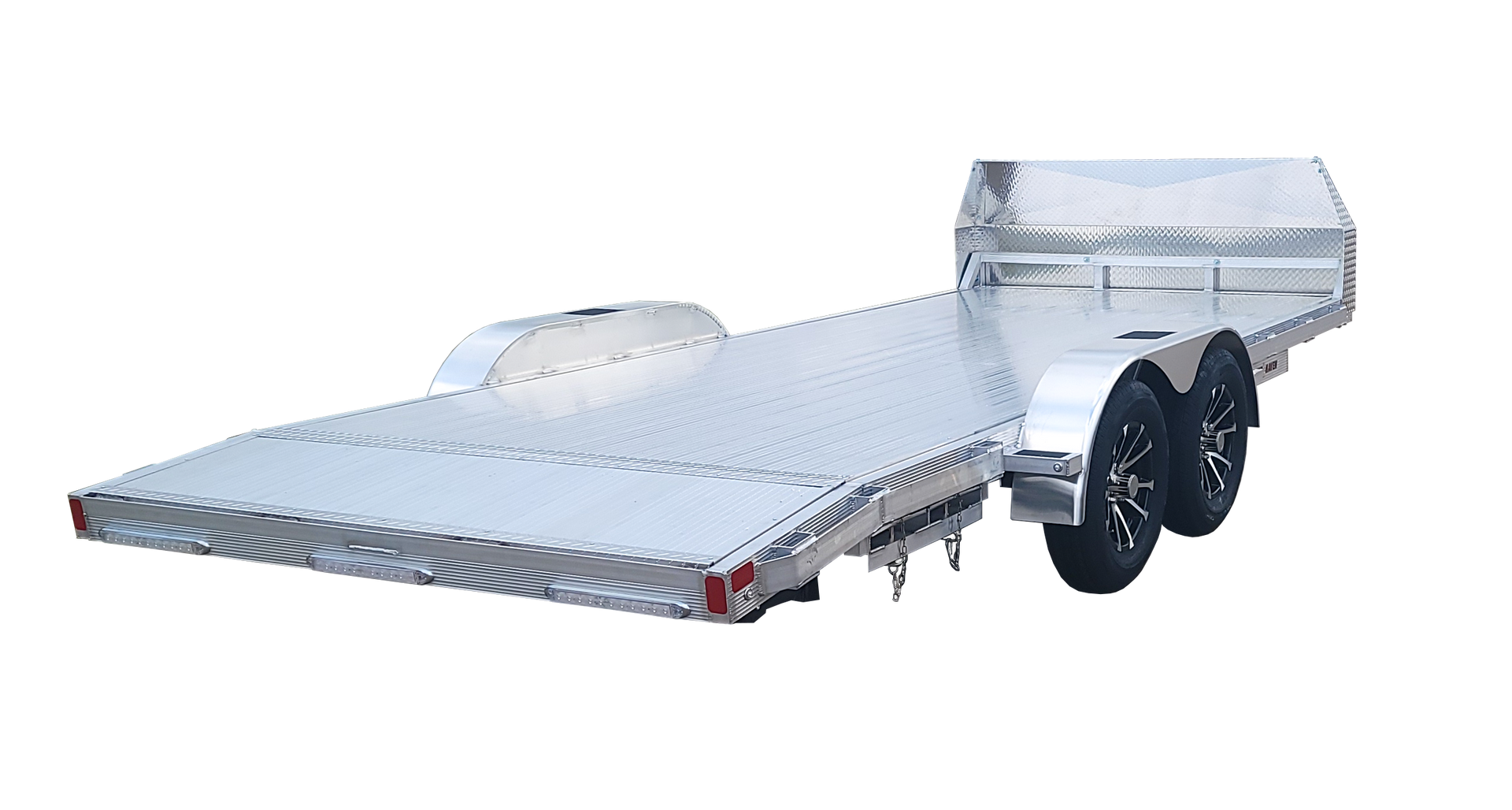

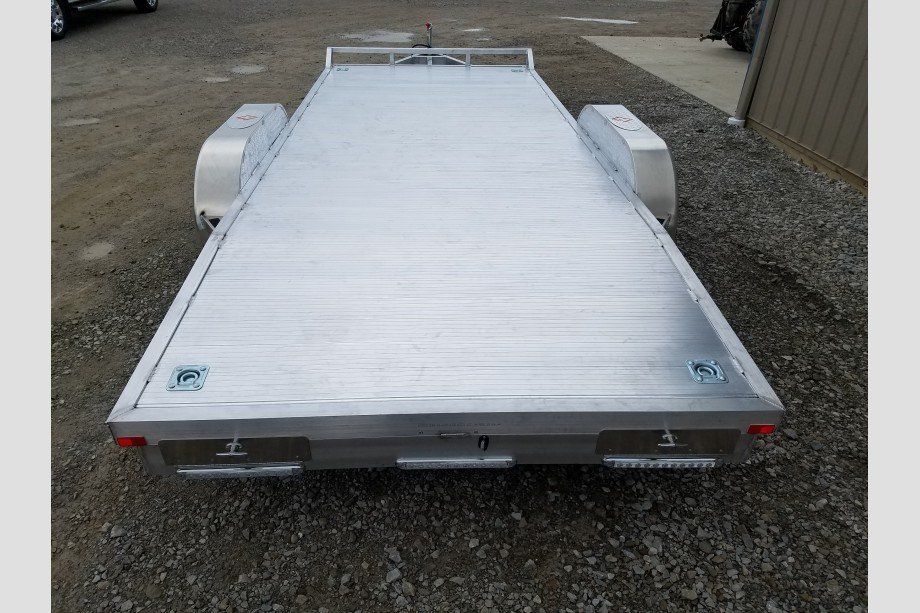

Aluminum Decking
Button
AOCD MODEL OPTIONS

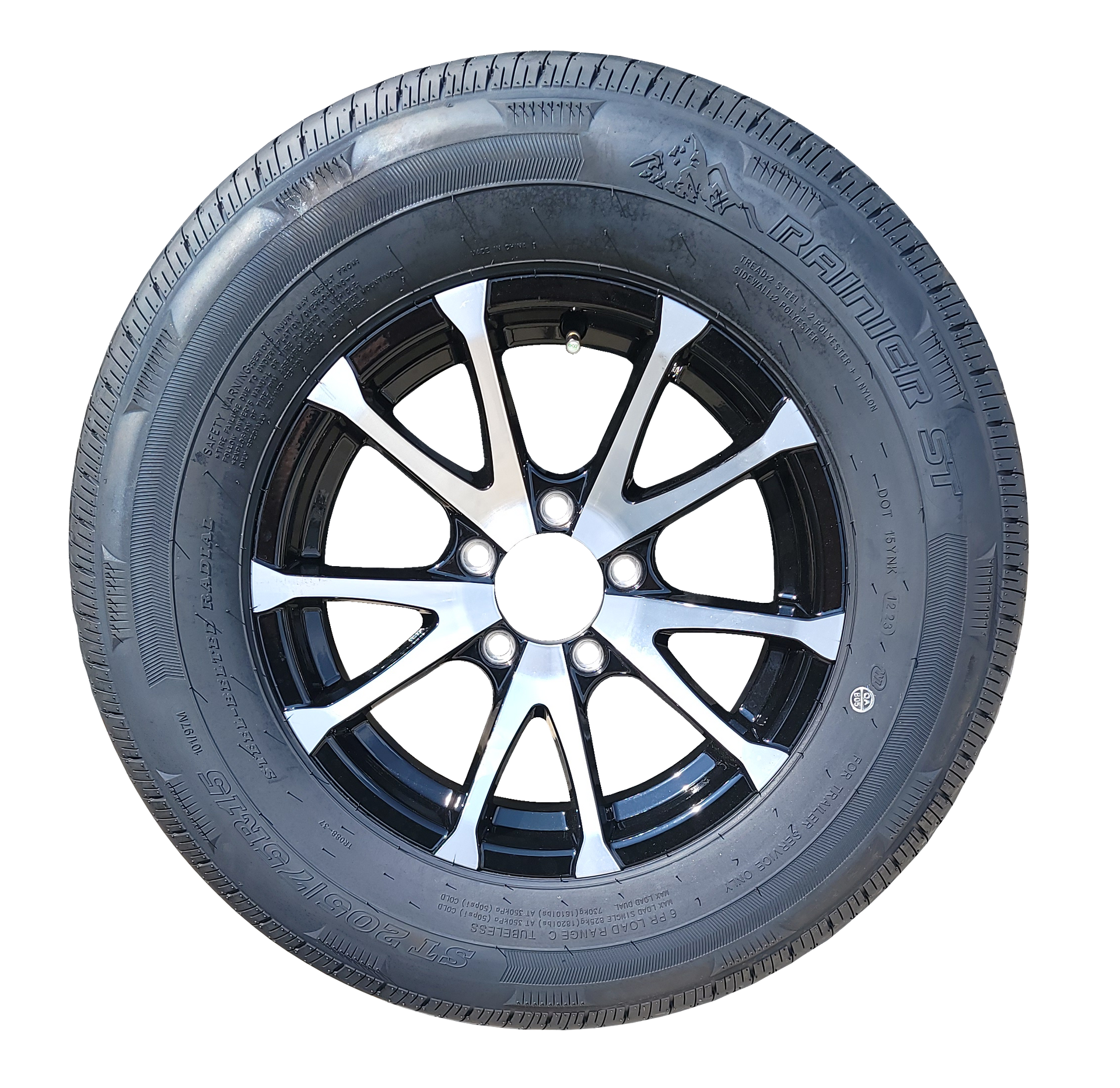

- Aluminum Wheel Upgrade

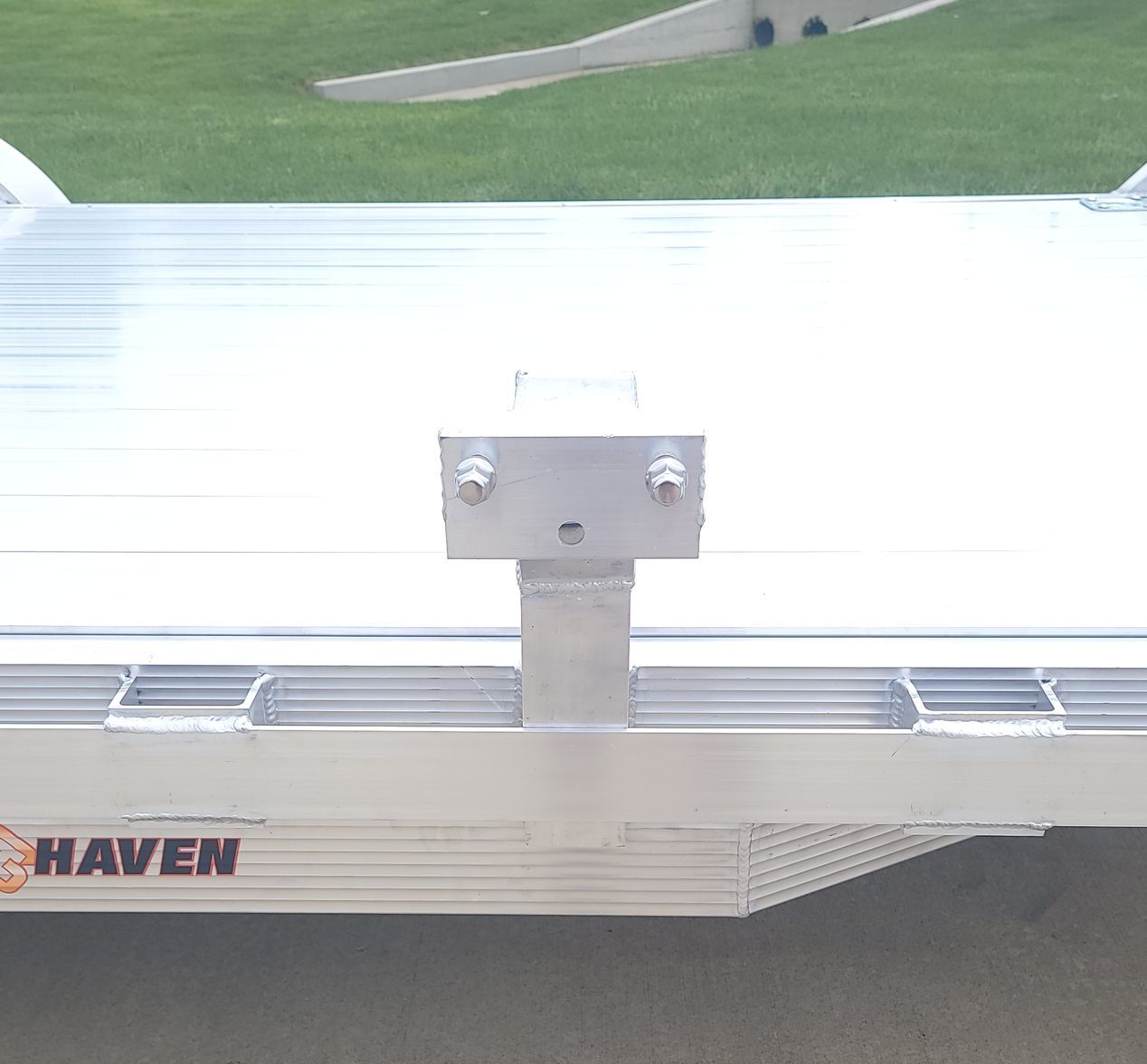

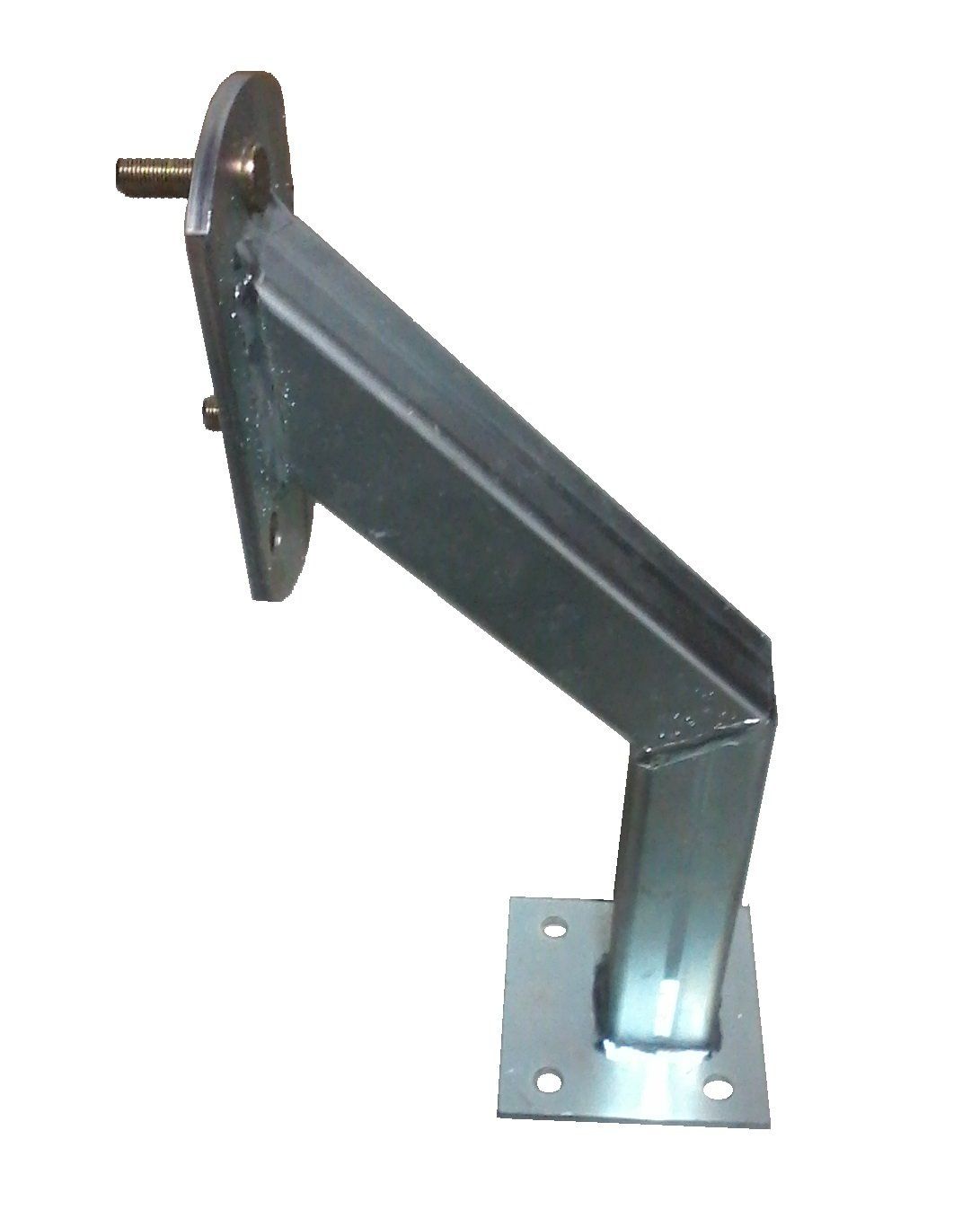

- Bolt on Spare Tire Mount

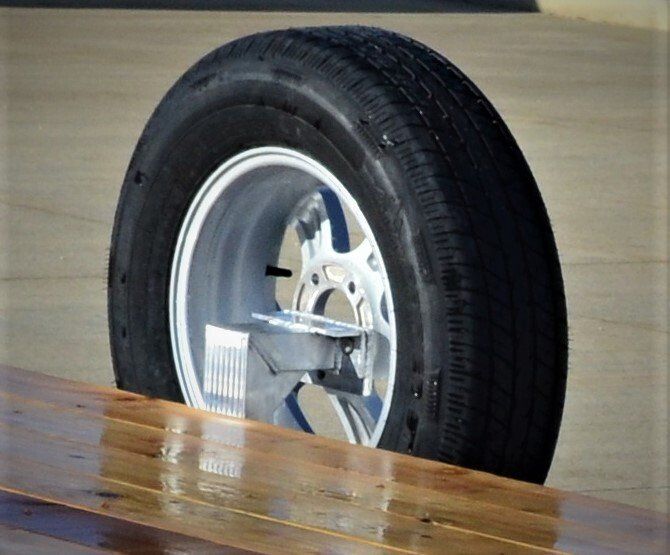

- Weld on Spare Tire Mount
- Front Ramp Access
- Bolt on Rock Guard
Nature's Symphony

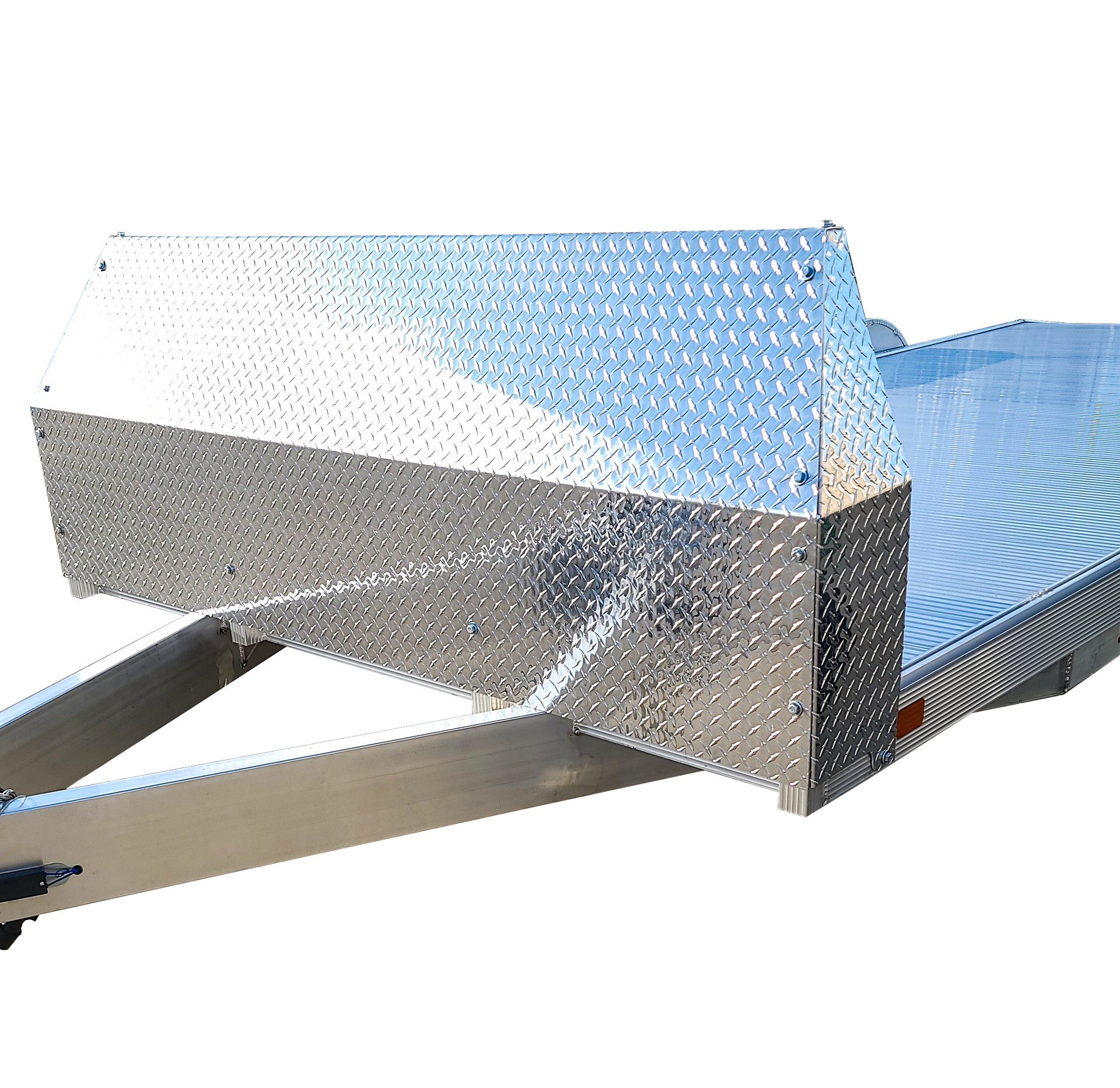

Bolt on Rock Guard
- (2) 7' Heavy Duty Ramps (Side or Front Access)
- Rear Drop Pad Stabilizers
- Stake Pockets with 3" x .25" Bar Stock Rub Rail
- 6" Interlocking Aluminum Decking
-
Slide title
(2) 7' Heavy Duty Ramps - Side Access
Button -
Slide title
(2) 7' Heavy Duty Ramps - Front Access
Button -
Slide title
Rear Drop Pad Stabilizers
Button -
Slide title
Stake Pockets w/3" x .25" Bar Stock Rub Rail
Button -
Slide title
6" Interlocking Aluminum Decking
Button -
Slide title
Aluminum Decking
Button
AOCD MODEL CONSTRUCTION
AOCD MODEL CONSTRUCTION
- Jig Welded Construction for Consistency, Quality
- Rear Ramp Drop Pad Stabilizers
- 2" X 5" X .25" Double Hollow Frame Side Rails
- 3500 lb Dexter Axles w/Leaf Springs
- 2' Rear Beaver Tail
Slide title
Jig Welded Construction
Button
Slide title
Double Hollow Tube Frame Side Rails
Button
Slide title
3500 lb Dexter Axle w/Leaf Springs
Button
- Jig Welded Construction for Consistency, Quality
- Rear Ramp Drop Pad Stabilizers
- 2" X 5" X .25" Double Hollow Frame Side Rails
- 3500 lb Dexter Axles w/Leaf Springs
- 2' Rear Beaver Tail
-
Slide title
Jig Welded Construction
Button -
Slide title
Double Hollow Tube Frame Side Rails
Button -
Slide title
3500 lb Dexter Axle w/Leaf Springs
Button
7K AOCD MODEL SPECIFICATIONS
7K AOCD MODEL SPECIFICATIONS
Construction Specs
- Double Hollow Aluminum Tube Tongue, Frame Outer Rails & Frame Front Crossmember
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum
- 6" Extruded Interlocking Aluminum Decking
- 7' Heavy Duty Loading Ramps - Side or Front Access
- 2' Beaver Tail
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST205/75R Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 8,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
- 1,000 lb Support Capacity Rear Stabilizer Jacks
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball
- 10" Electric Brakes On Both Axles
- 14" Hitch Height
- 18" Deck Height
- 7" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Double Hollow Aluminum Tube Tongue, Frame Outer Rails & Frame Front Crossmember
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum
- 6" Extruded Interlocking Aluminum Decking
- 7' Heavy Duty Loading Ramps - Side or Front Access
- 2' Beaver Tail
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST205/75R Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 8,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
- 1,000 lb Support Capacity Rear Stabilizer Jacks
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball
- 10" Electric Brakes On Both Axles
- 14" Hitch Height
- 18" Deck Height
- 7" Rail Height Above the Deck
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
| MODEL | AOC1870TD | AOC1870TD-FR | AOC2070TD | AOC2070TD-FR |
|---|---|---|---|---|
| Deck L x W | 216” x 83” | 216” x 83” | 264” x 83” | 264” x 83” |
| Overall L x W | 267” x 102” | 267” x 102” | 291” x 102” | 291” x 102” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Outer Rails | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Outer Rail Supports - Front | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmember* Front | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Above Tongue | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted |
| Frame Crossmembers* Middle | (8) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted |
| Frame Crossmember* Rear | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted |
| Curb Weight | 1,300 lbs | 1,300 lbs | 1,350 lbs | 1,350 lbs |
| Payload Capacity | 5,700 lbs | 5,700 lbs | 5,647 lbs | 5,647 lbs |
| (2) Stabilizer Jacks - 1,000 lb Support Capacity (ea) | Standard | Standard | Standard | Standard |
| 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
| MODEL | AOC1870TD | AOC1870TD-FR | AOC2070TD | AOC2070TD-FR |
|---|---|---|---|---|
| Deck L x W | 216” x 83” | 216” x 83” | 264” x 83” | 264” x 83” |
| Overall L x W | 267” x 102” | 267” x 102” | 291” x 102” | 291” x 102” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Outer Rails | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Outer Rail Supports - Front | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmember* Front | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow | (1) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Above Tongue | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted | (3) 2" x 4" Fluted |
| Frame Crossmembers* Middle | (8) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted |
| Frame Crossmember* Rear | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted | (1) 1.75" x 3" Fluted |
| Curb Weight | 1,300 lbs | 1,300 lbs | 1,350 lbs | 1,350 lbs |
| Payload Capacity | 5,700 lbs | 5,700 lbs | 5,647 lbs | 5,647 lbs |
| (2) Stabilizer Jacks - 1,000 lb Support Capacity (ea) | Standard | Standard | Standard | Standard |
| 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
