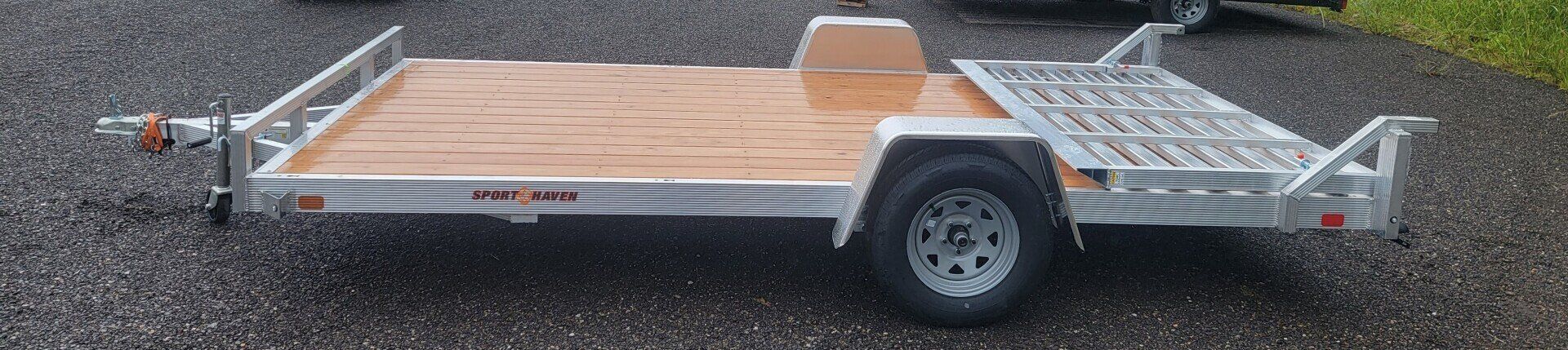

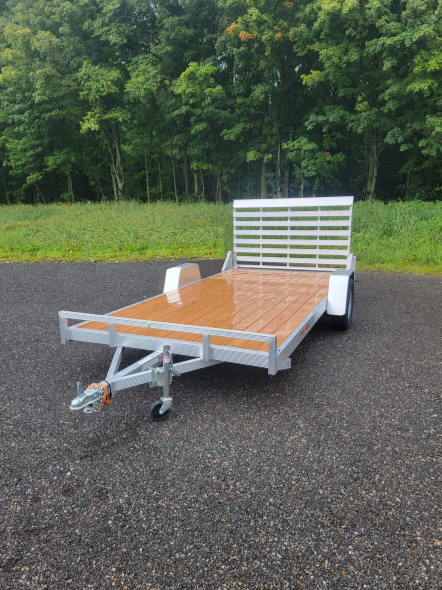

RAIL-LESS ALUMINUM UTILITY SERIES - AU MODELS
RAIL-LESS ALUMINUM UTILITY SERIES - AU MODELS
EXCLUSIVE AU MODEL FEATURES
NOTABLE AU MODEL FEATURES
EXCLUSIVE AU MODEL FEATURES
NOTABLE AU MODEL FEATURES
Features you will not find on other brands:
- Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.
- 5/4" x 6 " ProWood Dura Color Treated Decking - DuraColor treatment retains color longer and reduces cracking, warping, or splitting, minimizing upkeep

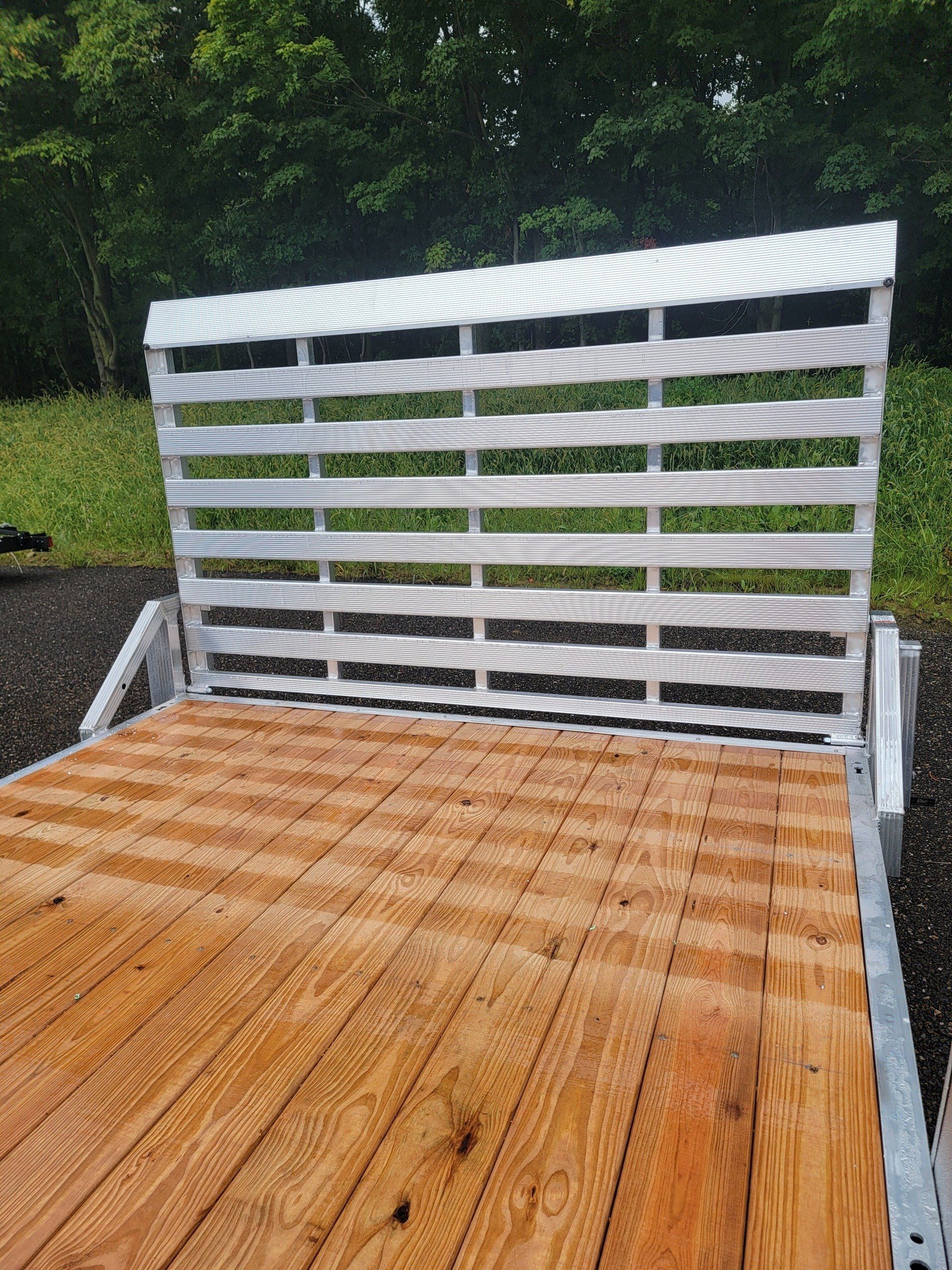

- Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
Slide title

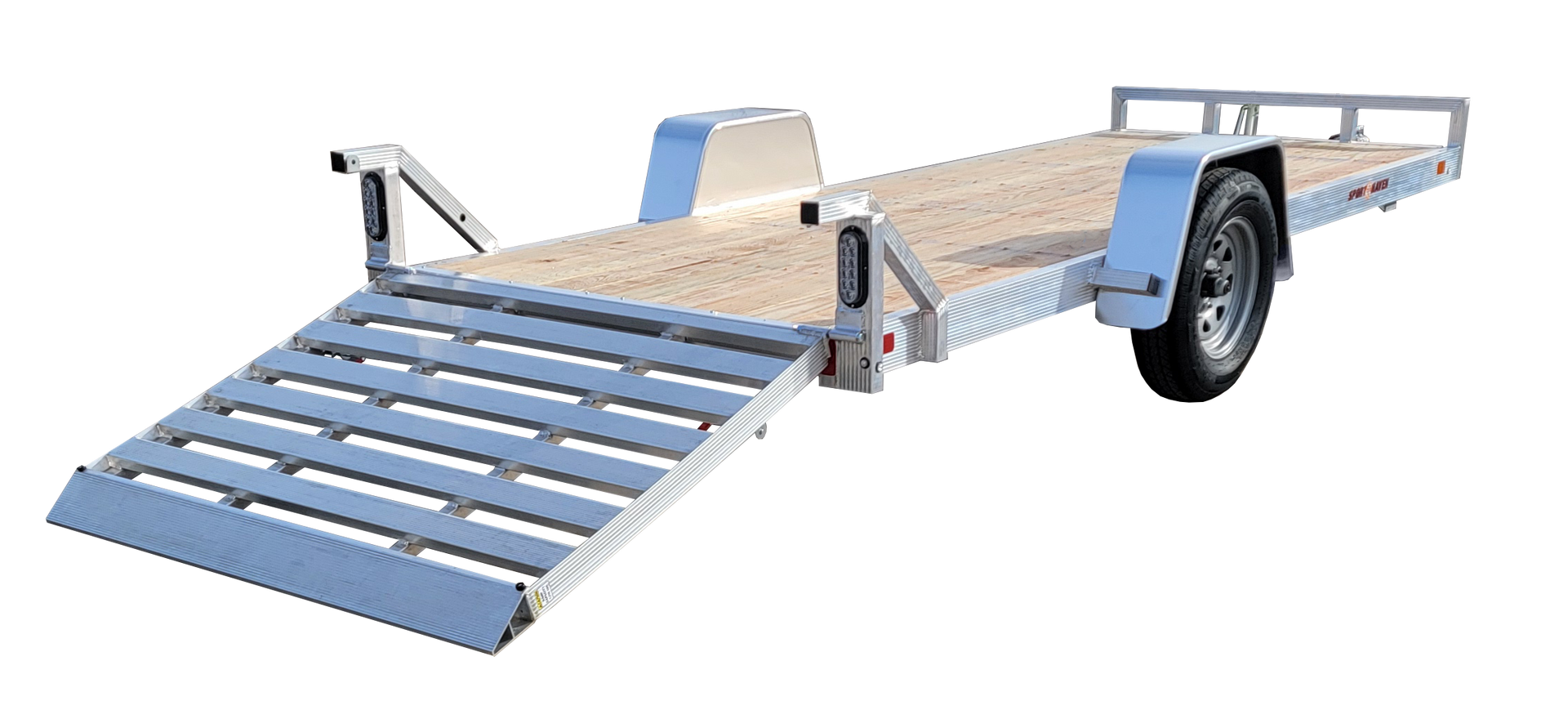

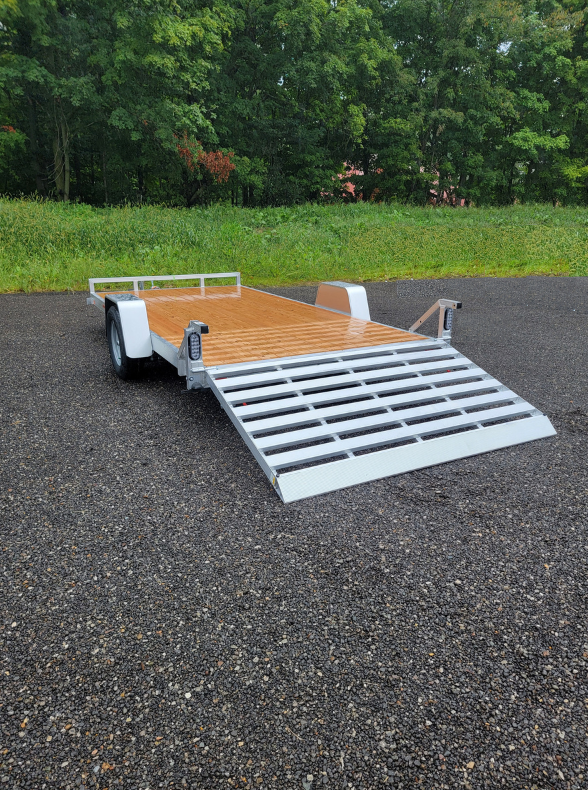

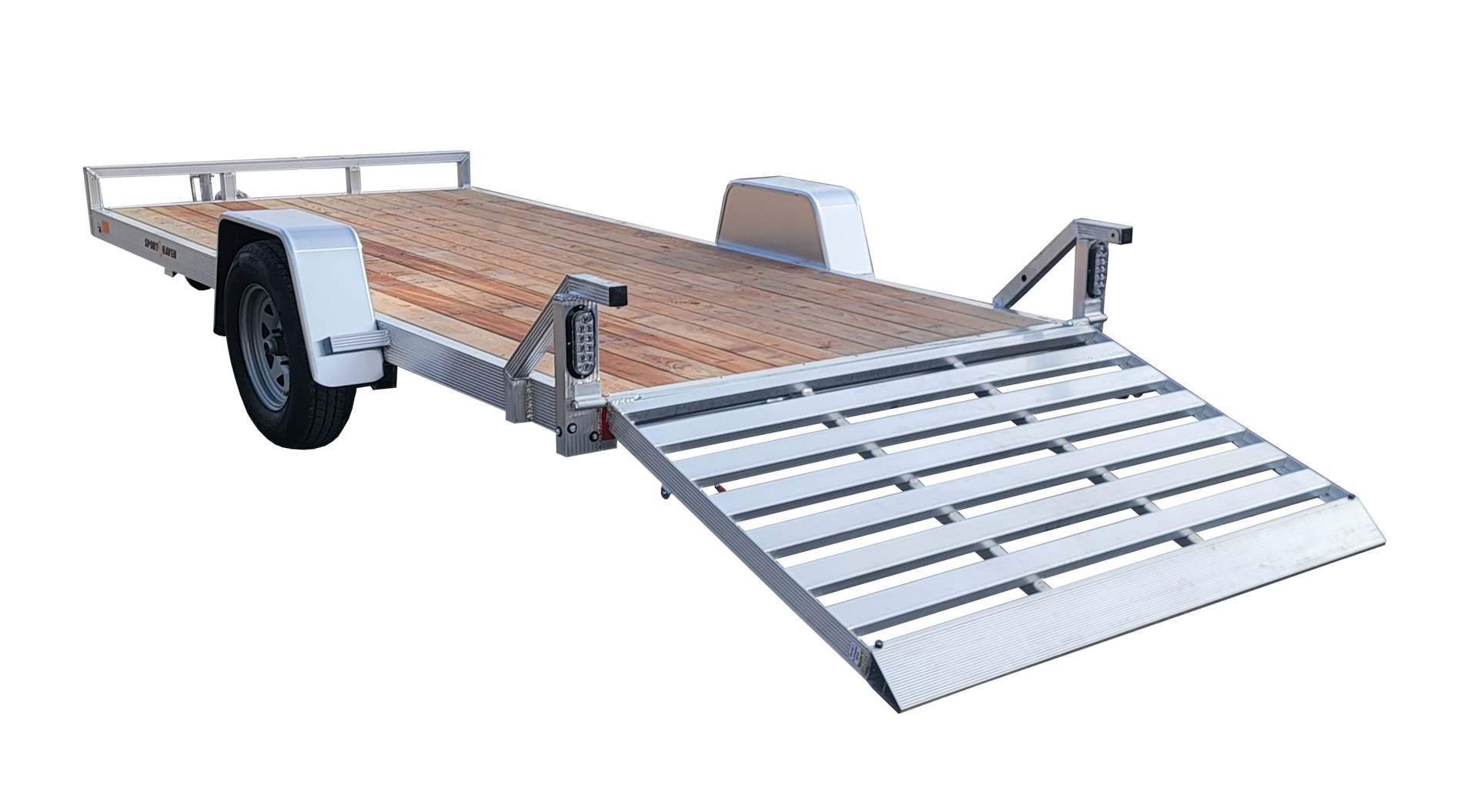

3 POSITION RAMP
Button
Slide title

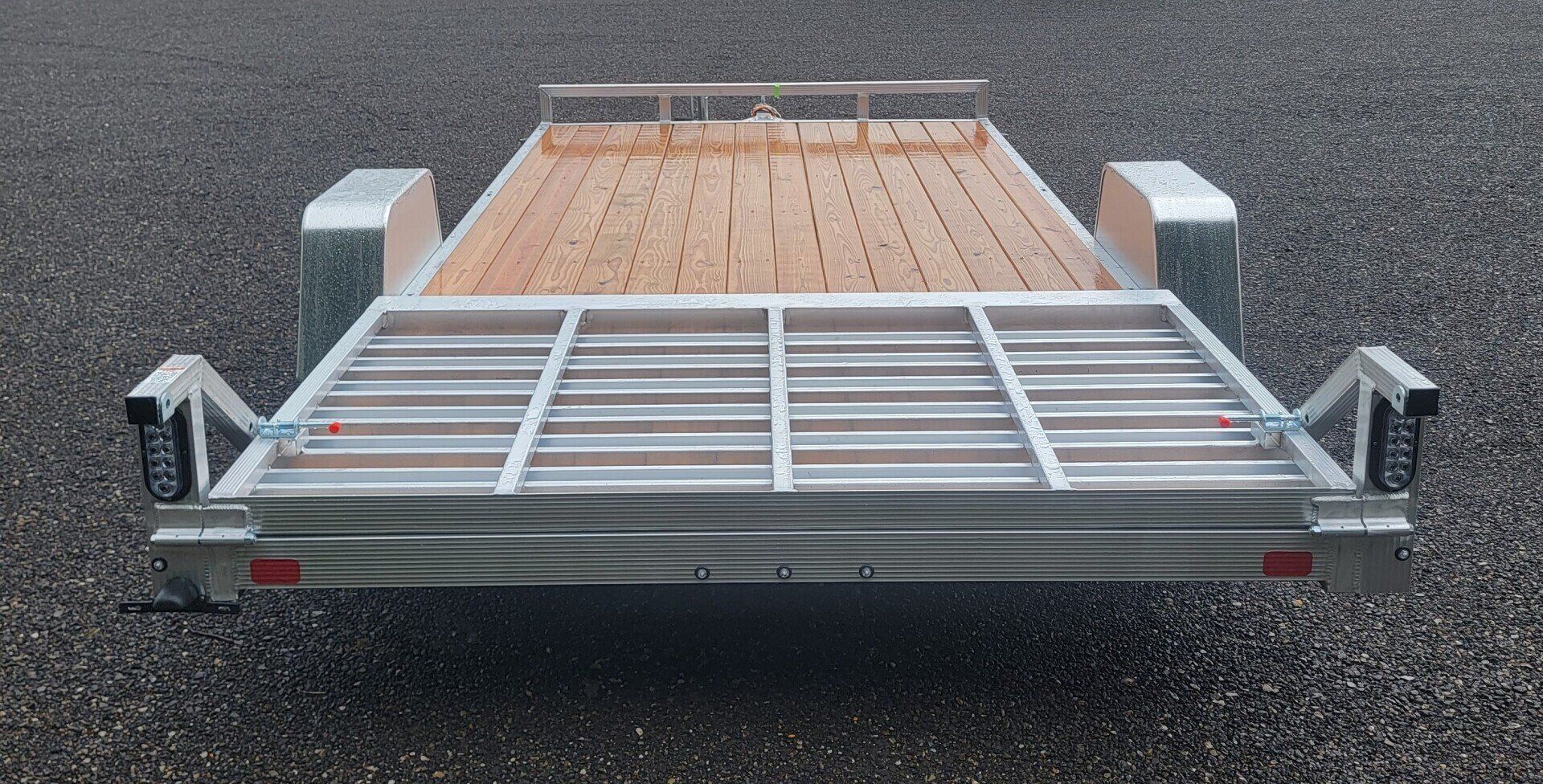

FOLDING RAMPS AVAILABLE
Button
Slide title

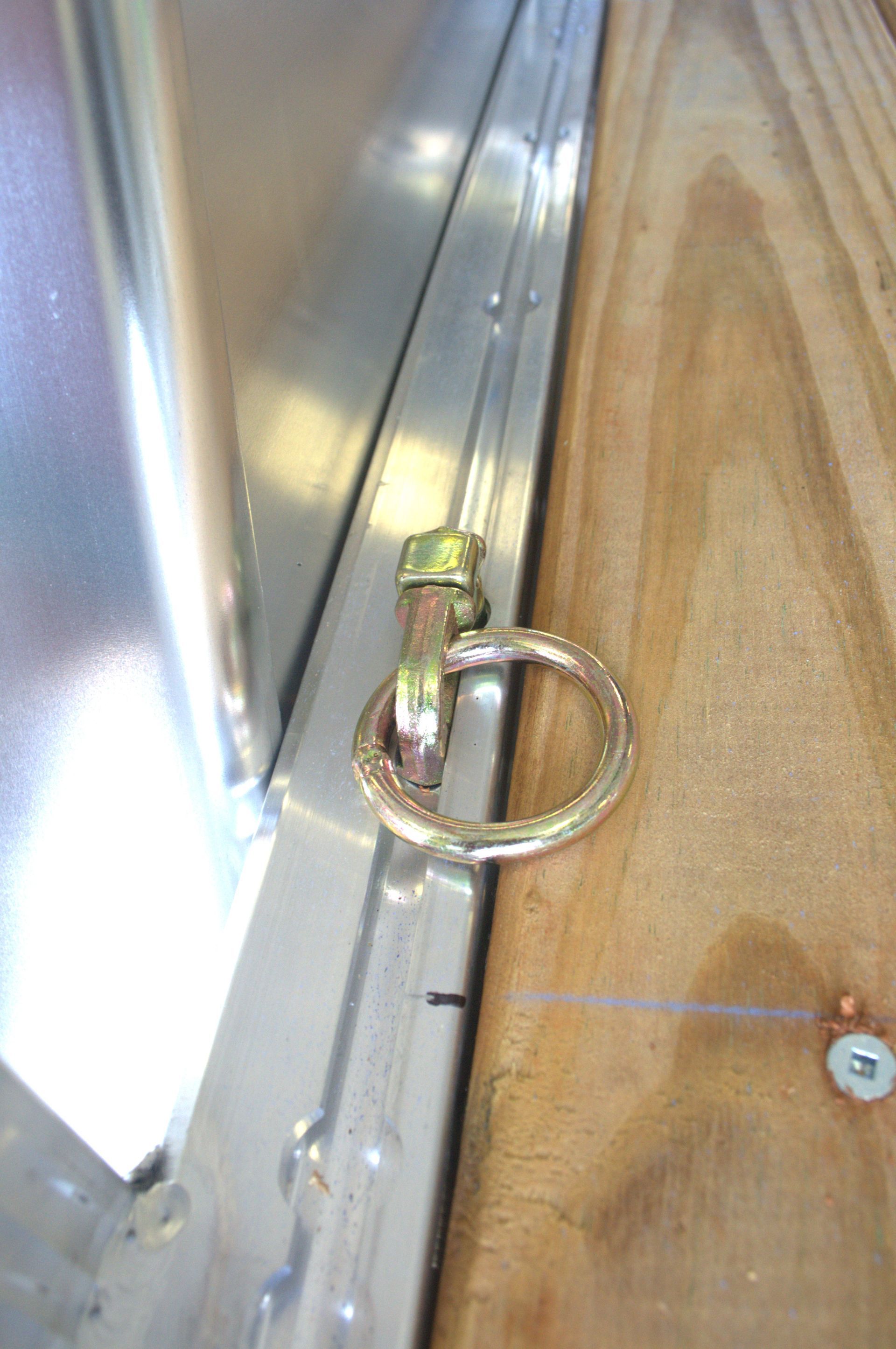

SINGLE STUD TIE DOWN
Button
Slide title

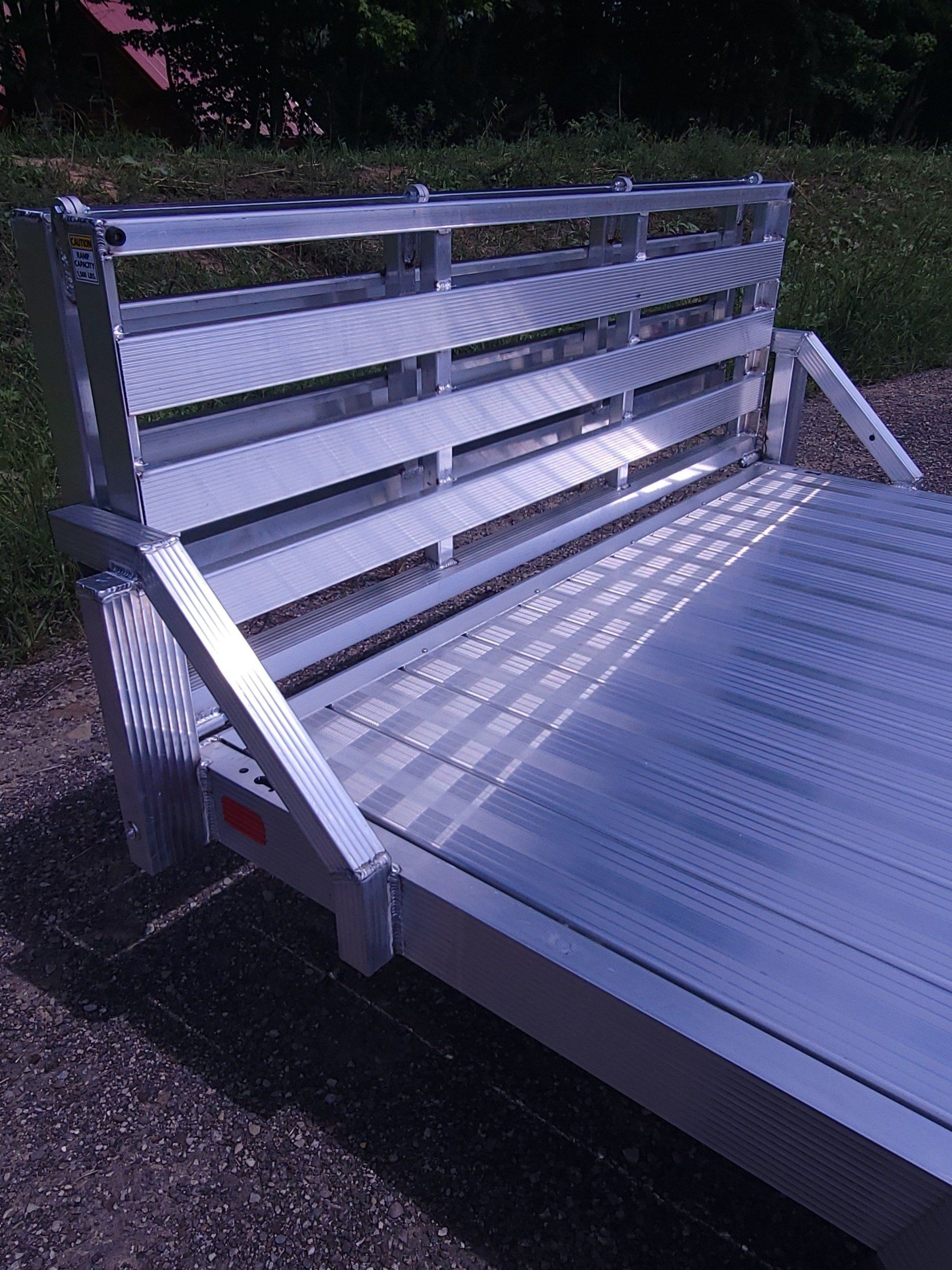

FRONT RAIL SUPPORT
Button
NOTABLE AU MODEL FEATURES
Features you might not find on other brands:
- 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting -
Limited Lifetime LED warranty
Slide title

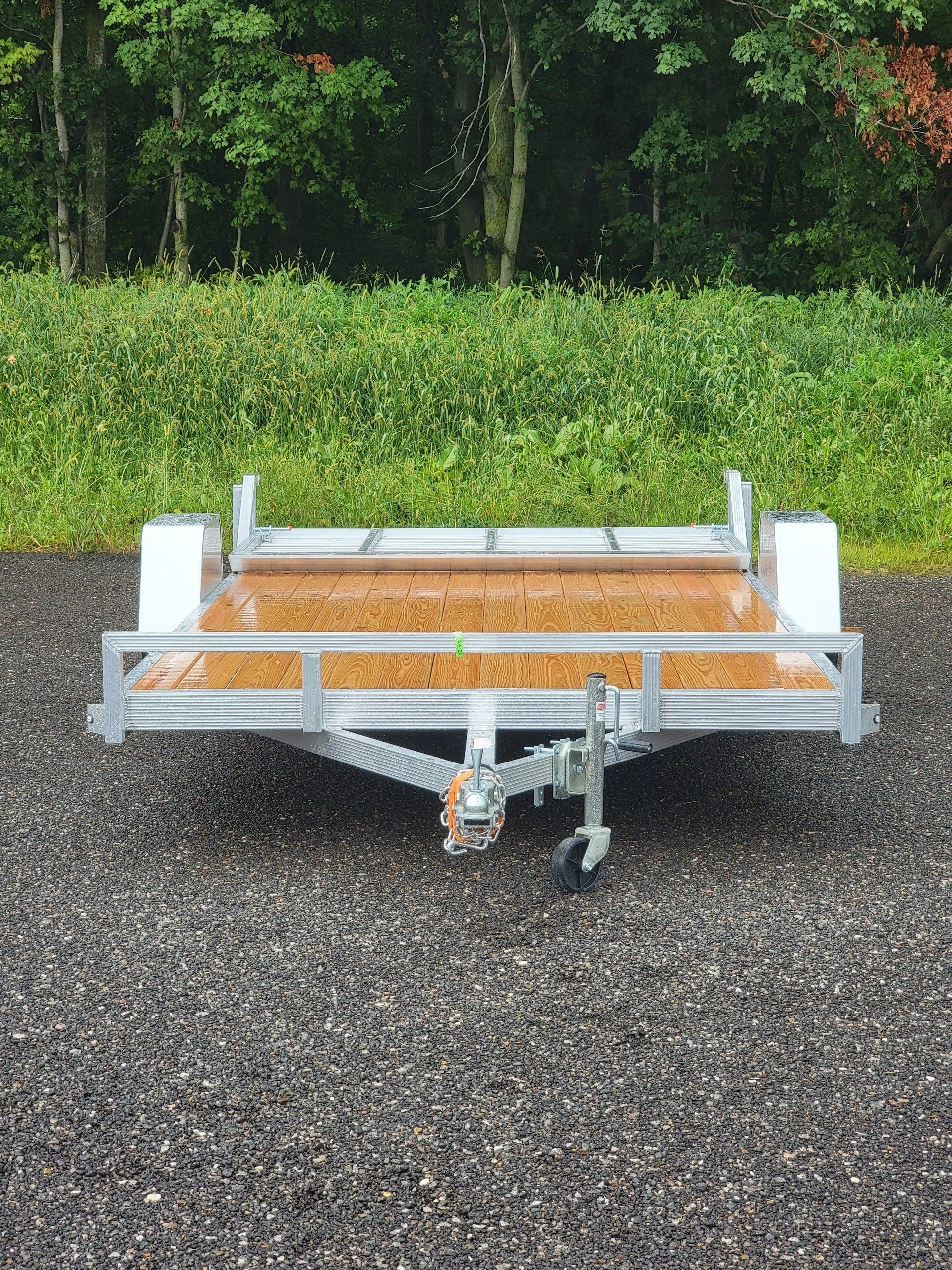

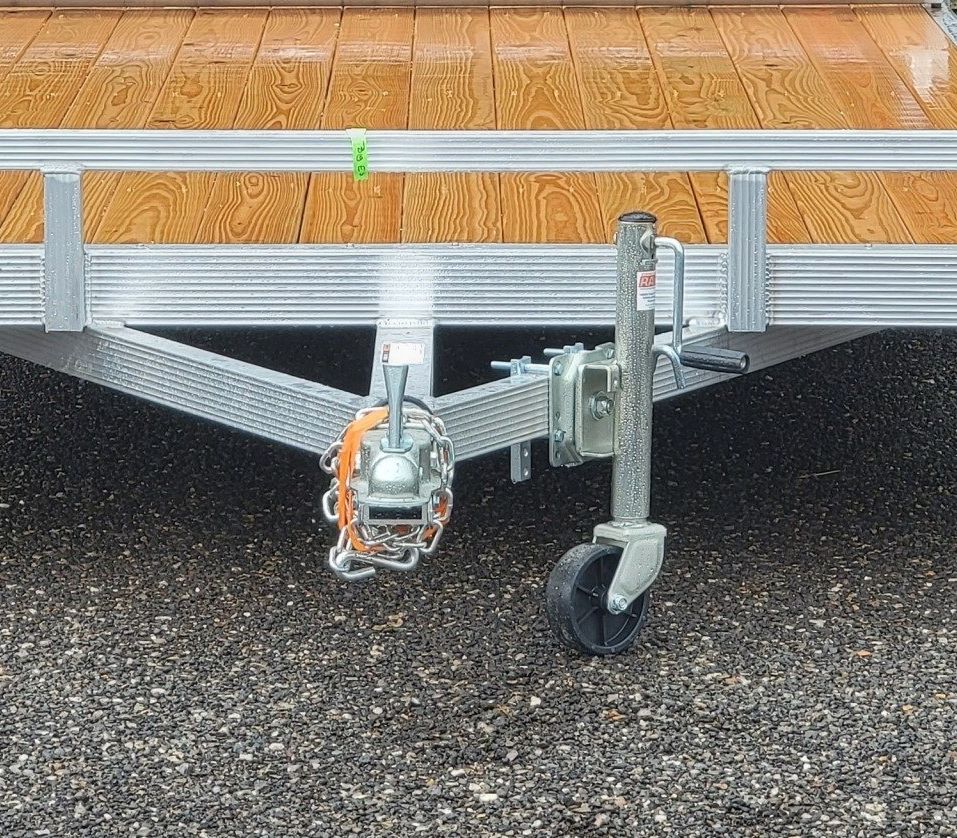

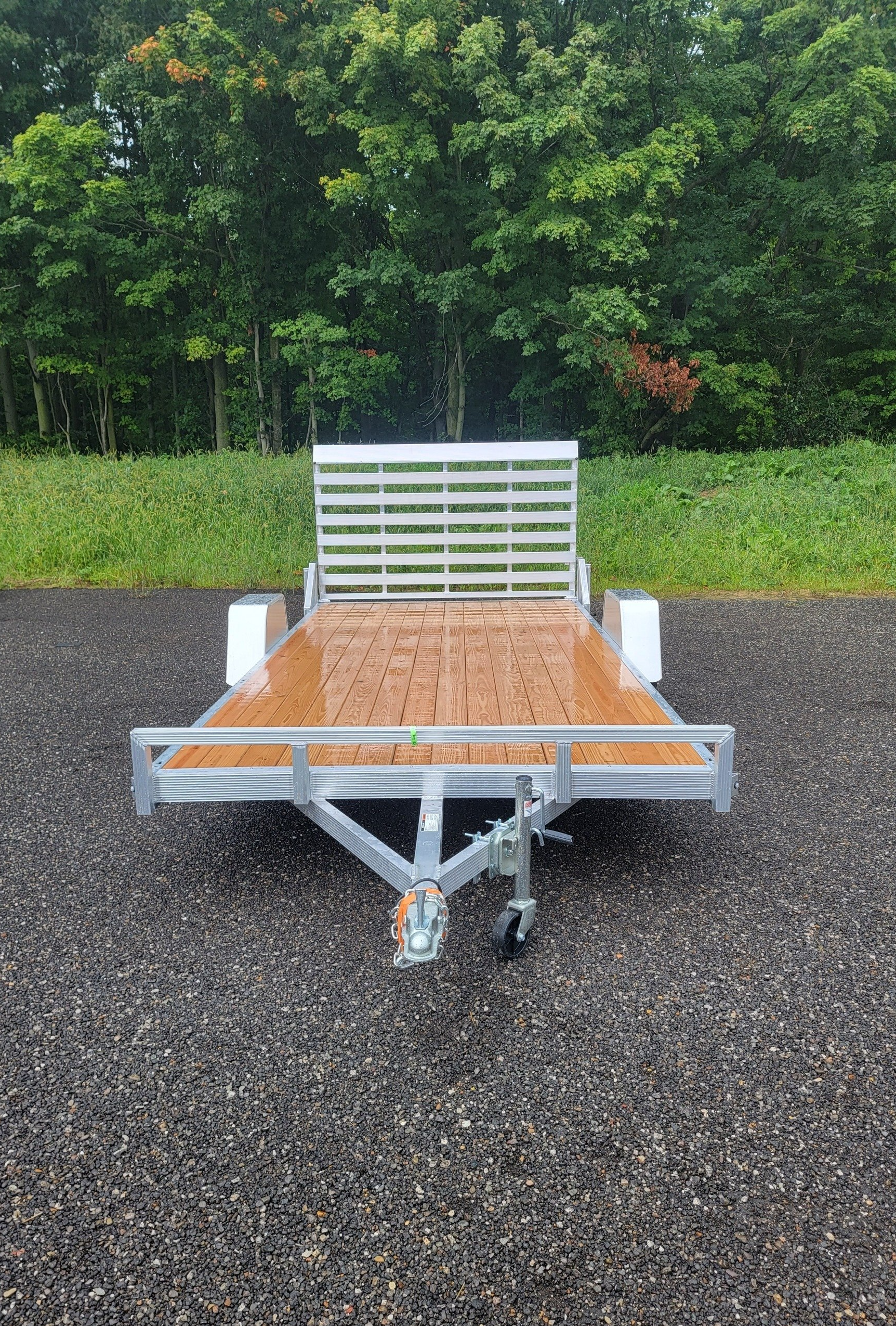

1,200 LB SWIVEL JACK
Button
Slide title
REMOVABLE BOLT THROUGH HINGE RAMP
Button
Slide title

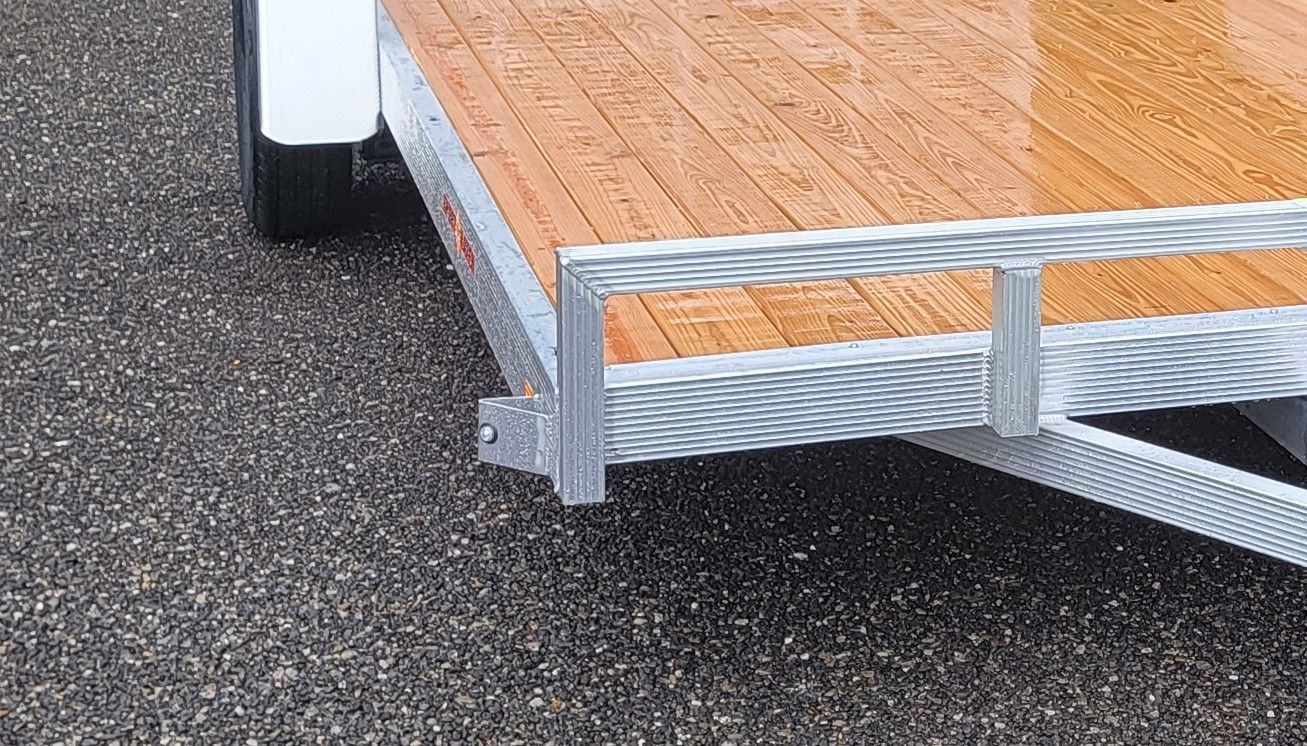

LED LIGHTING
Button
Slide title

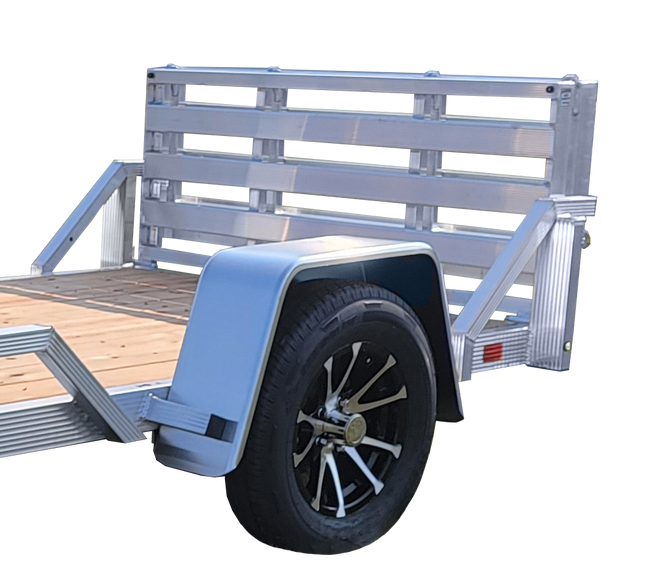

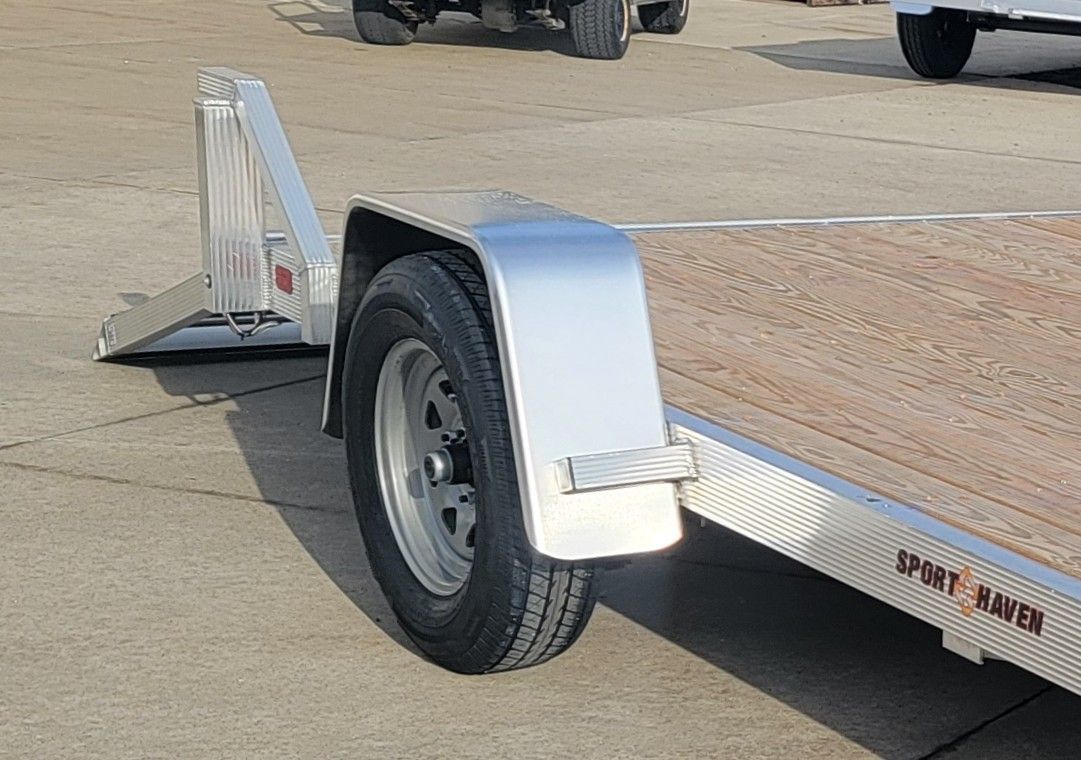

ALUMINUM FENDERS & RADIAL TIRES
Button
Features you will not find on other brands:
- Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.
- 5/4" x 6 " ProWood Dura Color Treated Decking - DuraColor treatment retains color longer and reduces cracking, warping, or splitting, minimizing up keep
- Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
-
Slide title
3 Position Ramp
Button -
Slide title
Folding Ramps Available
Button -
Slide title
Single Stud Tie Down
Button -
Slide title
Front Rail Support
Button
NOTABLE AU MODEL FEATURES
Features you might not find on other brands:
- 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting -
Limited Lifetime LED warranty
-
Slide title
1,200 LB SWIVEL JACK
Button -
Slide title
Removable Bolt Through Ramp
Button -
Slide title
LED Lighting
Button -
Slide title
Aluminum Fenders & Radial Tires
Button
AU MODEL CONSTRUCTION
AU MODEL CONSTRUCTION
Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Rail
- Aluminum Tube Fender Supports
Slide title
Jig Welded Construction
Button
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button
Slide title
2" Wide Top Deck Rail, Tube Top Deck Rail Uprights
Button
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Rail
- Aluminum Tube Fender Supports
AU MODEL SINGLE AXLE TRAILER SPECIFICATIONS
AU MODEL SINGLE AXLE TRAILER SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" x 5" Double Hollow Side Frame (2" x 4" - 10' & Under Models)
- 5/4" x 6" ProWood DuraColor Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Silver E-Coat Rims
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 18" Deck Height
- 6.5" Front Rail Height
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- Double Hollow Aluminum
- 2" x 5" Double Hollow Side Frame (2" x 4" - 10' & Under Models)
- 5/4" x 6" ProWood DuraColor Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Silver E-Coat Rims
- 15" Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 18" Deck Height
- 6.5" Front Rail Height
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
| MODEL | AU508 | AU510 | AU512 | AU514 | AU610 | AU612 | AU614 | AU712 | AU714 |
|---|---|---|---|---|---|---|---|---|---|
| Deck L x W | 96” x 60” | 120” x 60” | 144” x 60” | 168” x 60” | 120” x 72” | 144” x 72” | 168” x 72” | 144" x 83” | 168" x 83" |
| Overall L x W | 138” x 78” | 162” x 78” | 186” x 78” | 210” x 78” | 162” x 90” | 186” / 90” | 210” x 90” | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" | (1) 3" x 4" | (1) 3" x 4" |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted |
| Curb Weight | 480 lbs | 500 lbs | 560 lbs | 620 lbs | 580 lbs | 700 lbs | 785 lbs | 800 lbs | 840 lbs |
| Payload Capacity | 2,510 lbs | 2,490 lbs | 2,430 lbs | 2,370 lbs | 2410 lbs | 2,290 lbs | 2,205 lbs | 2,190 lbs | 2,150 lbs |
| Standard 4' Ramp Wieght Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is stronger and more scratch resistant than regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
| MODEL | AU508 | AU510 | AU512 | AU514 | AU610 | AU612 | AU614 | AU712 | AU714 |
|---|---|---|---|---|---|---|---|---|---|
| Deck L x W | 96” x 60” | 120” x 60” | 144” x 60” | 168” x 60” | 120” x 72” | 144” x 72” | 168” x 72” | 144" x 83” | 168" x 83" |
| Overall L x W | 138” x 78” | 162” x 78” | 186” x 78” | 210” x 78” | 162” x 90” | 186” x 90” | 210” x 90” | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" | (1) 3" x 4" | (1) 3" x 4" |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted |
| Curb Weight | 480 lbs | 500 lbs | 560 lbs | 620 lbs | 580 lbs | 700 lbs | 785 lbs | 800 lbs | 840 lbs |
| Payload Capacity | 2,510 lbs | 2,490 lbs | 2,430 lbs | 2,370 lbs | 2410 lbs | 2,290 lbs | 2,205 lbs | 2,190 lbs | 2,150 lbs |
| Standard 4' Ramp Wieght Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs | 1,500 lbs |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is stronger and more scratch resistant than regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
AU MODEL TANDEM AXLE TRAILER SPECIFICATIONS
AU MODEL TANDEM AXLE TRAILER SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- Double Hollow Aluminum
- 2" x 5" Aluminum Side Frame
- 5/4" x 6" ProWood DuraColor Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Silver E-Coat Rims
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- 4" Drop Axles
- Double Eye Spring Suspension
- 7,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball Compatible
- Electric Brakes On Both Axles
- 14" Hitch Height
- 18" Deck Height
- 6.5" Front Rail Height
- 7,000 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- Double Hollow Aluminum
- 2" x 5" Aluminum Side Frame
- 5/4" x 6" ProWood DuraColor Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Aluminum Wheels
- 15" Radial Tires
- 3,500 lb Capacity Axles
- 4" Drop Axles
- Double Eye Spring Suspension
- 7,000 lb Capacity Zinc Plated Coupler
- 7,600 lb Capacity, 30" Zinc Plated Safety Chains
- 2,500 lb capacity Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2" Ball Compatible
- Electric Brakes On Both Axles
- 14" Hitch Height
- 18" Deck Height
- 7,000 lb Gross Vehicle Weight Rating (GVWR)

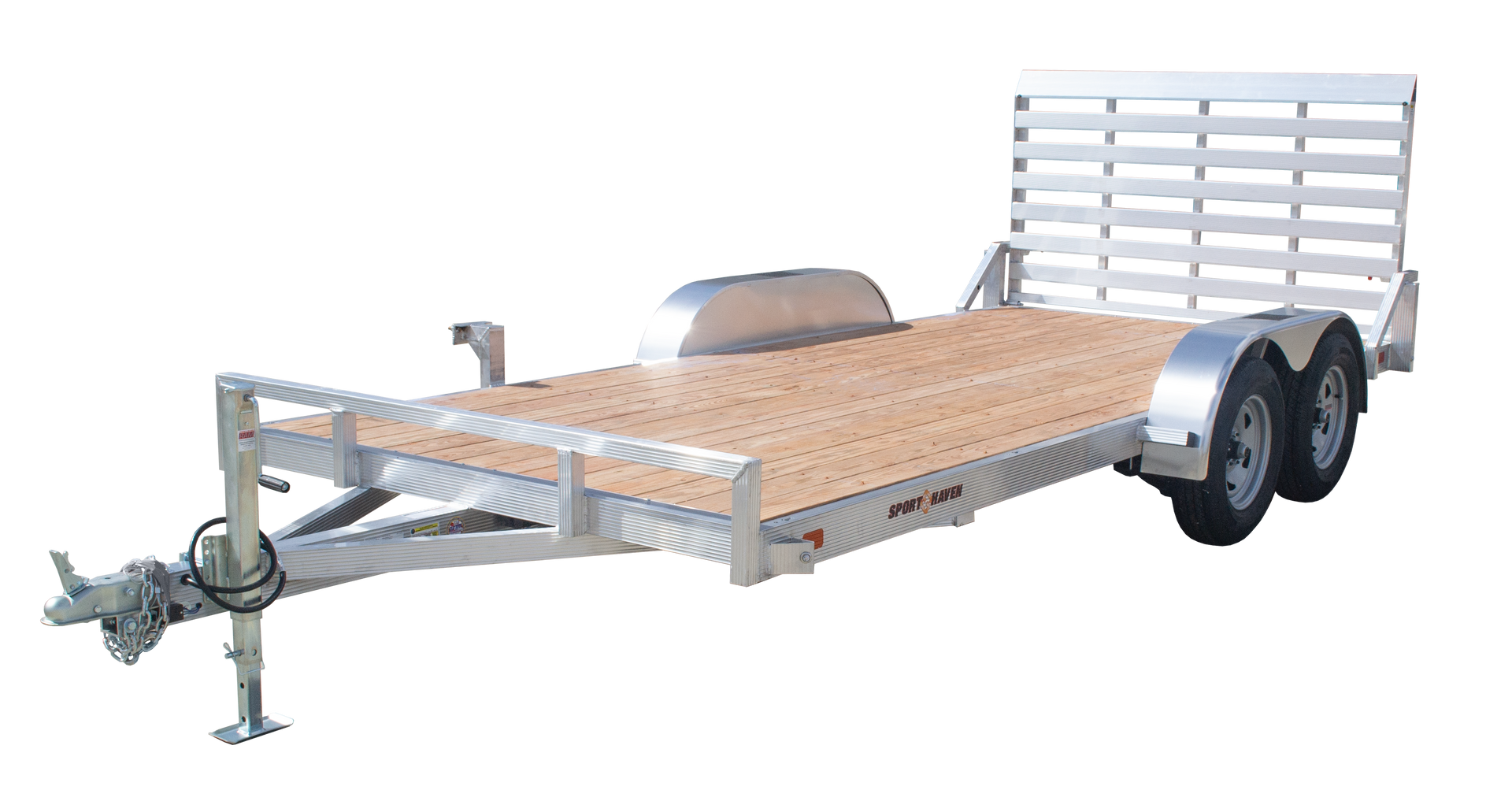

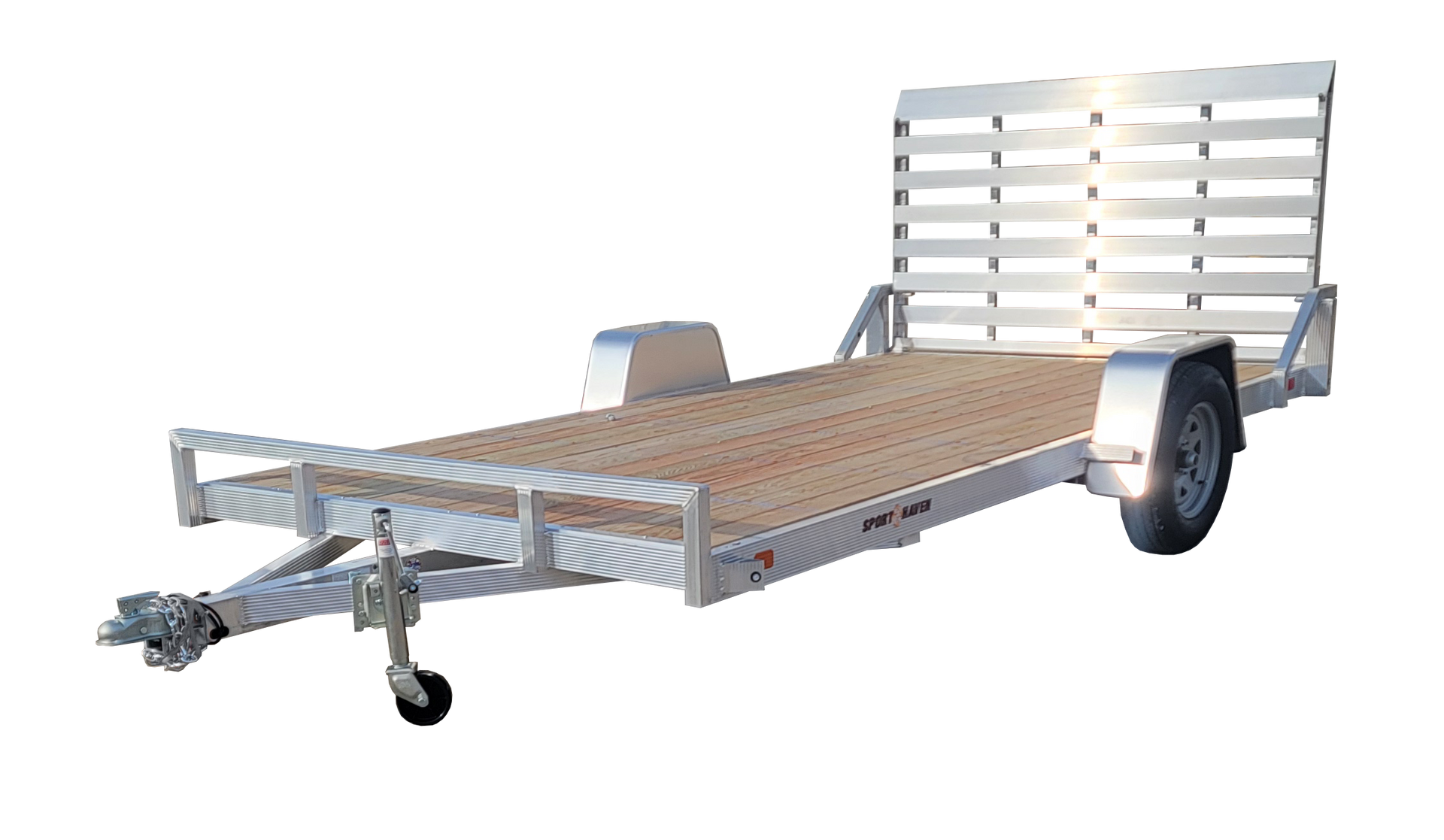

| MODEL | AU714T | AU716T |
|---|---|---|
| Deck L x W | 168” x 83” | 192” x 83” |
| Overall L x W | 219” x 101” | 240” x 101” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Above Tongue | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted |
| Frame Crossmembers* Middle | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted |
| Curb Weight | 1,120 lbs | 1,160 lbs |
| Payload Capacity | 5,880 lbs | 5,840 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs |
| Stabilizer Jacks | Optional | Optional |
| PDF Download | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
| MODEL | AU714T | AU716T |
|---|---|---|
| Deck L x W | 168” x 83” | 192” x 83” |
| Overall L x W | 219” x 101” | 240” x 101” |
| Tongue | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails | (2) 2" x 5" Fluted Double Hollow | (2) 2" x 5" Fluted Double Hollow |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Above Tongue | (3) 1.75" x 3" Fluted | (3) 1.75" x 3" Fluted |
| Frame Crossmembers* Middle | (3) 1.75" x 3" Fluted | (4) 1.75" x 3" Fluted |
| Curb Weight | 1,120 lbs | 1,160 lbs |
| Payload Capacity | 5,880 lbs | 5,840 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1,500 lbs | 1,500 lbs |
| Stabilizer Jacks | Optional | Optional |
| PDF Download | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
