EXCLUSIVE AUTXD SERIES FEATURES
NOTABLE AUTXD MODEL FEATURES
EXCLUSIVE AUTXD SERIES FEATURES
NOTABLE AUTXD MODEL FEATURES
Features you will not find on other brands:
- Integrated Connect Tie Down Track Built into Frame rails - Connect points every 12"
- Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.
- Aluminum Decking- Anti Slip
- Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
Slide title

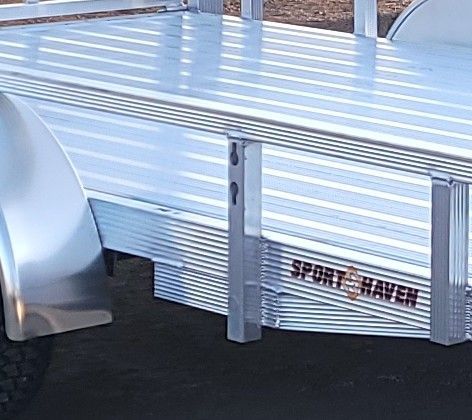

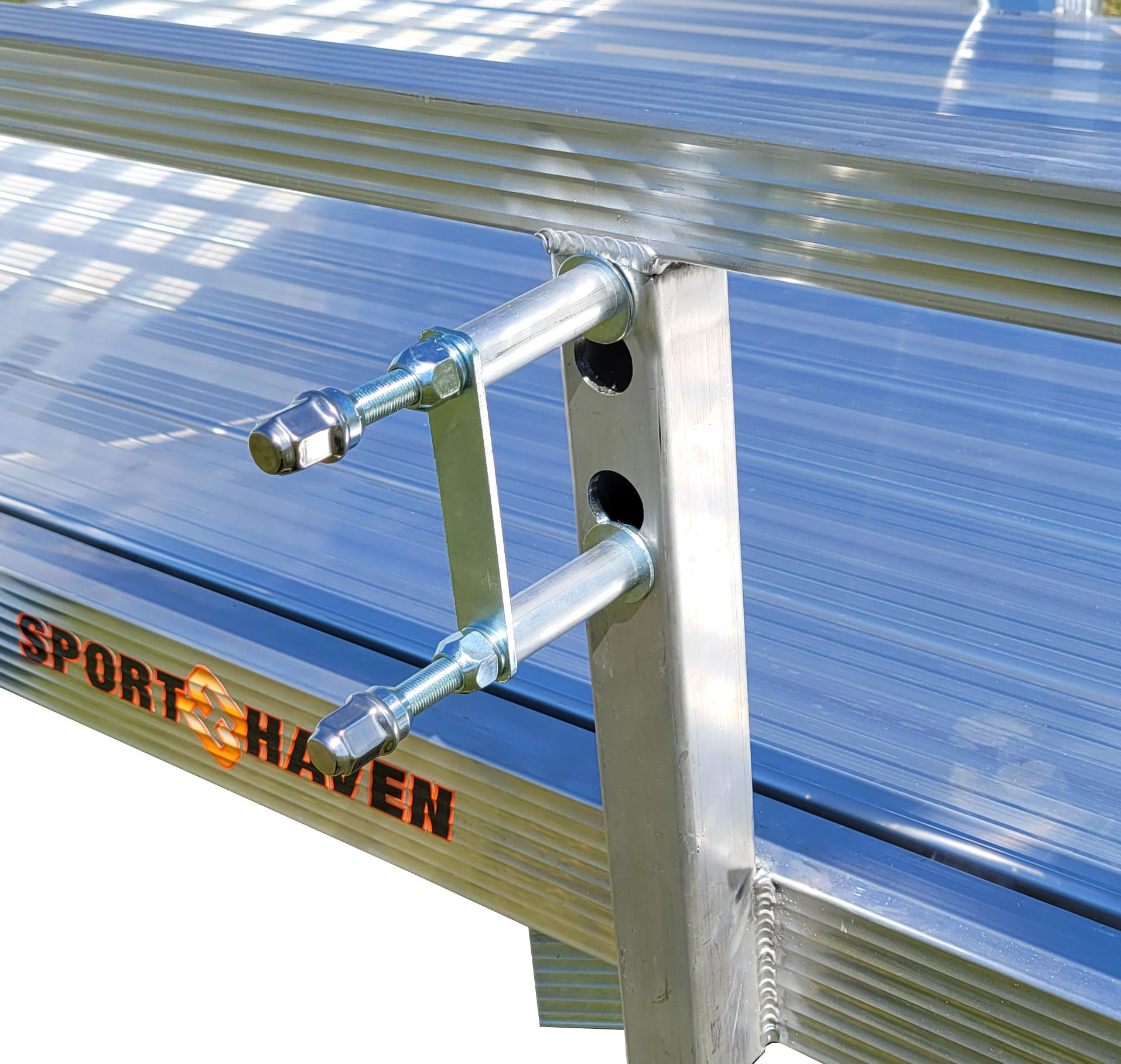

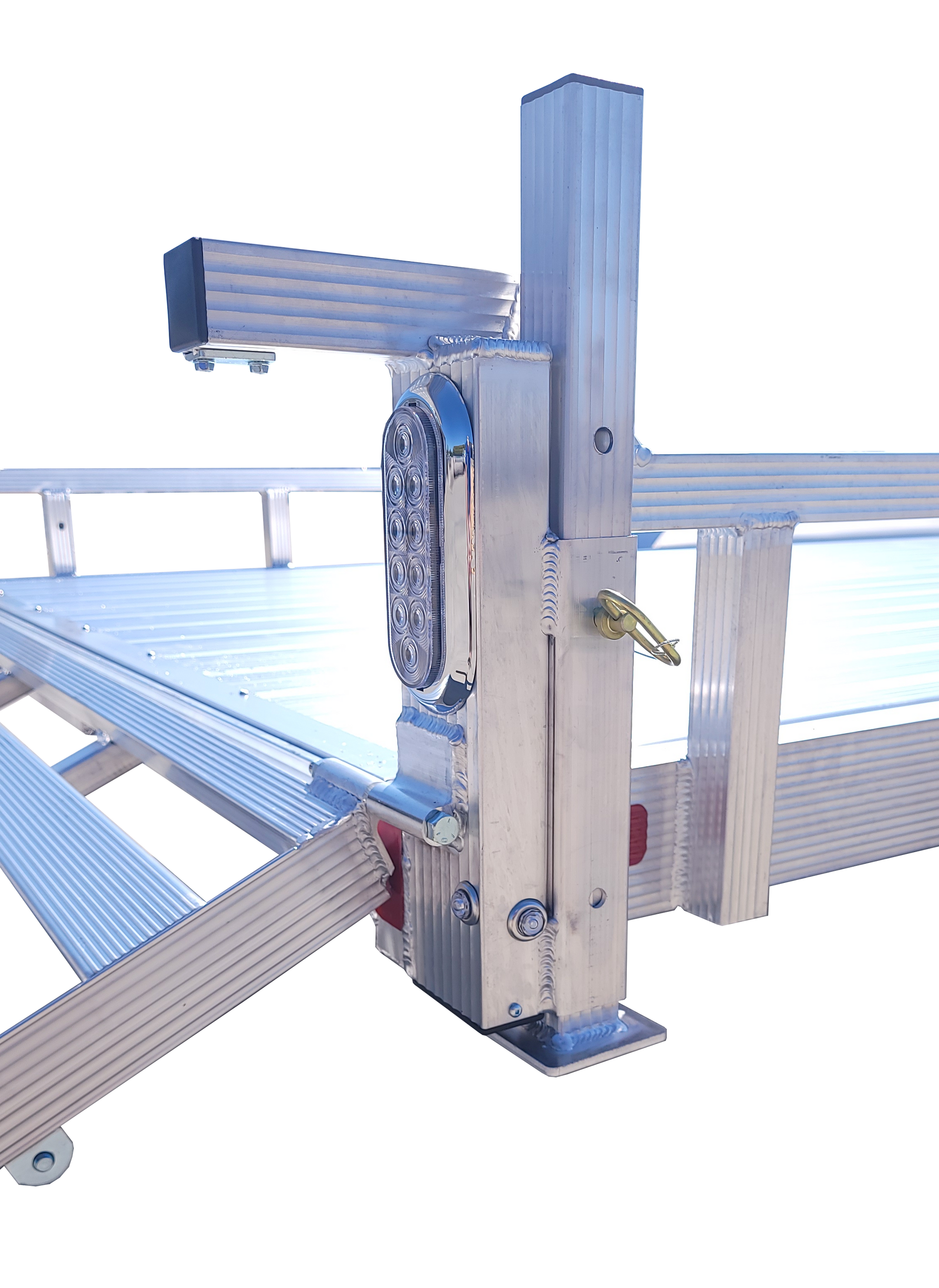

SPARE MOUNT SIDE RAIL UPRIGHT
Button
Slide title
SPARE TIRE MOUNT KIT INSTALLED
Button
Slide title

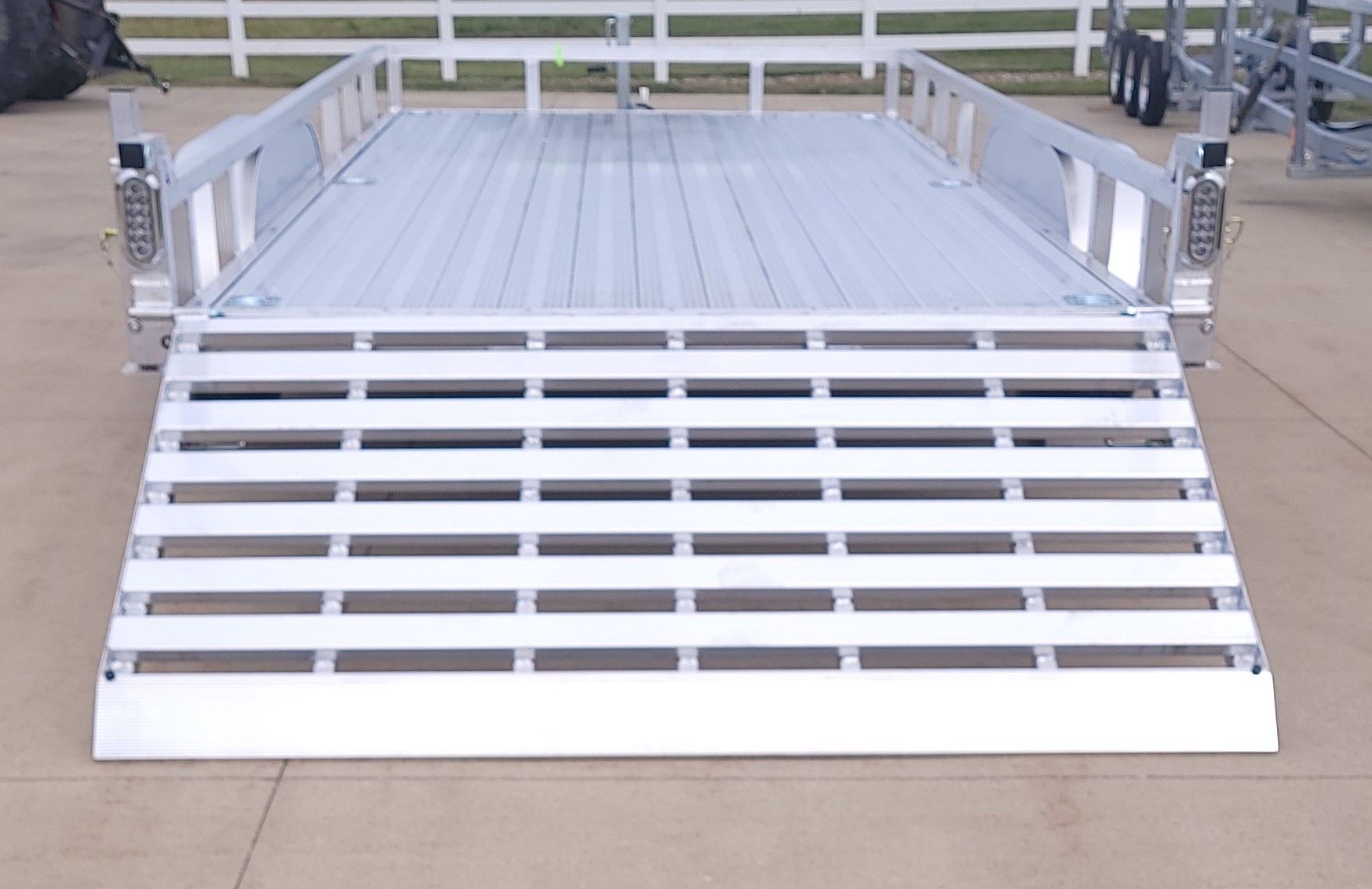

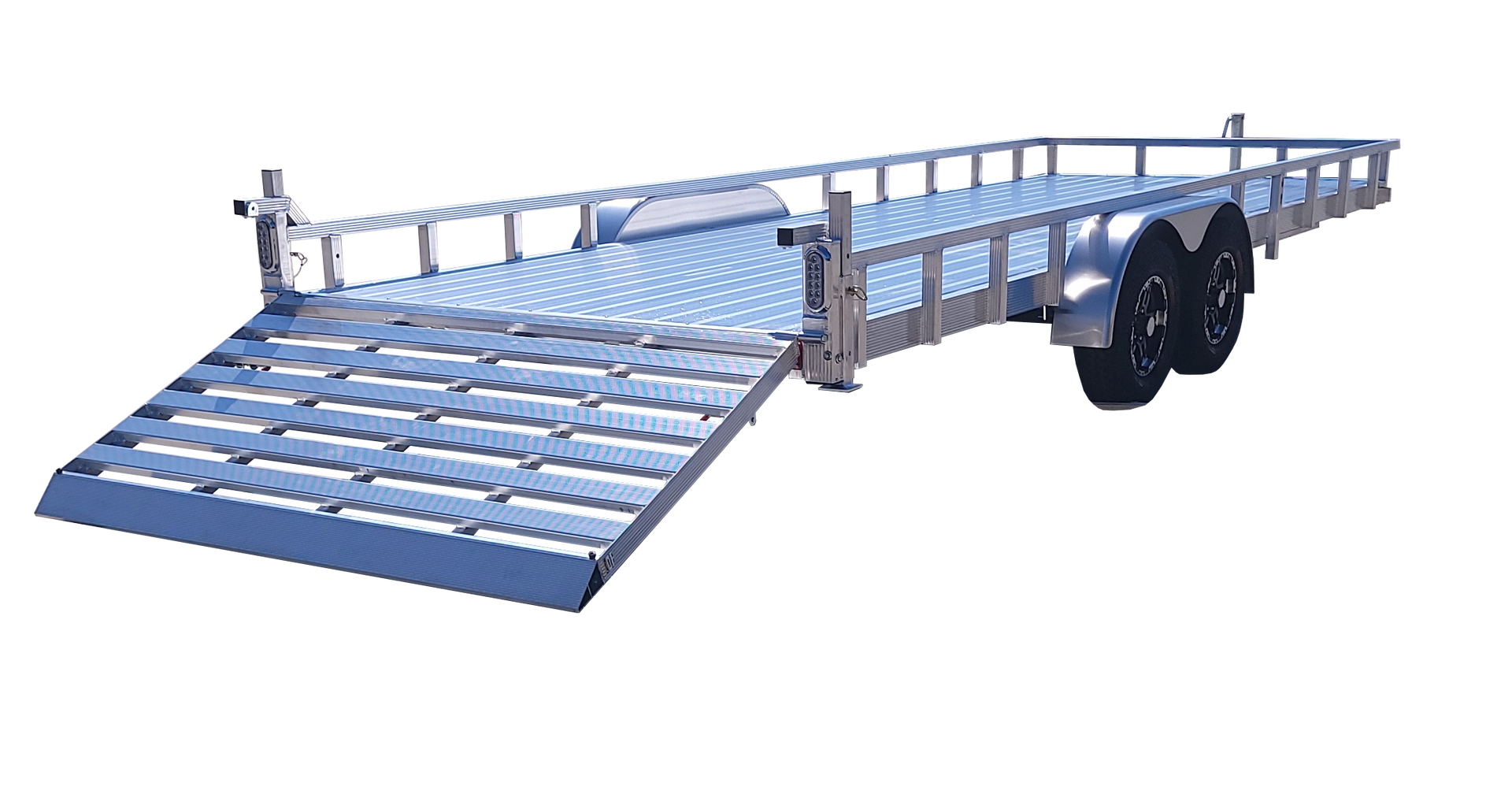

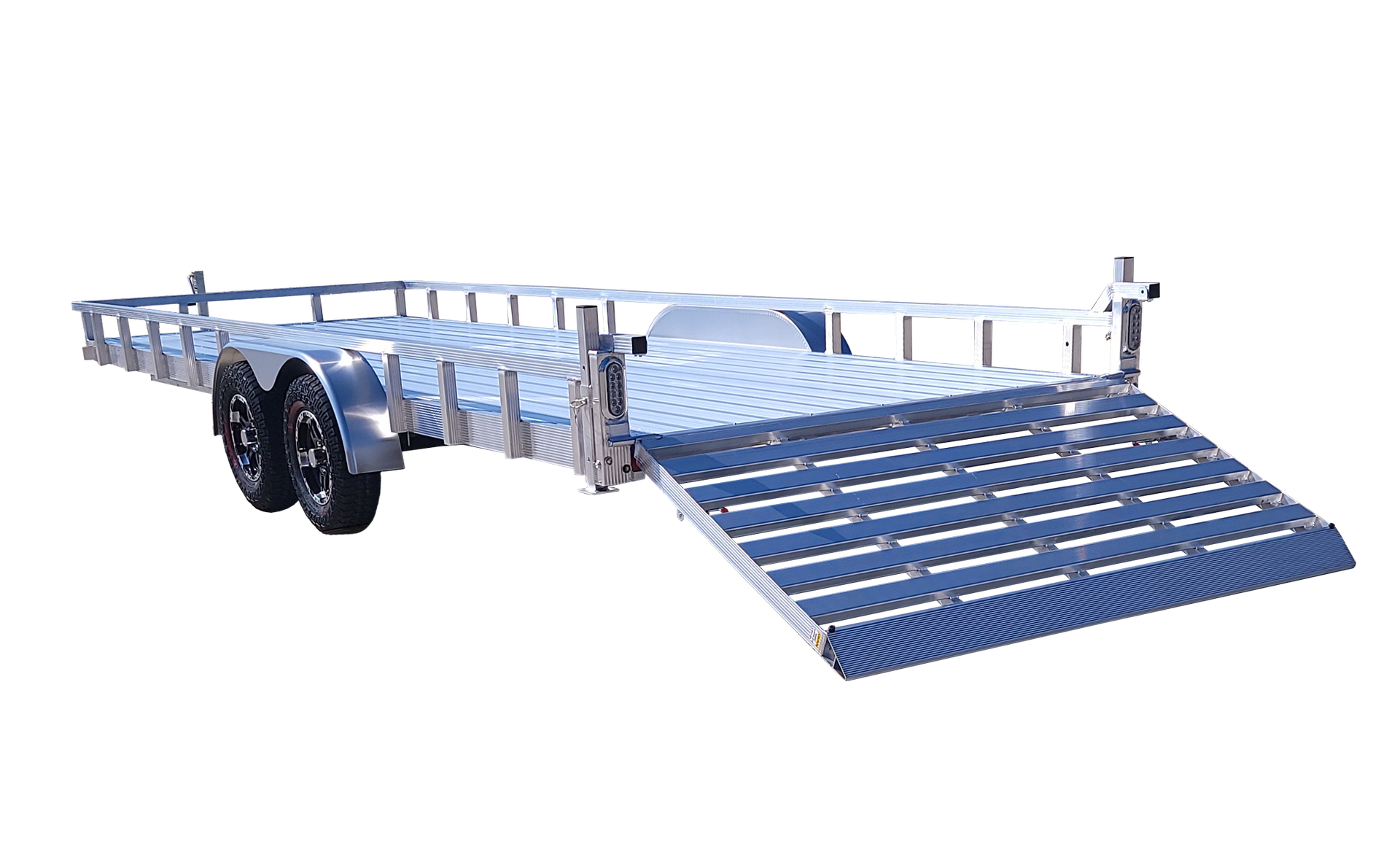

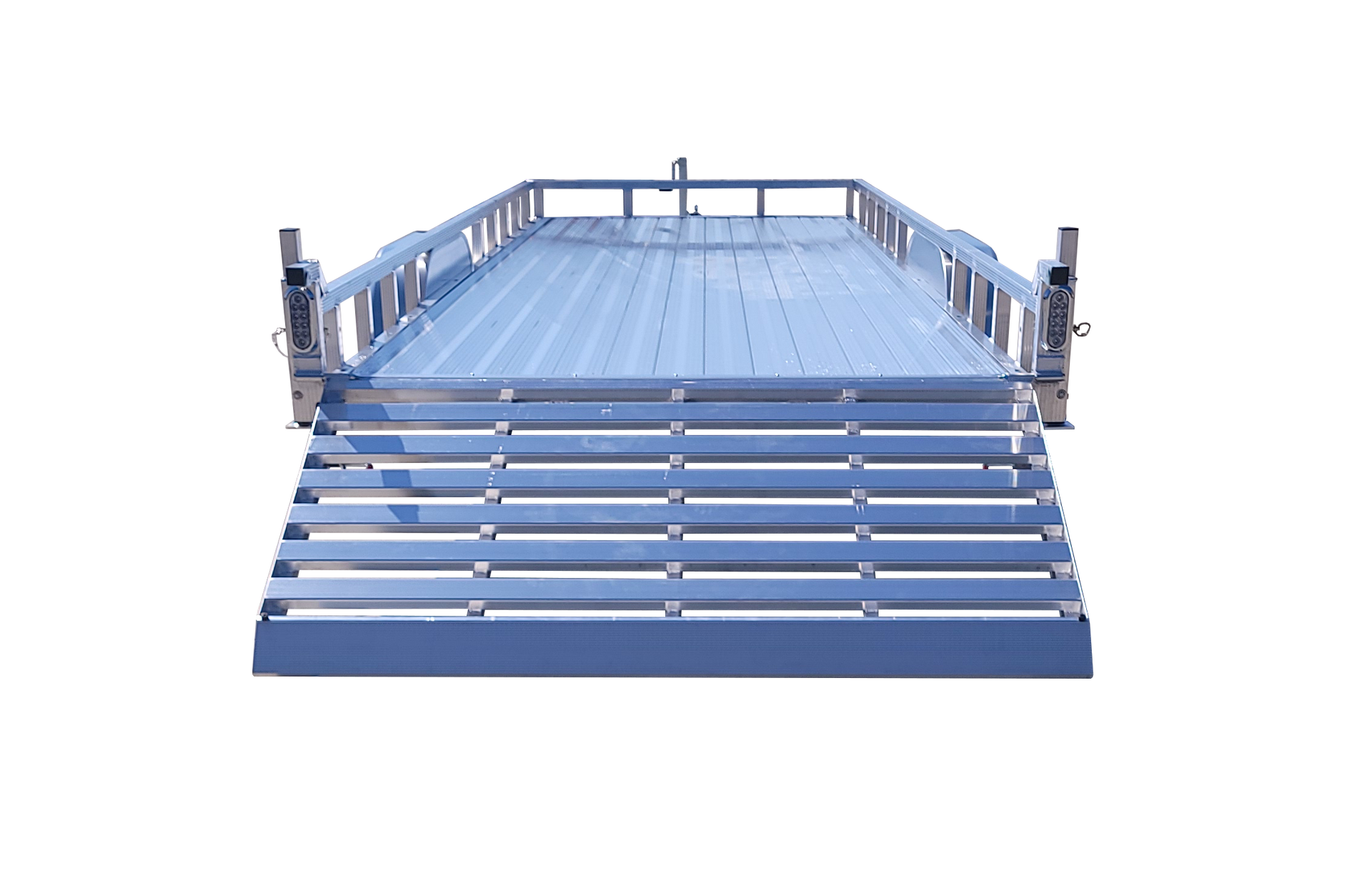

REAR REMOVABLE 3-POSITION RAMP
Button
Slide title

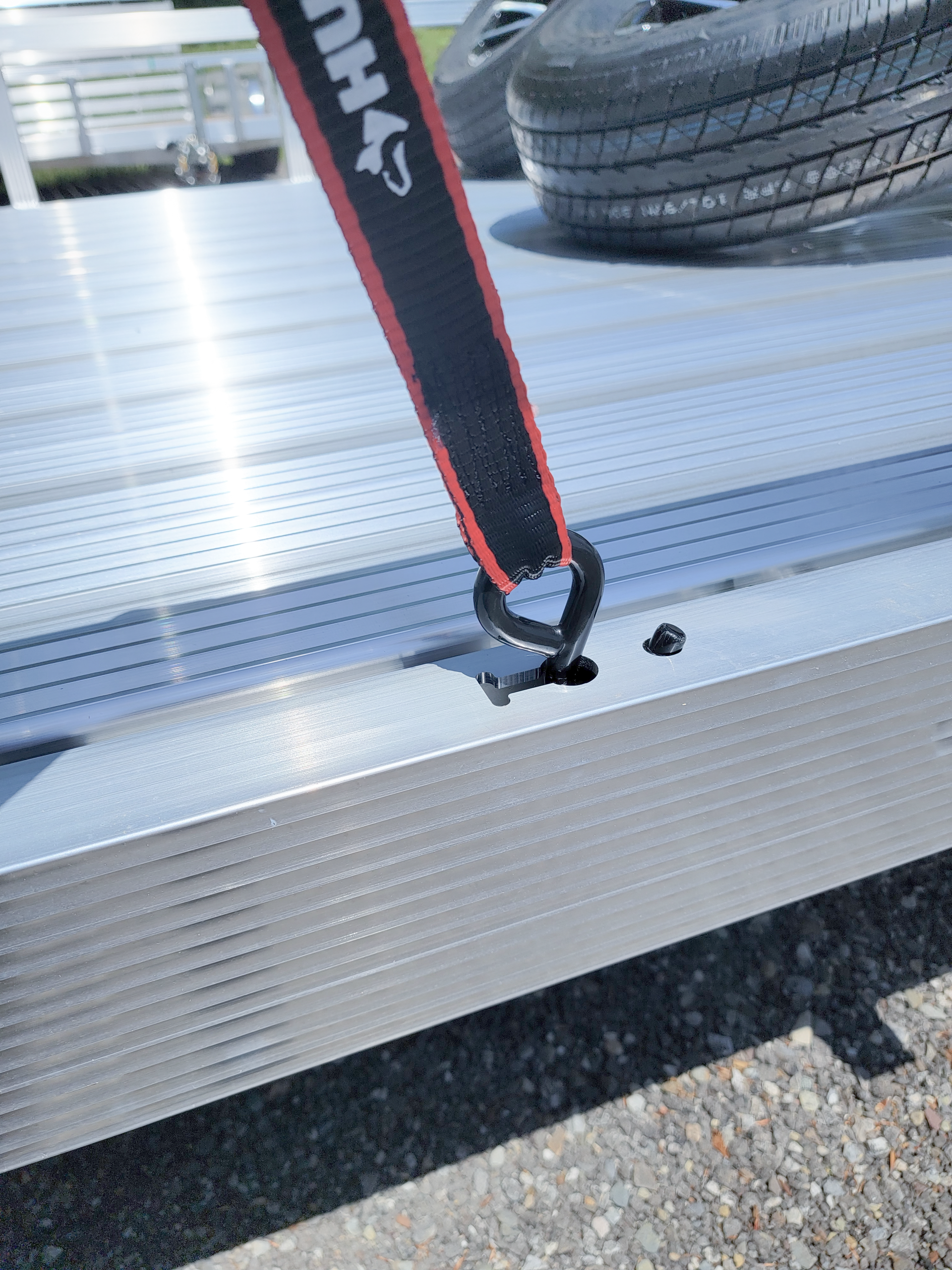

Integrated Connect Tie Down Track
Button
NOTABLE AUTXD MODEL FEATURES
Features you might not find on other brands:

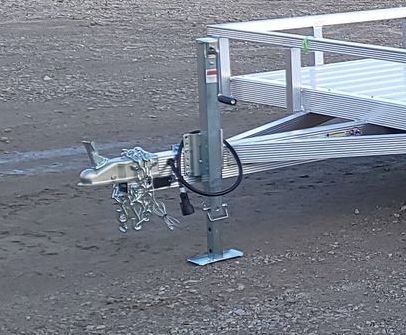

- 2,500 lb. Drop Pad Jack - adjustable height for quick leveling on uneven terrain
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- All Terrain Tires - Great for daily driving, most weather conditions, and some dirt or mud.
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting - Limited Lifetime LED warranty
Slide title
DROP LEG PAD JACK
Button
Slide title
REMOVABLE THROUGH BOLT HINGE RAMP
Button
Slide title
SPRING LOADED LATCH GATE
Button
Slide title

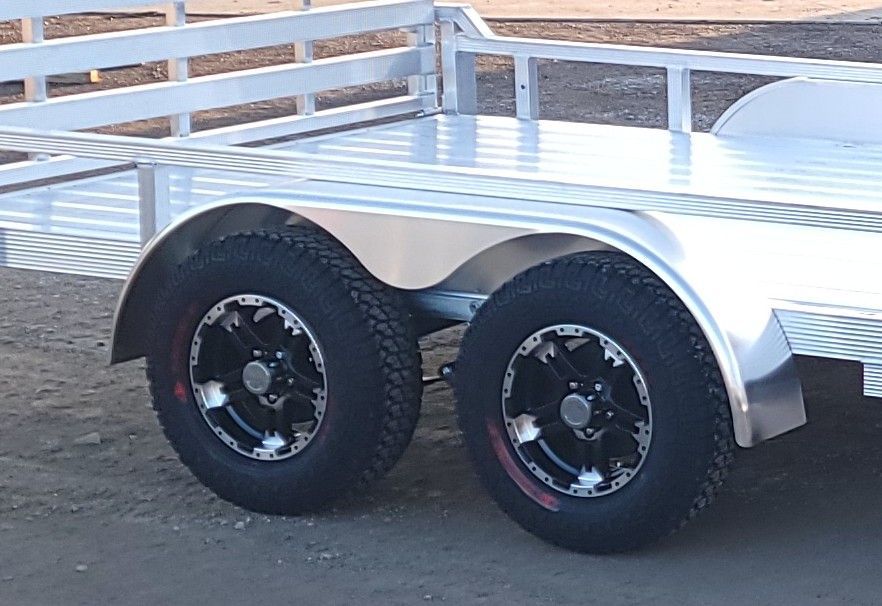

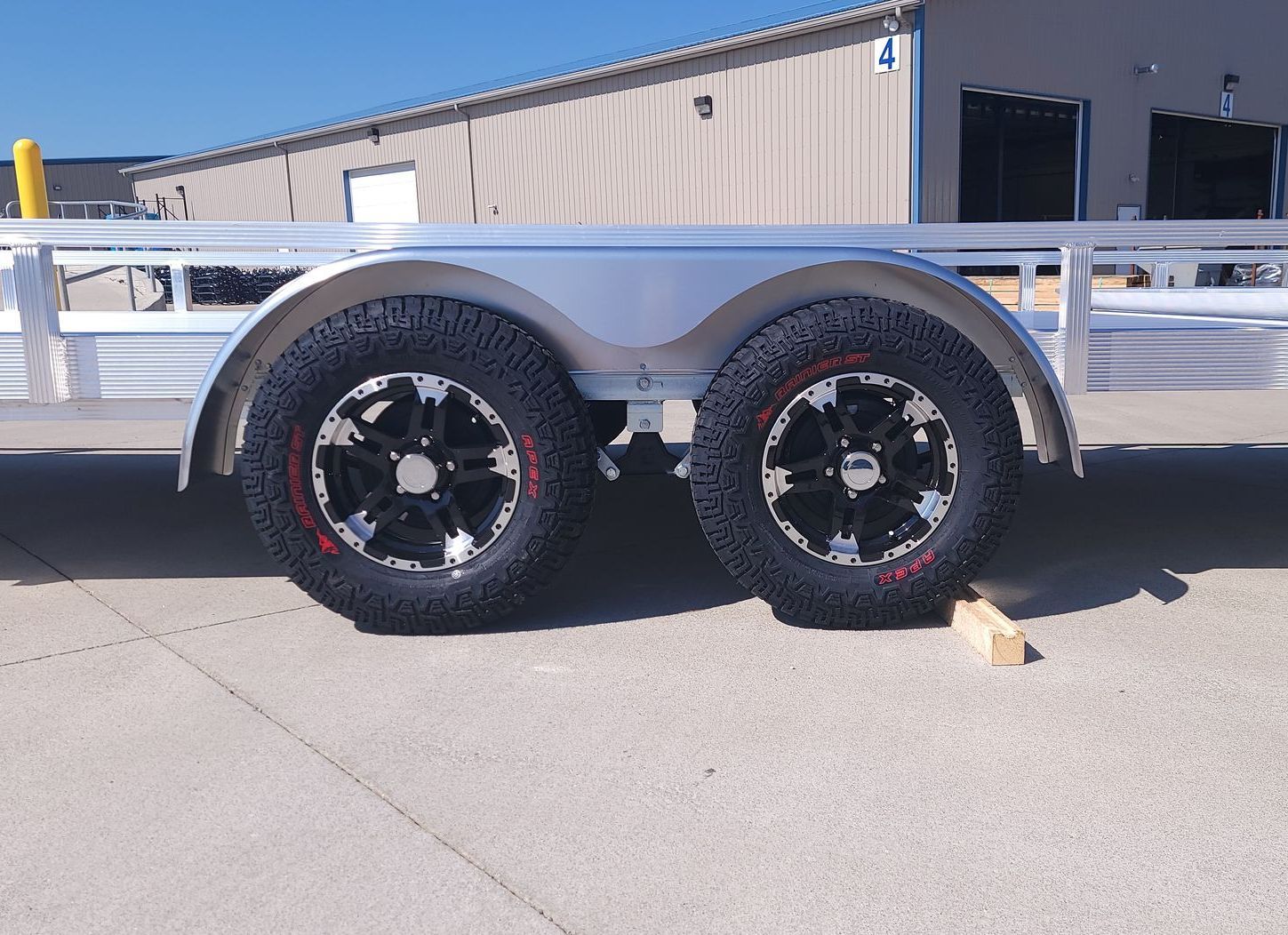

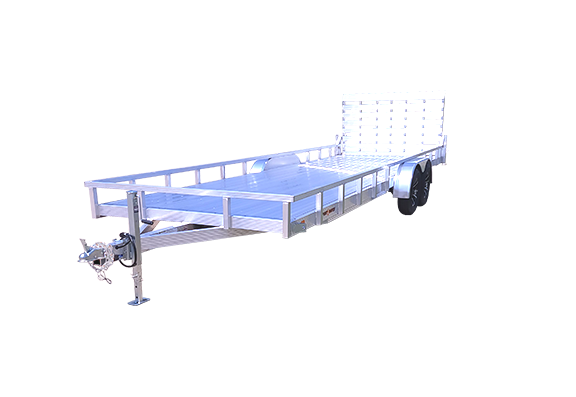

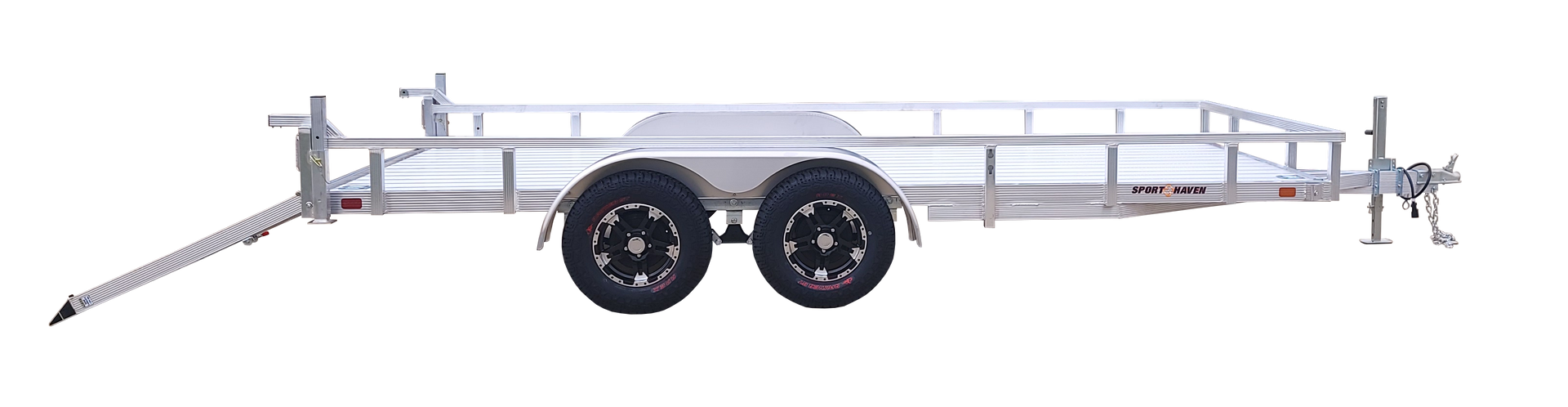

ALL TERRAIN TIRES ON ALUMINUM WHEELS & ALUMINUM FENDERS
Button
Slide title
ALUMINUM TANDEM FENDERS WITH INSERTS
Button
Features you will not find on other brands:
- Integrated Connect Tie Down Track Built into Frame rails - Connect points every 12"
- Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.
- Aluminum Decking- Anti Slip
- Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.
-
Slide title
SPARE MOUNT SIDE RAIL UPRIGHT
Button -
Slide title
SPARE TIRE MOUNT KIT INSTALLED
Button -
Slide title

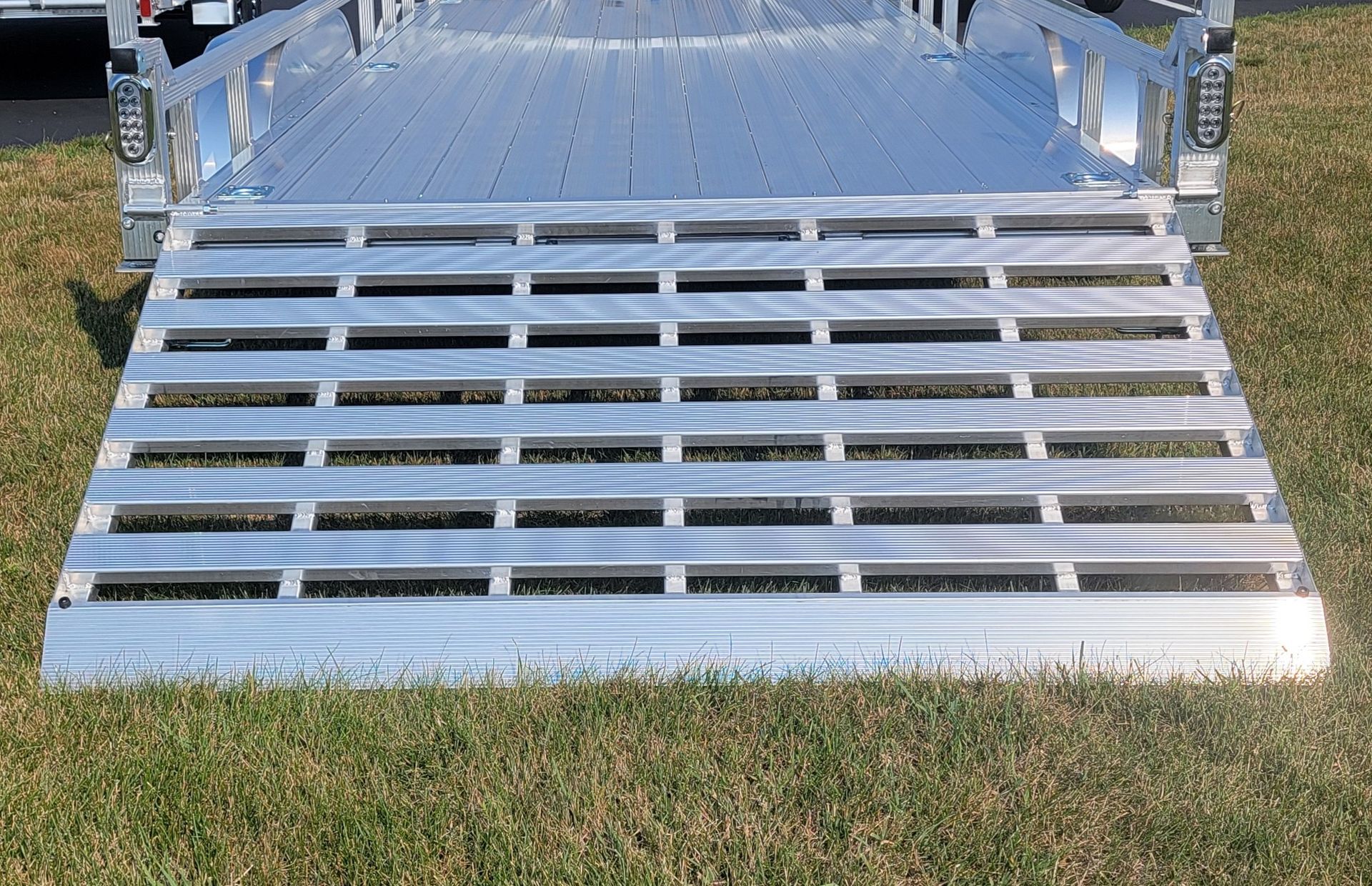

REAR REMOVABLE 3-POSITION RAMP
Button -
Slide title
Integrated Connect Tie Down Track
Button
Features you might not find on other brands:
- 2,500 lb. Drop Pad Jack - adjustable height for quick leveling on uneven terrain
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- All Terrain Tires - Great for daily driving, most weather conditions, and some dirt or mud.
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting - Limited Lifetime LED warranty
-
Slide title
DROP LEG PAD JACK
Button -
Slide title
REMOVABLE THROUGH BOLT HINGE RAMP
Button -
Slide title
SPRING LOADED LATCH GATE
Button -
Slide title
ALL TERRAIN TIRES ON ALUMINUM WHEELS & ALUMINUM FENDERS
Button -
Slide title
ALUMINUM TANDEM FENDERS WITH INSERTS
Button

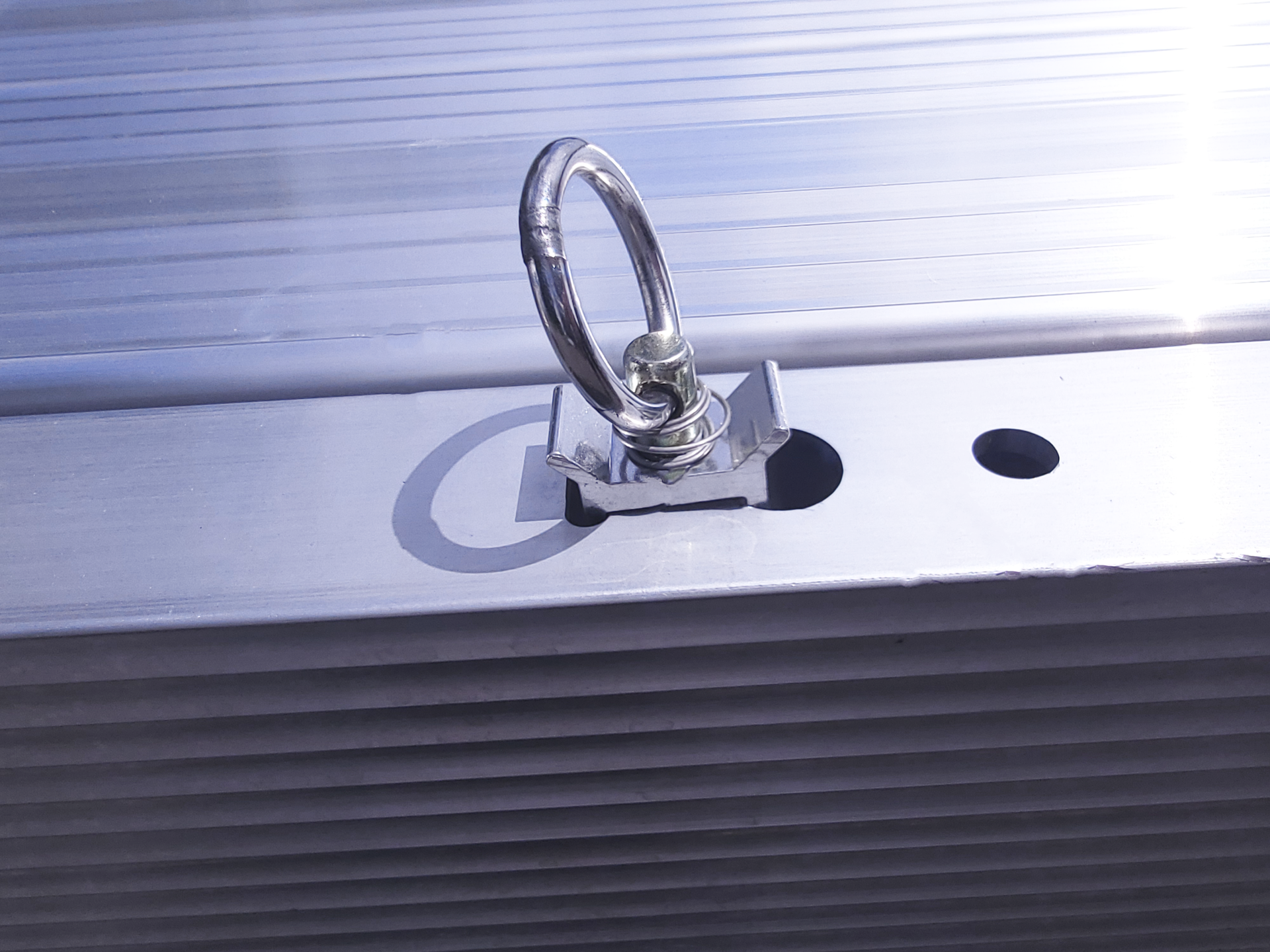

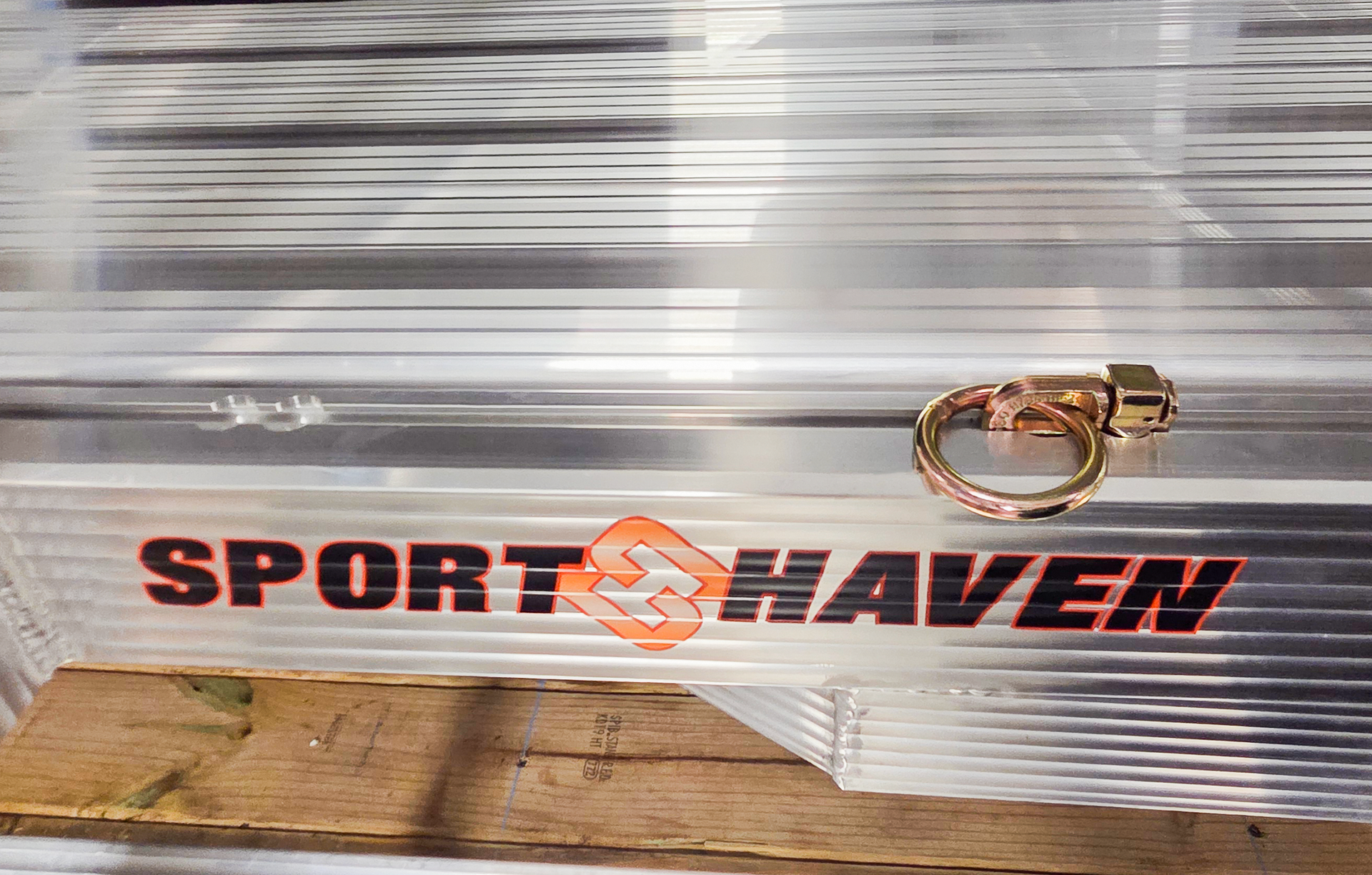

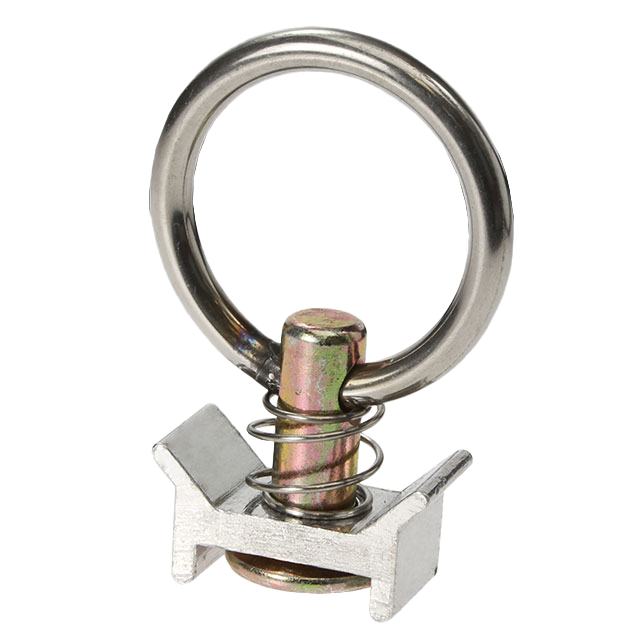

CONNECT TIE DOWN TRACK

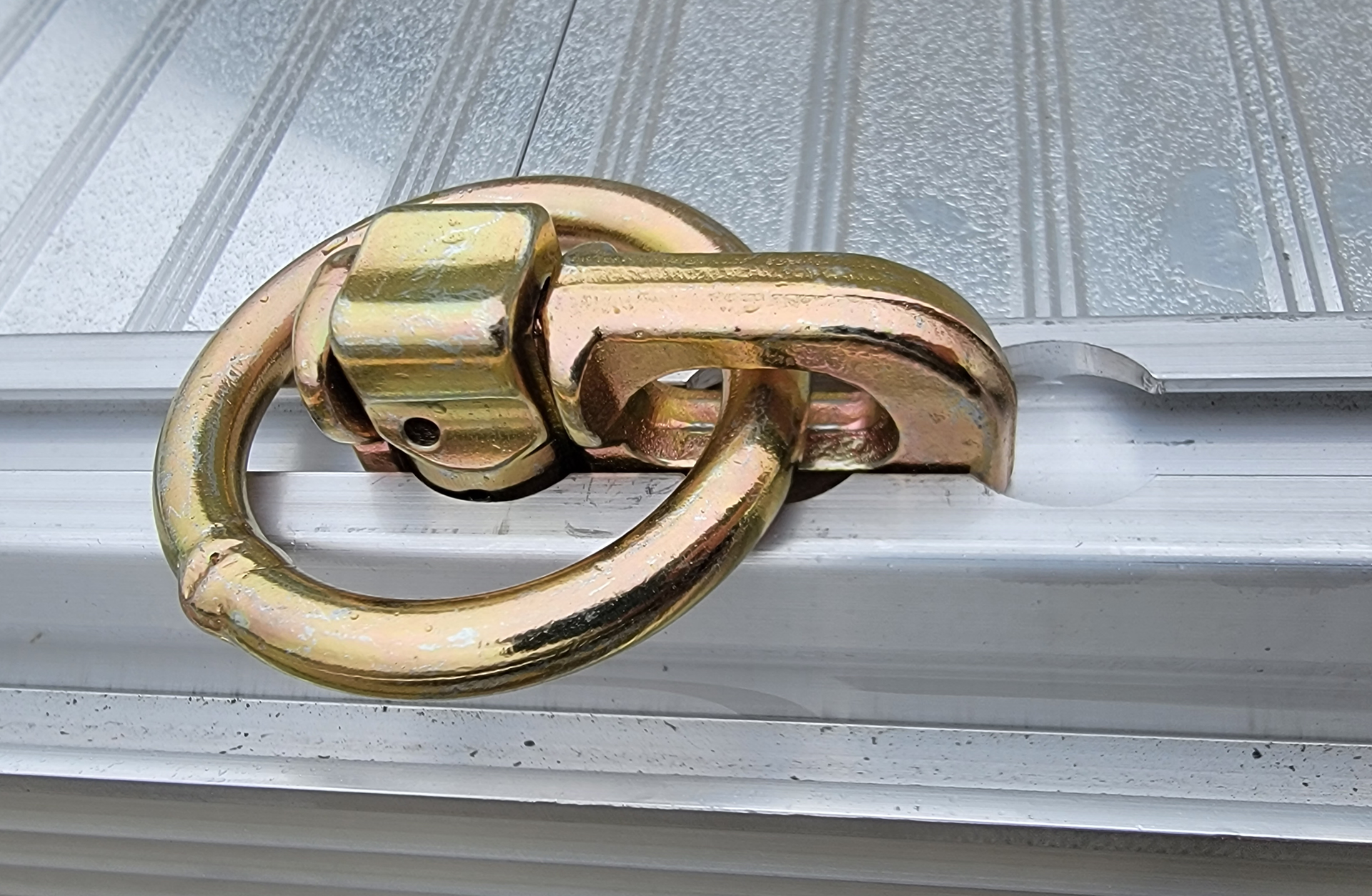

Secure your adventures like never before with Sport Haven Trailers' innovative Connect Tie Down Track™—a game-changing system engineered for ultimate cargo confidence on the road.
The Connect Tie Down Track features holes every 12" along the Integrated frame rails where double stud tie downs attach.
Single axle trailers come standard with 4 tie downs included, Tandem Axle trailers come with 6

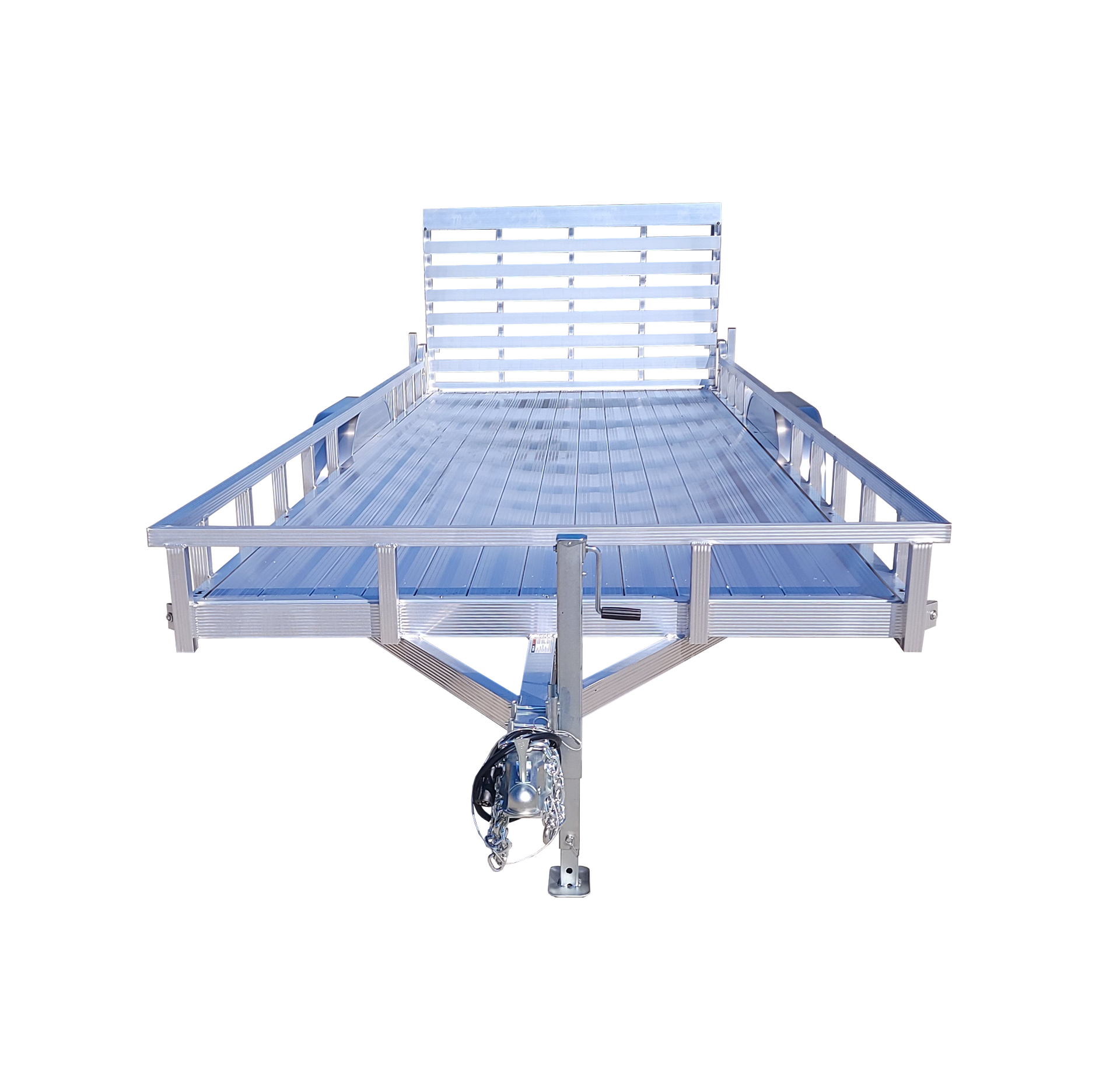

AUTXD MODEL CONSTRUCTION
AUTXD MODEL CONSTRUCTION
Fluted Aluminum Tubing is Stronger and More Scratch Resistant
than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
Slide title
Jig Welded Construction
Button
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button
Slide title
2" Wide Top Deck Rails, Tube Top Deck Rail Uprights
Button
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
Fluted Aluminum Tubing is Stronger and More Scratch Resistant
than Regular Smooth Sided Aluminum
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues and Tongue Supports
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
-
Slide title
Jig Welded Construction
Button -
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button -
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button -
Slide title
2" Wide Top Deck Rails, Tube Top Deck Rail Uprights
Button -
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
AUTXD MODEL OPTIONAL ADDED FEATURES
*Some Features need to be added when making the trailer contact your dealer to order.
AUTXD MODEL SINGLE AXLE SPECIFICATIONS
AUTXD MODEL SINGLE AXLE SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2 x 2"" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- All-Terrain Radial Tires w/Aluminum Wheels
- 3500lb Dexter Spring Axles
- Double Eye Spring Suspension
- 3500 lb Zinc Plated Coupler
- 5,000 lb Capacity, 30" Safety Chains
- 1200 lb Swivel Tongue Jack
Misc Specs
- 4 Way Flat Harness
- 2" Ball
- 21" Deck Height
- 10" Rail Height Above the Deck
- 2990 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2 x 2"" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Slip Resistant Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- All-Terrain Radial Tires w/Aluminum Wheels
- 3500lb Dexter Spring Axles
- Double Eye Spring Suspension
- 3500 lb Zinc Plated Coupler
- 5,000 lb Capacity, 30" Safety Chains
- 1200 lb Swivel Tongue Jack
Misc Specs
- 4 Way Flat Harness
- 2" Ball
- 21" Deck Height
- 10" Rail Height Above the Deck
- 2990 lb Gross Vehicle Weight Rating (GVWR)
| MODEL | AUTXD712 | AUTXD714 |
|---|---|---|
| Deck L x W | 144" x 83” | 168" x 83" |
| Overall L x W | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (6) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted |
| Tire Size | ST215/75R14D | ST215/75R14D |
| Curb Weight | 620 lbs | 665 lbs |
| Payload Capacity | 2370 lbs | 2325 lbs |
| GVWR | 2990 lbs | 2990 lbs |
| Standard 4' Ramp Weight Capacity*** | 1750 lbs | 1750 lbs |
| Optional 4' Folding Ramp Weight Capacity*** | 1500 | 1500 |
| Download PDF |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

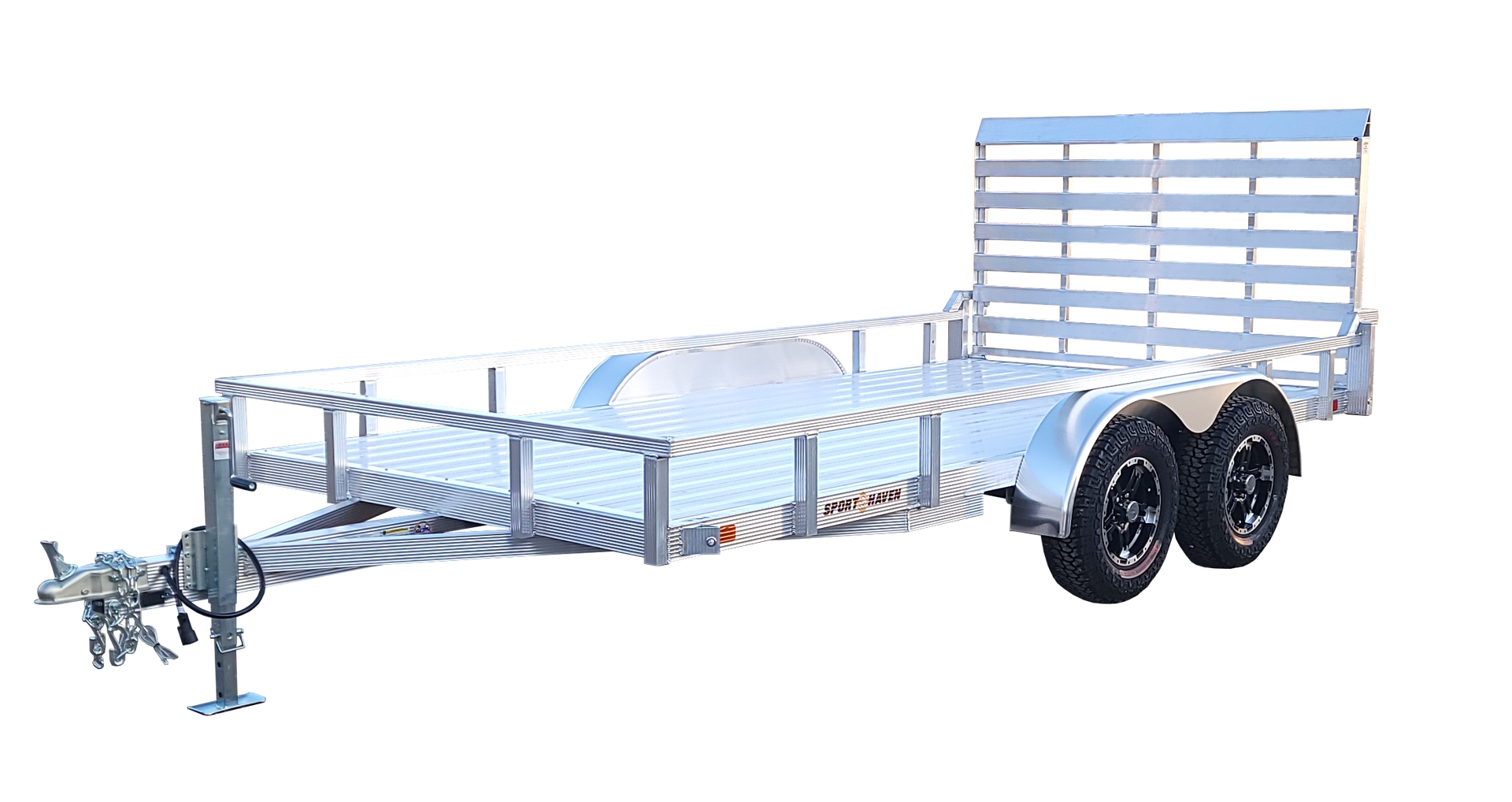

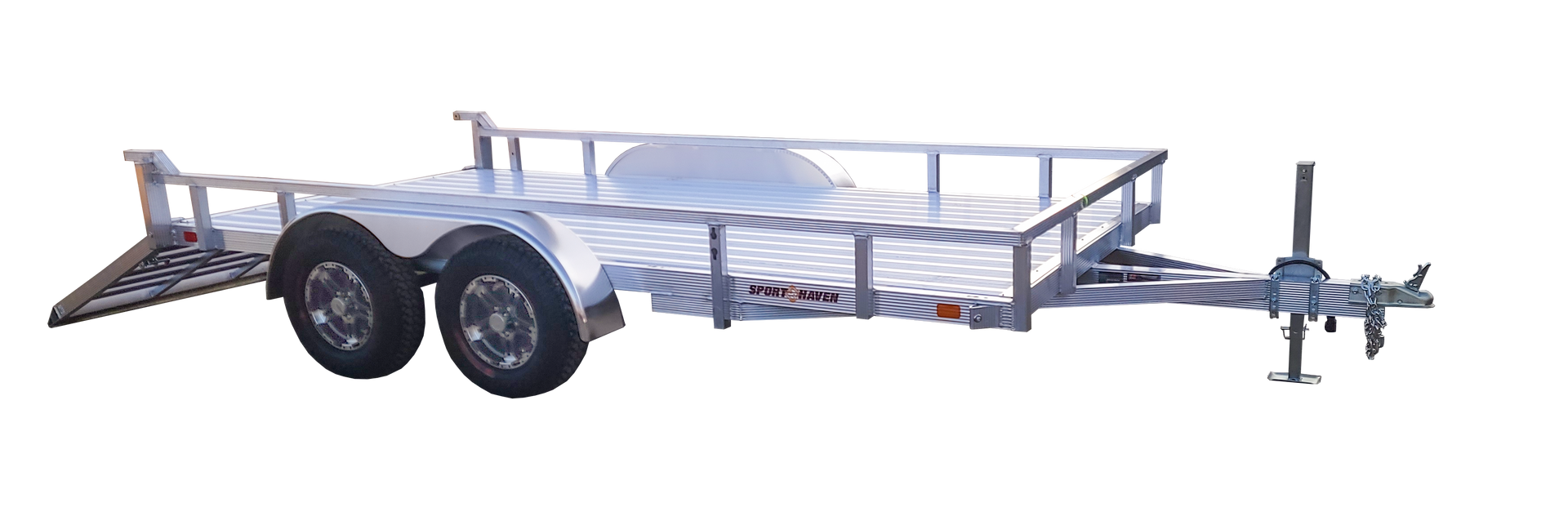

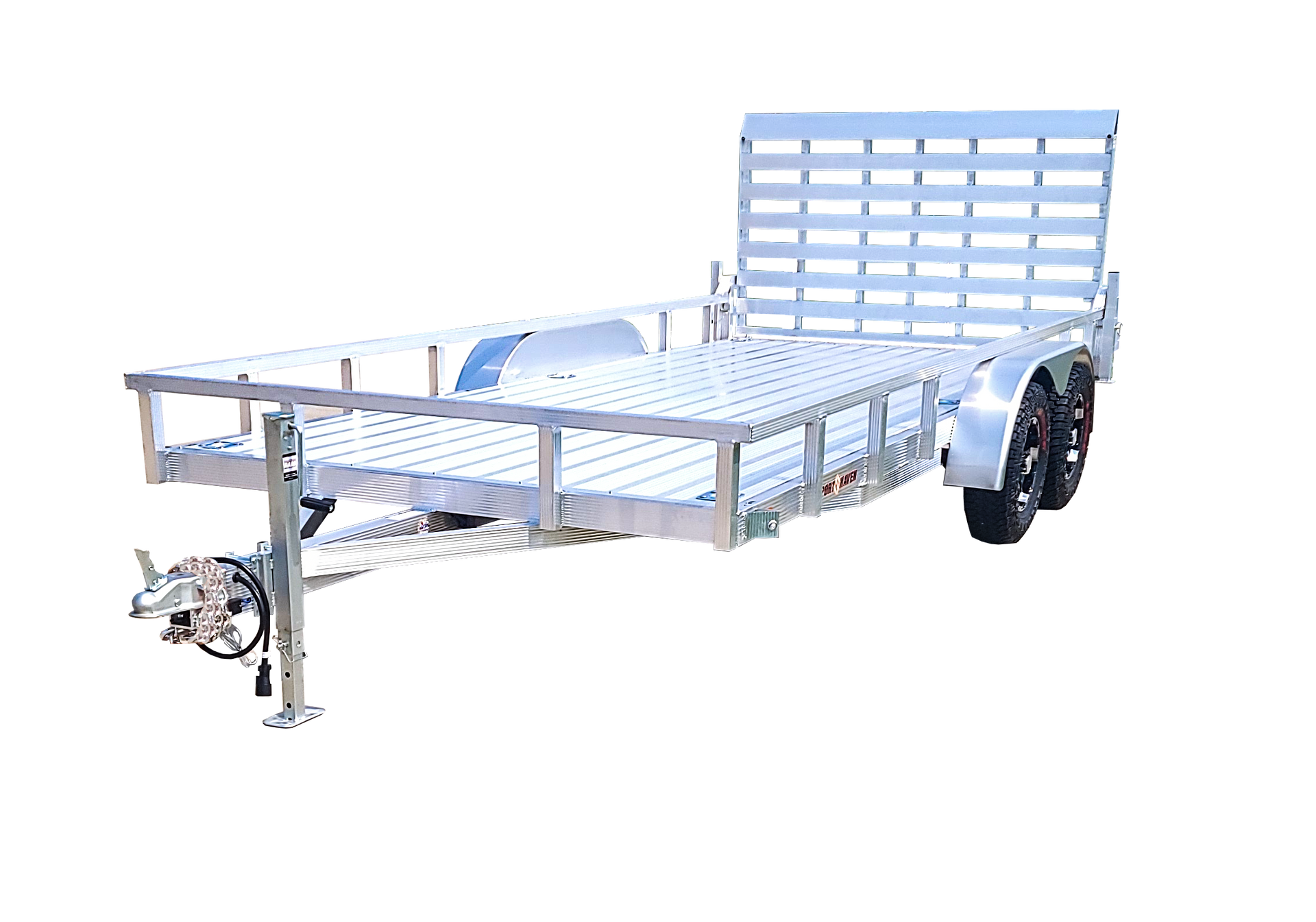

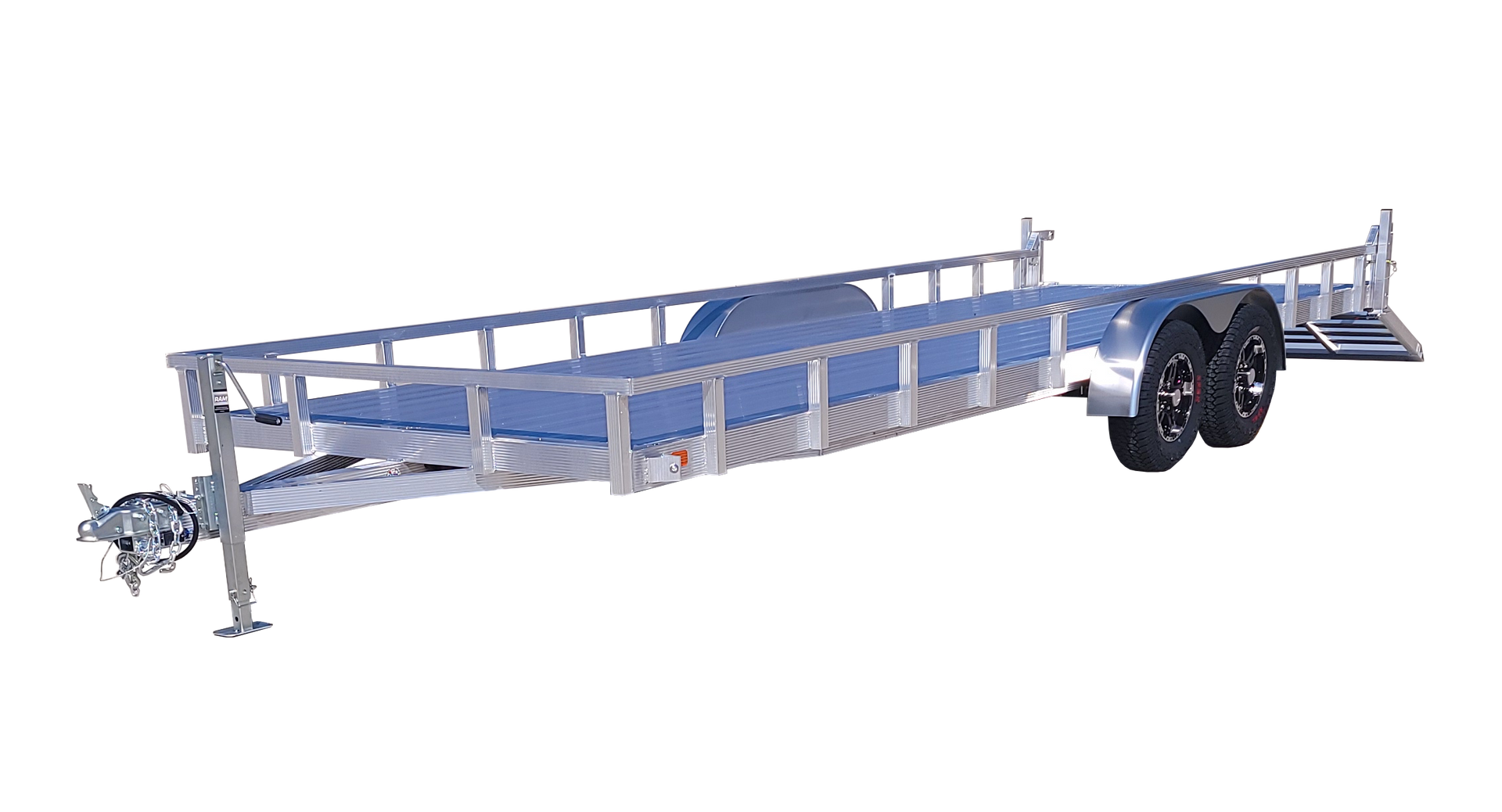

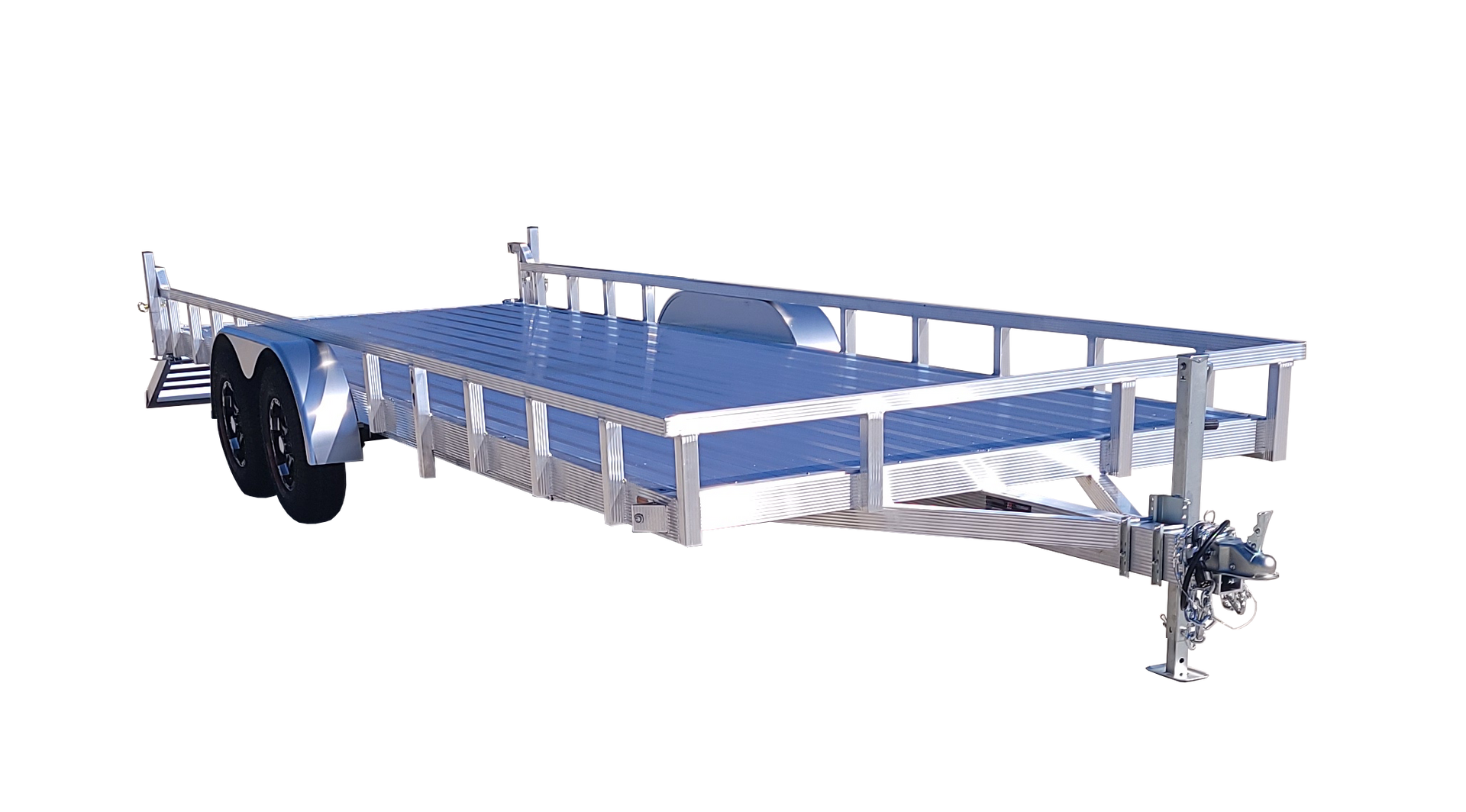

AUTXD MODEL TANDEM AXLE SPECIFICATIONS
AUTXD MODEL TANDEM AXLE SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2 x 2"" Wide Top Deck Rail (14'-24' Models)
- 2" x 4" Wide Top Deck Rail (26'-28' Models)
- 2" x 2" Top Deck Rail Uprights
- Aluminum Decking
Component Specs
- LED Lights
- All-Terrain Radial Tires w/Aluminum Wheels
- 3500lb Dexter Spring Axles
- Double Eye Spring Suspension
- 8000 lb Zinc Plated Coupler
- 7,600 lb Capacity, 30" Safety Chains
- 2500 lb Capacity Drop Leg Pad Jack
Misc Specs
- 7 Way Round Harness
- 2" Ball
- 21" Deck Height
- 10" Rail Height Above the Deck (16' & Under)
- 9" Rail Height Above the Deck (18' & above)
- 7000 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2 x 2"" Wide Top Deck Rail (14'-24' Models)
- 2" x 4" Wide Top Deck Rail (26'-28' Models)
- 2" x 2" Top Deck Rail Uprights
- Aluminum Decking
Component Specs
- LED Lights
- All-Terrain Radial Tires w/Aluminum Wheels
- 3500lb Dexter Spring Axles
- Double Eye Spring Suspension
- 8000 lb Zinc Plated Coupler
- 7,600 lb Capacity, 30" Safety Chains
- 2500 lb Capacity Drop Leg Pad Jack
Misc Specs
- 7 Way Round Harness
- 2" Ball
- 21" Deck Height
- 10" Rail Height Above the Deck (16' & Under)
- 9" Rail Height Above the Deck (18' & above)
- 7000 lb Gross Vehicle Weight Rating (GVWR)
| MODEL | AUTX714TD | AUTX716TD | AUTX718TD | AUTX720TD | AUTX722TD | AUTX724TD |
|---|---|---|---|---|---|---|
| Deck L x W | 168" x 83" | 192" x 83" | 216" x 83" | 240" x 83" | 264" x 83" | 288" x 83" |
| Overall L x W | 216" / 102" | 240" / 102" | 264" / 102" | 288" / 102" | 312" x 102" | 360" x 102" |
| Tongue* | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 5" Fluted | (2) 2" x 5" Fluted | (2) 2" x 5" Fluted | (2) 2" x 5" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (6) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted |
| Tire Size | ST215/75R14D | ST215/75R14D | ST215/75R14D | ST215/75R14D | ST215/75R14D | ST215/75R14D |
| Curb Weight | 940 | 980 | 1080 | 1120 | 1220 | 1320 |
| Payload Capacity | 6060 | 6020 | 5920 | 5880 | 5780 | 5680 |
| GVWR | 7000 | 7000 | 7000 | 7000 | 7000 | 7000 |
| Standard 4' Ramp Weight Capacity*** | 1750 | 1750 | 1750 | 1750 | 1750 | 1750 |
| Optional 4' Folding Ramp Weight Capacity*** | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Download PDF | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
| MODEL | AUTX714TD | AUTX716TD | AUTX718TD | AUTX720TD | AUTX722TD | AUTX724TD |
|---|---|---|---|---|---|---|
| Deck L x W | 168" x 83" | 192" x 83" | 216" x 83" | 240" x 83" | 264" x 83" | 288" x 83" |
| Overall L x W | 216" / 102" | 240" / 102" | 264" / 102" | 288" / 102" | 312" x 102" | 360" x 102" |
| Tongue* | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow | (1) 3" x 5" Fluted Double Hollow |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 5" Fluted | (2) 2" x 5" Fluted | (2) 2" x 5" Fluted | (2) 2" x 5" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (6) 1.75" x 3" Fluted | (6) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (8) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted | (9) 1.75" x 3" Fluted |
| Tire Size | ST215/75R14D | ST215/75R14D | ST215/75R14D | ST215/75R14D | ST215/75R14D | ST215/75R14D |
| Curb Weight | 940 | 980 | 1080 | 1120 | 1220 | 1320 |
| Payload Capacity | 6060 | 6020 | 5920 | 5880 | 5780 | 5680 |
| GVWR | 7000 | 7000 | 7000 | 7000 | 7000 | 7000 |
| Standard 4' Ramp Weight Capacity*** | 1750 | 1750 | 1750 | 1750 | 1750 | 1750 |
| Optional 4' Folding Ramp Weight Capacity*** | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Download PDF | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
AUTXD MODEL TANDEM AXLE SPECIFICATIONS
*Some Features need to be added when making the trailer contact your dealer to order.
