Aluminum Utility Trailers Built With Purpose
Aluminum Utility Trailers Built With Purpose

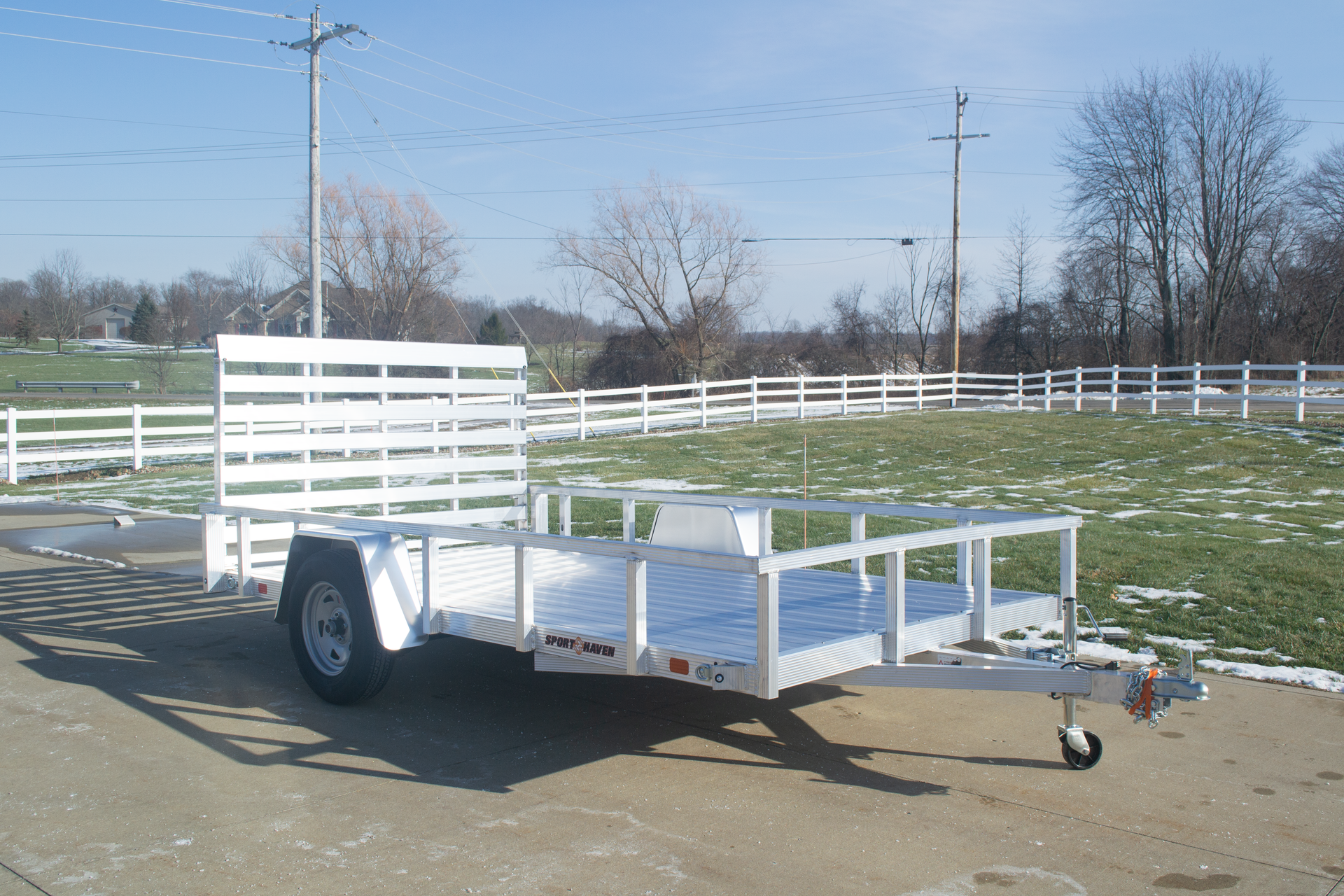

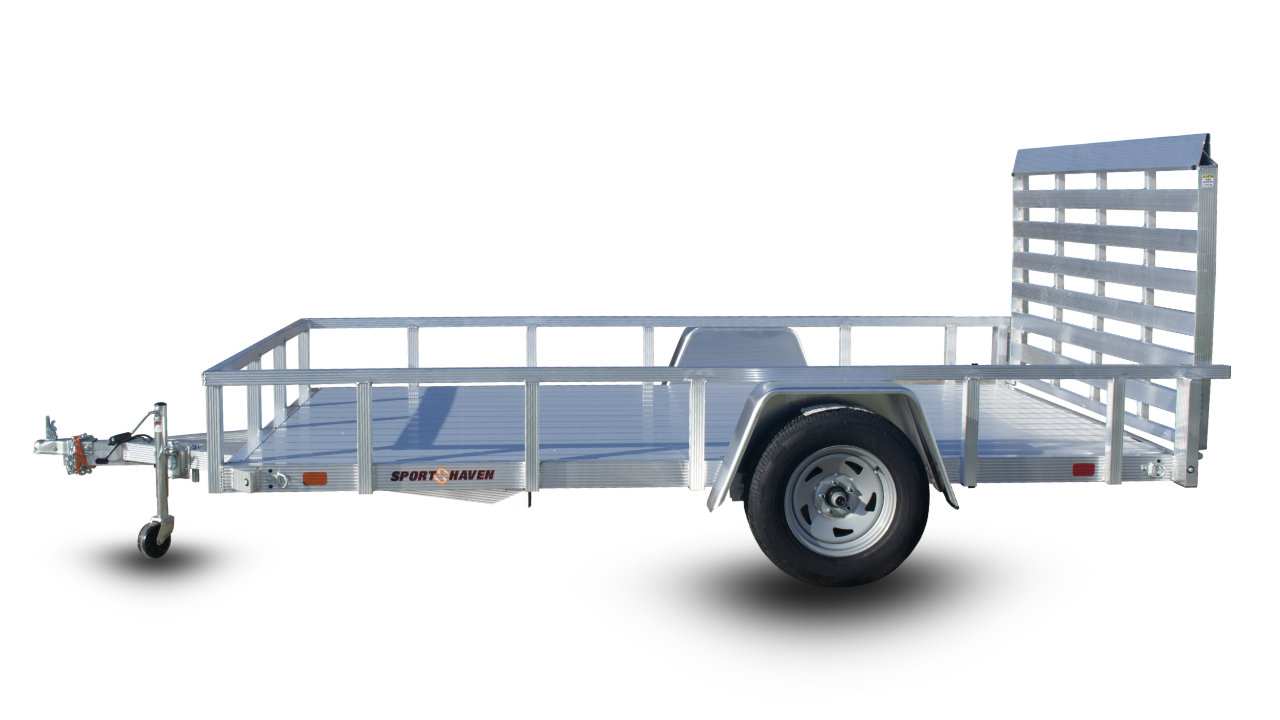

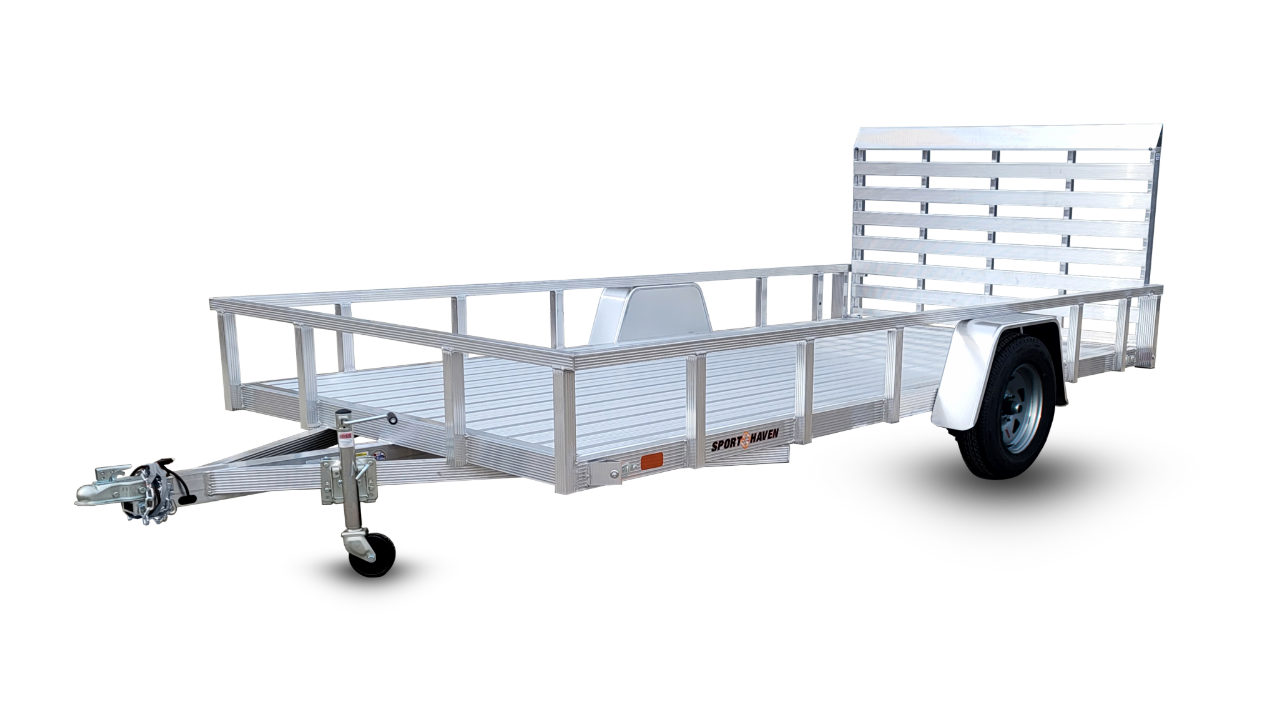

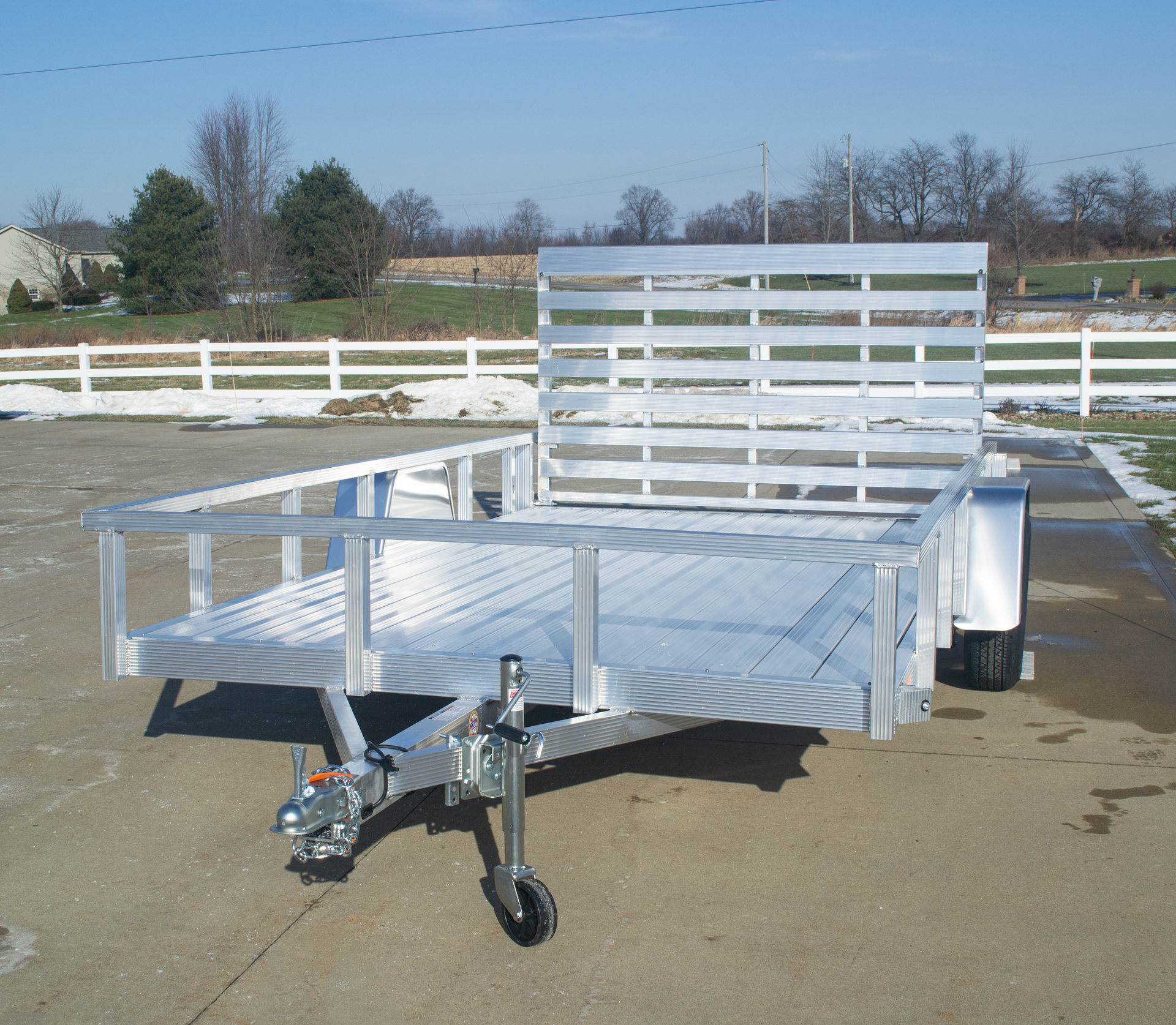

The AUTE Series is a dedicated aluminum utility trailer line engineered to deliver dependable performance, clean design, and long-term durability. Built around proven Sport Haven construction methods, the AUTE Series combines practical features and aluminum craftsmanship to support a wide range of everyday hauling needs. Designed for efficiency, reliability, and ease of use, the AUTE Series offers a balanced configuration that meets the demands of adventure your about to be on.
Features you might not find on other brands:
- 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting - Limited Lifetime LED warranty
Slide title
1,200lb Capacity Tongue Jack
Button
Slide title

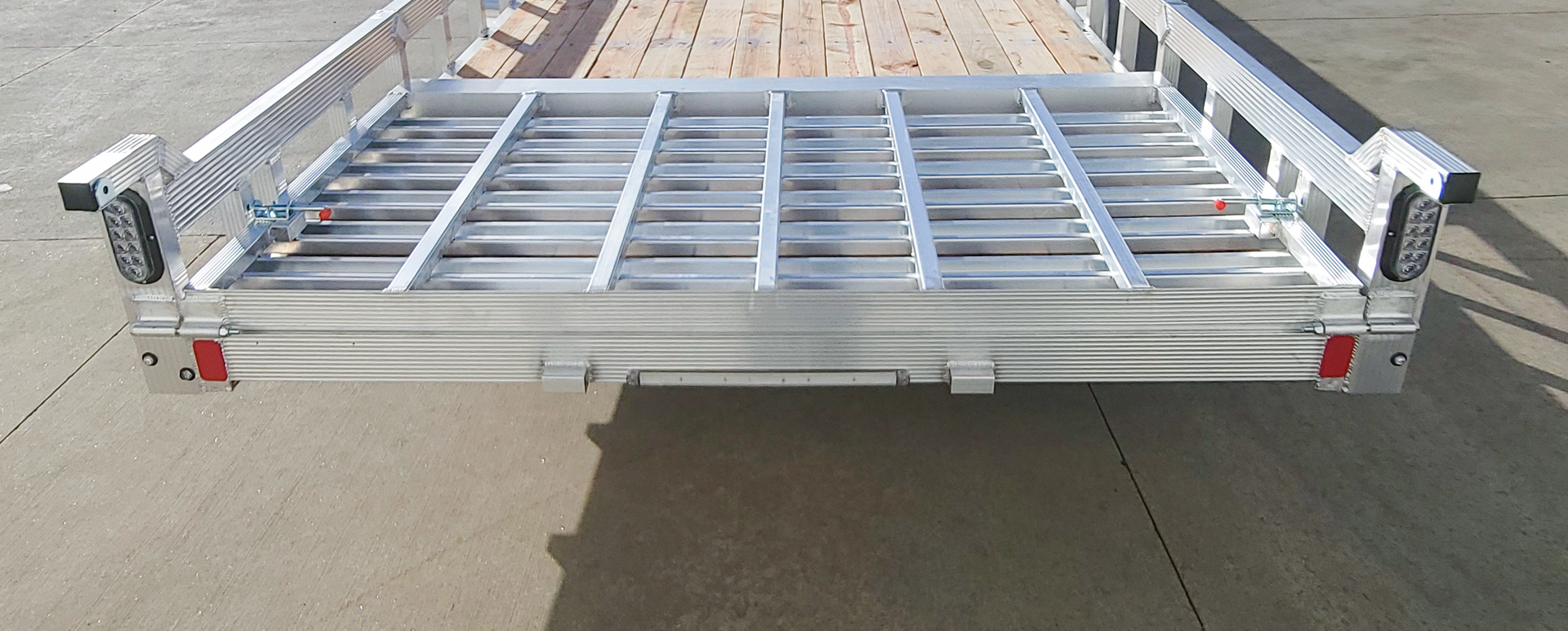

Rear, Removable, 3-Position Ramp 1,750 lb Capacity
Button
Slide title

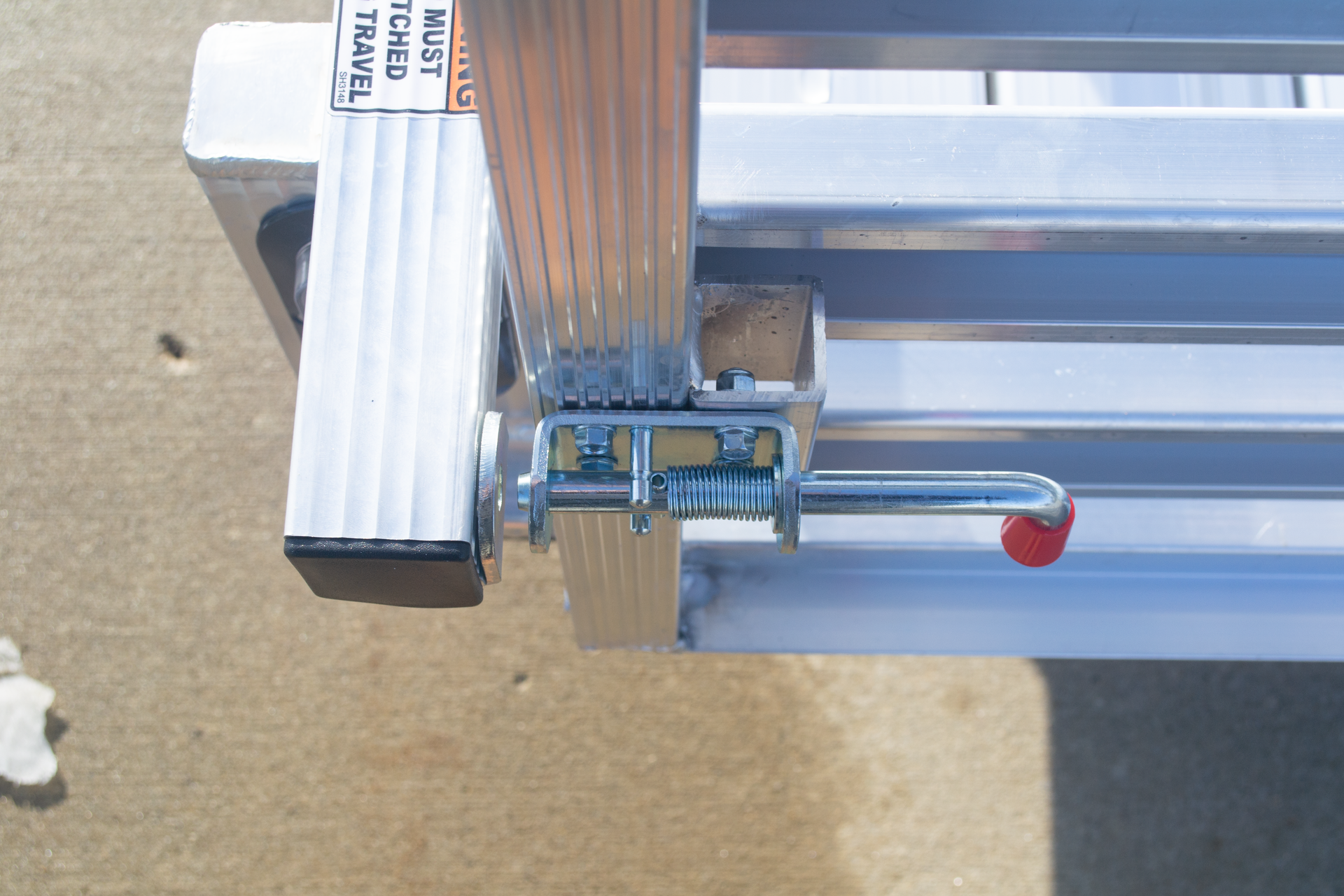

Spring Loaded Latch Gate
Button
Slide title

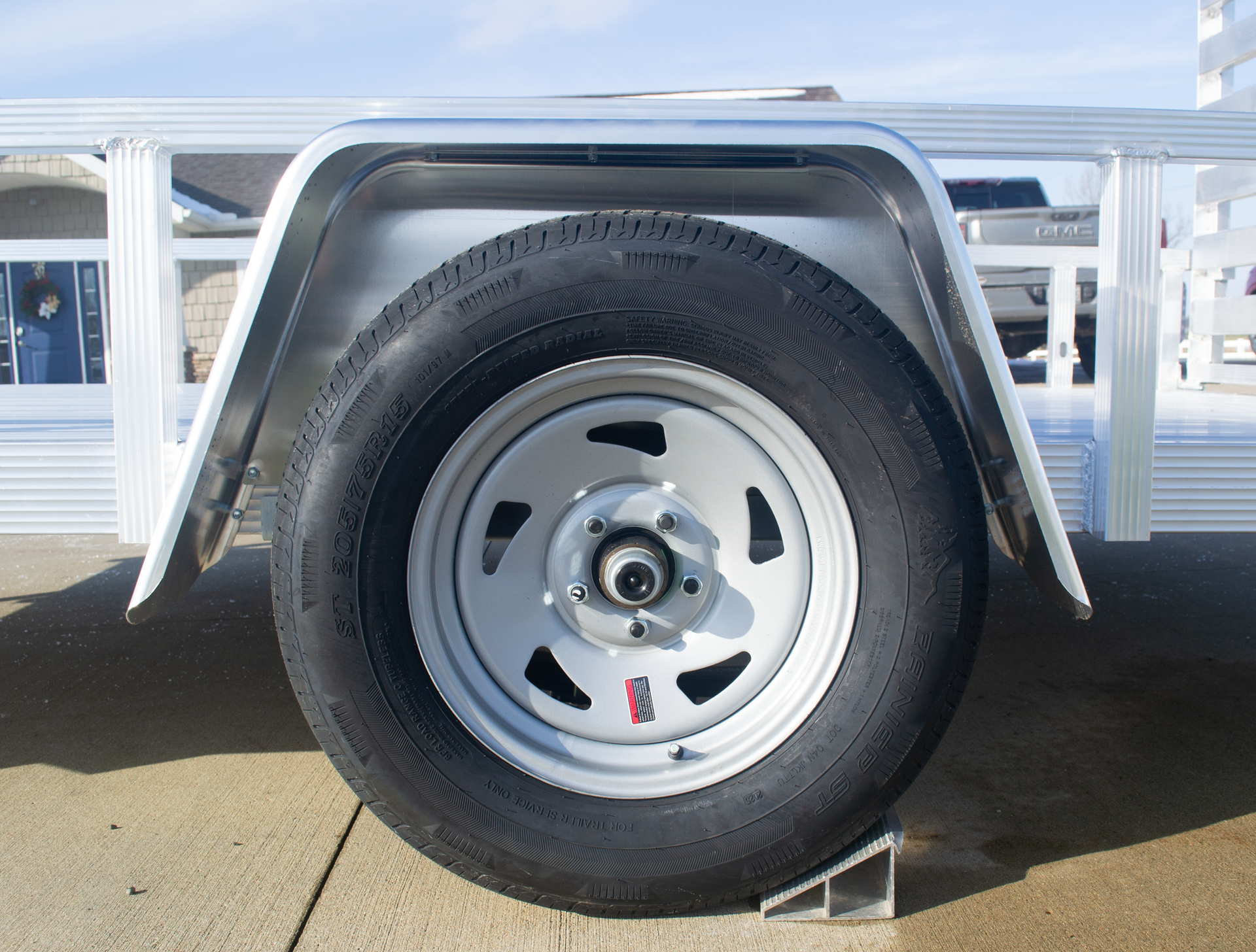

15" Silver E-Coat Rims / Radial Tires
Button
Slide title

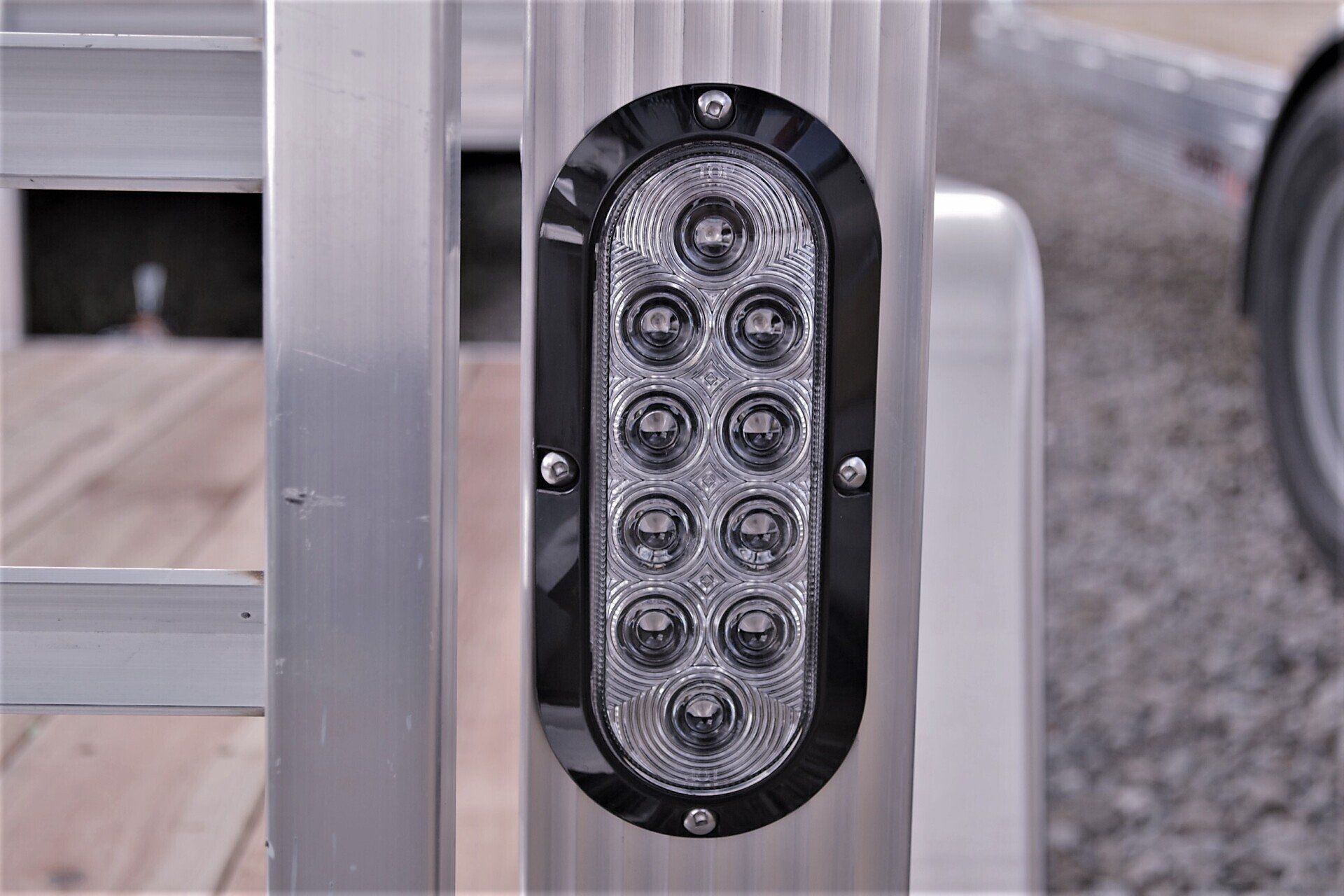

Limited Lifetime Warranty LED lighting
Button
Slide title

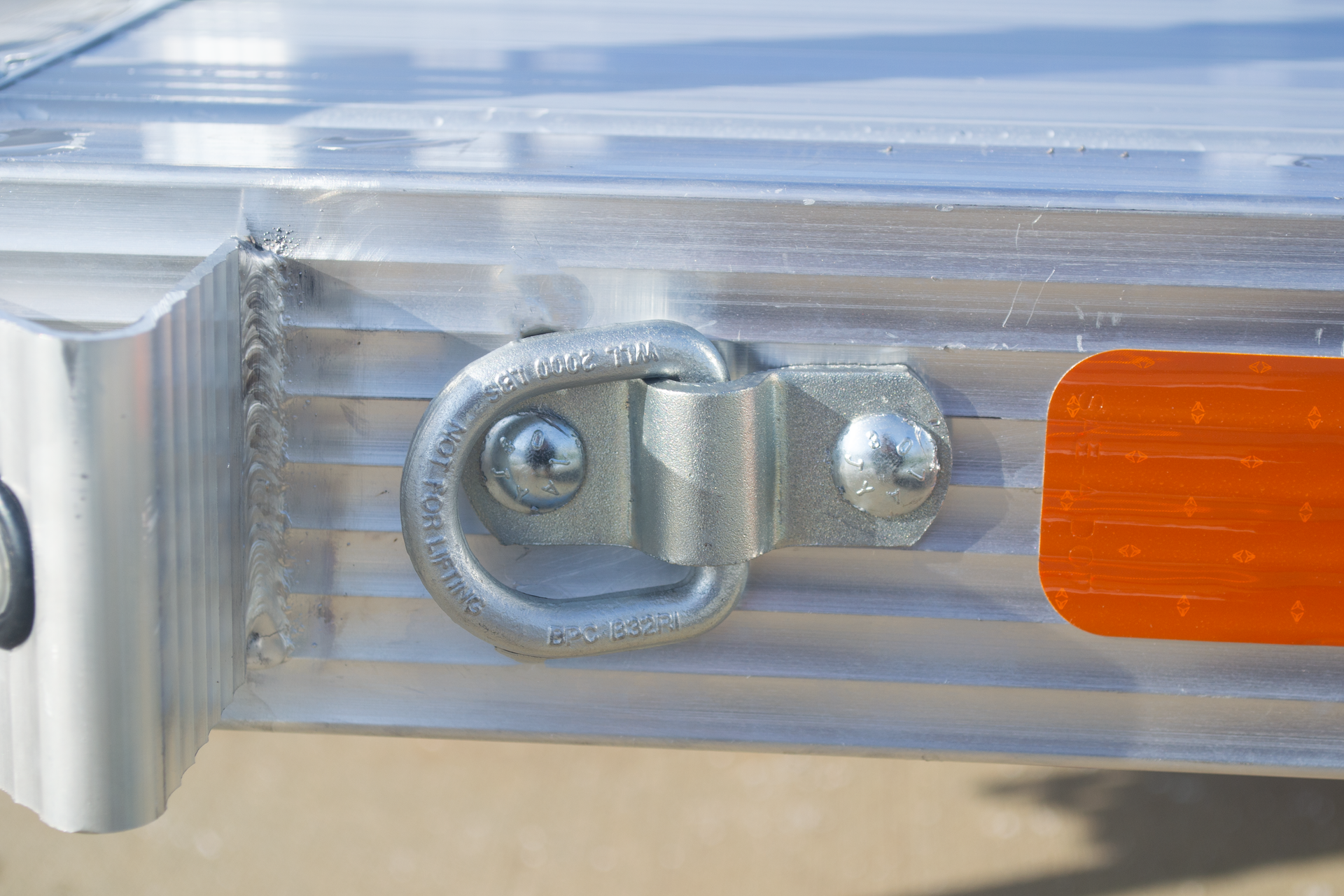

Tie Down Recievers mounted to frame
Button
Slide title

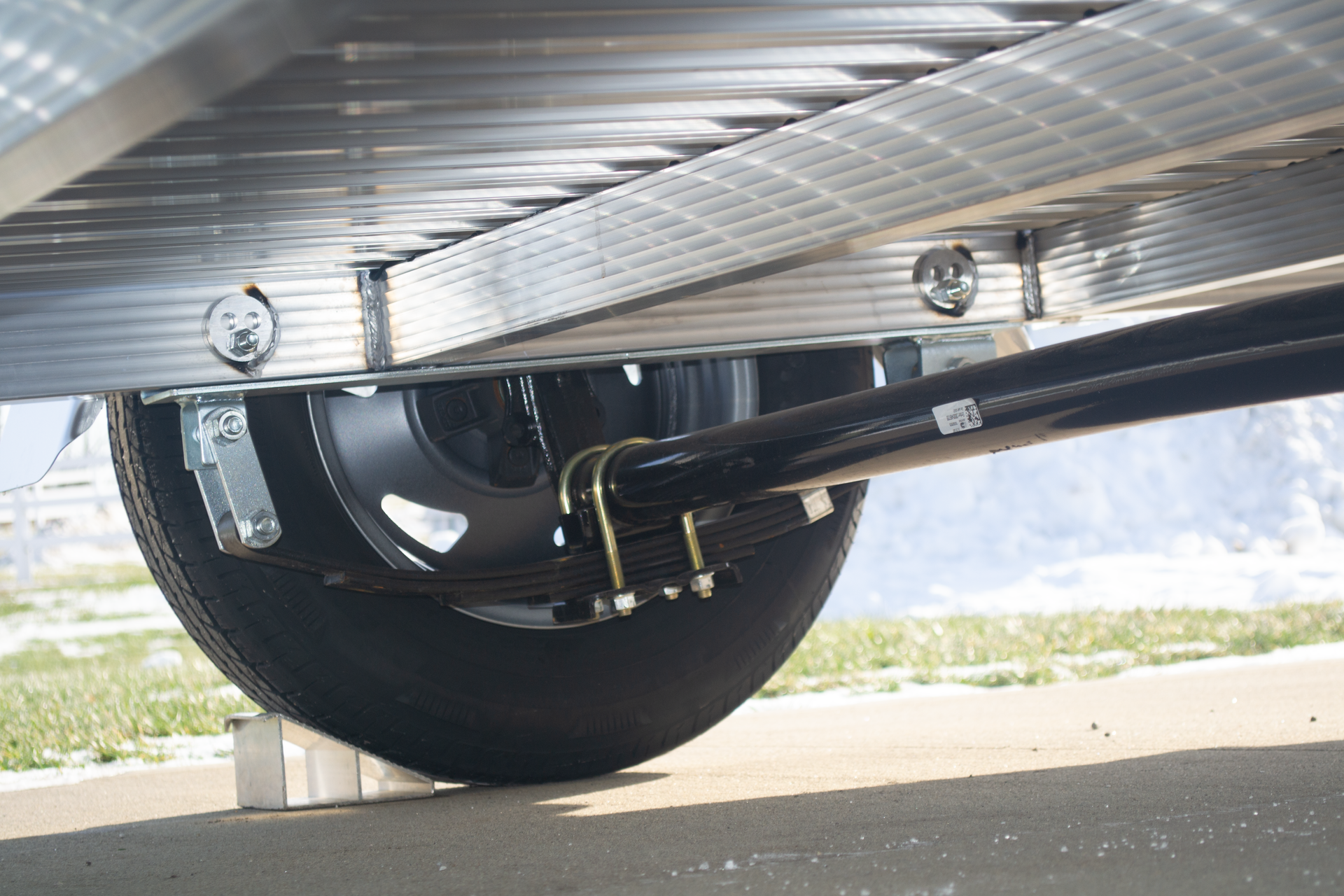

3500 lb HTC Spring Axle, 4” Drop
Button
Available Options
The AUTE Series offers select factory-installed options that allow owners to tailor their trailer for added convenience and readiness, while maintaining the series’ focused design and aluminum construction.

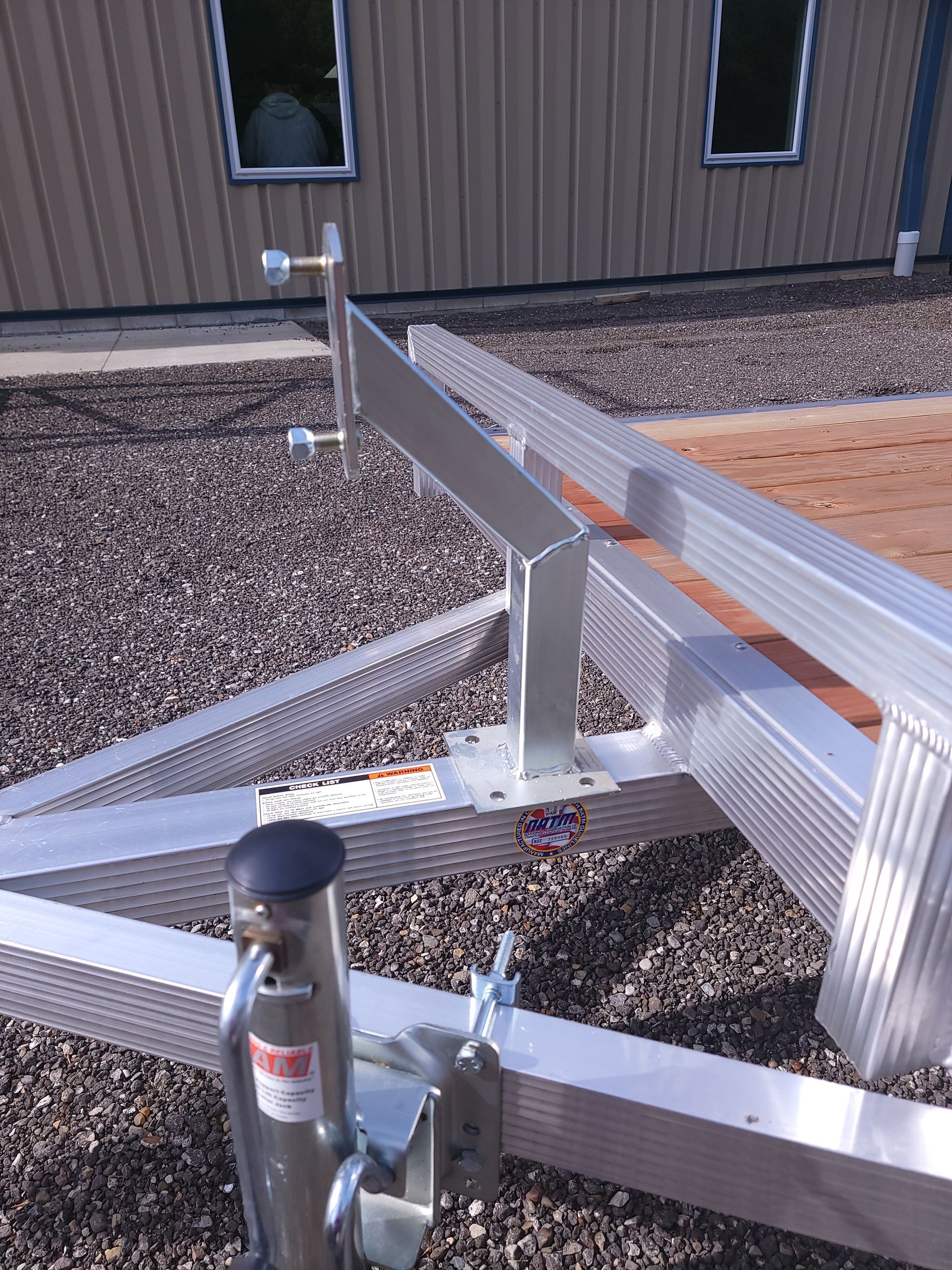

- Bolt-On Spare Tire Mount
- Matching Spare Tire
Features you might not find on other brands:
- 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing
- Aluminum Through-Bolted Hinge - 2 piece bolt through hinge
- Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position
- 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling
- Aluminum Fenders - corrosion resistant, lightweight, and durable
- LED Lighting - Limited Lifetime LED warranty
-
Slide title
1,200lb Capacity Tongue Jack
Button -
Slide title
Rear, Removable, 3-Position Ramp 1,750 lb Capacity
Button -
Slide title
Spring Loaded Latch Gate
Button -
Slide title
15" Silver E-Coat Rims / Radial Tires
Button -
Slide title
Limited Lifetime Warranty LED lighting
Button -
Slide title
Tie Down Recievers mounted to frame
Button -
Slide title
3500 lb HTC Spring Axle, 4” Drop
Button
Available Options
The AUTE Series offers select factory-installed options that allow owners to tailor their trailer for added convenience and readiness, while maintaining the series’ focused design and aluminum construction.
- Bolt-On Spare Tire Mount
- Matching Spare Tire
AUTE MODEL CONSTRUCTION
AUTE MODEL CONSTRUCTION
Every AUTE Series trailer is built with an all-aluminum tube frame and aluminum decking, providing corrosion resistance, strength, and reduced maintenance over time. The integrated A-frame tongue and tongue jack support stable towing and straightforward hookup, while the overall design emphasizes functionality and consistency.
Like all Sport Haven trailers, the AUTE Series is designed with attention to detail, quality materials, and consistent build standards. From the aluminum frame to the lighting and running gear, each component is selected to support long-term ownership and dependable performance.
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
Slide title
Jig Welded Construction
Button-
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button
Slide title
2" Wide Top Deck Rails, Tube Top Deck Rail Uprights
Button
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
-
Slide title
Jig Welded Construction
Button -
Slide title
Fluted Aluminum Tube Tongues and Tongue Supports
Button -
Slide title
Fluted Aluminum Tube Frames and Cross Members
Button -
Slide title
2" Wide Top Deck Rails, Tube Top Deck Rail Uprights
Button -
Slide title
Double Hollow Tube Frame - 18' & up
Double Hollow Tongue - all tandems
Button
Every AUTE Series trailer is built with an all-aluminum tube frame and aluminum decking, providing corrosion resistance, strength, and reduced maintenance over time. The integrated A-frame tongue and tongue jack support stable towing and straightforward hookup, while the overall design emphasizes functionality and consistency.
Like all Sport Haven trailers, the AUTE Series is designed with attention to detail, quality materials, and consistent build standards. From the aluminum frame to the lighting and running gear, each component is selected to support long-term ownership and dependable performance.
- Jig Welded Construction for Consistency, Quality
- Fluted Aluminum Tube Tongues
- Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)
- 2" Wide Aluminum Tube Top Deck Top Rails
- Aluminum Tube Top Deck Rail Uprights
AUTE MODEL SINGLE AXLE TRAILER SPECIFICATIONS
AUTE MODEL SINGLE AXLE TRAILER SPECIFICATIONS
Construction Specs
- Fluted Aluminum Tube Tongue, Frame & Crossmembers
- 2" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- 15" Silver Powder Coated Wheels
- ST207/75R15C Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 2,990 lb Gross Vehicle Weight Rating (GVWR)
Construction Specs
- Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
- 2" Wide Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- Aluminum Decking
- All Aluminum 4' Rear Ramp
Component Specs
- LED Lights
- ST205/75R15C Silver Powder Coated Wheels
- 15" Radial Tires
- 3,500 lb Capacity Axles
- Double Eye Spring Suspension
- 3,500 lb Capacity Zinc Plated Couplers
- 3,200 lb Capacity, 27" Safety Chains
- 1,200 lb capacity Swivel Wheel Jack
Misc Specs
- 4-Way Flat Wiring Harness
- 2" Ball
- 14" Hitch Height
- 17" Deck Height
- 13" Rail Height Above the Deck
- 2,990 lb Gross Vehicle Weight Rating (GVWR)

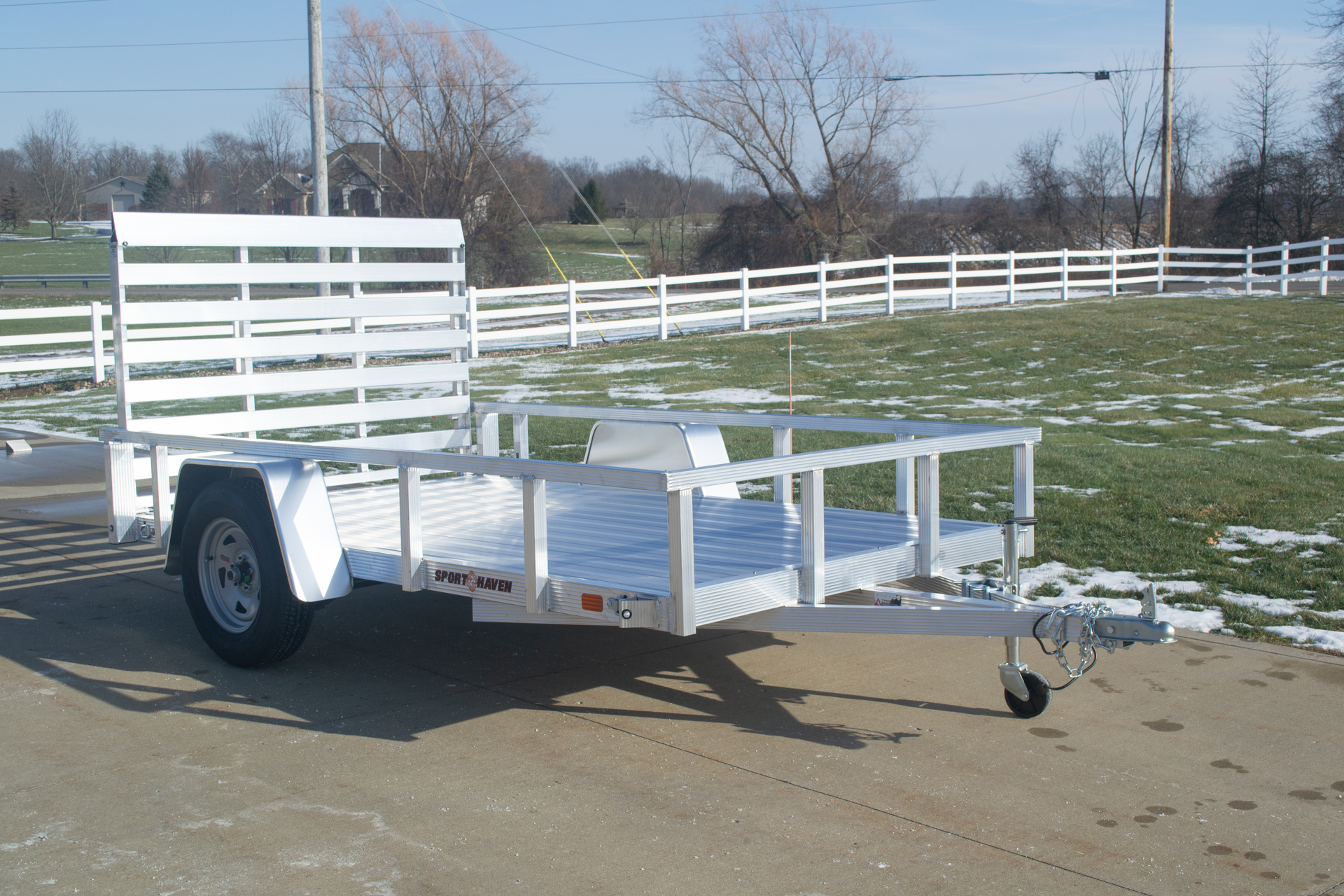

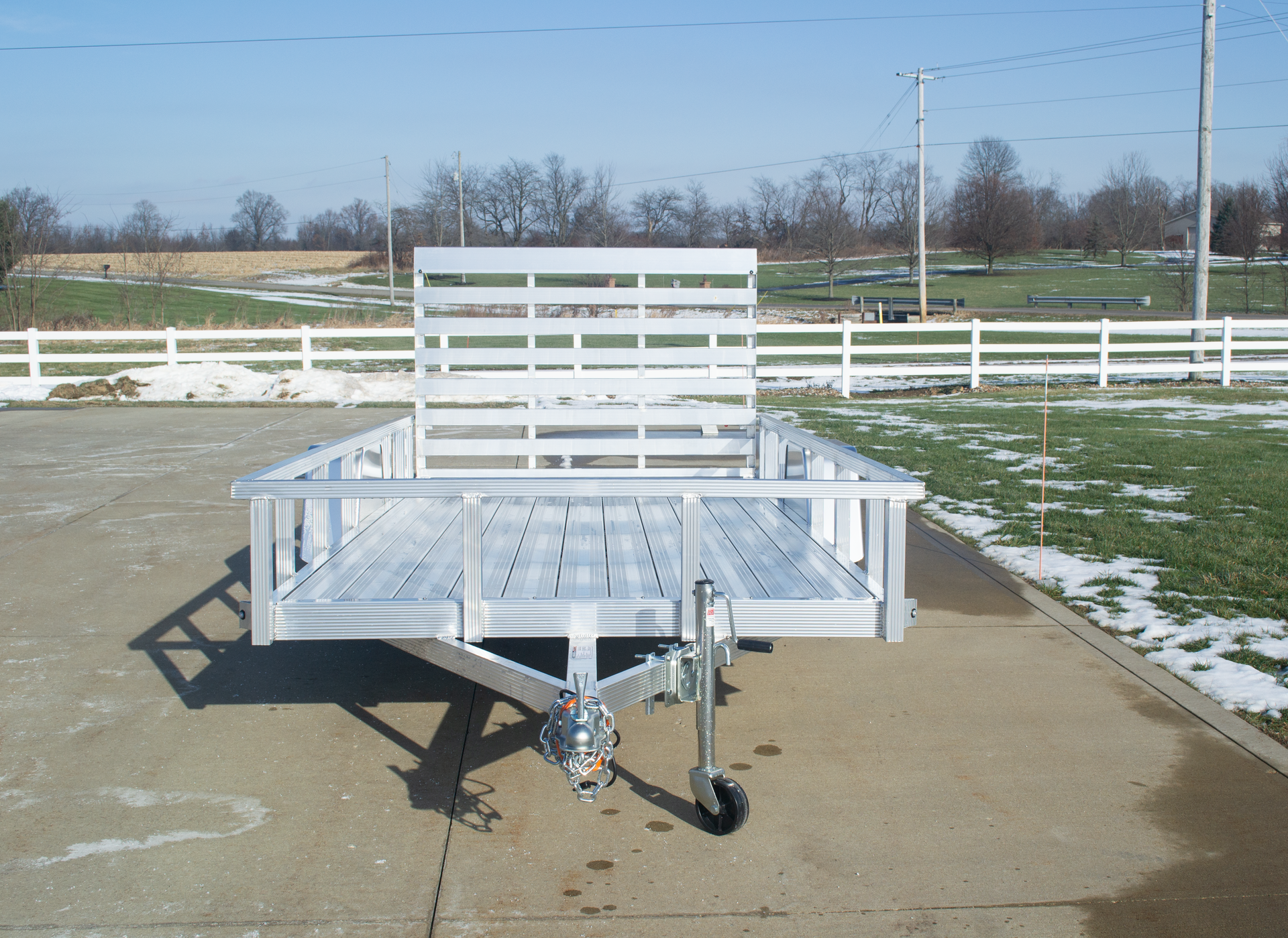

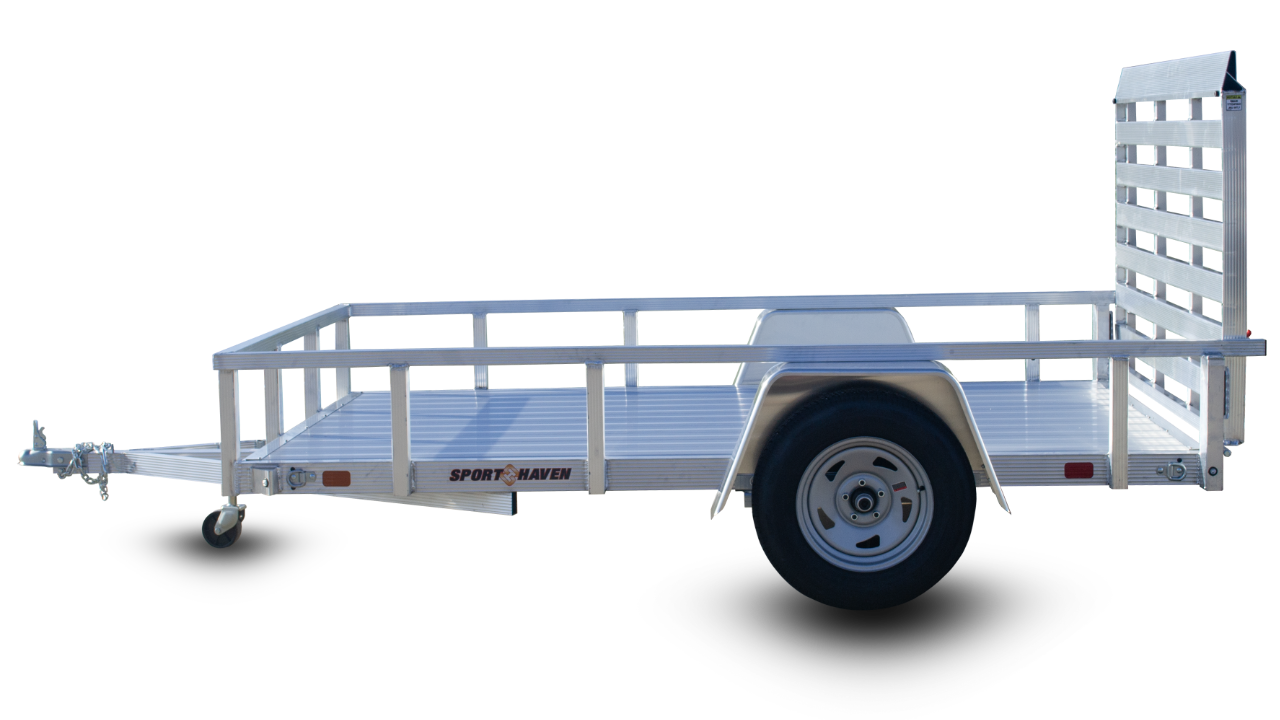

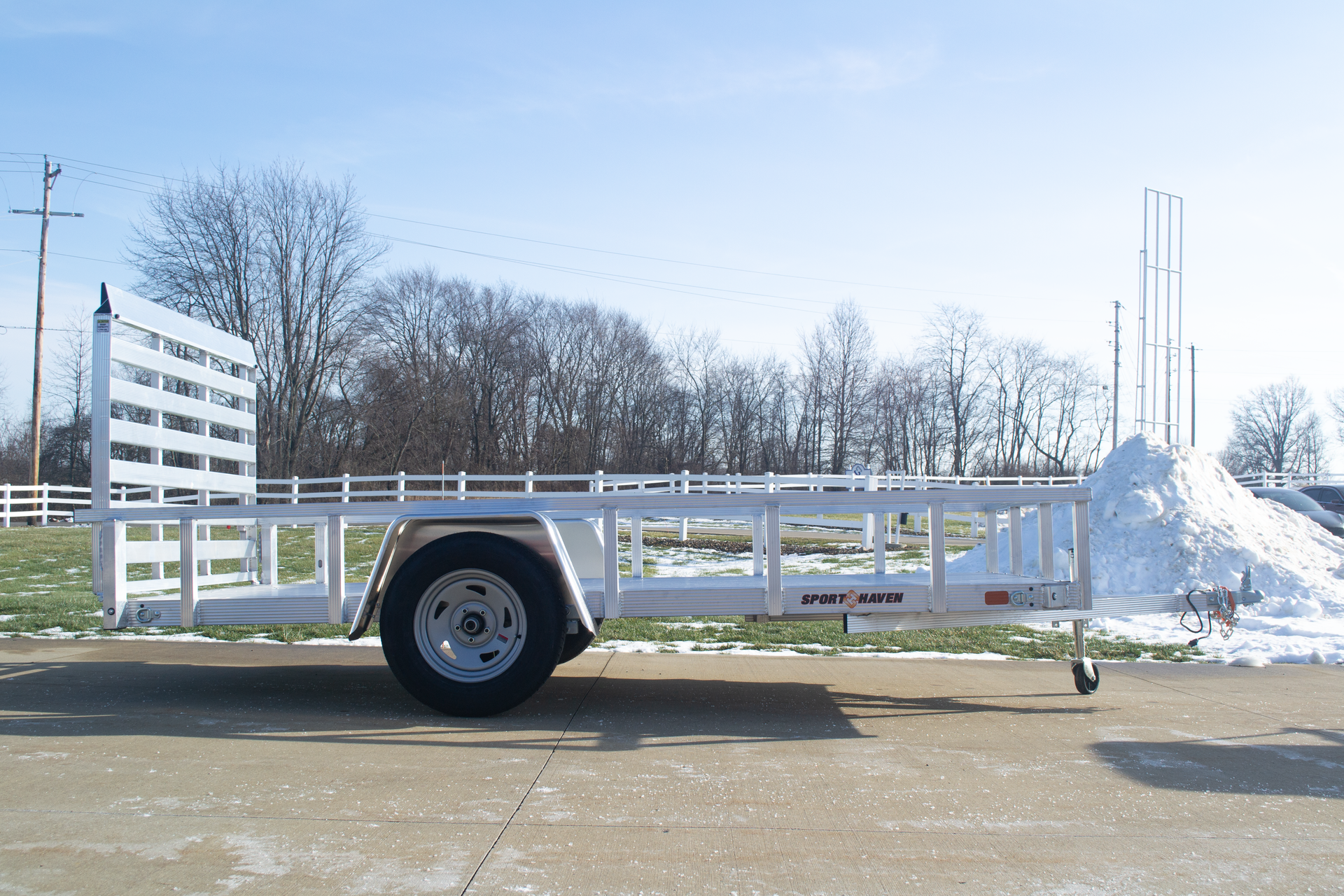

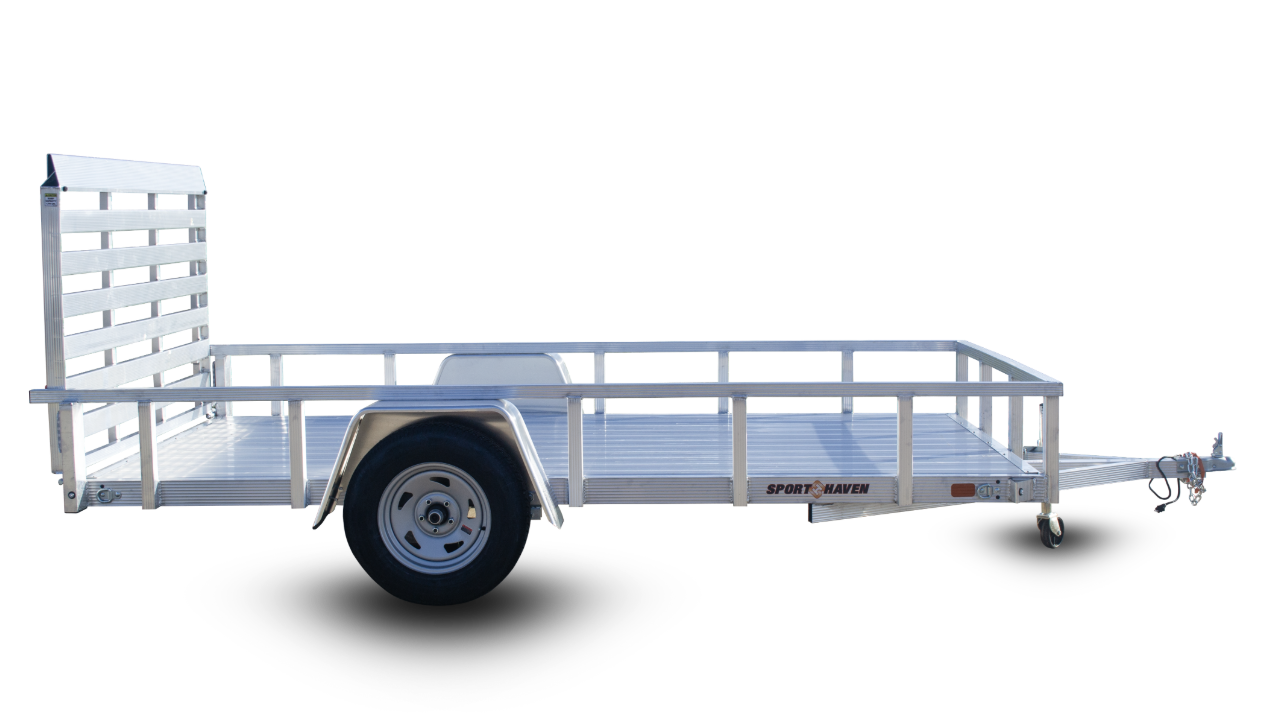

| Model | AUTE610D | AUTE612D | AUTE712D | AUTE714D |
|---|---|---|---|---|
| Deck L x W | 120” x 72” | 144” x 72” | 144" x 83” | 168" x 83" |
| Overall L x W | 162” x 90” | 186” / 90” | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" Fluted | (1) 3" x 4" Fluted |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted |
| Curb Weight | 520 lbs | 540 lbs | 620 lbs | 660 lbs |
| Payload Capacity | 2470 lbs | 2450 lbs | 2370 lbs | 2330 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
| Model | AUTE610D | AUTE612D | AUTE712D | AUTE714D |
|---|---|---|---|---|
| Deck L x W | 120” x 72” | 144” x 72” | 144" x 83” | 168" x 83" |
| Overall L x W | 162” x 90” | 186” / 90” | 195” x 101” | 219" x 101" |
| Tongue* | (1) 3" x 3" Fluted | (1) 3" x 3" Fluted | (1) 3" x 4" Fluted | (1) 3" x 4" Fluted |
| Tongue Supports* | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted | (2) 1.75" x 3" Fluted |
| Frame Outer Rails* | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted | (2) 2" x 4" Fluted |
| Frame Crossmembers* Front & Rear | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted | (2) 3" x 4" Fluted |
| Frame Crossmembers* Middle** | (4) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted | (5) 1.75" x 3" Fluted |
| Curb Weight | 520 lbs | 540 lbs | 620 lbs | 660 lbs |
| Payload Capacity | 2470 lbs | 2450 lbs | 2370 lbs | 2330 lbs |
| Standard 4' Ramp Wight Capacity*** | 1,750 lbs | 1,750 lbs | 1,750 lbs | 1,750 lbs |
| Pdf Download | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
* Fluted Aluminum Tubing is stronger and more scratch resistant than regular Smooth Sided Aluminum
** 24" On-Center
*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
