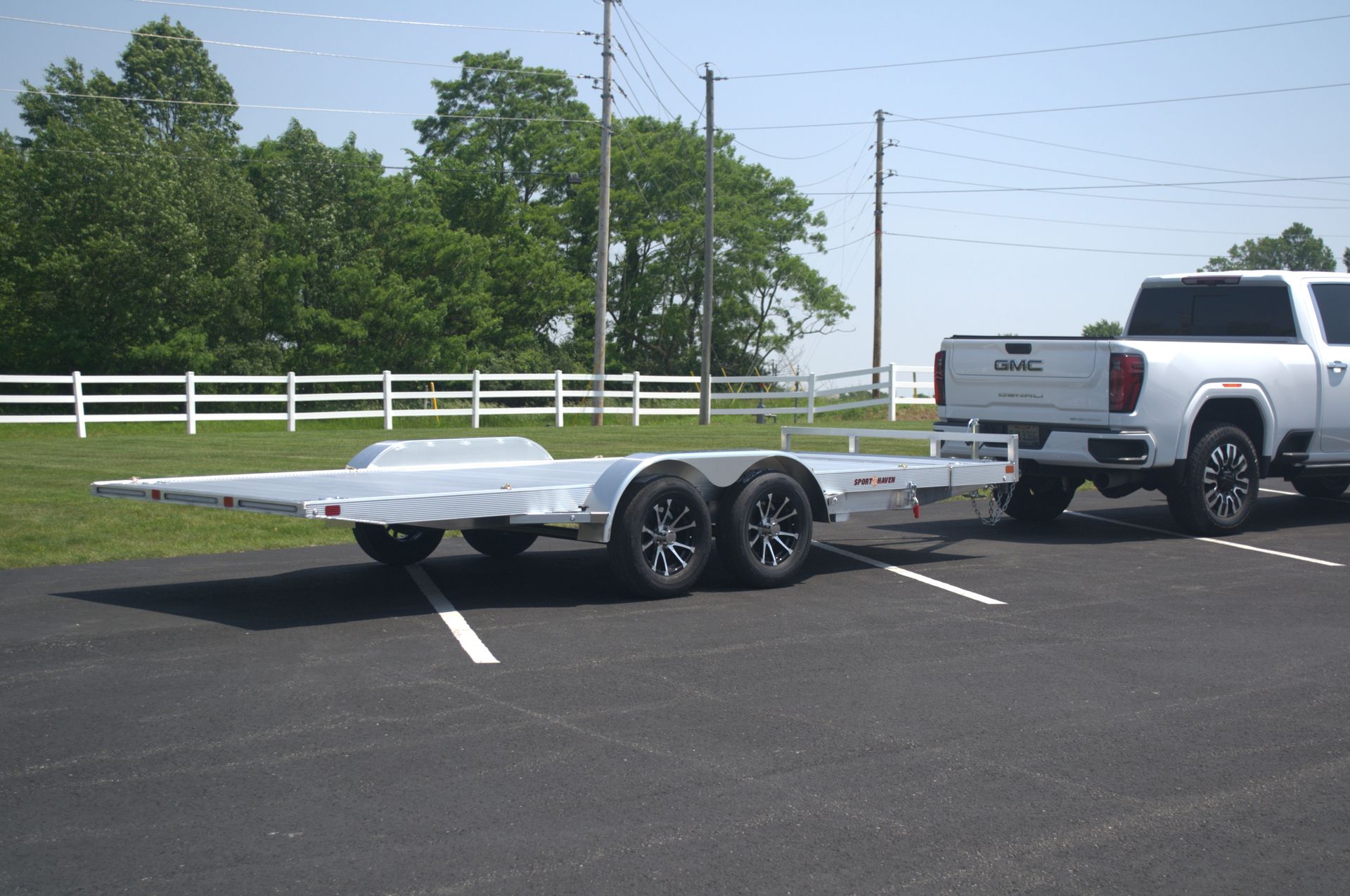

Aluminum Open Car Hauler Premium TILT AOCPT MODELS

AOCPT MODEL FEATURES

NOTABLE AOCPT MODEL FEATURES

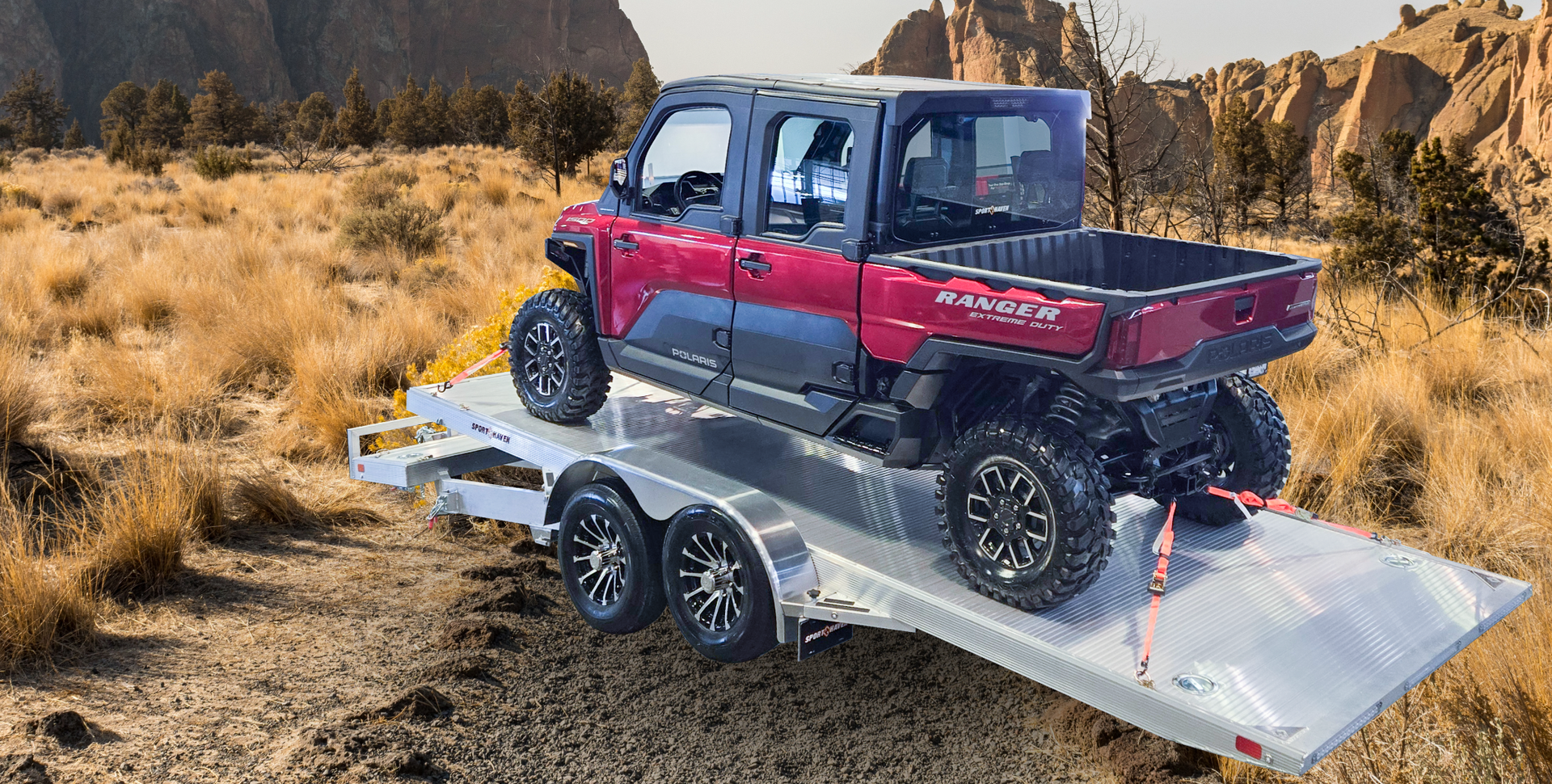

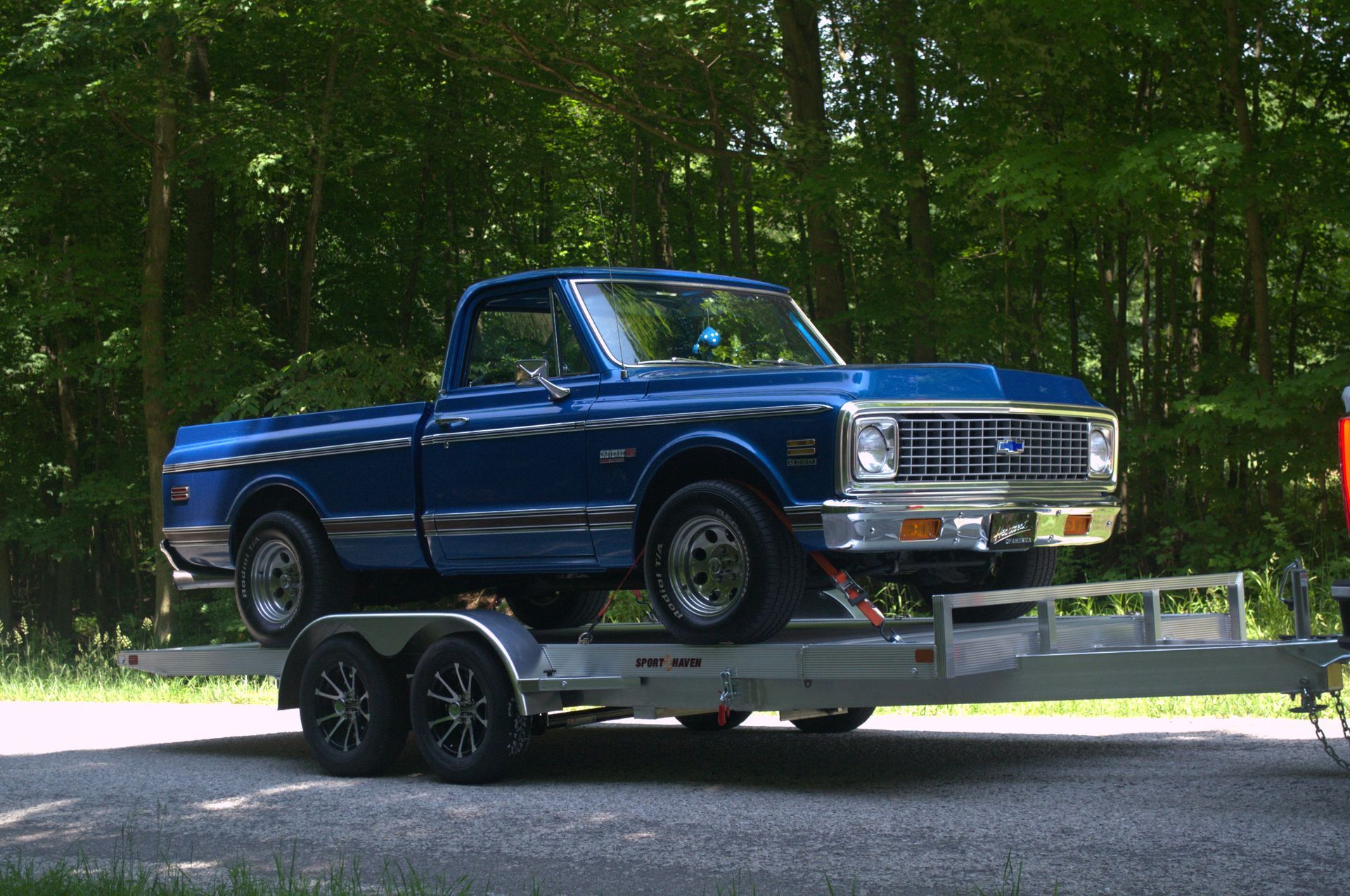

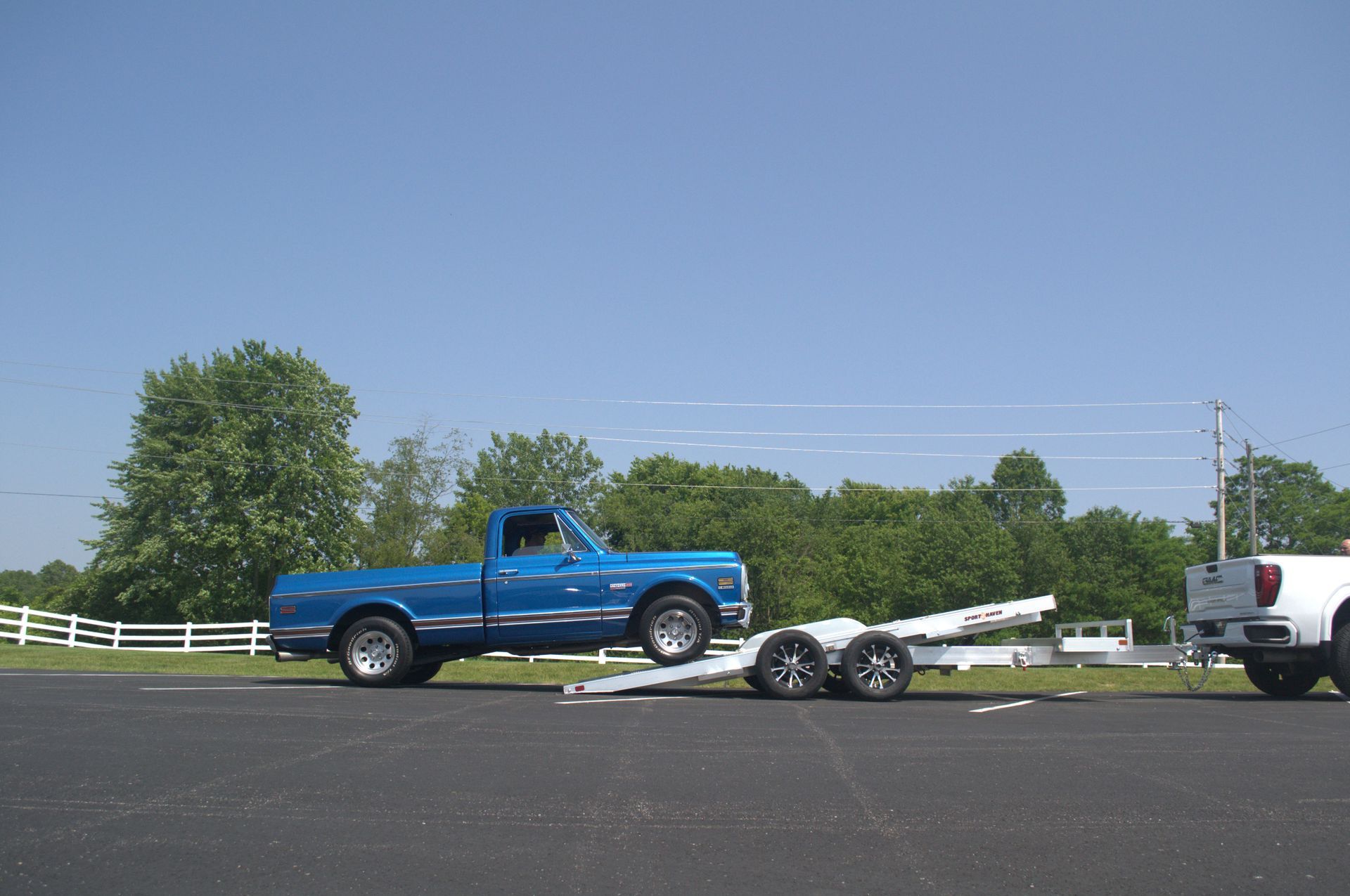

• Manual Tilt Deck vs Ramps - Deck tilts to be even with ground providing a lower angle for loading low profile vehicles.
•

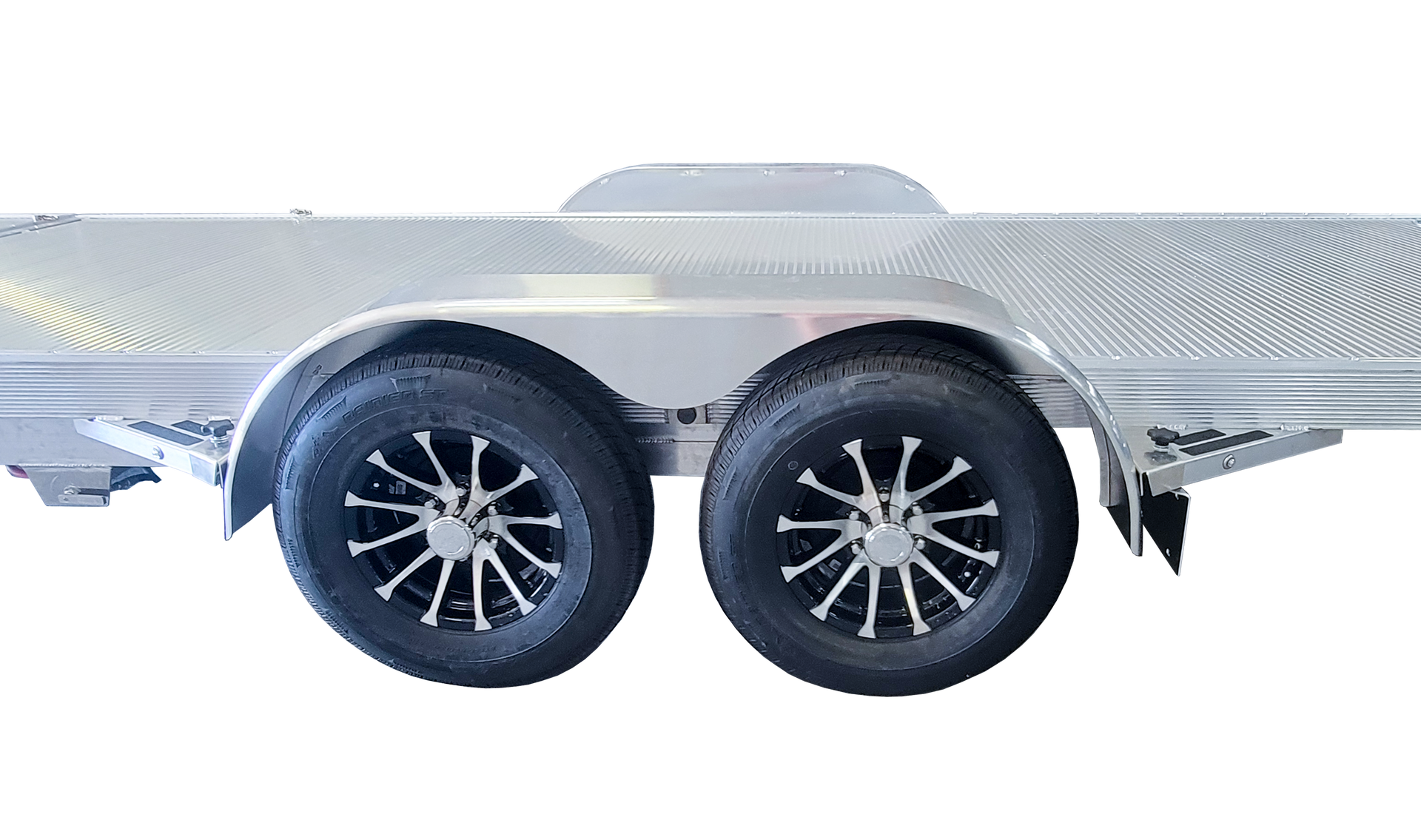

• Removable Fenders - Threaded star knob on either side of fender attach to fender step to unlock/reinstall fender.
•

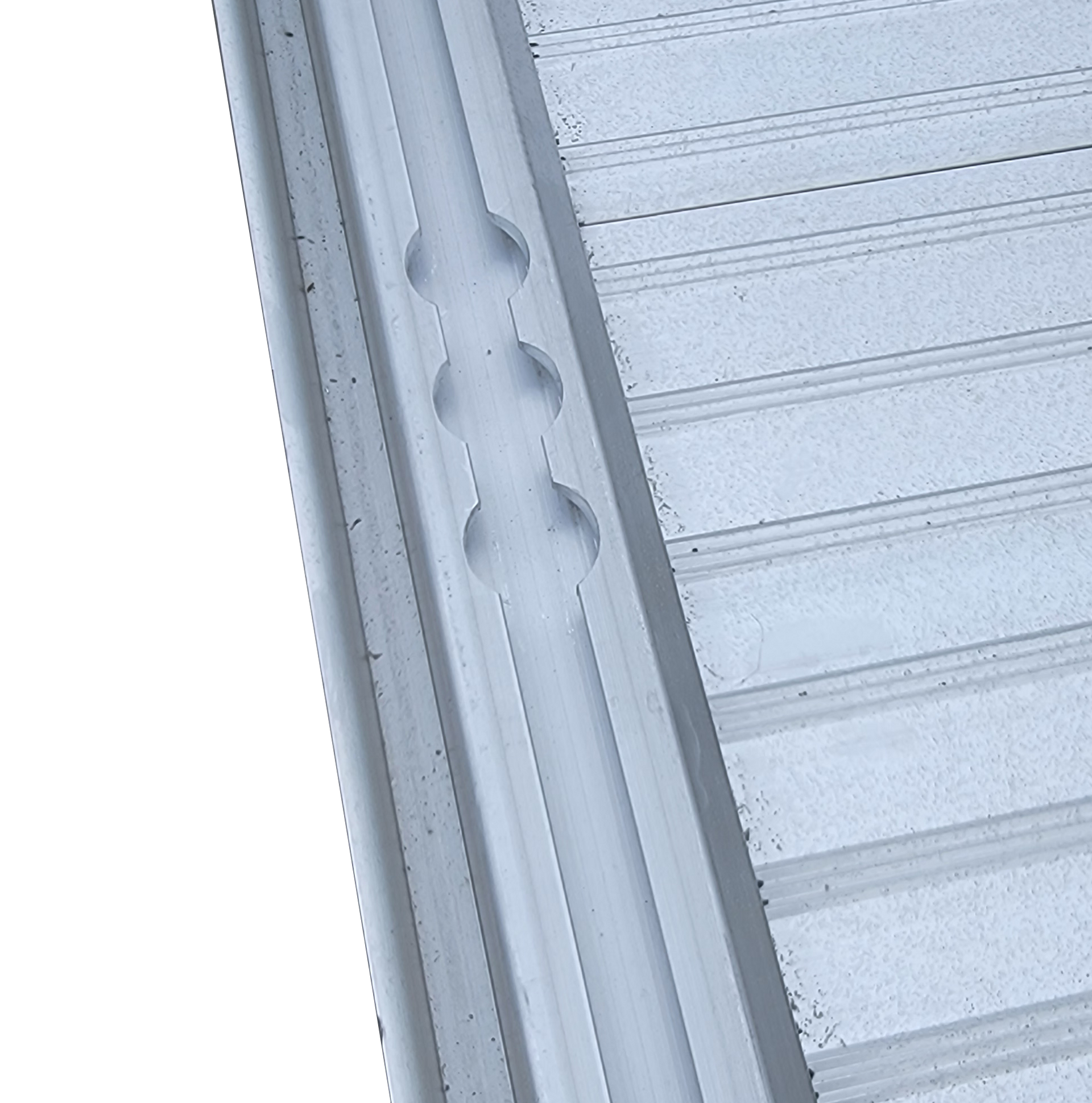

• Integrated Tie Down System- Built into frame rail of trailer provides adjustable tie down points every 12".

• Two safety Locks - Positioned on side frame rail and under stationary deck to secure tilt into closed position.

Removable Fenders

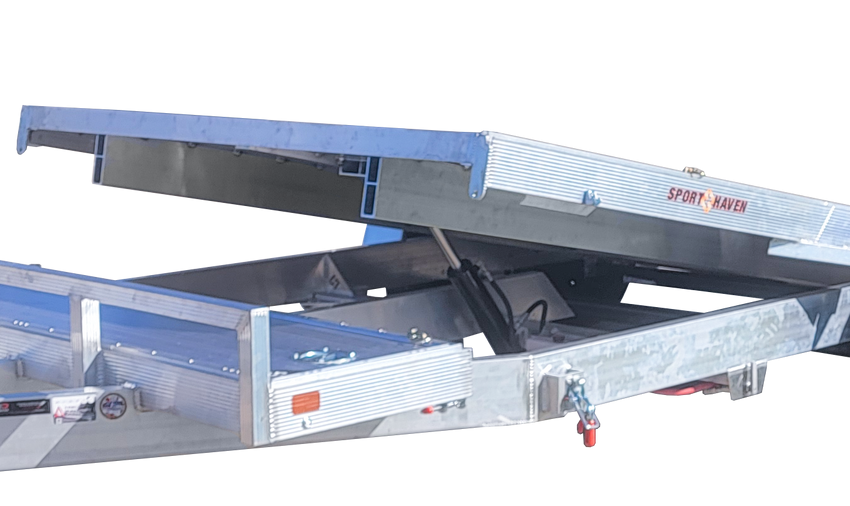

Stillwell Hydraulic System w/Reservoir

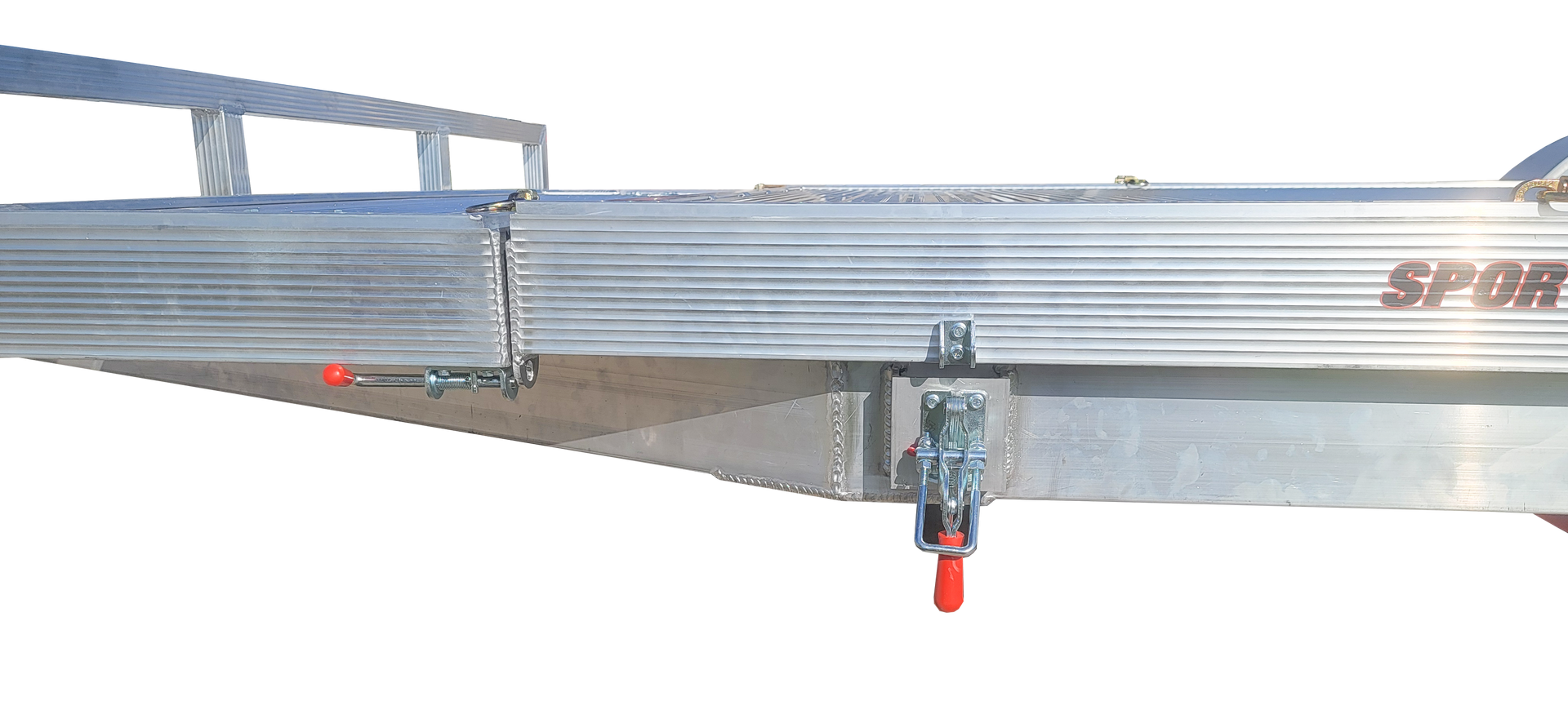

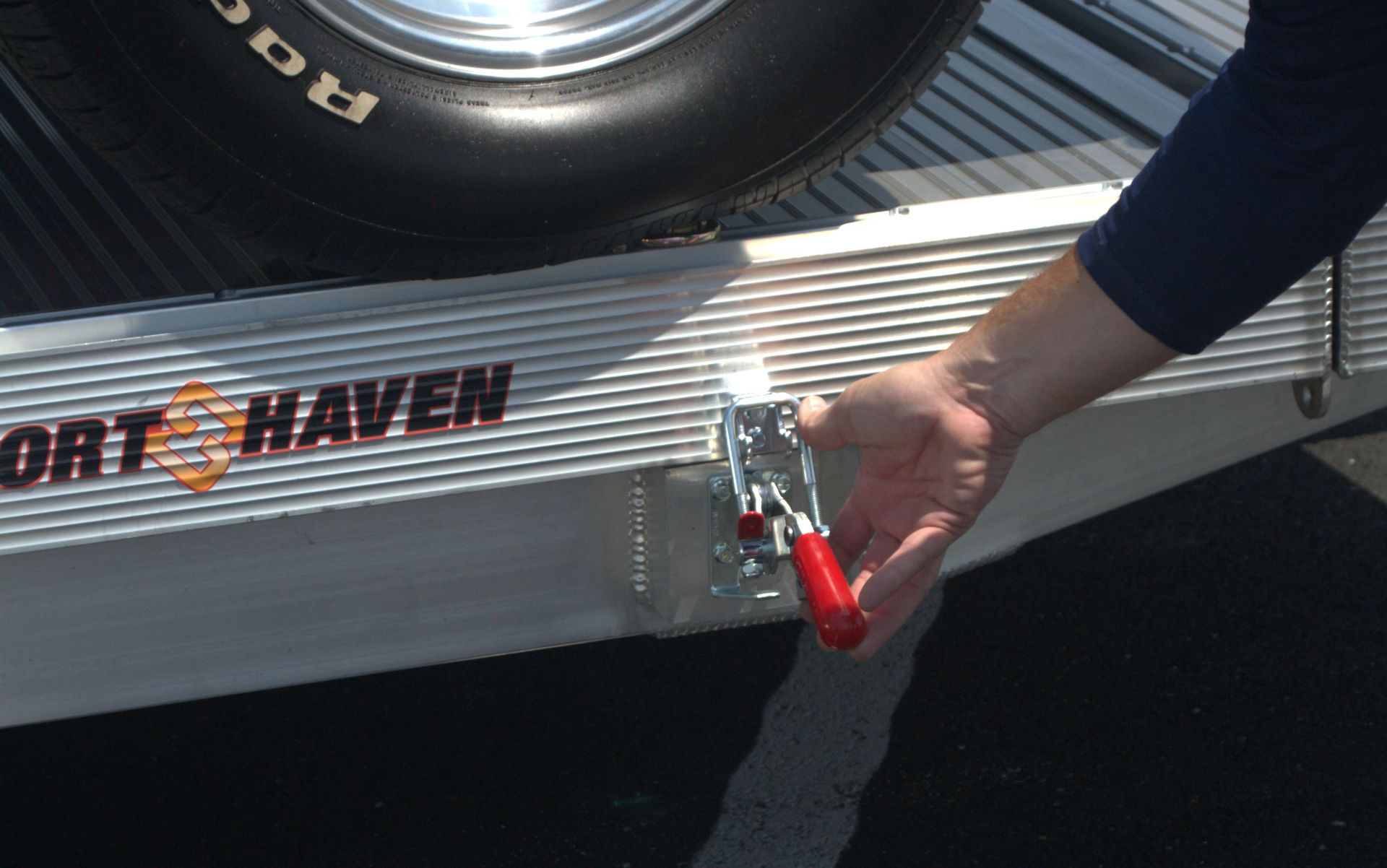

Double Latch Safety Locks

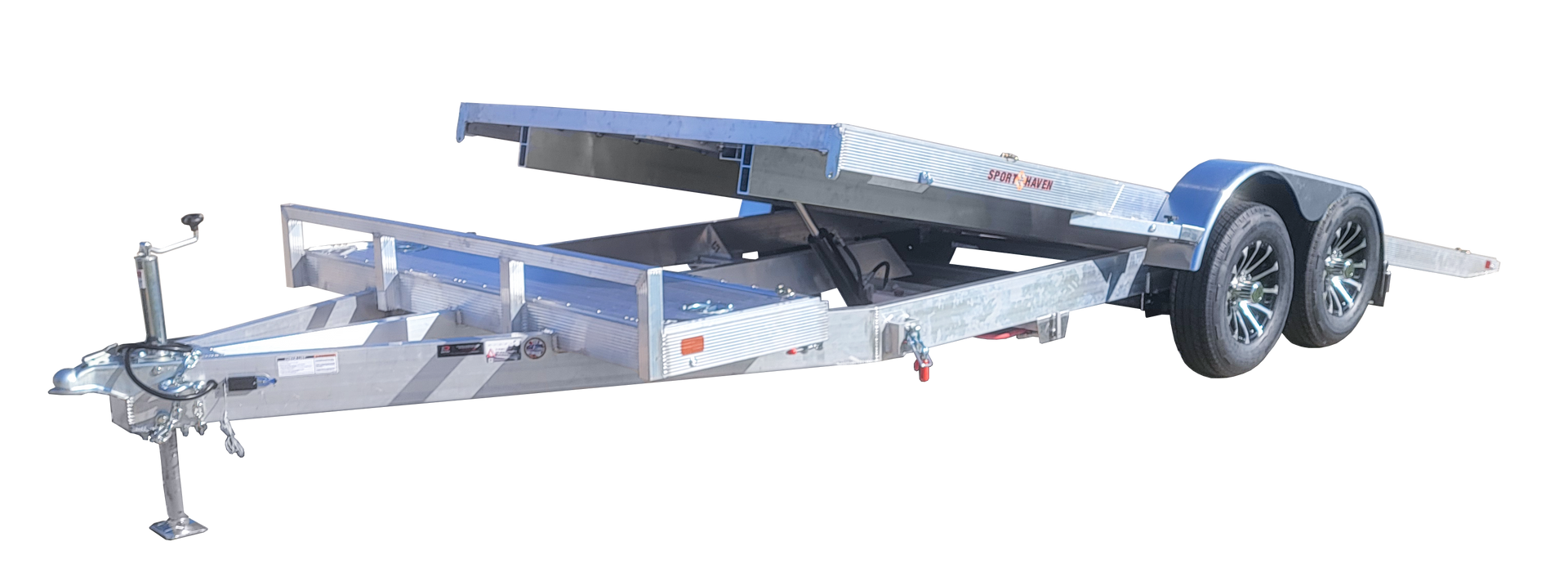

Open Position

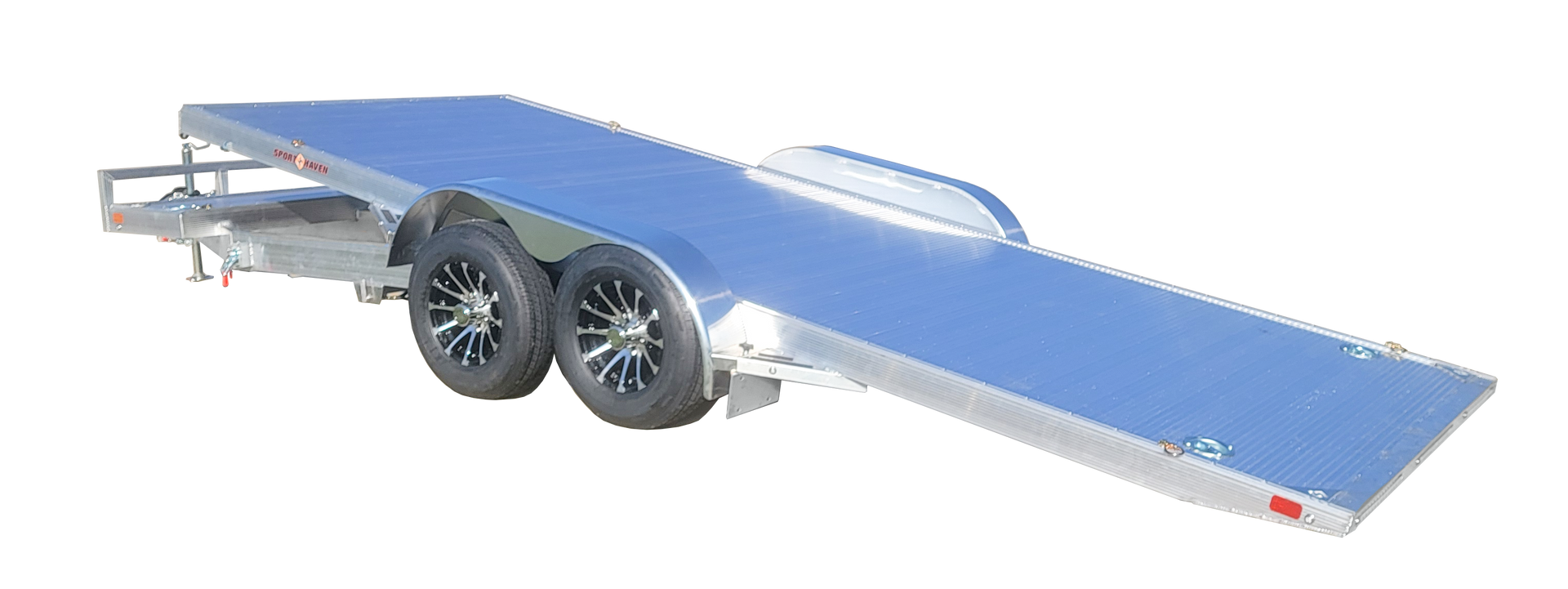

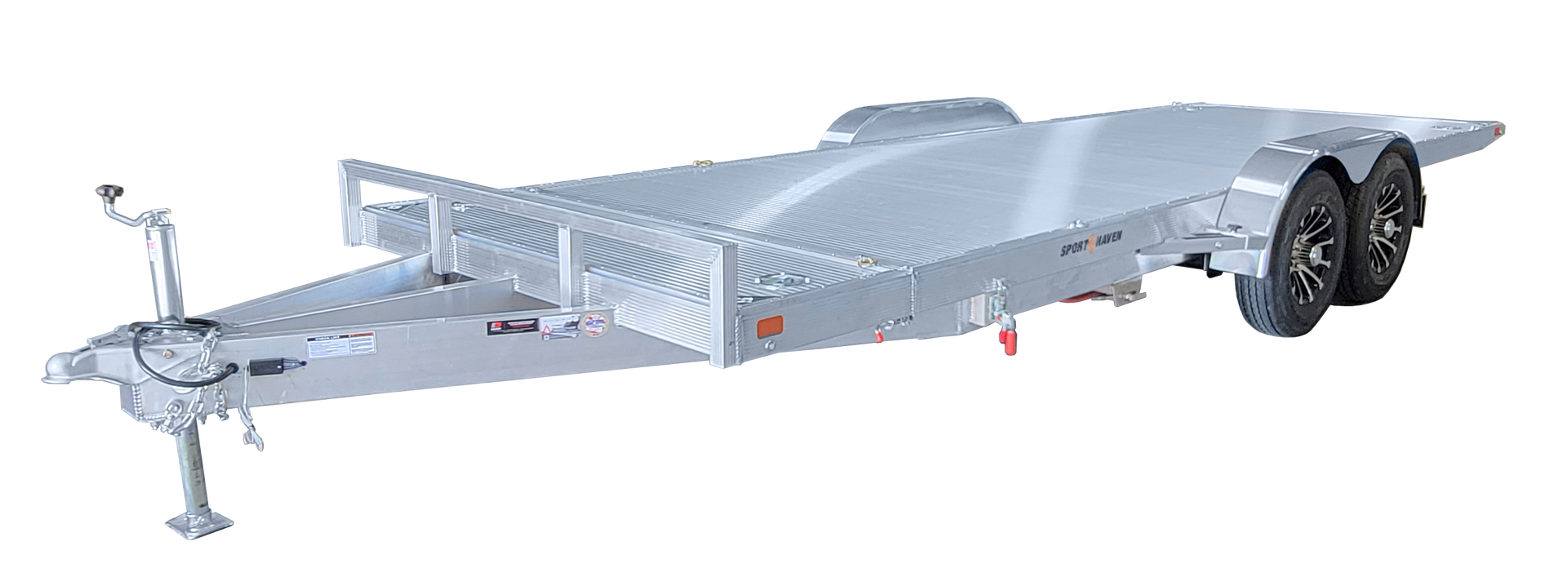

Closed Position

• Double Hollow Aluminum Tube Tongue, Lower Frame Outer Rails
• Fluted 4" x 5" Custom Extrusion Frame Rails with Integrated Track System
• 2" x 2" Top Deck Rail
• 2" x 2" Top Deck Rail Uprights

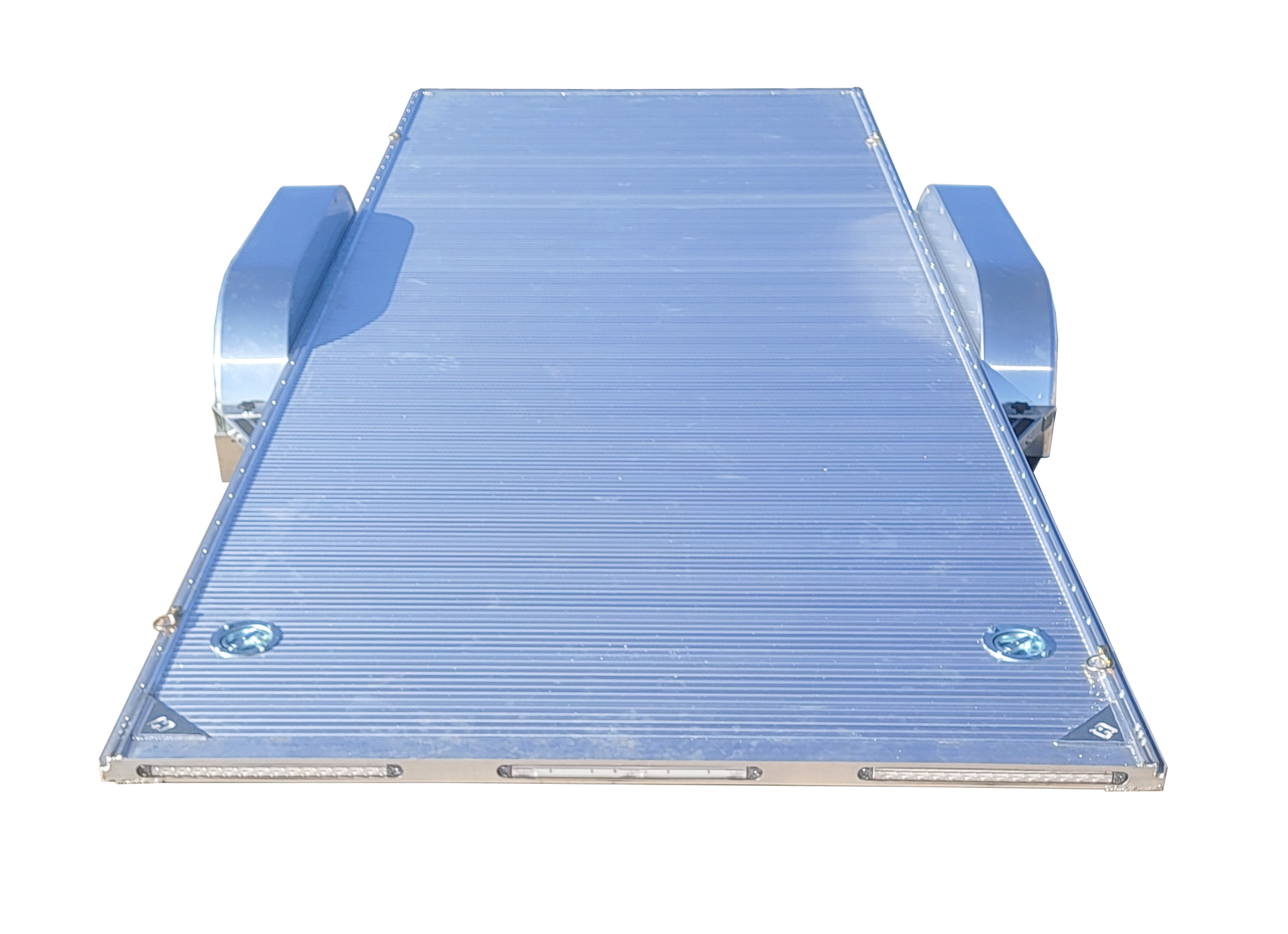

• 6" Extruded Interlocking Aluminum Decking
• Stillwell Hydraulic Lift System

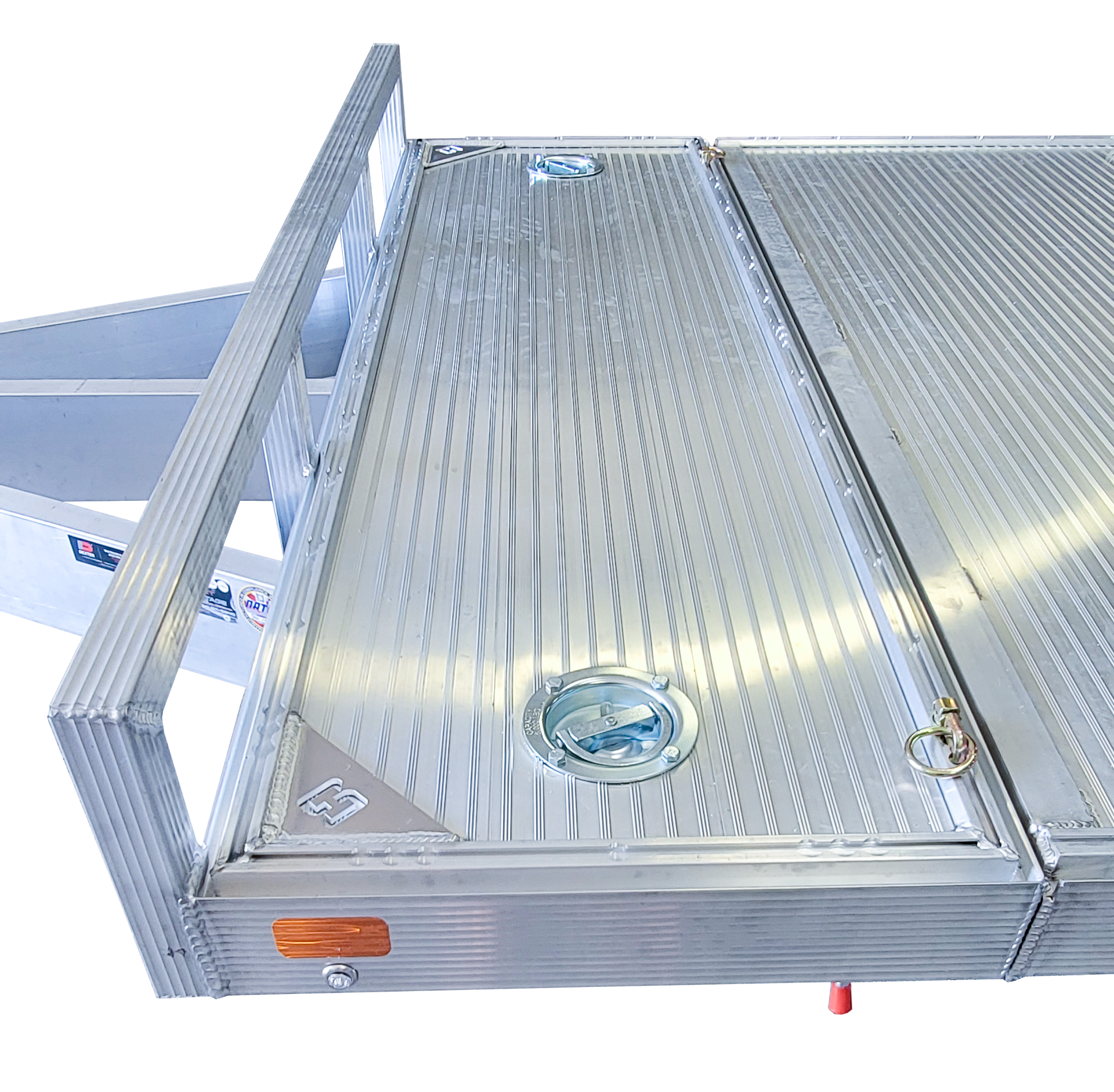

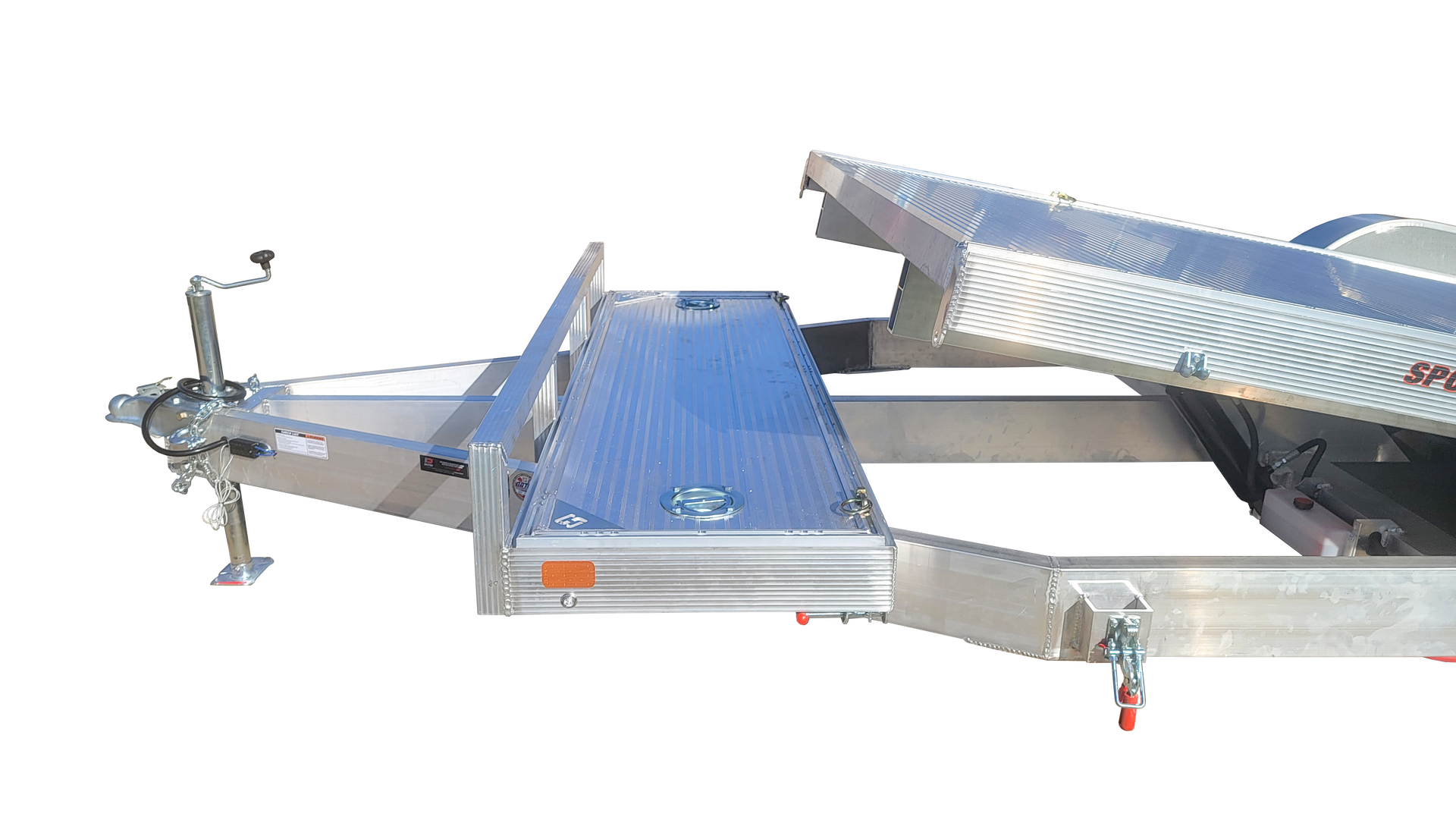

• 2' Stationary Front Deck
•


• LED Lights

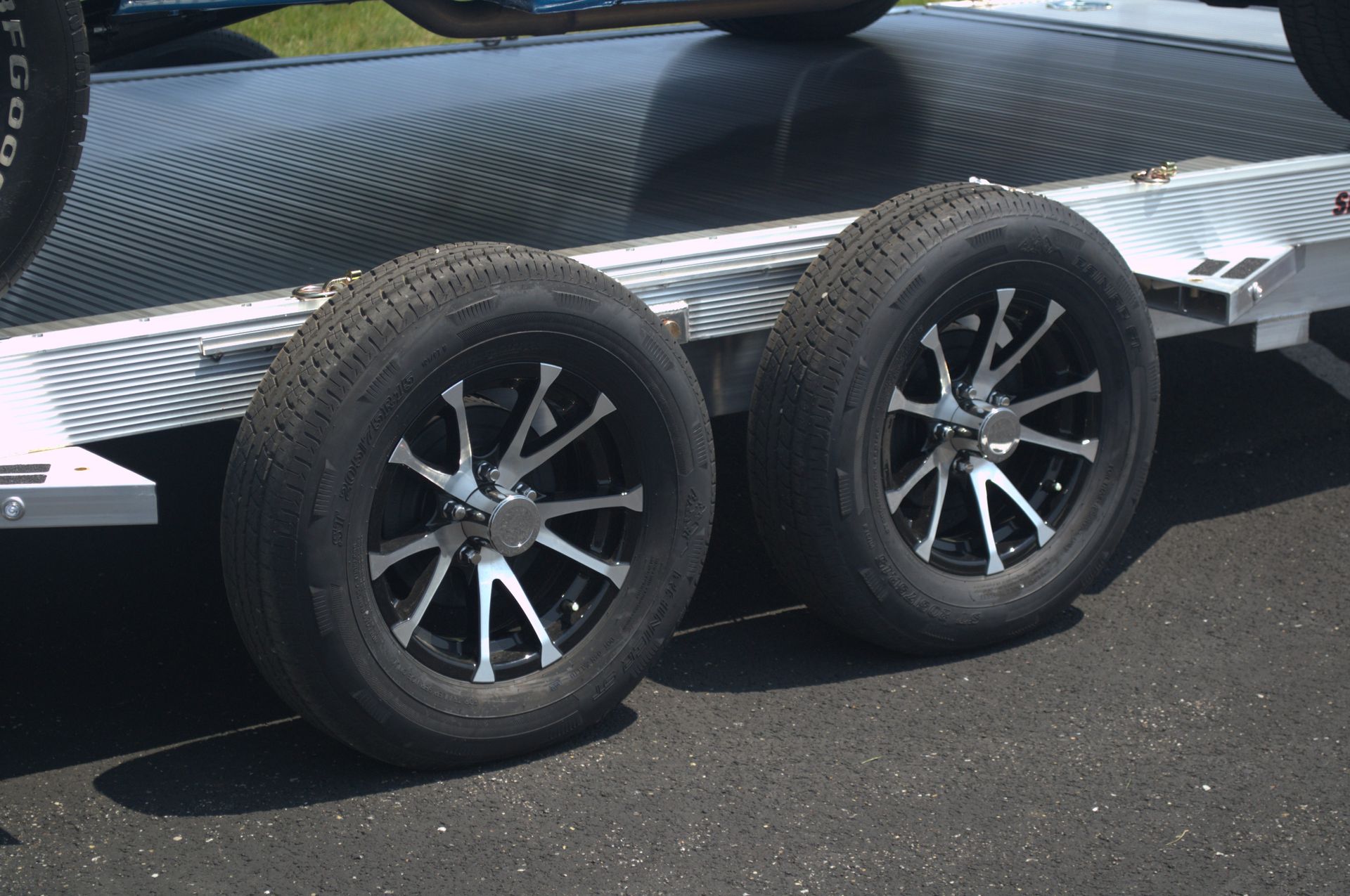

• 15" Aluminum Wheels
• ST205/75R15C - 7K Models
• ST225/75R15D - 10k Models
• 3500 lb Dexter Torsion Axles - 7k Models
• 6000 lb Dexter Torsion Axles - 10k Models
• 14,00 lb Capacity Zinc Plated Coupler
• 11,700 lb Capacity 35" Zinc Plated Safety Chains
• A frame 5000lb Zinc Plated Pad Jack
•


• 7-Way Round Wiring Harness
• 2 5/16" Ball
• 10" Electric Brakes On Both Axles
• Removable Fenders
• 4 Double Stud Tie Down Rings
• 4 Recessed Swivel Tie Downs 2000 lb Working Limit 6000 lb Break Stregth
• 7,000 lb Gross Vehicle Weight Rating (GVWR) - 7K
• 9999 lb Gross Vehicle Weight Rating (GVWR) - 10K
•
