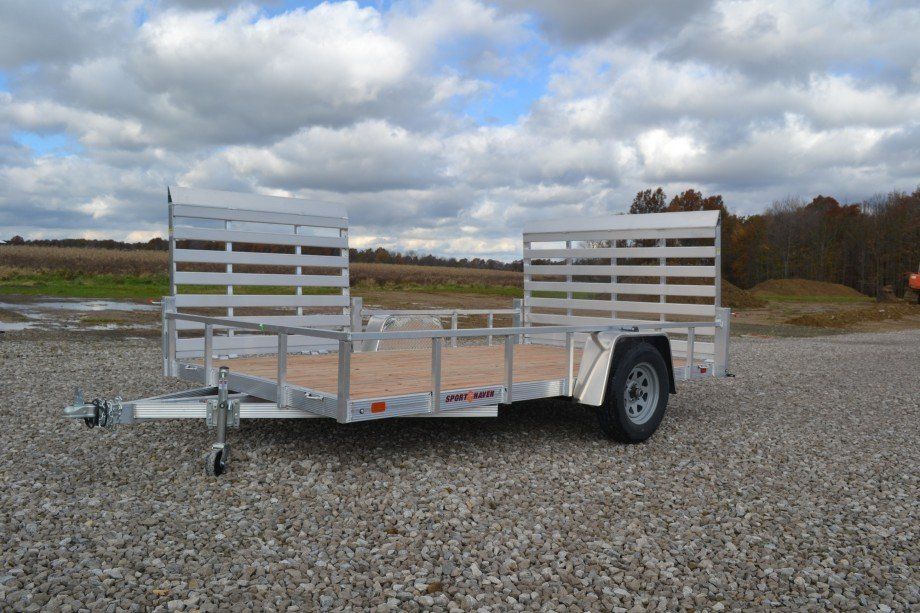

ALUMINUM UTILITY TRAILERS - AUT MODELS

ALUMINUM UTILITY TRAILERS- AUT MODELS

EXCLUSIVE AUT SERIES FEATURES

NOTABLE AUT MODEL FEATURES

EXCLUSIVE AUT SERIES FEATURES

NOTABLE AUT MODEL FEATURES

Features you will not find on other brands:

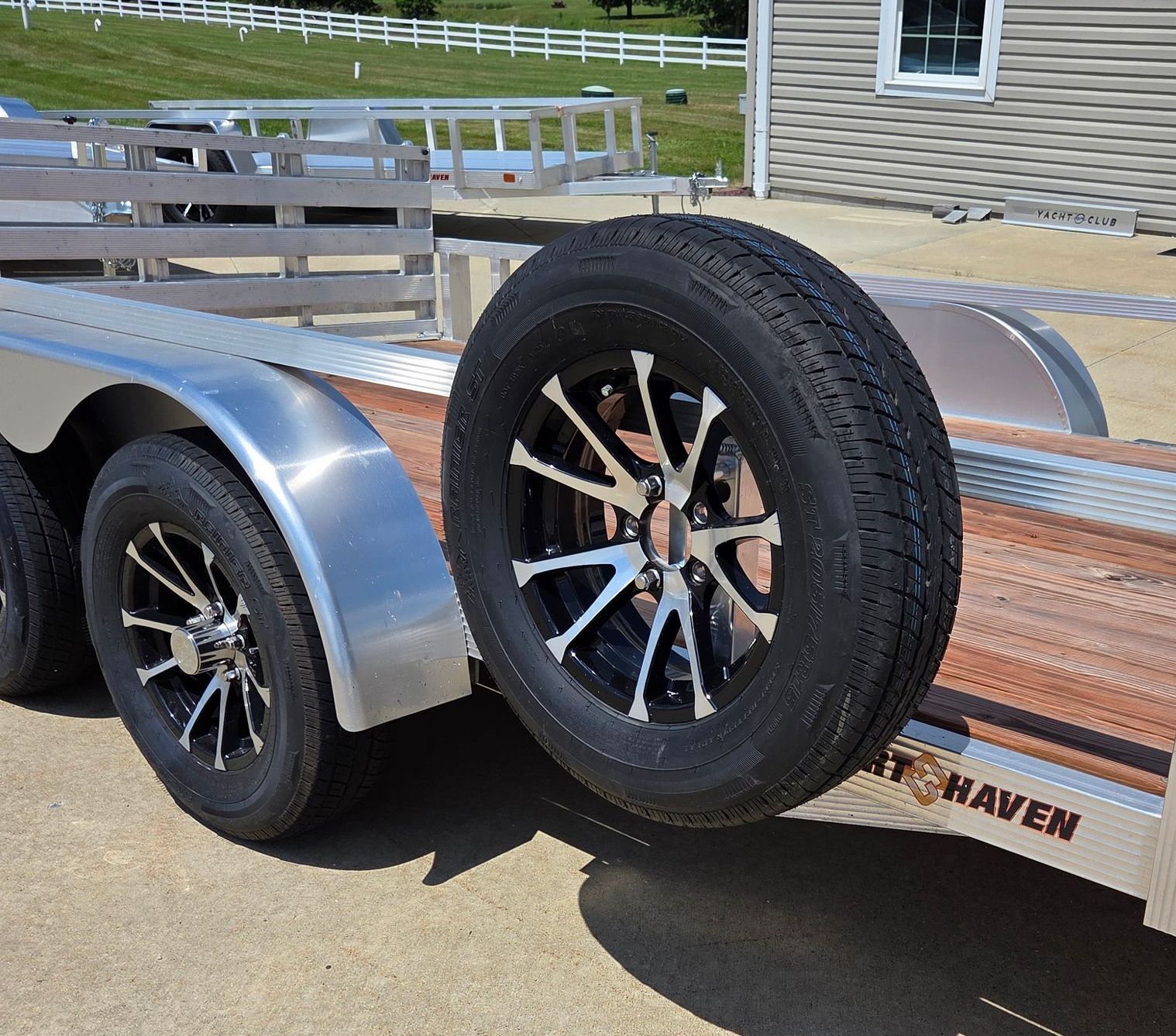

  • Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.


  • Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.


  • 5/4"  x 6 " ProWood Dura Color Treated Decking - DuraColor treatment retains color longer and reduces cracking, warping, or splitting, minimizing upkeep.


  • Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

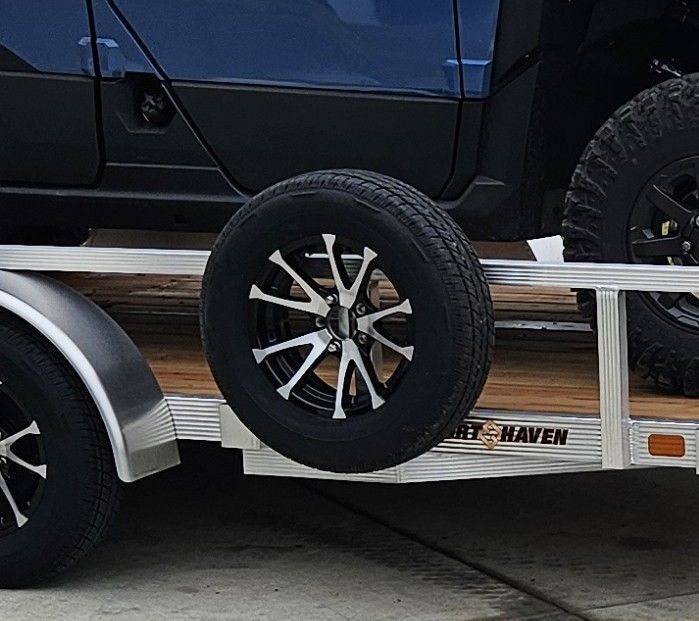

  • spare tire mounting option

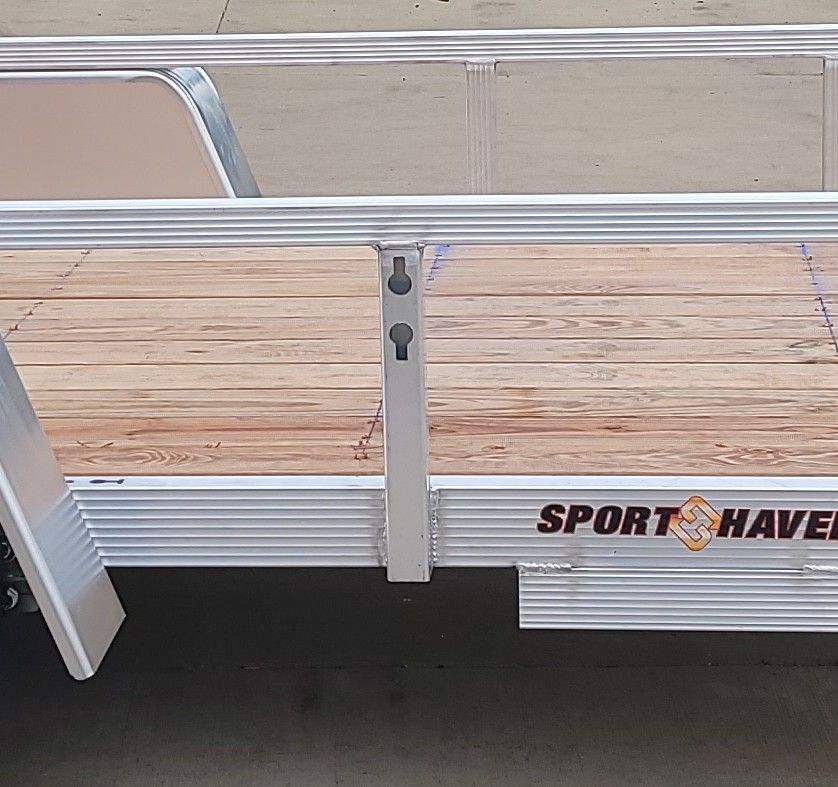

    Spare Mount Side Rail Upright

    Spare Mount Side Rail Upright

    Button
  • spare tire mounting post

    Slide title

    Spare Mount Side Rail Kit

    Button

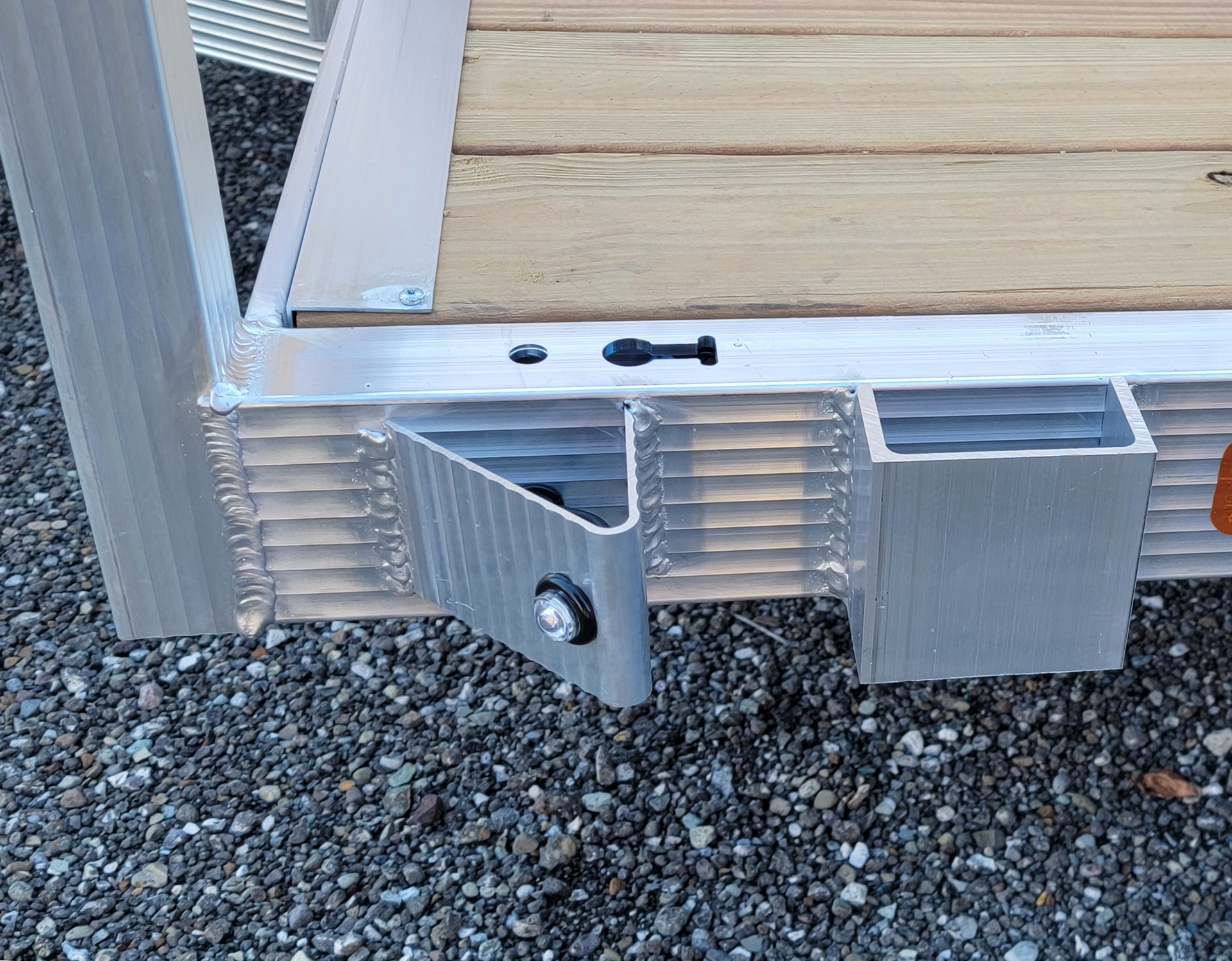

  • tie down receiver cut out in trailer rail

    Side Frame Tie-Down Receiver

    Side Frame Tie-Down Receiver

    Button
  • tie down receiver with s hook

    Slide title

    Receiver Shown w/Optional Ratchet Strap Hook - 700 lb Working Load Limit

    Button

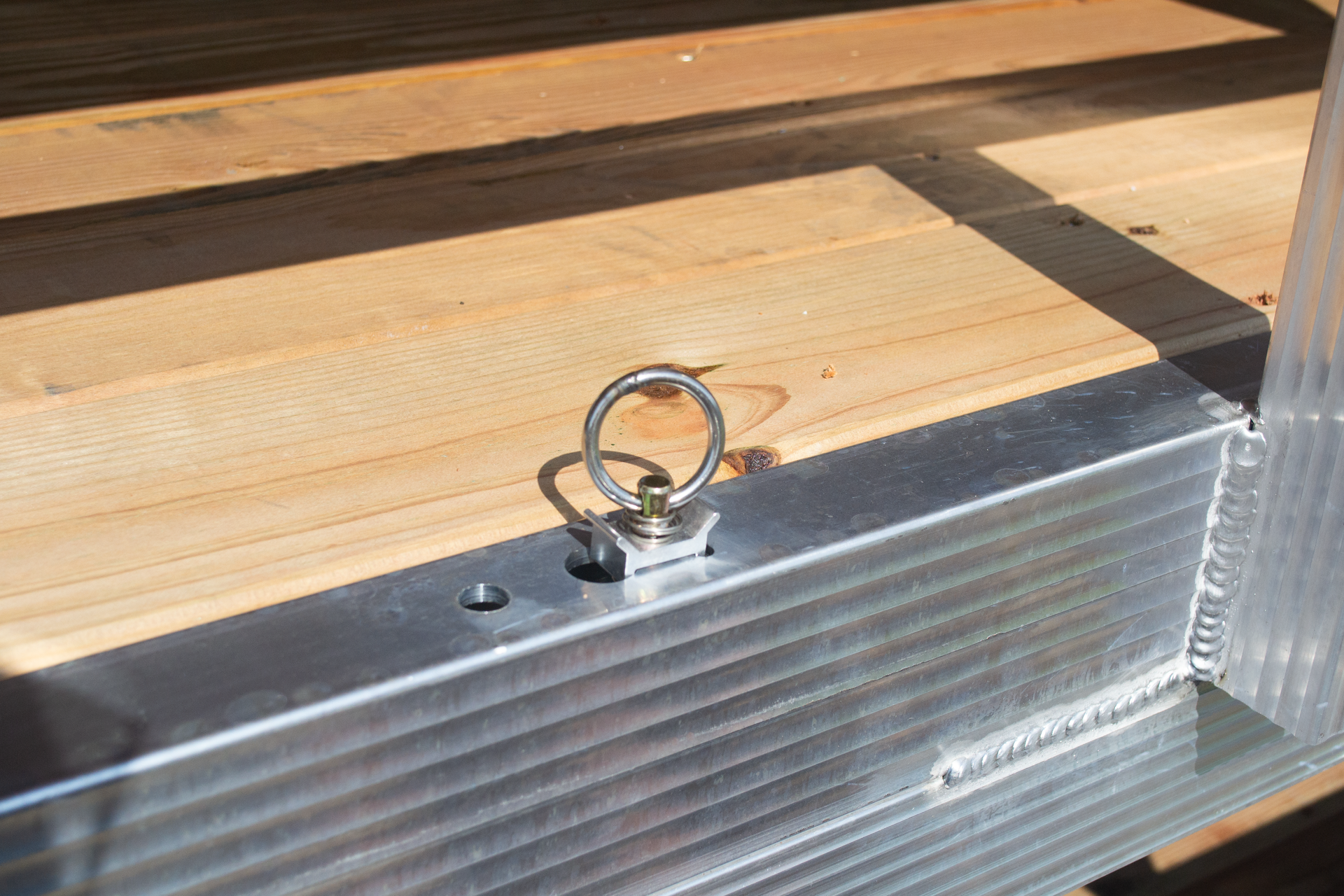

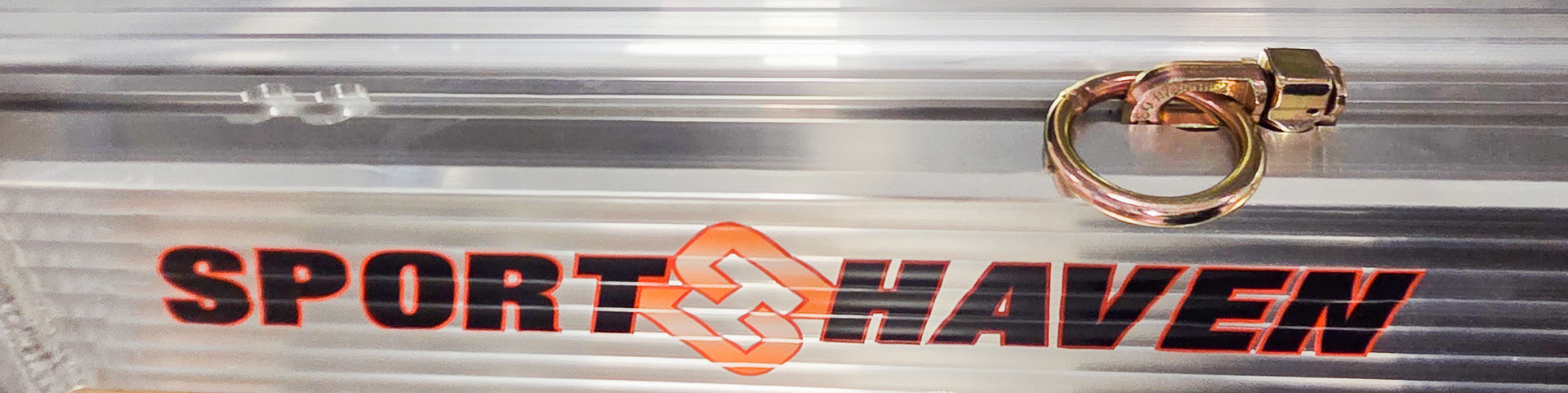

  • tie down receiver with tie down ring installed

    Slide title

    Receiver Show w/Optional Single Stud Tie-Down - 1,000 lb Working Load Limit

    Button
  • tie down ring in receiver

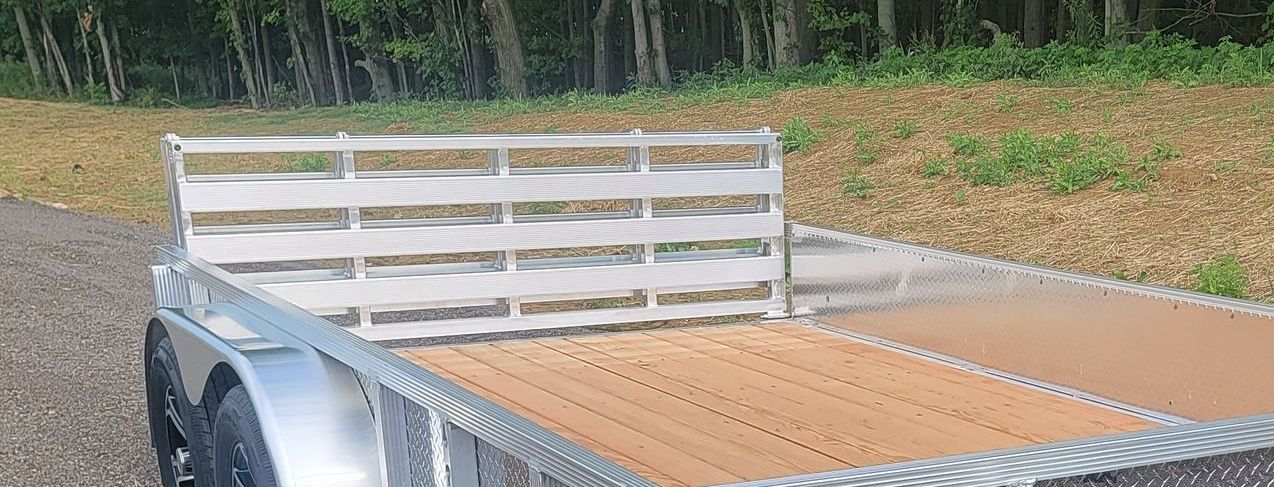

    ProWood Dura Color Decking

    Button
  • rear ramp lay down position

    Slide title

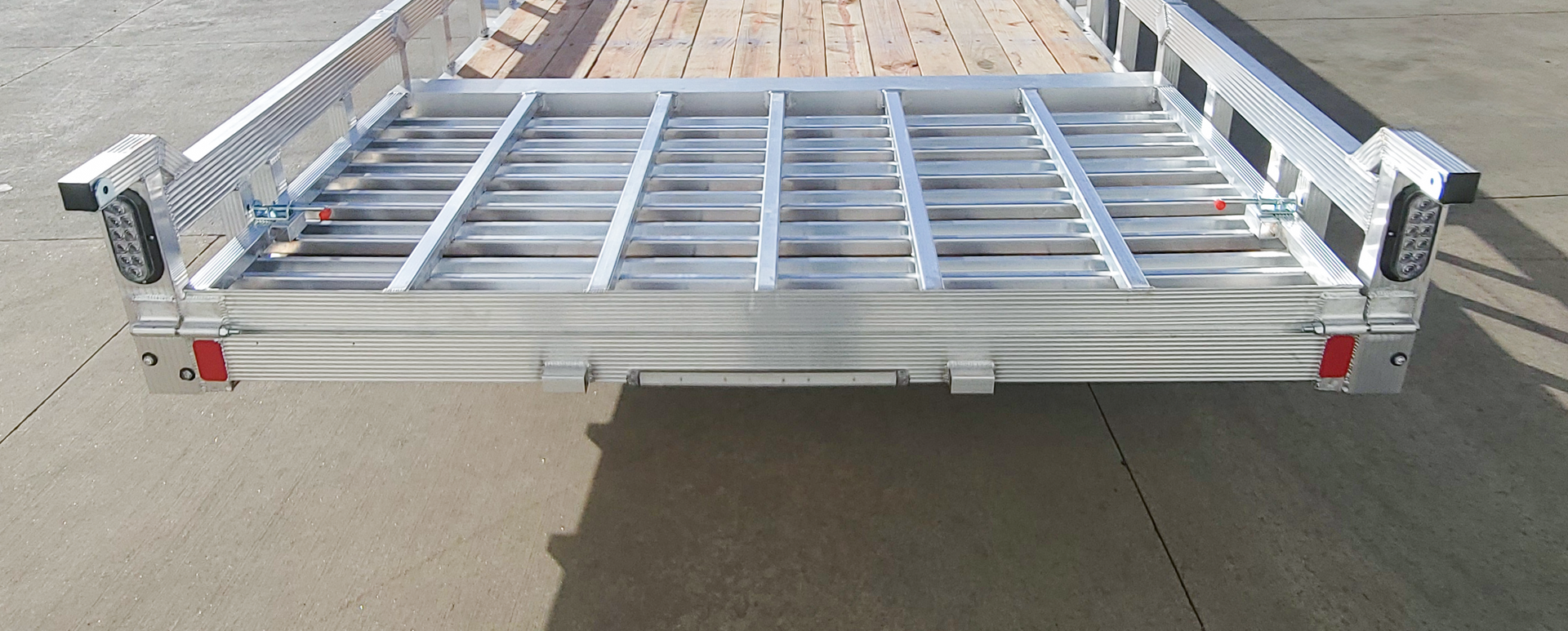

    Rear, Removable, 3-Position Ramp

    Button

Features you might not find on other brands:


  • 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing


  • Aluminum Through-Bolted Hinge - 2 piece bolt through hinge


  • Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position


  • 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling


  • Aluminum Fenders - corrosion resistant, lightweight, and durable


  • LED Lighting - Limited Lifetime LED warranty

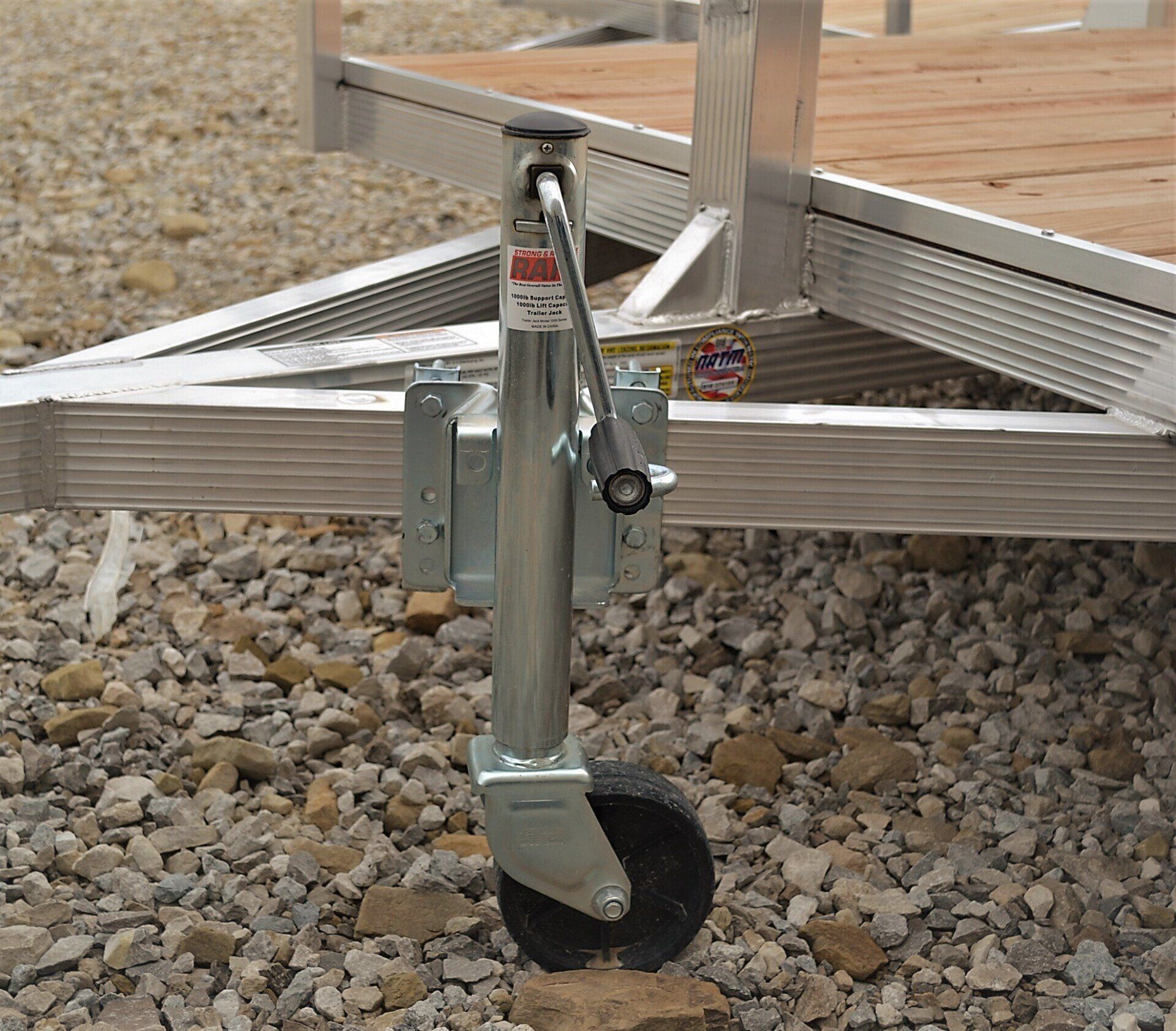

  • utility trailer with swivel tongue jack

    Swivel Jack

    1,200 lb Capacity Swivel Jack w/Wheel

    Button
  • tongue jack with wheel

    Slide title

    Spring Loaded Latch Gate

    Button
  • spring loaded trailer ramp latch

    Slide title

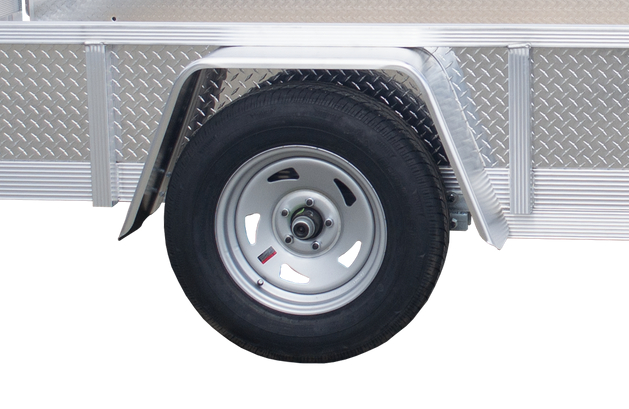

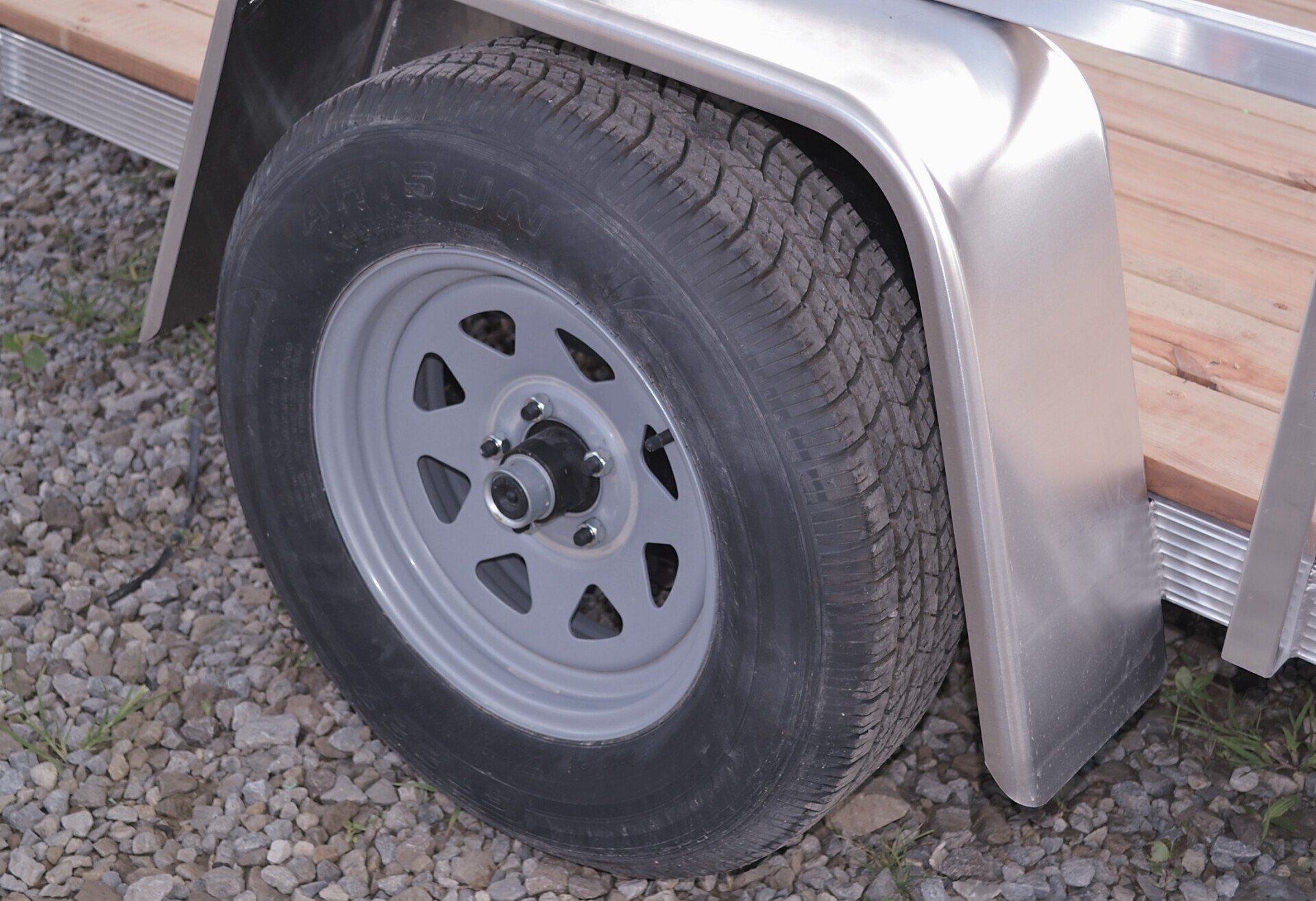

    15" Radial Tires

    Button
  • tire and wheel on trailer

    Slide title

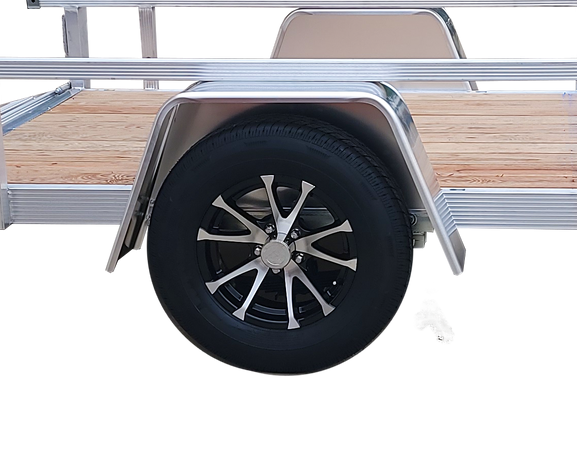

    Aluminum Fenders

    Button
  • led tail light

    LED Lighting

    Button

Features you will not find on other brands:


Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.


Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.


5/4"  x 6 " ProWood Dura Color Treated Decking - DuraColor treatment retains color longer and reduces cracking, warping, or splitting, minimizing upkeep.


Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

  • spare tire mounting option

    Spare Mount Side Rail Upright

    Spare Mount Side Rail Upright

    Button
  • spare tire mounting post

    Slide title

    SPARE MOUNT SIDE RAIL KIT

    Button
  • tie down receiver cut out in trailer rail

    Side Frame Tie-Down Receiver

    Side Frame Tie-Down Receiver

    Button
  • tie down receiver with s hook

    Slide title

    Receiver Shown w/Optional Ratchet Strap Hook - 700 lb Working Load Limit

    Button
  • tie down receiver with tie down ring installed

    Slide title

    Receiver Show w/Optional Single Stud Tie-Down - 1,000 lb Working Load Limit

    Button
  • tie down ring in receiver

    ProWood Dura Color Decking

    Button
  • rear ramp lay down position

    Slide title

    Rear, Removable, 3-Position Ramp

    Button

NOTABLE AUT MODEL FEATURES

Features you might not find on other brands:


1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing


Aluminum Through-Bolted Hinge - 2 piece bolt through hinge


Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position


15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling


Aluminum Fenders - corrosion resistant, lightweight, and durable


LED Lighting - Limited Lifetime LED warranty

  • utility trailer with swivel tongue jack

    Swivel Jack

    1,200 lb Capacity Swivel Jack w/Wheel

    Button
  • tongue jack with wheel

    Slide title

    Spring Loaded Latch Gate

    Button
  • spring loaded trailer ramp latch

    Slide title

    15" Radial Tires

    Button
  • tire and wheel on trailer

    Slide title

    Aluminum Fenders

    Button
  • led tail light

    LED Lighting

    Button

AUT MODEL CONSTRUCTION

AUT MODEL CONSTRUCTION

Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

  • Jig Welded Construction for Consistency, Quality


  • Fluted Aluminum Tube Tongues and Tongue Supports


  • Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)


  • 2" Wide Aluminum Tube Top Deck Top Rails


  • Aluminum Tube Top Deck Rail Uprights
  • welder welding trailer

    Slide title

    Jig Welded Construction

    Button
  • swivel tongue jack on a utility trailer

    Slide title

    Fluted Aluminum Tube Tongues and Tongue Supports

    Button
  • trailer frame

    Slide title

    Fluted Aluminum Tube Frames and Cross Members

    Button
  • aluminum utility trailer frame

    Slide title

    2" Wide Top Deck Rails, Tube Top Deck Rail Uprights

    Button
  • aluminum double hollow tube

    Slide title

    Double Hollow Tube Frame - 18' & up

    Double Hollow Tongue - all tandems

    Button
  • welder welding trailer

    Slide title

    Jig Welded Construction

    Button
  • swivel tongue jack on a utility trailer

    Slide title

    Fluted Aluminum Tube Tongues and Tongue Supports

    Button
  • trailer frame

    Slide title

    Fluted Aluminum Tube Frames and Cross Members

    Button
  • aluminum utility trailer frame

    Slide title

    2" Wide Top Deck Rails, Tube Top Deck Rail Uprights

    Button
  • aluminum double hollow tube

    Slide title

    Double Hollow Tube Frame - 18' & up

    Double Hollow Tongue - all tandems

    Button

Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

  • Jig Welded Construction for Consistency, Quality


  • Fluted Aluminum Tube Tongues and Tongue Supports


  • Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)


  • 2" Wide Aluminum Tube Top Deck Top Rails


  • Aluminum Tube Top Deck Rail Uprights

AUT MODEL OPTIONS

AUT MODEL OPTIONS

 Popular Options:

  • Aluminum Treadplate Sides
  • Aluminum Wheel Upgrade
  • Lateral 5' Ramp (7' Wide Models)
  • Bi-fold Ramp (Rear and/or Side)
  • Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)


  • tread plate trailer sides

    Slide title

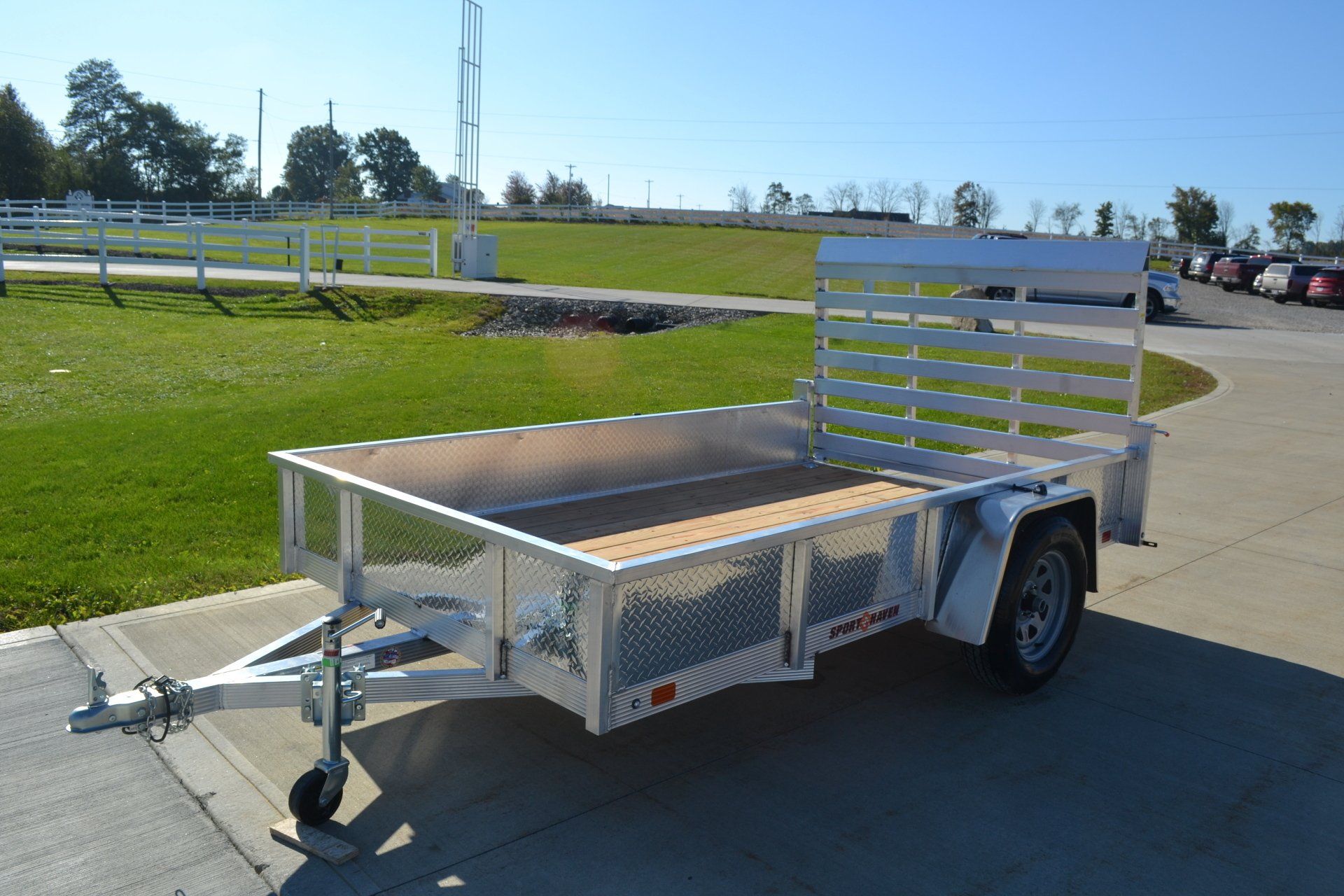

    Treadplate Sides

    Button
  • trailer with lateral side load ramp

    Slide title

    Aluminum Wheel Upgrade

    Button

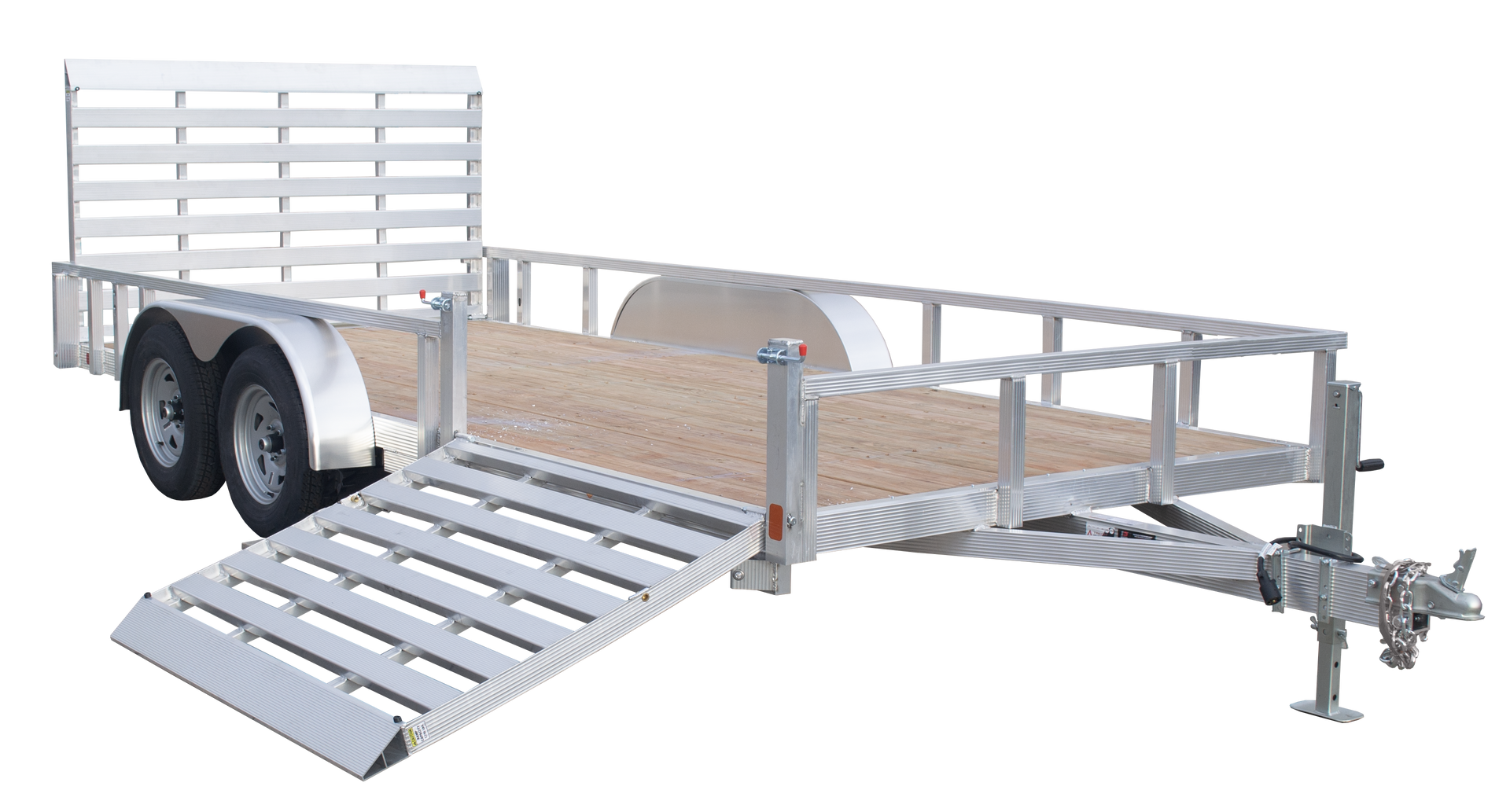

  • folding trailer ramp

    Slide title

    Lateral Ramp

    Button
  • stack of trailer brake axles

    Slide title

    Bi-Fold Ramp

    Button
  • dexter brake axles on utility trailers

    Slide title

    Trailer Brakes

    Button

 AUT-LR:

  • Aluminum Ramps built into siderails
  • Aluminum Wheel Upgrade
  • Side Load from either side
  • Built in Spare tire mount holes
  • ProWood DuraColor Decking
  • AUT712, AUT714, AUT714T thru AUT724T


  • aluminum utility trailer with loading ramp

    Slide title

    Side Loading Ramps

    Button
  • side loading ramps for utility trailer

    Slide title

    Ramps lock into side rails

    Button
  • aluminum trailer loading ramp in rail of trailer

    Slide title

    Easiely remove rails for quick access

    Button
  • loading ramps removed from aluminum trailer

    Slide title

    Snap Pins lock ramps in place

    Button

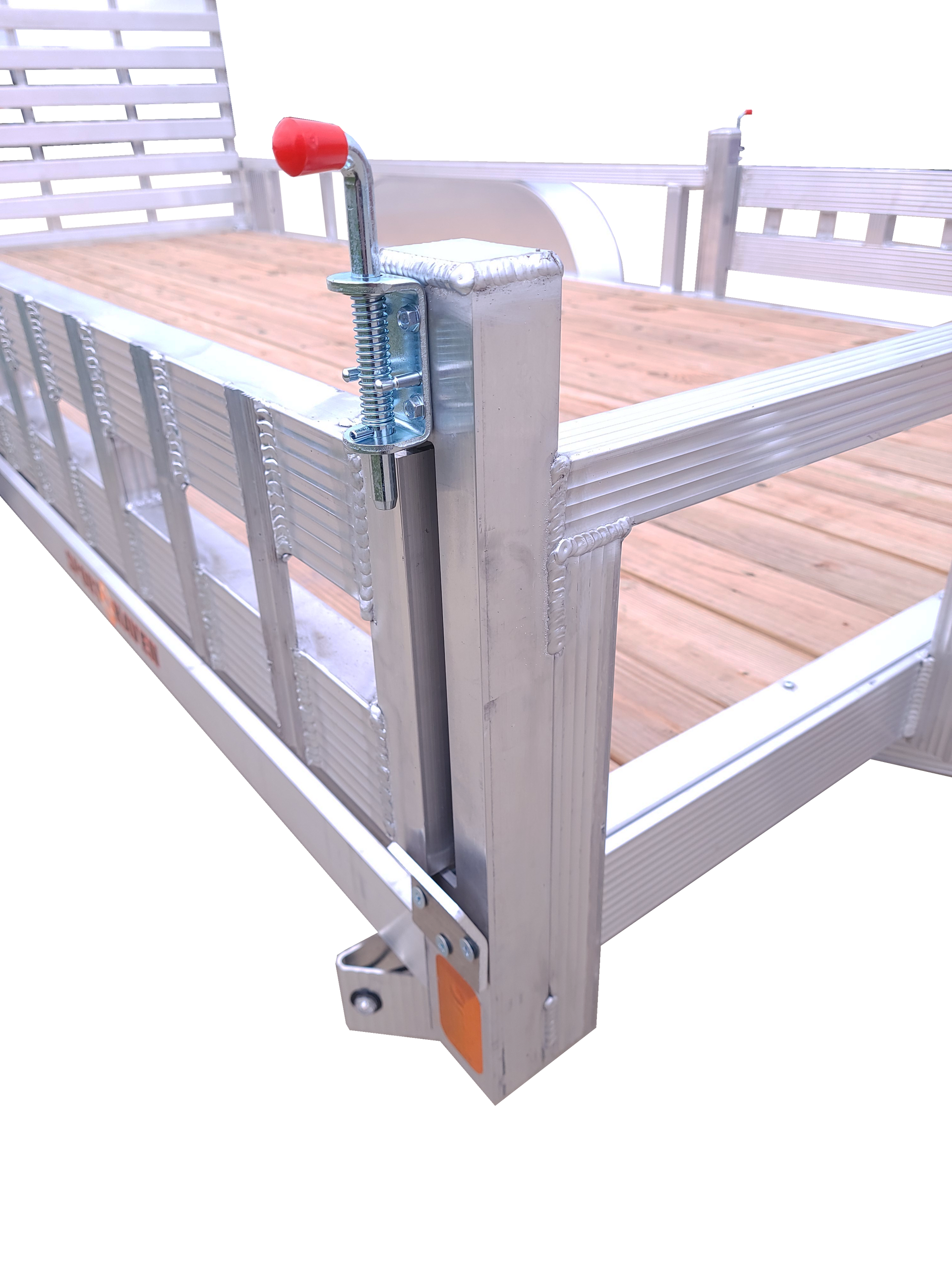

  • trailer ramp latch

    Slide title

    Spring Loaded Snap Locks

    Button

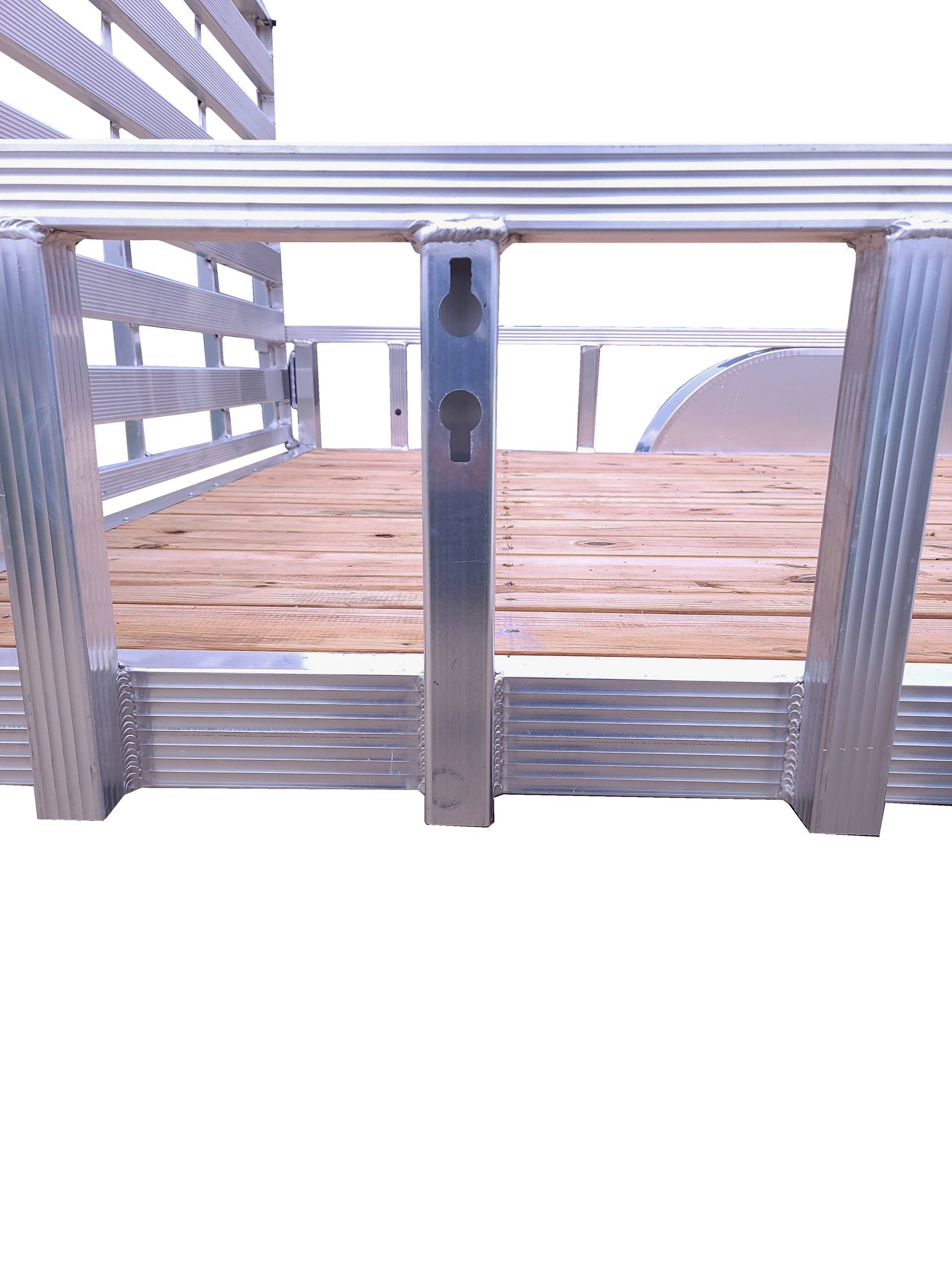

  • sport haven spare tire mount

    Slide title

    Spare tire mount holes in rail

    Button
  • sport haven spare tire mount

    Slide title

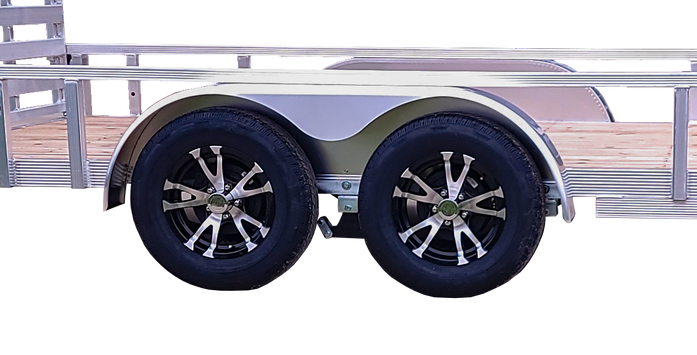

    Aluminum wheels

    Button

 Popular Options:

  • Aluminum Treadplate Sides
  • Aluminum Wheel Upgrade
  • Lateral 5' Ramp (7' Wide Models)
  • Bi-fold Ramp (Rear and/or Side)
  • Trailer Brakes (Standard on Tandem Axle, Optional on Single Axle)
  • tread plate trailer sides

    Slide title

    Treadplate Sides

    Button
  • trailer with lateral side load ramp

    Slide title

    Aluminum Wheel Upgrade

    Button
  • folding trailer ramp

    Slide title

    Lateral Ramp

    Button
  • stack of trailer brake axles

    Slide title

    Bi-Fold Ramp

    Button
  • dexter brake axles on utility trailers

    Slide title

    Trailer Brakes

    Button

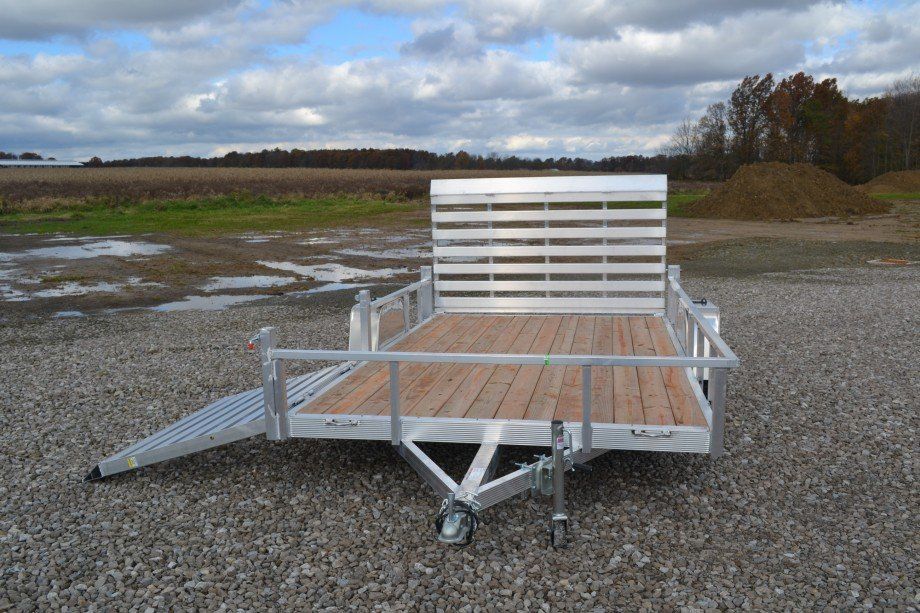

 AUT-LR:

  • Aluminum Ramps built into siderails
  • Aluminum Wheel Upgrade
  • Side Load from either side
  • Built in Spare tire mount holes (kit sold separately)
  • ProWood DuraColor Decking
  • AUT712, AUT714, AUT714T thru AUT724T

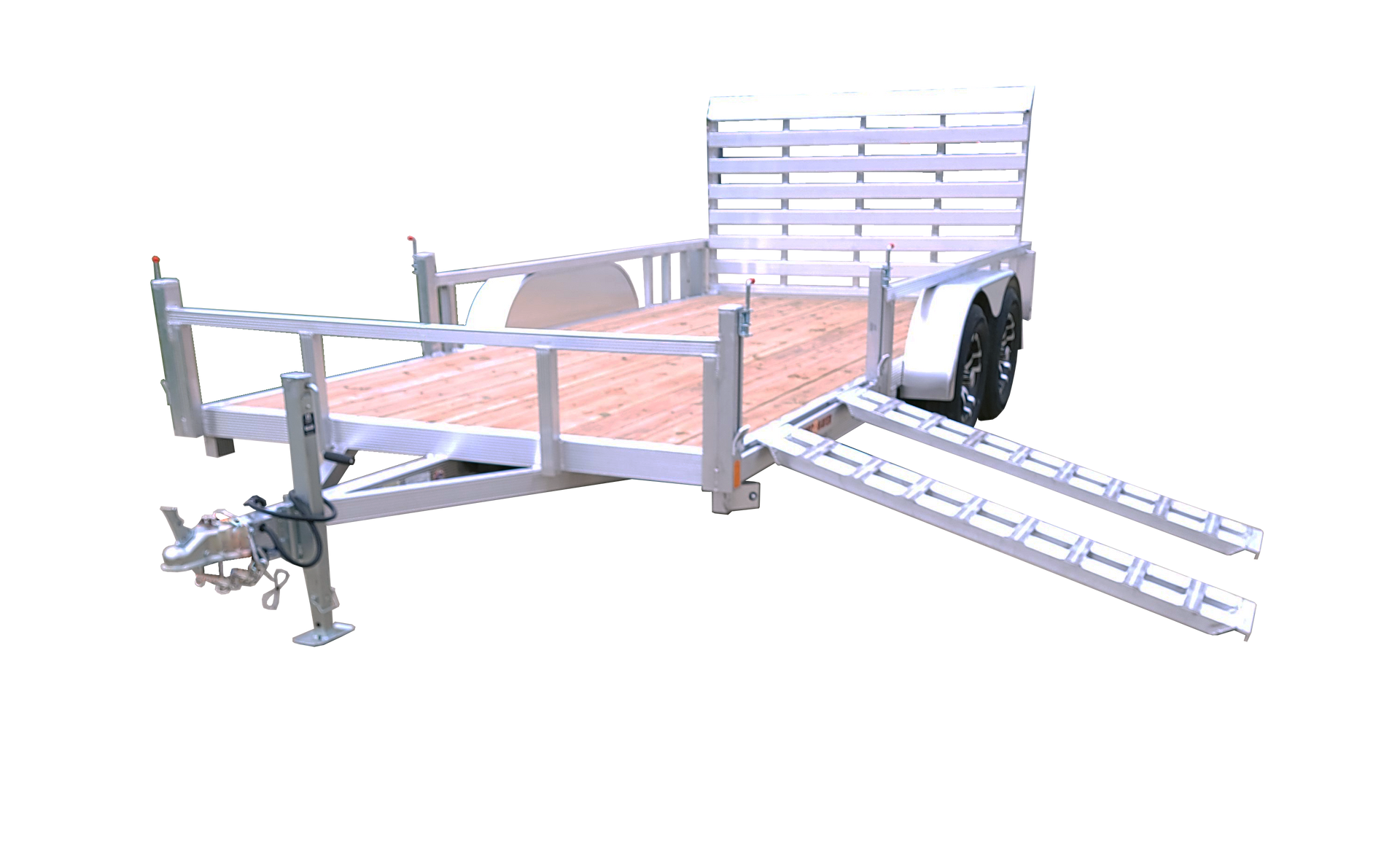

  • aluminum utility trailer with loading ramp

    Slide title

    Side Loading Ramps

    Button

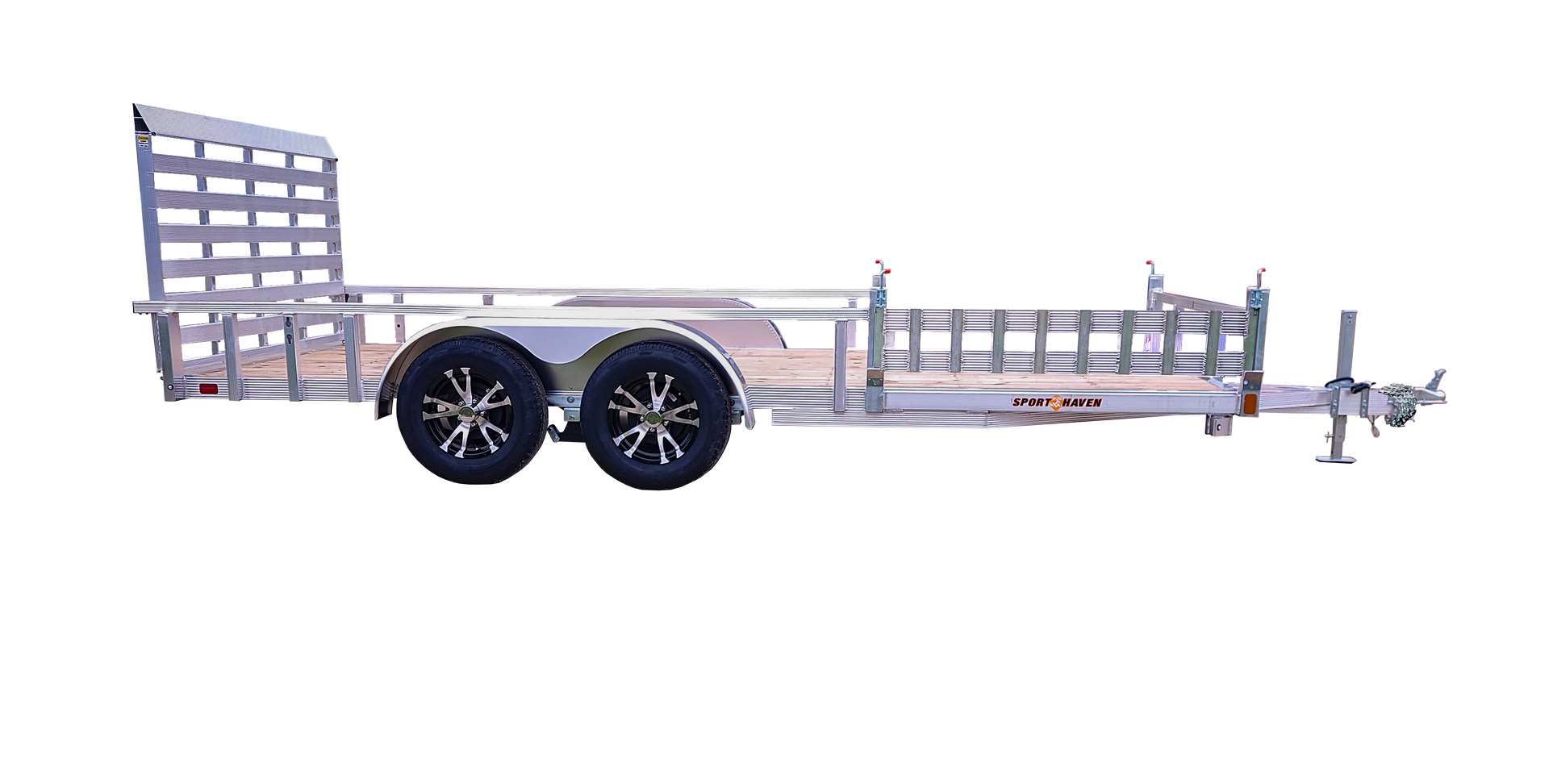

  • side loading ramps for utility trailer

    Slide title

    Ramps lock into side rails

    Button

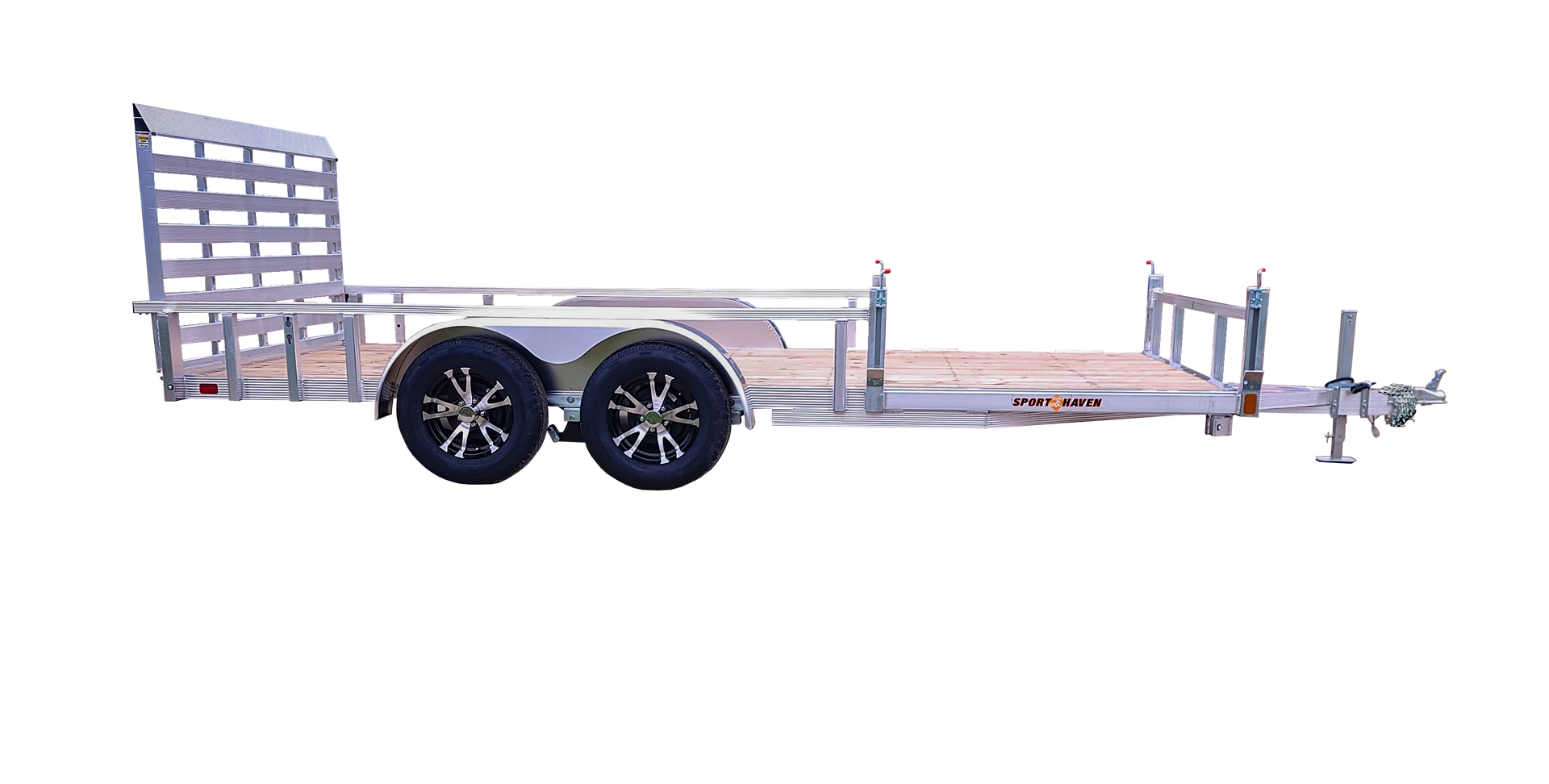

  • aluminum trailer loading ramp in rail of trailer

    Slide title

    Easiely remove rails for quick access

    Button

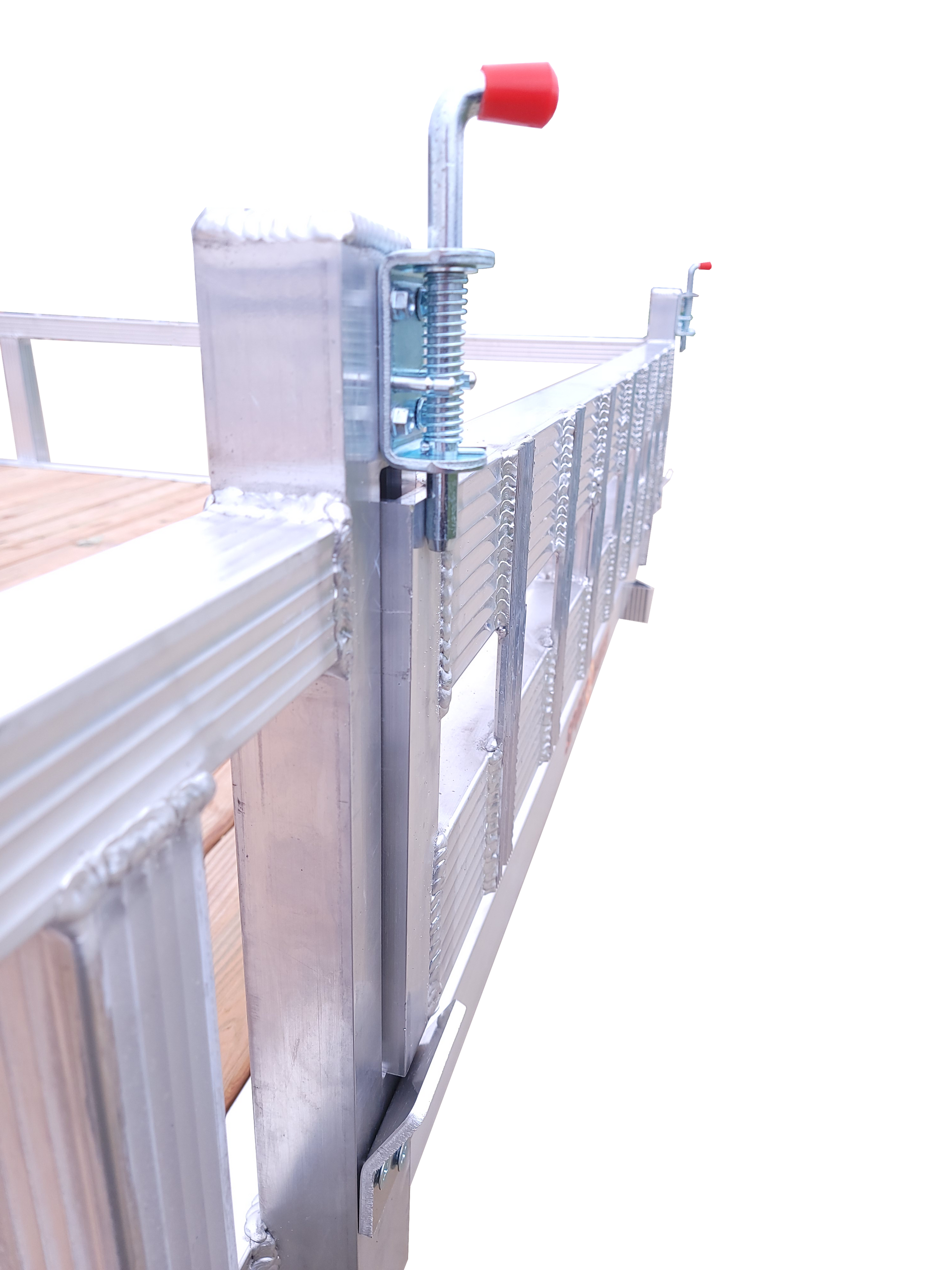

  • loading ramps removed from aluminum trailer

    Slide title

    Snap Pins lock ramps in place

    Button
  • trailer ramp latch

    Slide title

    Spring Loaded Snap Locks

    Button
  • sport haven spare tire mount

    Slide title

    Spare tire mount holes in rail

    Button
  • sport haven spare tire mount

    Slide title

    Aluminum wheels

    Button

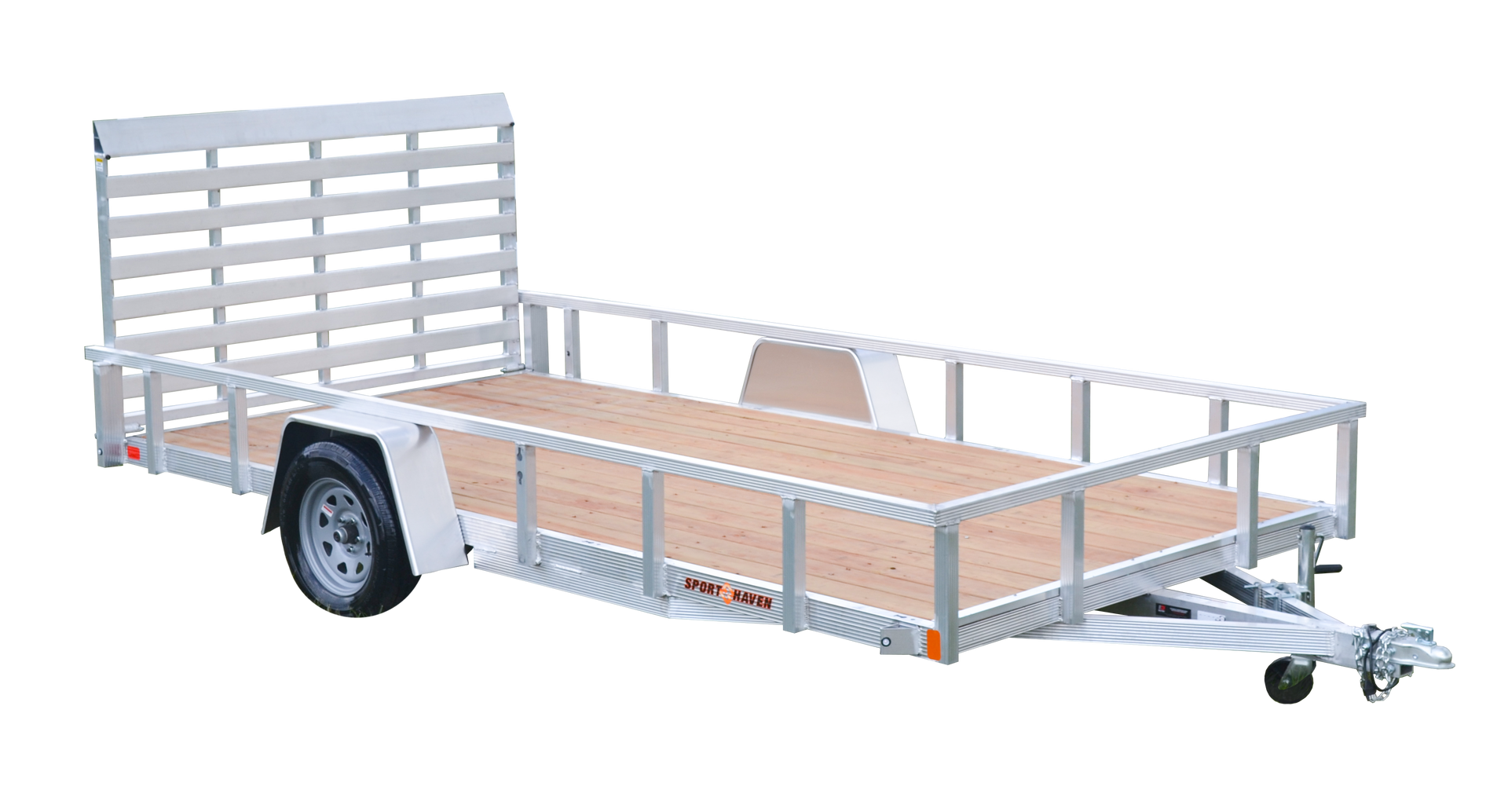

AUT MODEL SINGLE AXLE TRAILER SPECIFICATIONS

AUT MODEL SINGLE AXLE TRAILER SPECIFICATIONS

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" Wide Top Deck Rail
  • 2" x 2" Top Deck Rail Uprights
  • 5/4" x 6" ProWood DuraColor Decking
  • All Aluminum 4' Rear Ramp

Component Specs

  • LED Lights
  • 15" Silver Powder Coated Wheels
  • ST207/75R15C Radial Tires
  • 3,500 lb Capacity Axles
  • Double Eye Spring Suspension
  • 3,500 lb Capacity Zinc Plated Couplers
  • 3,200 lb Capacity, 27" Safety Chains
  • 1,200 lb capacity Swivel Wheel Jack

Misc Specs

  • 4-Way Flat Wiring Harness
  • 2" Ball
  • 14" Hitch Height
  • 17" Deck Height
  • 13" Rail Height Above the Deck
  • 2,990 lb Gross Vehicle Weight Rating (GVWR)

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" Wide Top Deck Rail
  • 2" x 2" Top Deck Rail Uprights
  • 5/4" x 6" ProWood DuraColor Decking
  • All Aluminum 4' Rear Ramp

Component Specs

  • LED Lights
  • ST205/75R15C Silver Powder Coated Wheels
  • 15" Radial Tires
  • 3,500 lb Capacity Axles
  • Double Eye Spring Suspension
  • 3,500 lb Capacity Zinc Plated Couplers
  • 3,200 lb Capacity, 27" Safety Chains
  • 1,200 lb capacity Swivel Wheel Jack

Misc Specs

  • 4-Way Flat Wiring Harness
  • 2" Ball
  • 14" Hitch Height
  • 17" Deck Height
  • 13" Rail Height Above the Deck
  • 2,990 lb Gross Vehicle Weight Rating (GVWR)

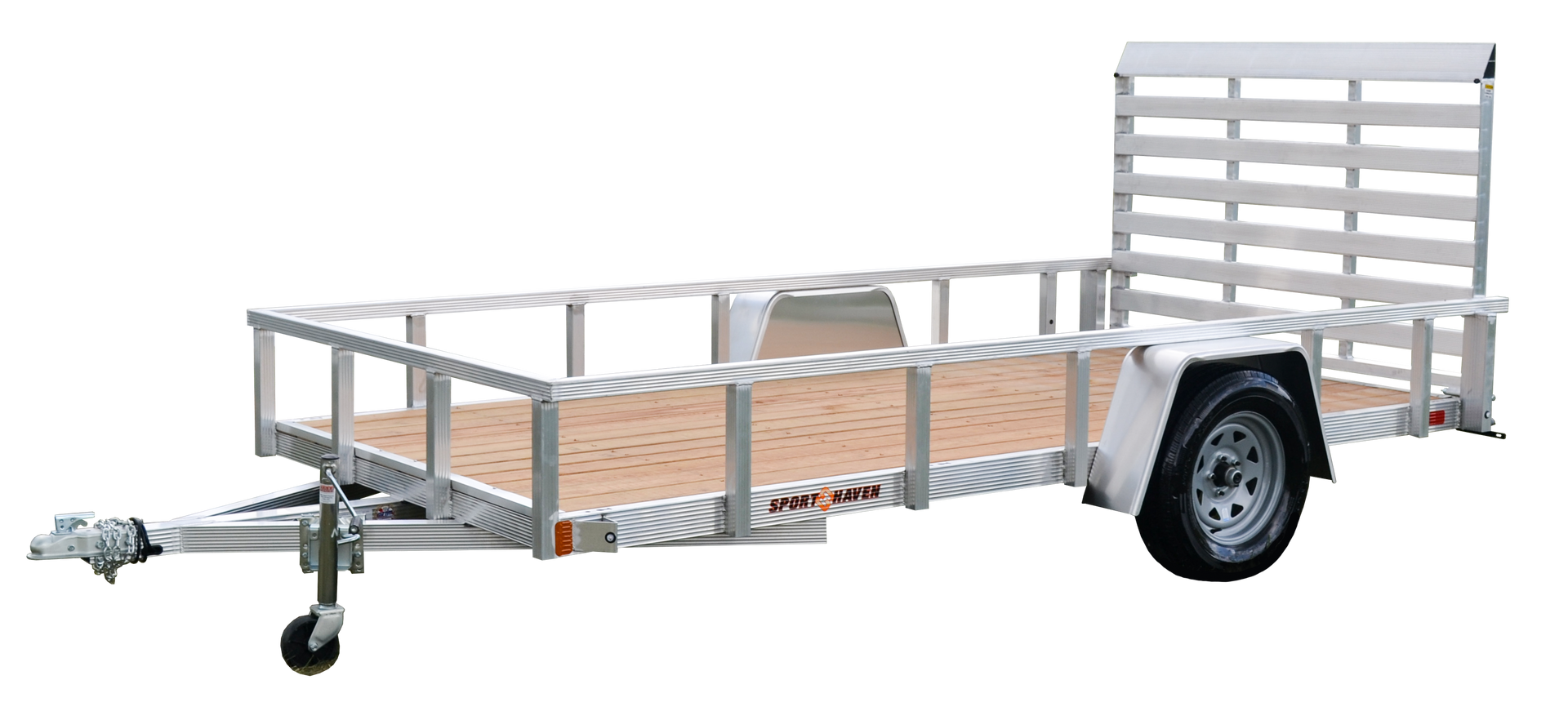

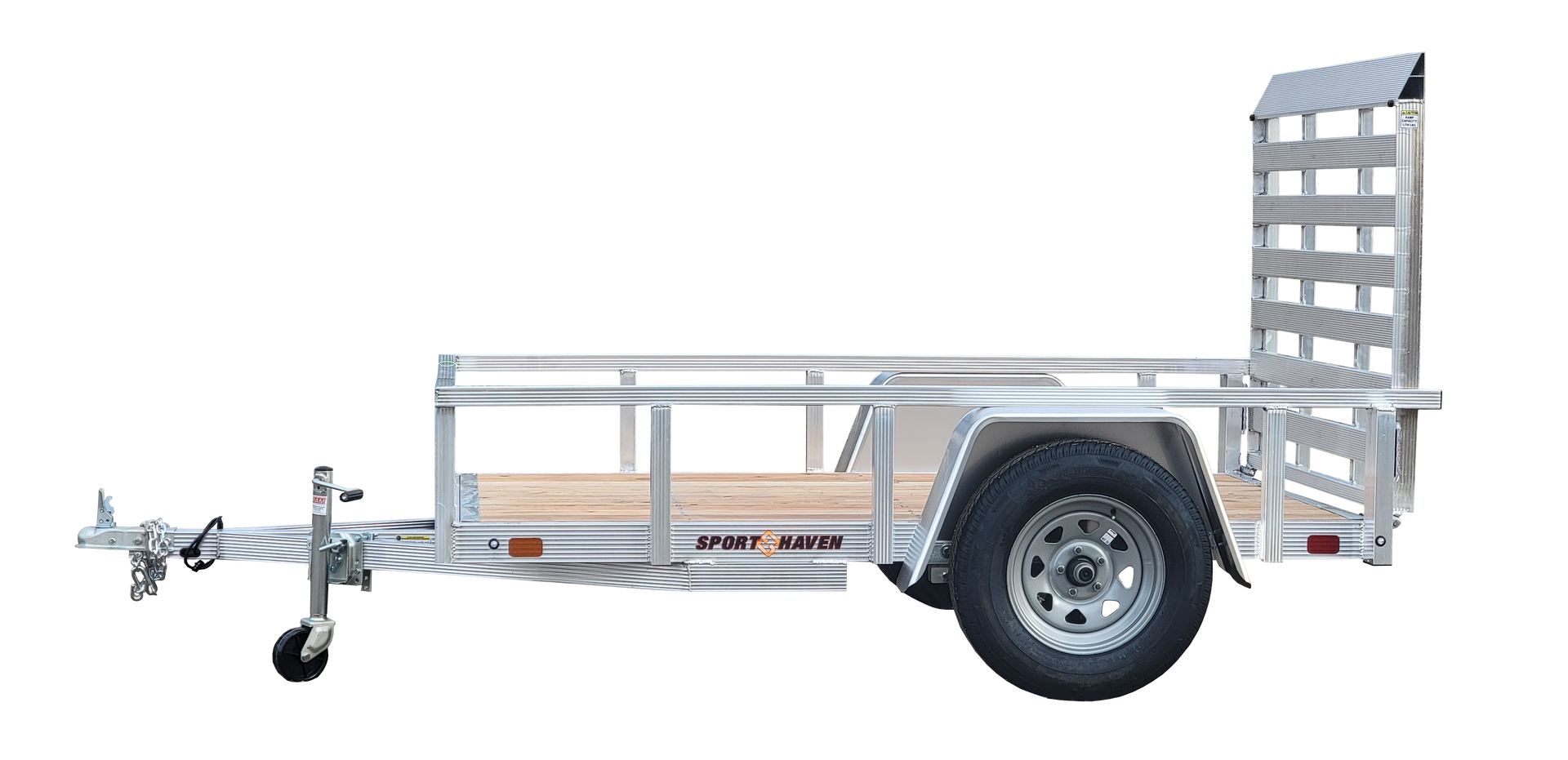

MODEL AUT508 AUT510 AUT512 AUT514 AUT610 AUT612 AUT614 AUT712 AUT714
Deck L x W 96” x 60” 120” x 60” 144” x 60” 168” x 60” 120” x 72” 144” x 72” 168” x 72” 144" x 83” 168" x 83"
Overall L x W 138” x 78” 162” x 78” 186” x 78” 210” x 78” 162” x 90” 186” / 90” 210” x 90” 195” x 101” 219" x 101"
Tongue* (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 4" (1) 3" x 4" (1) 3" x 4"
Tongue Supports* (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted
Curb Weight 480 lbs 500 lbs 560 lbs 600 lbs 580 lbs 700 lbs 785 lbs 800 lbs 840 lbs
Payload Capacity 2,510 lbs 2,490 lbs 2,430 lbs 2,370 lbs 2410 lbs 2,290 lbs 2,205 lbs 2,190 lbs 2,150 lbs
Standard 4' Ramp Wieght Capacity*** 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs
Download PDF 🖨️ 🖨️ 🖨️ 🖨️ 🖨️ 🖨️ 🖨️

* Fluted Aluminum Tubing is stronger and more scratch resistant than regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

MODEL AUT508 AUT510 AUT512 AUT514 AUT610 AUT612 AUT614 AUT712 AUT714
Deck L x W 96” x 60” 120” x 60” 144” x 60” 168” x 60” 120” x 72” 144” x 72” 168” x 72” 144" x 83” 168" x 83"
Overall L x W 138” x 78” 162” x 78” 186” x 78” 210” x 78” 162” x 90” 186” / 90” 210” x 90” 195” x 101” 219" x 101"
Tongue* (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 4" (1) 3" x 4" (1) 3" x 4"
Tongue Supports* (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted
Curb Weight 480 lbs 500 lbs 560 lbs 600 lbs 580 lbs 700 lbs 785 lbs 800 lbs 840 lbs
Payload Capacity 2,510 lbs 2,490 lbs 2,430 lbs 2,370 lbs 2410 lbs 2,290 lbs 2,205 lbs 2,190 lbs 2,150 lbs
Standard 4' Ramp Wieght Capacity*** 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs
Download PDF 🖨️ 🖨️ 🖨️ 🖨️ 🖨️ 🖨️ 🖨️

* Fluted Aluminum Tubing is stronger and more scratch resistant that regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

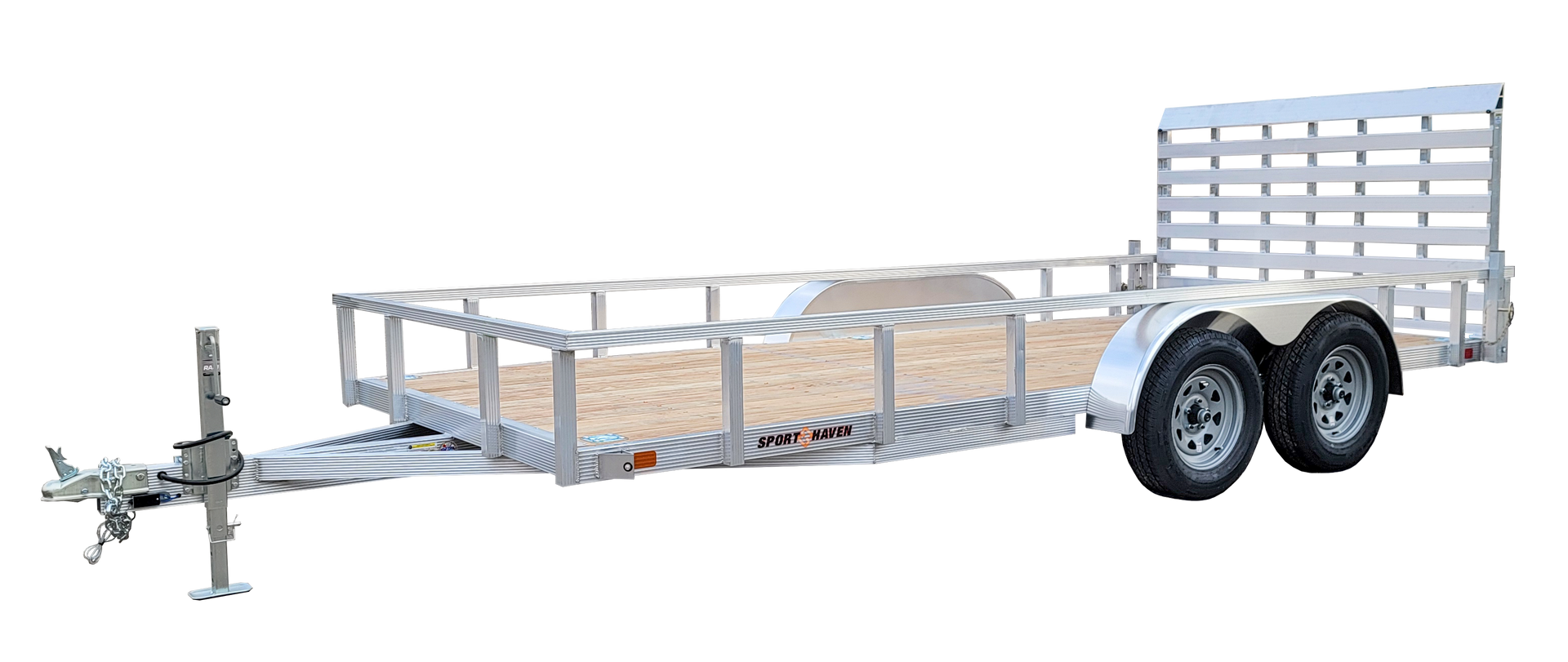

AUT MODEL TANDEM AXLE TRAILER SPECIFICATIONS

AUT MODEL TANDEM AXLE TRAILER SPECIFICATIONS

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" x 2" Top Deck Rail
  • 2" x 2" Top Deck Rail Uprights
  • 5/4" x 6" ProWood DuraColor Decking
  • All Aluminum 4' Rear Ramp

Component Specs

  • LED Lights
  • 15" Silver Powder Coated Wheels
  • ST207/75R15C Radial Tires
  • 3,500 lb Capacity Axles
  • 4" Drop Axles
  • Double Eye Spring Suspension
  • 7,000 lb Capacity Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Zinc Plated Safety Chains
  • 2,500 lb capacity Zinc Plated Pad Jack

Misc Specs

  • 7-Way Round Wiring Harness
  • 2" Ball Compatible
  • Electric Brakes On Both Axles
  • 13" Hitch Height
  • 17" Deck Height
  • 13" Rail Height Above the Deck
  • 7,000 lb Gross Vehicle Weight Rating (GVWR)

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" x 2" Top Deck Rail
  • 2" x 2" Top Deck Rail Uprights
  • 5/4" x 6" ProWood DuraColor Decking
  • All Aluminum 4' Rear Ramp

Component Specs

  • LED Lights
  • ST205/75R15C Silver Powder Coated Wheels
  • 15" Radial Tires
  • 3,500 lb Capacity Axles
  • 4" Drop Axles
  • Double Eye Spring Suspension
  • 7,000 lb Capacity Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Zinc Plated Safety Chains
  • 2,500 lb capacity Zinc Plated Pad Jack

Misc Specs

  • 7-Way Round Wiring Harness
  • 2" Ball Compatible
  • Electric Brakes On Both Axles
  • 13" Hitch Height
  • 17" Deck Height
  • 13" Rail Height Above the Deck
  • 7,000 lb Gross Vehicle Weight Rating (GVWR)
MODEL AUT712T AUT714T AUT716T AUT718T AUT720T AUT722T AUT724T
Deck L x W 144" x 83” 168” x 83” 192” x 83” 216” x 83” 240” x 83” 264” x 83” 288” x 83”
Overall L x W 195” x 101” 219” x 101” 240” x 101” 264” x 101” 282” x 101” 306” x 101” 330” x 101”
Tongue (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Above Tongue (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted
Frame Crossmembers* Middle (2) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (7) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted
Curb Weight 1,105 lbs 1,120 lbs 1,160 lbs 1,260 lbs 1,400 lbs 1,440 lbs 1,480 lbs
Payload Capacity 5,895 lbs 5,880 lbs 5,840 lbs 5,740 lbs 5,600 lbs 5,560 lb. 5,520 lb.
Standard 4' Ramp Wieght Capacity*** 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs
Stabilizer Jacks Optional Optional Optional Optional Standard Standard Standard
Download PDF 🖨️ 🖨️ 🖨️ 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

MODEL AUT712T AUT714T AUT716T AUT718T AUT720T AUT722T AUT724T
Deck L x W 144" x 83” 168” x 83” 192” x 83” 216” x 83” 240” x 83” 264” x 83” 288” x 83”
Overall L x W 195” x 101” 219” x 101” 240” x 101” 264” x 101” 282” x 101” 306” x 101” 330” x 101”
Tongue (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Above Tongue (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted
Frame Crossmembers* Middle (2) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (7) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted
Curb Weight 1,105 lbs 1,120 lbs 1,160 lbs 1,260 lbs 1,400 lbs 1,440 lbs 1,480 lbs
Payload Capacity 5,895 lbs 5,880 lbs 5,840 lbs 5,740 lbs 5,600 lbs 5,560 lb. 5,520 lb.
Standard 4' Ramp Wieght Capacity*** 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs
Stabilizer Jacks Optional Optional Optional Optional Standard Standard Standard
Download PDF 🖨️ 🖨️ 🖨️ 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
