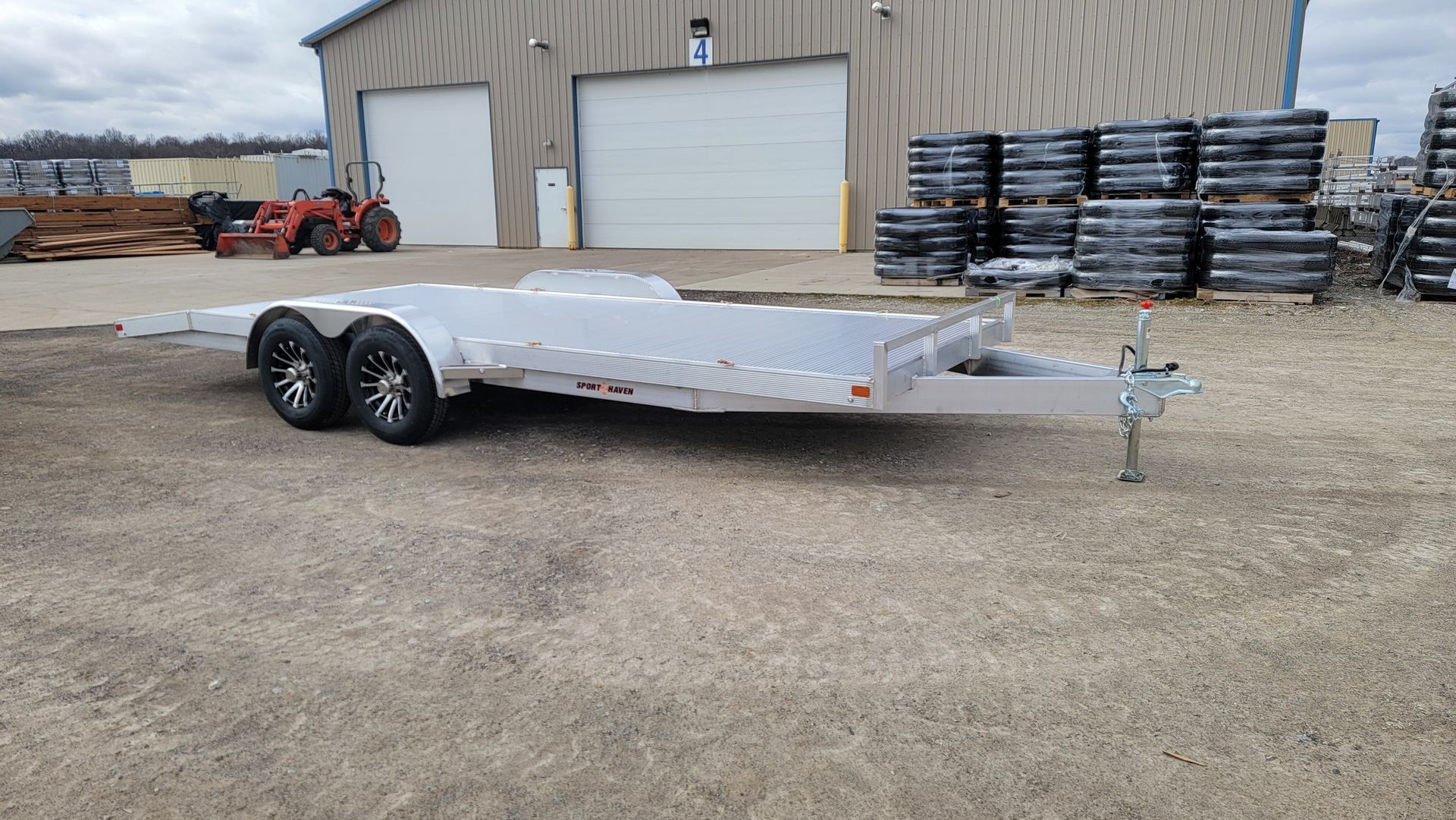

PREMIUM ALUMINUM OPEN CAR HAULER - AOCP MODELS
PREMIUM ALUMINUM OPEN CAR HAULER - AOCP MODELS
AOCP MODEL FEATURES
NOTABLE AOCP MODEL FEATURES
AOCP MODEL FEATURES
NOTABLE AOCP MODEL FEATURES
- Integrated Tie Down Track Built into Frame Rails - Including Heavy Duty double stud Tie Down Rings 1,666lb Working Limit 5000 lb Break Strength. Tie downs slide and lock into place every 12"

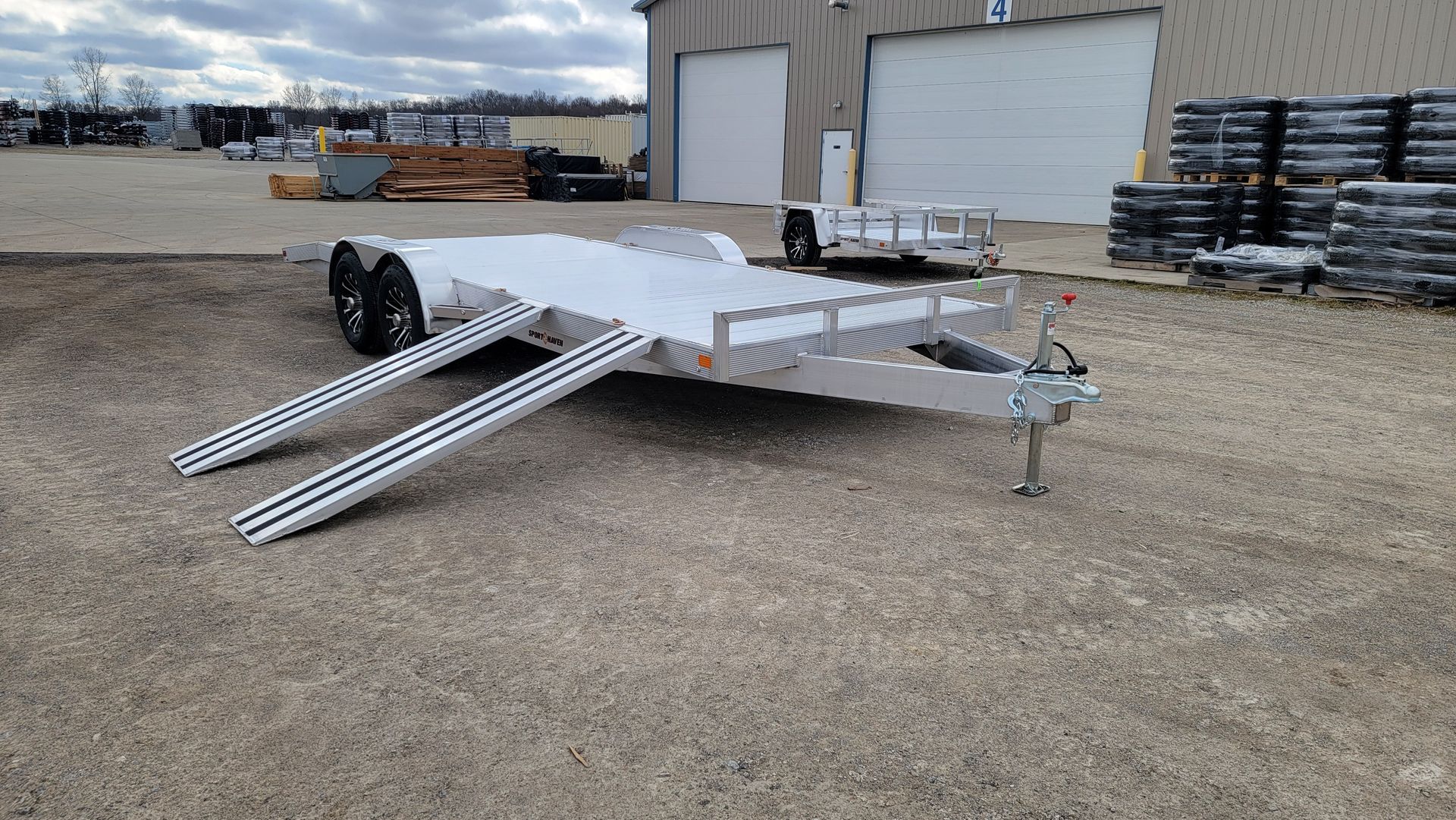

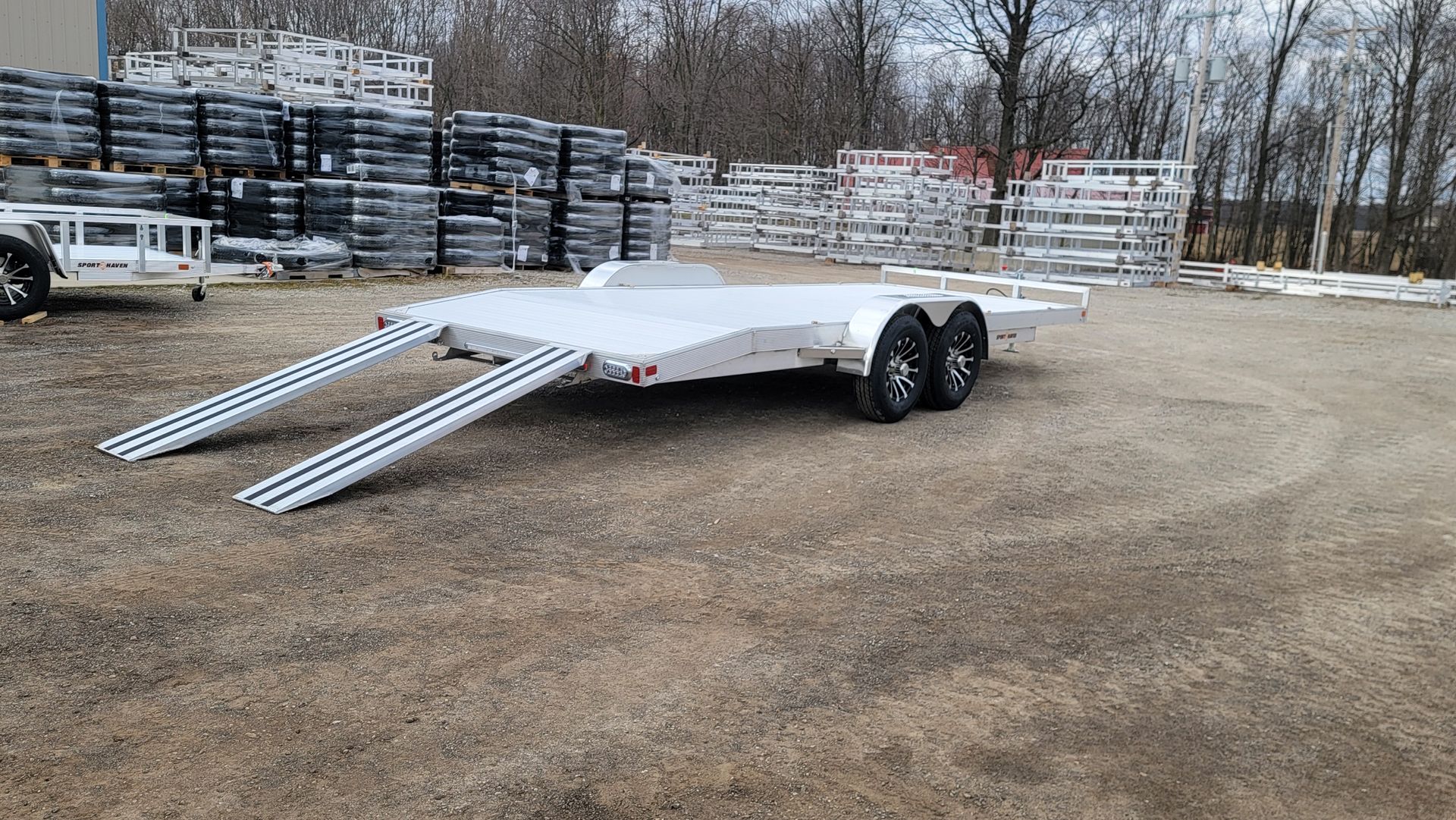

- (2) 6' Ramps Rear Access - Hidden Protective Ramp Storage
- Ramps Can be Used to load from Rear or Side of Trailer
- Dexter Torsion Axles - 3500lb or 6000lb Capacity per axle depending on Capacity
NOTABLE AOCP MODEL FEATURES

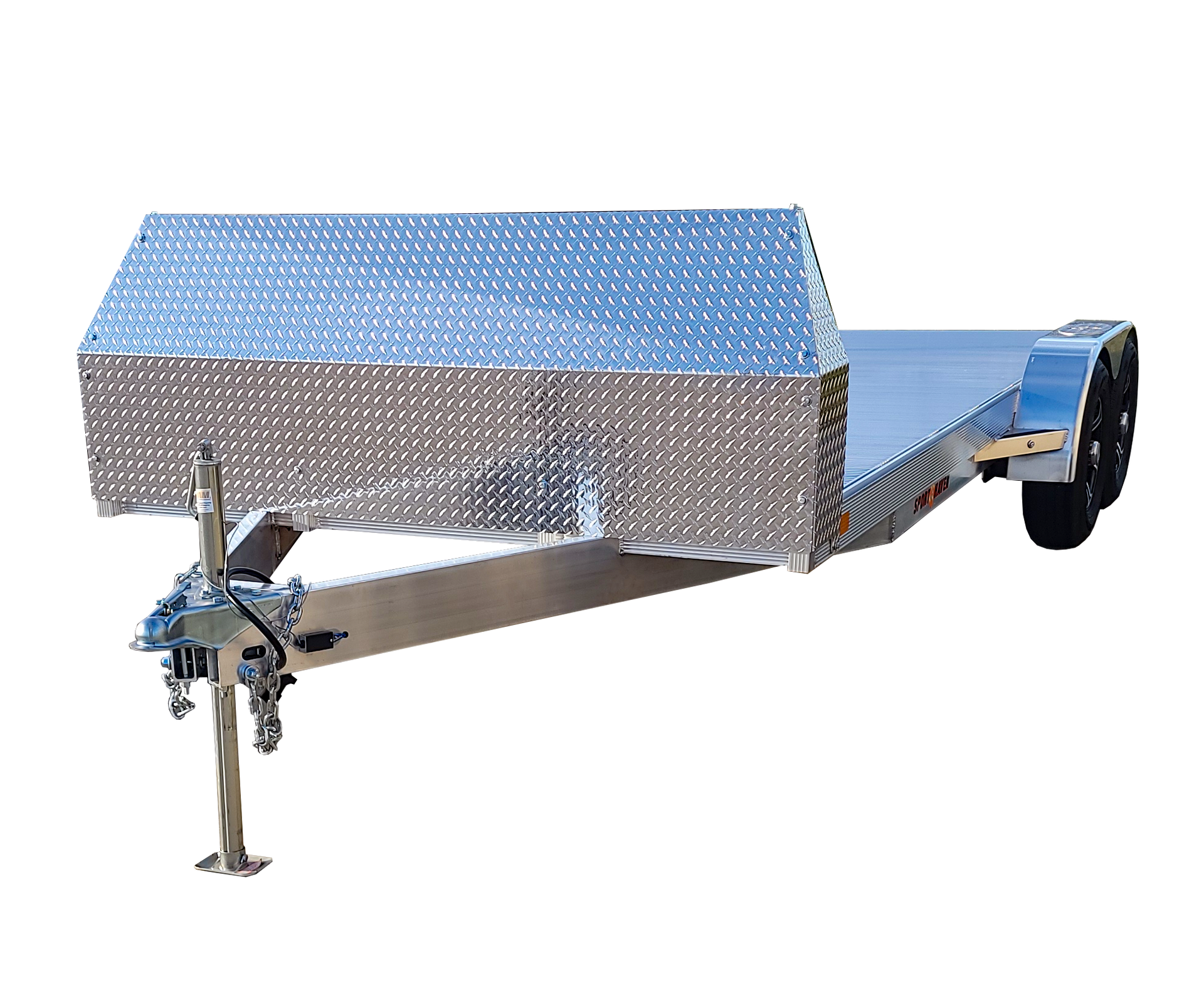

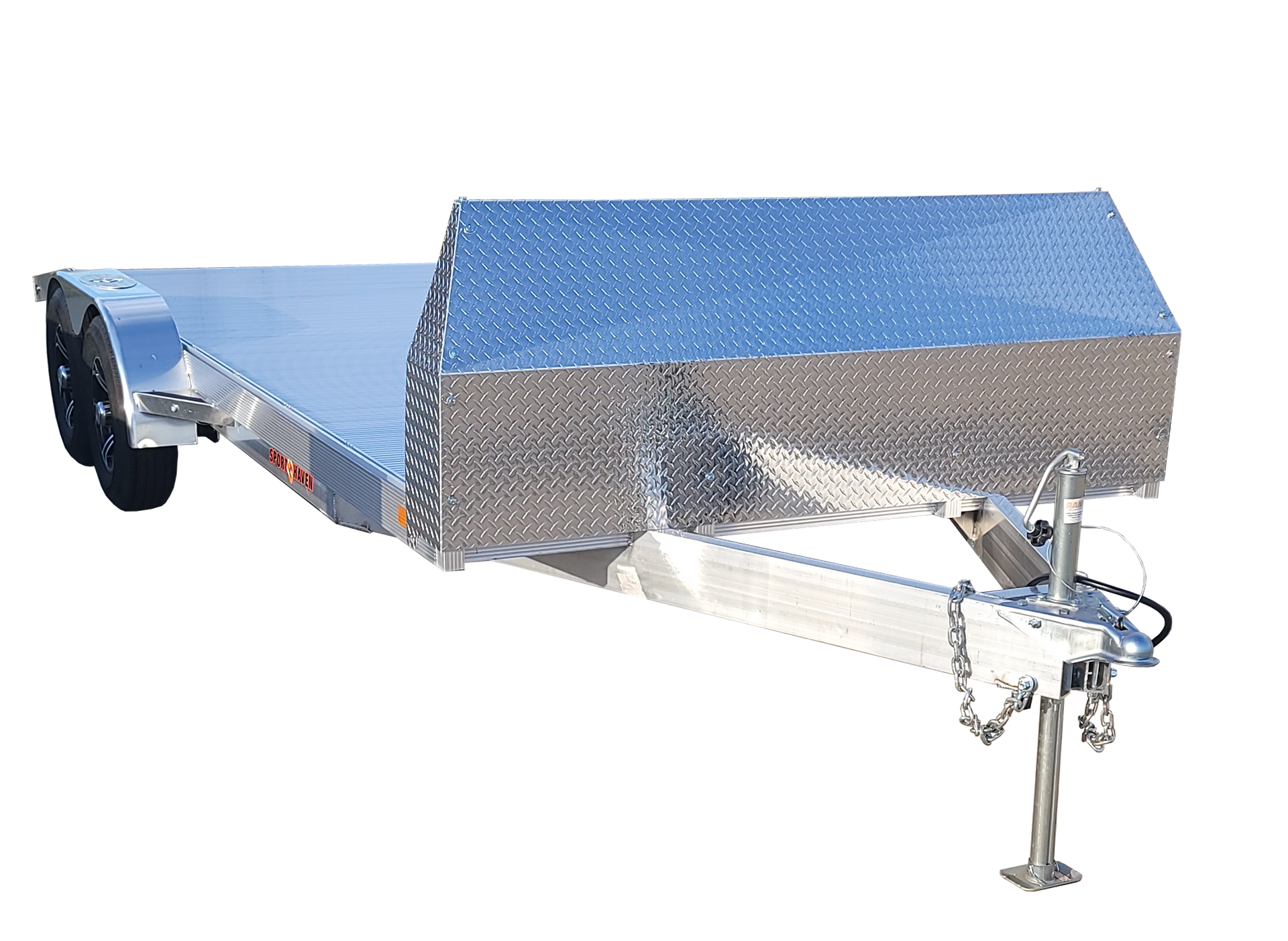

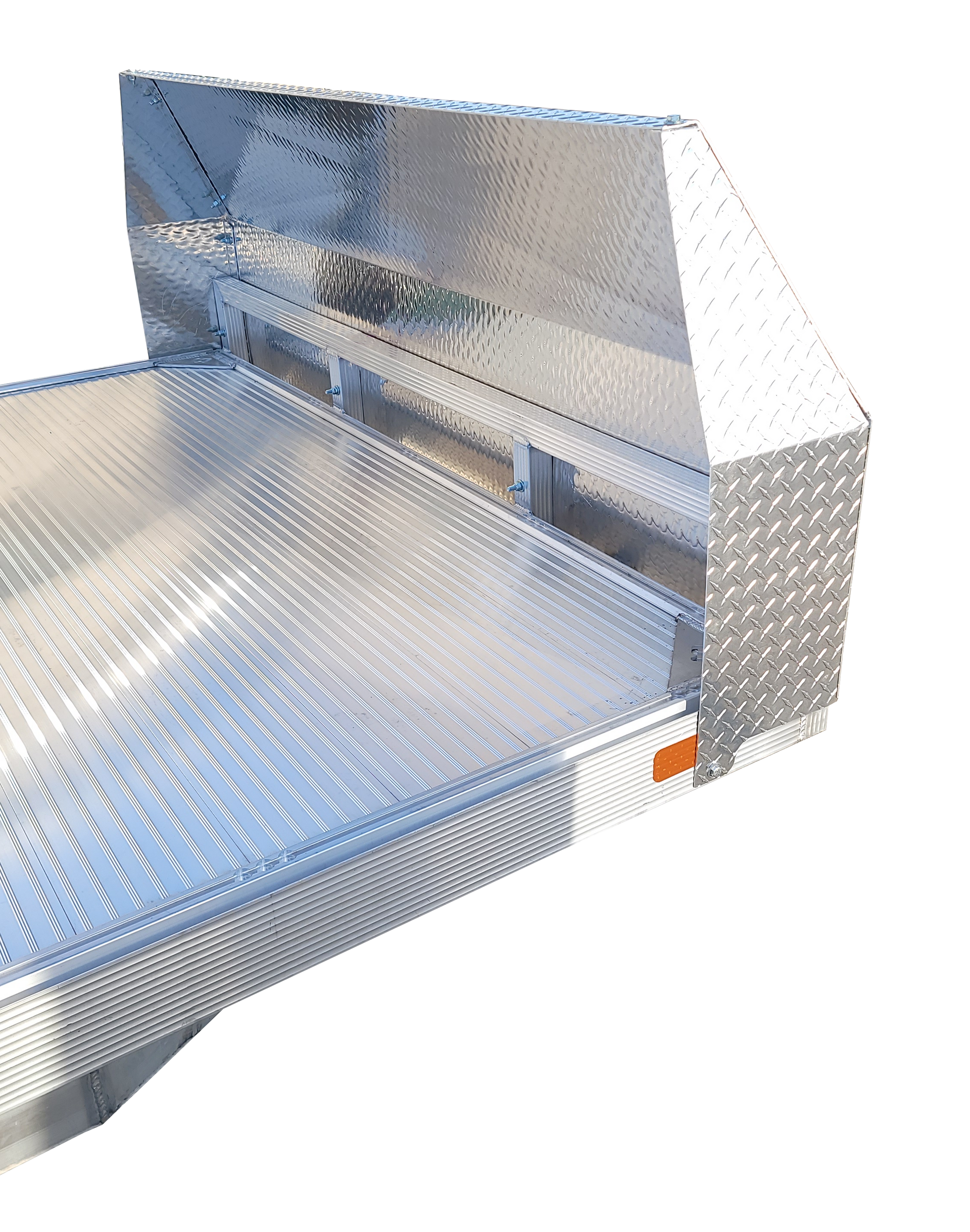

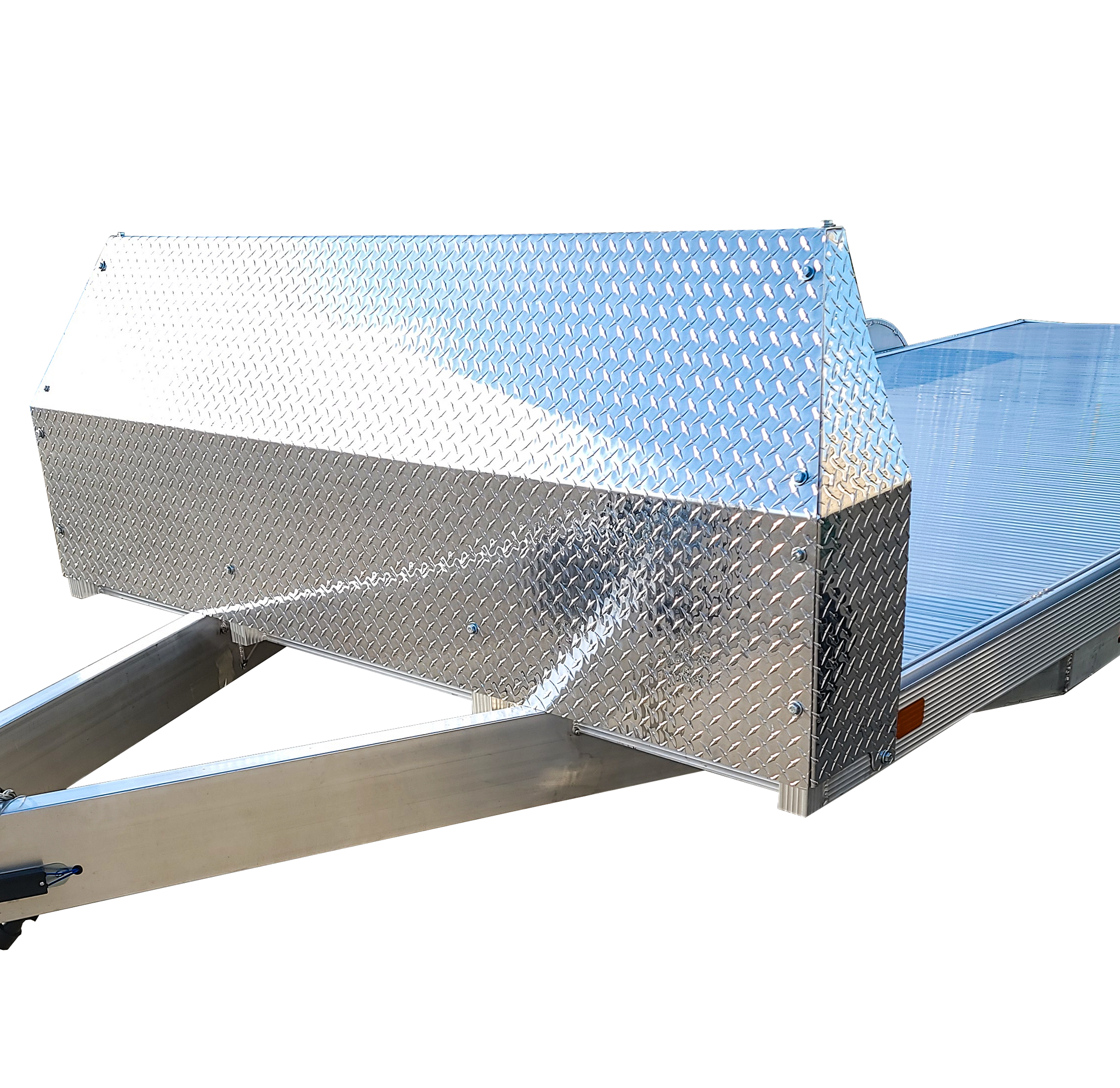

Optional Bolt on Rock Guard
30'' Tall off the deck
10'' Wide at widest point to the back
7' Long

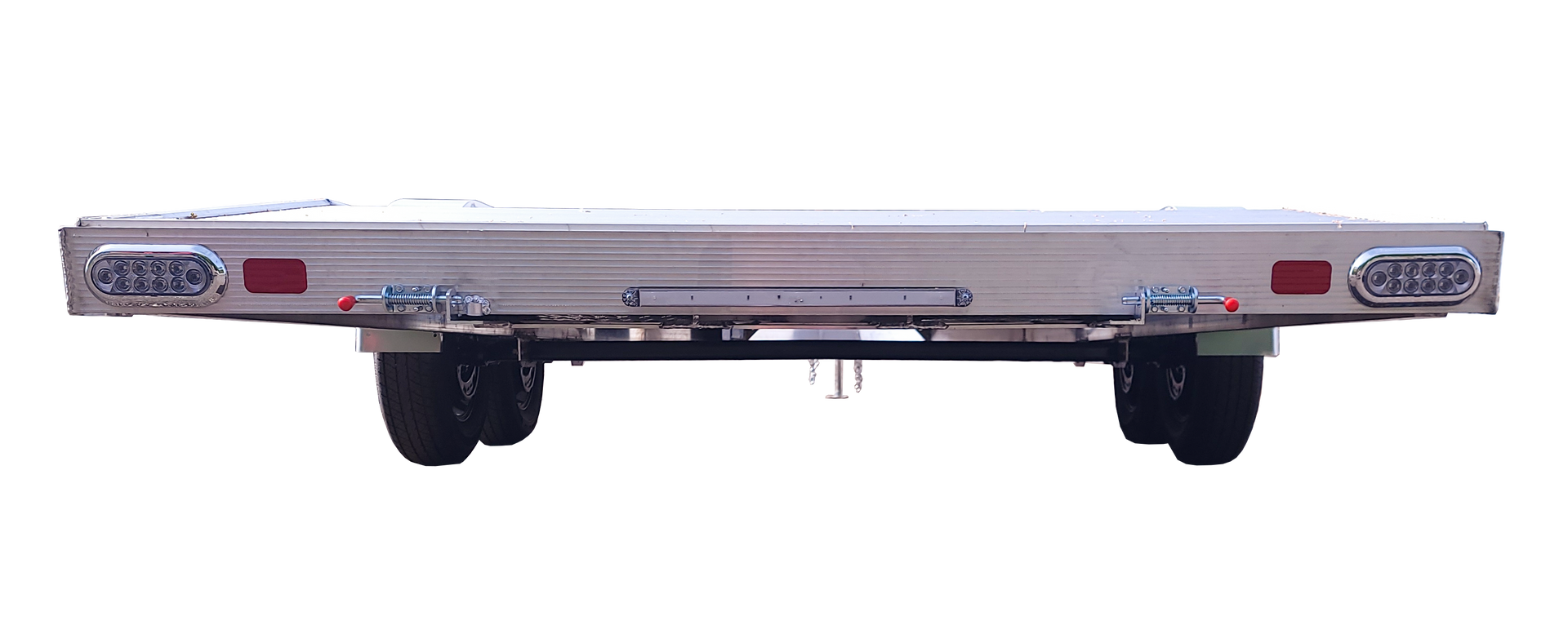

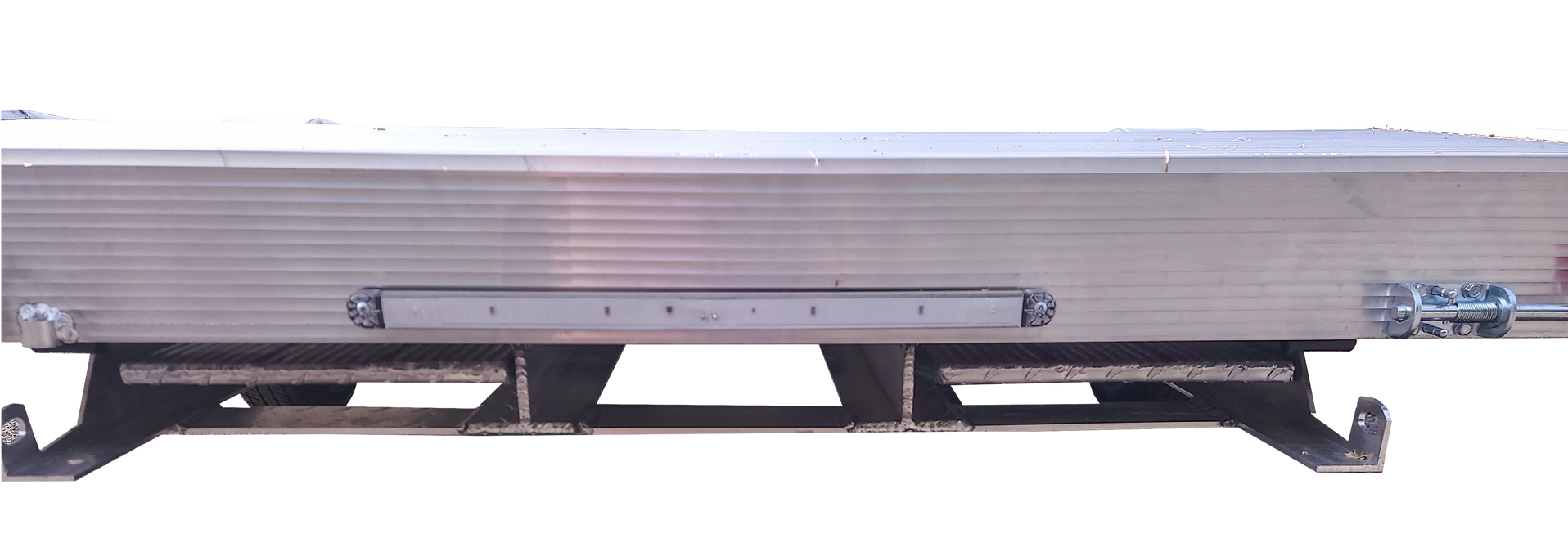

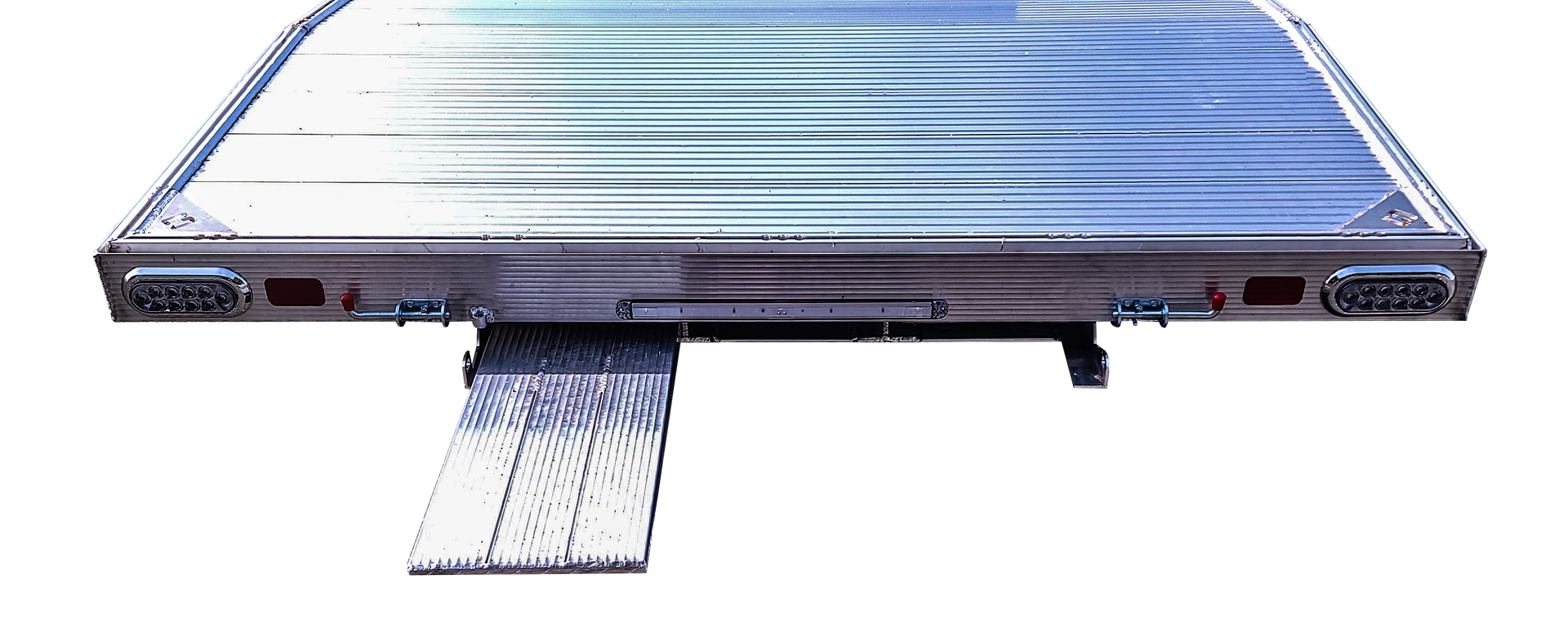

Rear Ramp Storage for up to 3 Ramps
Closed Position
Open Position
Ramps Pull out from Carrier
- Integrated Tie Down Track Built into Frame Rails - Including Heavy Duty double stud Tie Down Rings 1,666lb Working Limit 5000 lb Break Strength. Tie downs slide and lock into place every 12"
- (2) 6' Ramps Rear Access - Hidden Protective Ramp Storage
- Ramps Can be Used to load from Rear or Side of Trailer
- Dexter Torsion Axles - 3500lb or 6000lb Capacity per axle depending on Capacity
NOTABLE AOCP MODEL FEATURES
Optional Bolt on Rock Guard
30'' Tall off the deck
10'' Wide at widest point to the back
7' Long
Rear Ramp Storage for up to 3 Ramps
Closed Position
Open Position
Ramps Pull out from Carrier
AOCP MODEL CONSTRUCTION
AOCP MODEL CONSTRUCTION
- Jig Welded Construction for Consistency, Quality
- Interlocking Aluminum Decking
- 2" X 7" X .25" Double Hollow Frame Side Rails
- 2" x 7" A Frame Tongue
- 3" Rear Beaver Tail
Slide title
Jig Welded Construction
Button
Slide title
Double Hollow Tube Frame Side Rails
Button
- Jig Welded Construction for Consistency, Quality
- Interlocking Aluminum Decking
- 2" X 7" X .25" Double Hollow Frame Side Rails
- 2" x 7" A Frame Tongue
- 3" Rear Beaver Tail
-
Slide title
Jig Welded Construction
Button -
Slide title
Double Hollow Tube Frame Side Rails
Button
AOCP TANDEM AXLE MODEL SPECIFICATIONS
AOCP TANDEM AXLE MODEL SPECIFICATIONS
Construction Specs
- Double Hollow Aluminum Tube Tongue, Lower Frame Outer Rails
- Fluted 4" x 5" Custom Extrusion Frame Rails with Integrated Track System
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Extruded Interlocking Aluminum Decking
- 6' Loading Ramps - Rear Access
- 3' Beaver Tail
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST205/75R15C - 7K Models
- ST225/75R15D - 10k Models
- 3500 lb Dexter Torsion Axles - 7k Models
- 6000 lb Dexter Torsion Axles - 10k Models
- 14,00 lb Capacity Zinc Plated Coupler
- 11,700 lb Capacity 35" Zinc Plated Safety Chains
- A frame 5000lb Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2 5/16" Ball
- 10" Electric Brakes On Both Axles
- 4 Recessed Swivel Tie Downs 2000 lb Working Limit 6000 lb Break Stregth
- 7,000 lb Gross Vehicle Weight Rating (GVWR) - 7K
- 9999 lb Gross Vehicle Weight Rating (GVWR) - 10K
Construction Specs
- Double Hollow Aluminum Tube Tongue, Lower Frame Outer Rails
- Fluted 4" x 5" Custom Extrusion Frame Rails with Integrated Track System
- 2" x 2" Top Deck Rail
- 2" x 2" Top Deck Rail Uprights
- 6" Extruded Interlocking Aluminum Decking
- 6' Loading Ramps - Rear Access
- 3' Beaver Tail
Component Specs
- LED Lights
- 15" Aluminum Wheels
- ST205/75R15C - 7K Models
- ST225/75R15D - 10k Models
- 3500 lb Dexter Torsion Axles - 7k Models
- 6000 lb Dexter Torsion Axles - 10k Models
- 14,00 lb Capacity Zinc Plated Coupler
- 11,700 lb Capacity 35" Zinc Plated Safety Chains
- A frame 5000lb Zinc Plated Pad Jack
Misc Specs
- 7-Way Round Wiring Harness
- 2 5/16" Ball
- 10" Electric Brakes On Both Axles
- 4 Recessed Swivel Tie Downs 2000 lb Working Limit 6000 lb Break Stregth
- 7,000 lb Gross Vehicle Weight Rating (GVWR) - 7K
- 9999 lb Gross Vehicle Weight Rating (GVWR) - 10K
| MODEL | AOCP1670TD | AOCP1870TD | AOCP1810TD | AOCP2070TD | AOCP2010TD | AOCP2270TD | AOCP2210TD | AOCP2470TD |
|---|---|---|---|---|---|---|---|---|
| Deck L x W | 192" x 83" | 216" x 83" | 216" x 83" | 240" X 83" | 240" X 83" | 264" X 83" | 264" X 83" | 288" X 83" |
| Overall L x W | 225" X 83" | 256" X 83" | 256" X 83" | 278" X 83" | 278" X 83" | 294" X 83" | 294" X 83" | 317" X 83" |
| Tongue | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow |
| Tongue Cross Support | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow |
| Frame Lower Rails | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow | 2" x 7" Smooth Double Hollow |
| Frame Upper Rails* | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted |
| Frame Top Rail - Front | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted |
| Frame Crossmember* Front | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted |
| Frame Crossmember* Rear | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted |
| Curb Weight | 1,350 lbs | 1370 lbs | 1604 lbs | 1425 lbs | 1860 lbs | 1525 lbs | 1728 lbs | 1580 lbs |
| Payload Capacity | 5650 lbs | 5630 lbs | 8395 lbs | 5575 lbs | 8139 lbs | 5475 lbs | 8271 lbs | 5420 lbs |
| 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
| MODEL | AOCP1670TD | AOCP1870TD | AOCP1810TD | AOCP2070TD | AOCP2010TD | AOCP2270TD | AOCP2210TD | AOCP2470TD |
|---|---|---|---|---|---|---|---|---|
| Deck L x W | 192" x 83" | 216" x 83" | 216" x 83" | 240" X 83" | 240" X 83" | 264" X 83" | 264" X 83" | 288" X 83" |
| Overall L x W | 225" X 83" | 256" X 83" | 256" X 83" | 278" X 83" | 278" X 83" | 294" X 83" | 294" X 83" | 317" X 83" |
| Tongue | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow |
| Tongue Cross Support | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow |
| Frame Lower Rails | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow | 2" x 7" Double Hollow |
| Frame Upper Rails* | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted |
| Frame Top Rail - Front | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted | 2" X 2" Fluted |
| Frame Crossmember* Front | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted |
| Frame Crossmember* Rear | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted | 4" X 5" Fluted |
| Curb Weight | 1,350 lbs | 1370 lbs | 1604 lbs | 1425 lbs | 1860 lbs | 1525 lbs | 1728 lbs | 1580 lbs |
| Payload Capacity | 5650 lbs | 5630 lbs | 8395 lbs | 5575 lbs | 8139 lbs | 5475 lbs | 8271 lbs | 5420 lbs |
| 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ | 🖨️ |
