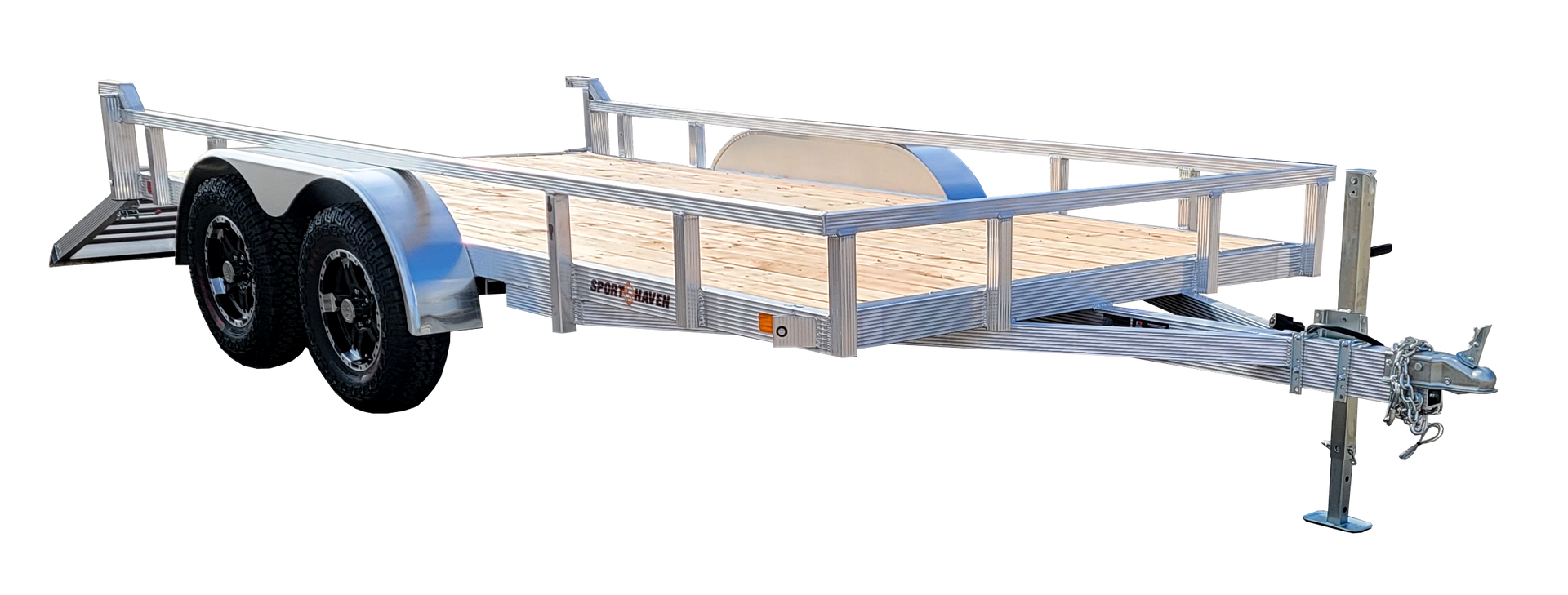

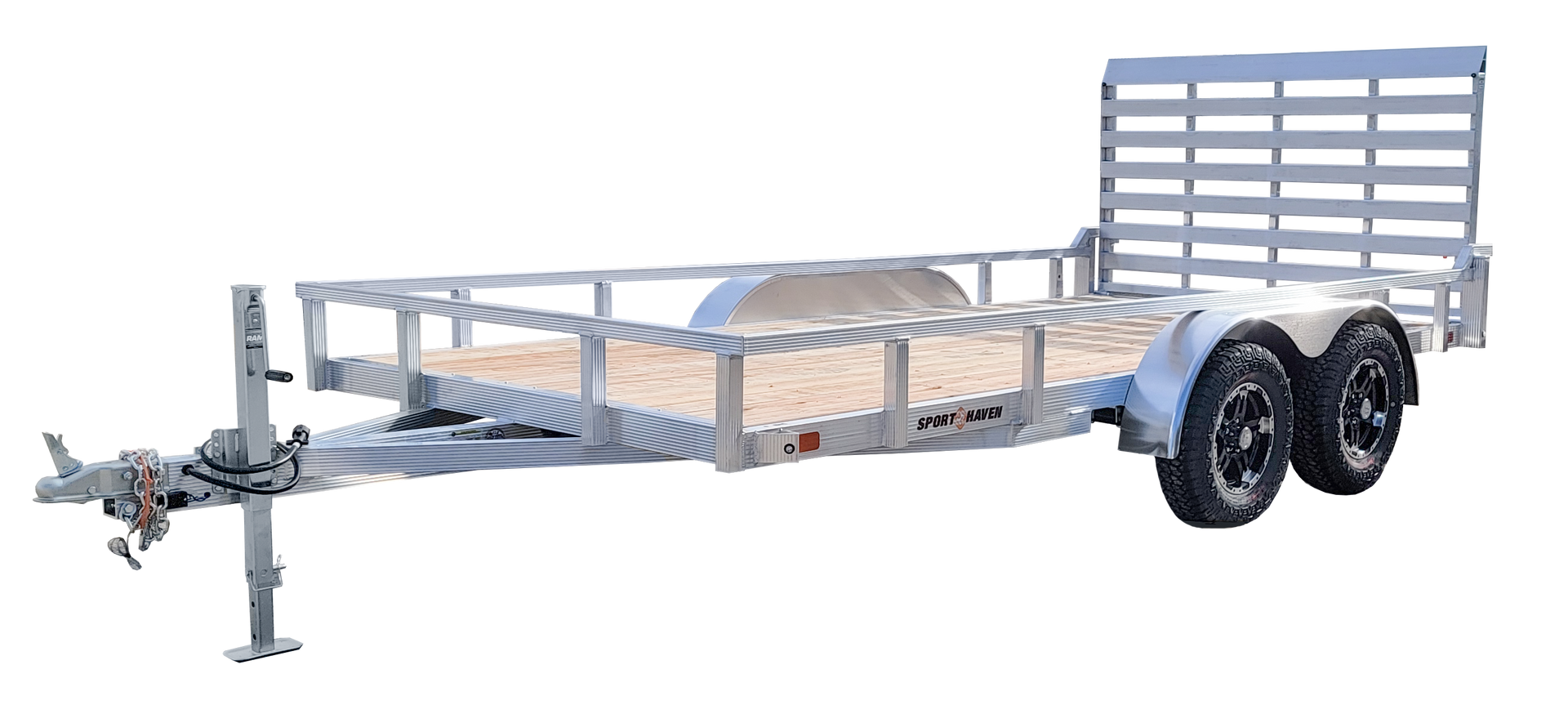

EXCLUSIVE AUTX SERIES FEATURES

NOTABLE AUTX MODEL FEATURES

EXCLUSIVE AUTX SERIES FEATURES

NOTABLE AUTX MODEL FEATURES

Features you will not find on other brands:


  • Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

  • Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.


  • ProWood Dura Color Treated decking- 5/4" x 6" ProWood wooden planks.


  • Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

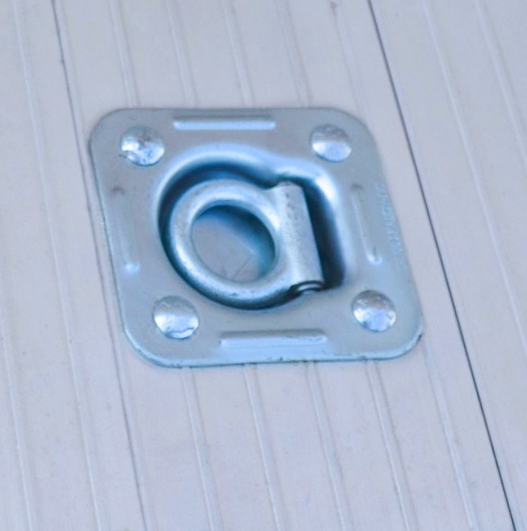

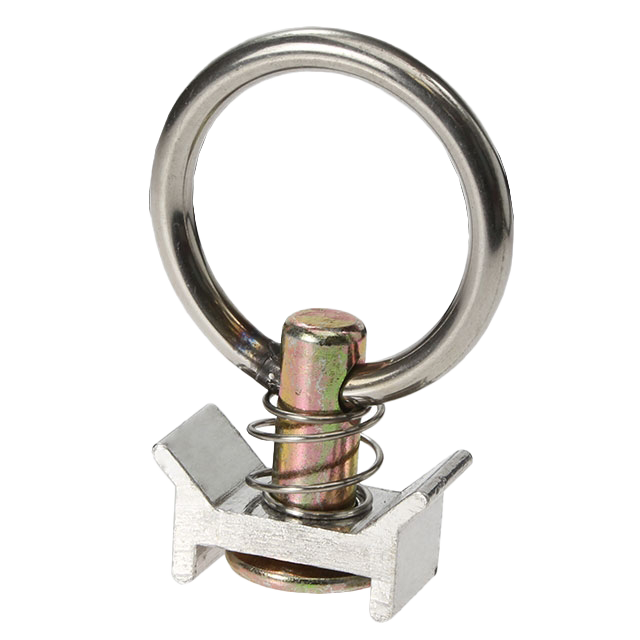

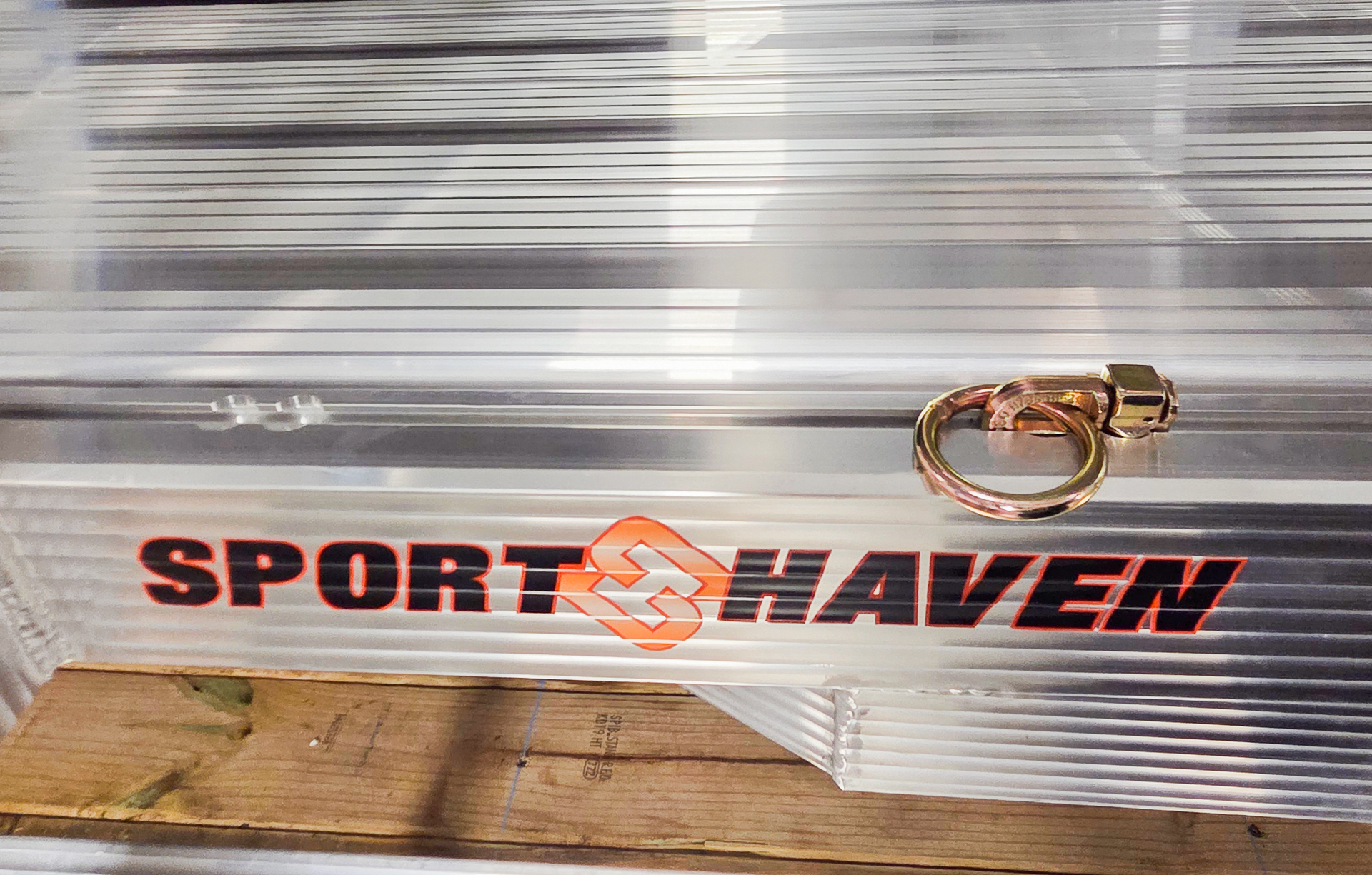

  • Tie down ring sport haven aluminum utility trailer

    Slide title

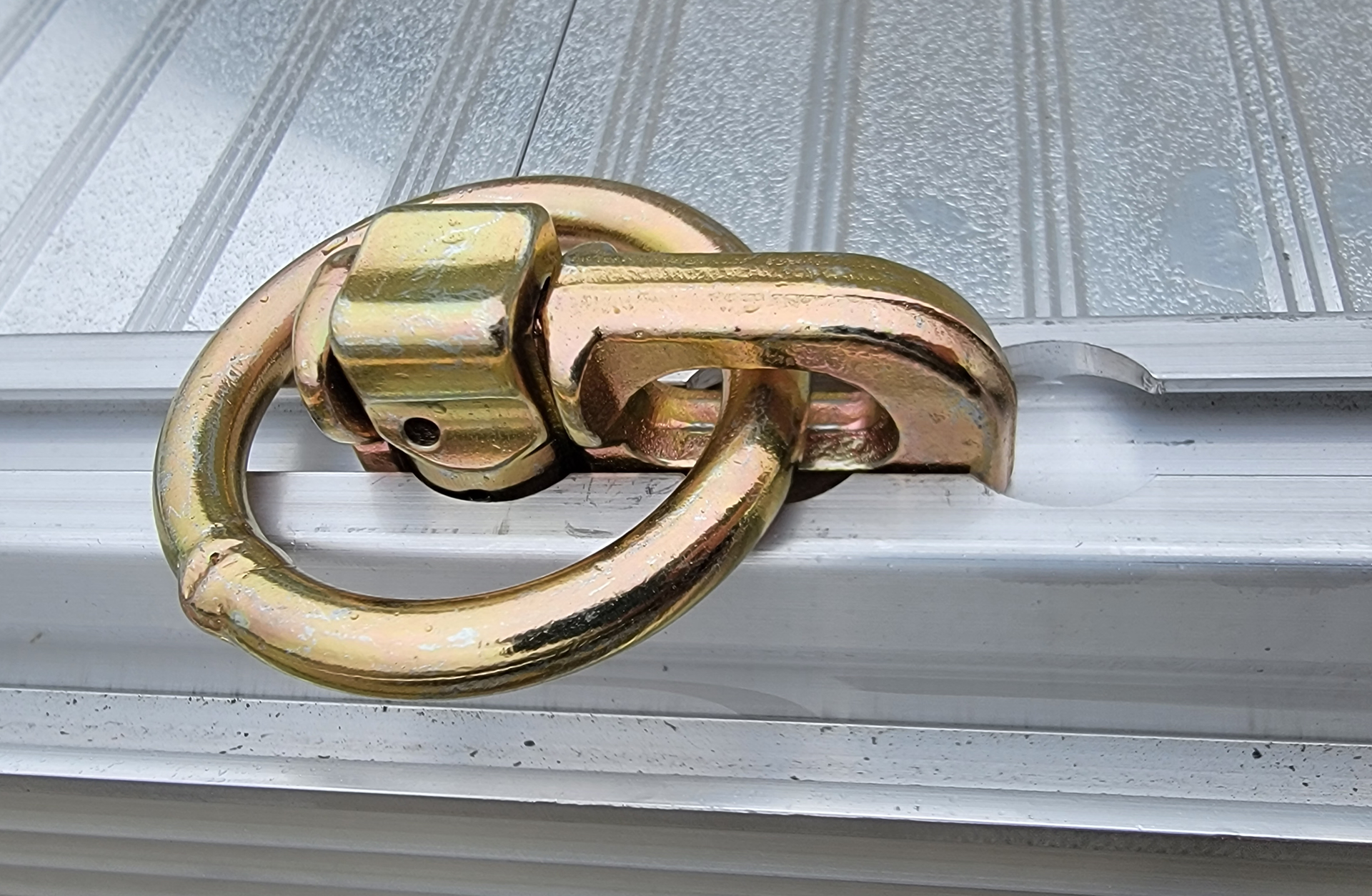

    SINGLE STUD TIE DOWN

    Button
  • s hook demonstrated in side rail cutout on sport haven trailer

    Slide title

    RECEIVER SHOWN w/OPTIONAL RATCHET STRAP HOOK - 700 lb WORKING LOAD LIMIT

    Button

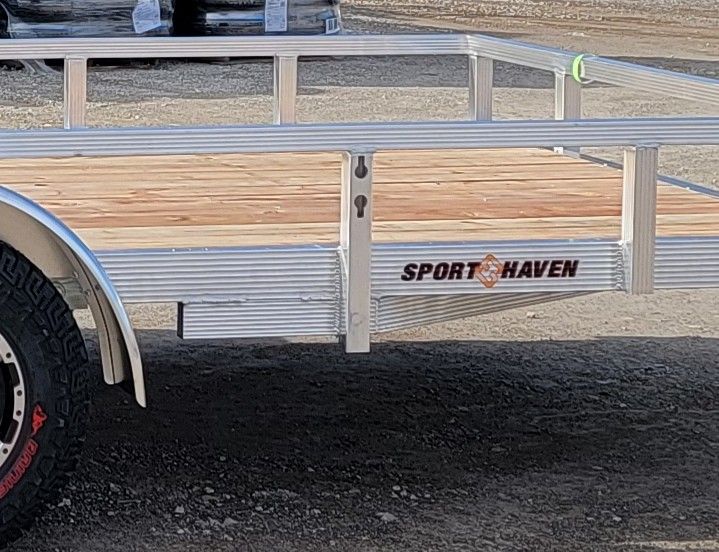

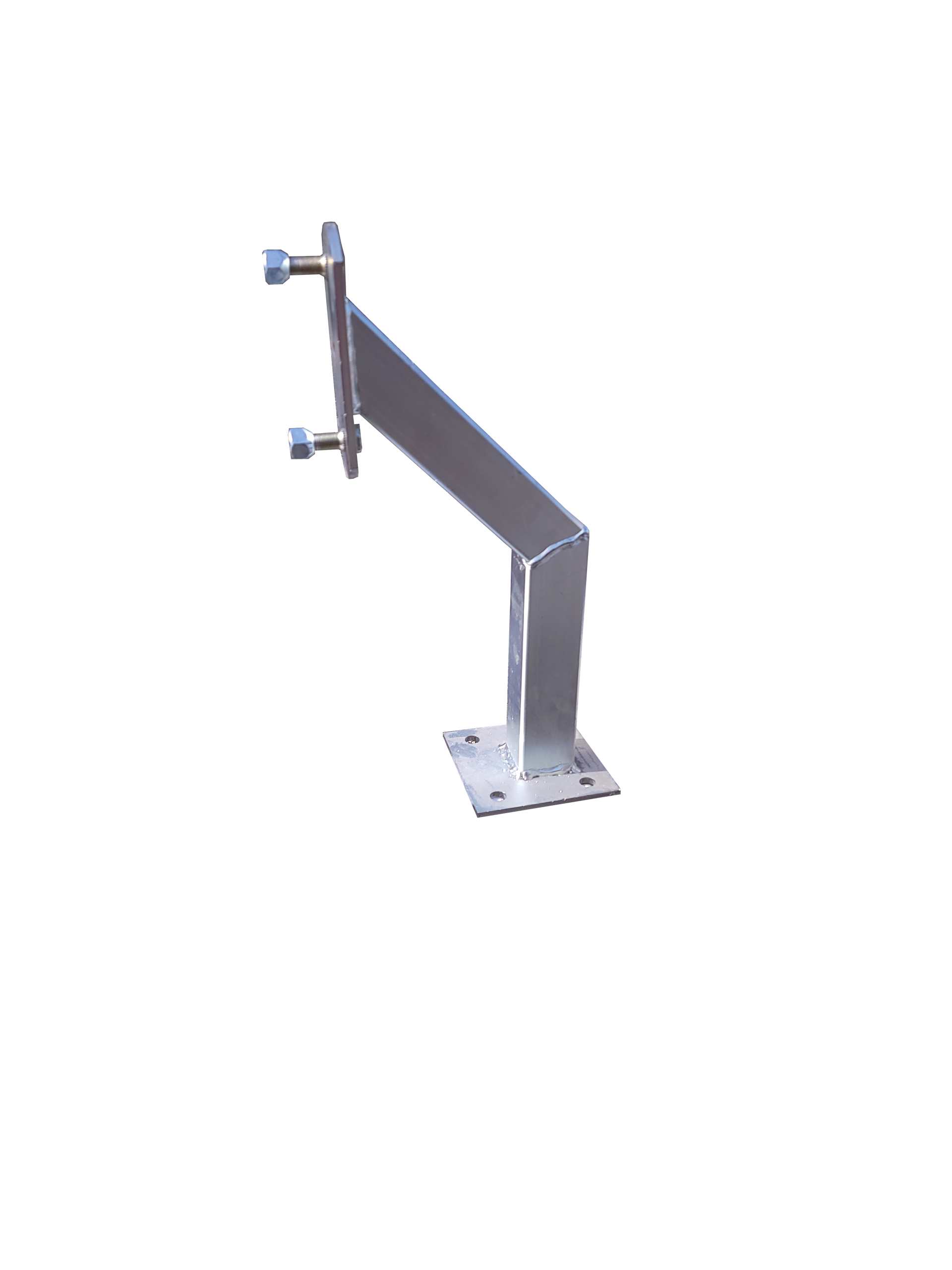

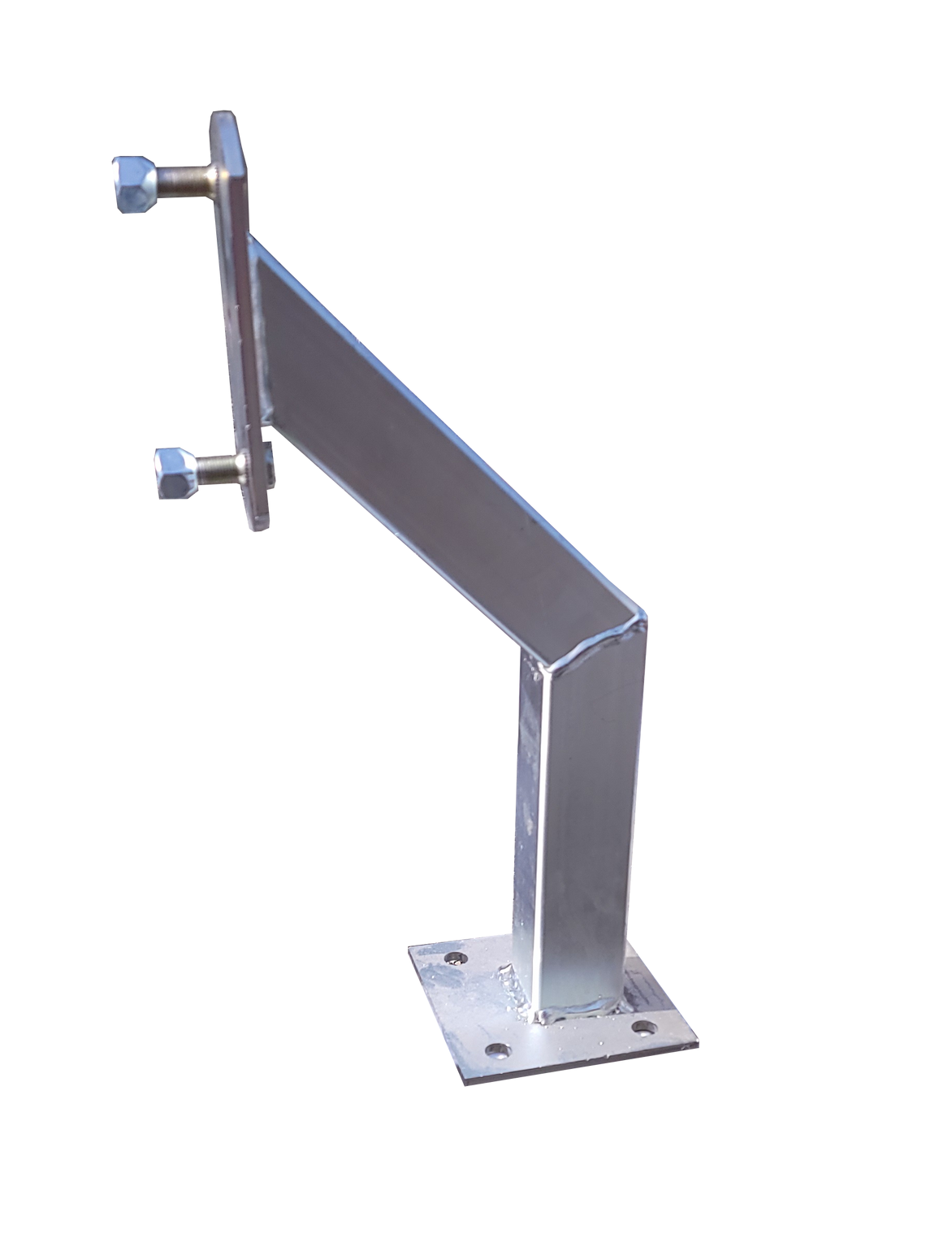

  • spare tire mount aluminum upright on trailer

    Slide title

    SPARE MOUNT SIDE RAIL UPRIGHT

    Button

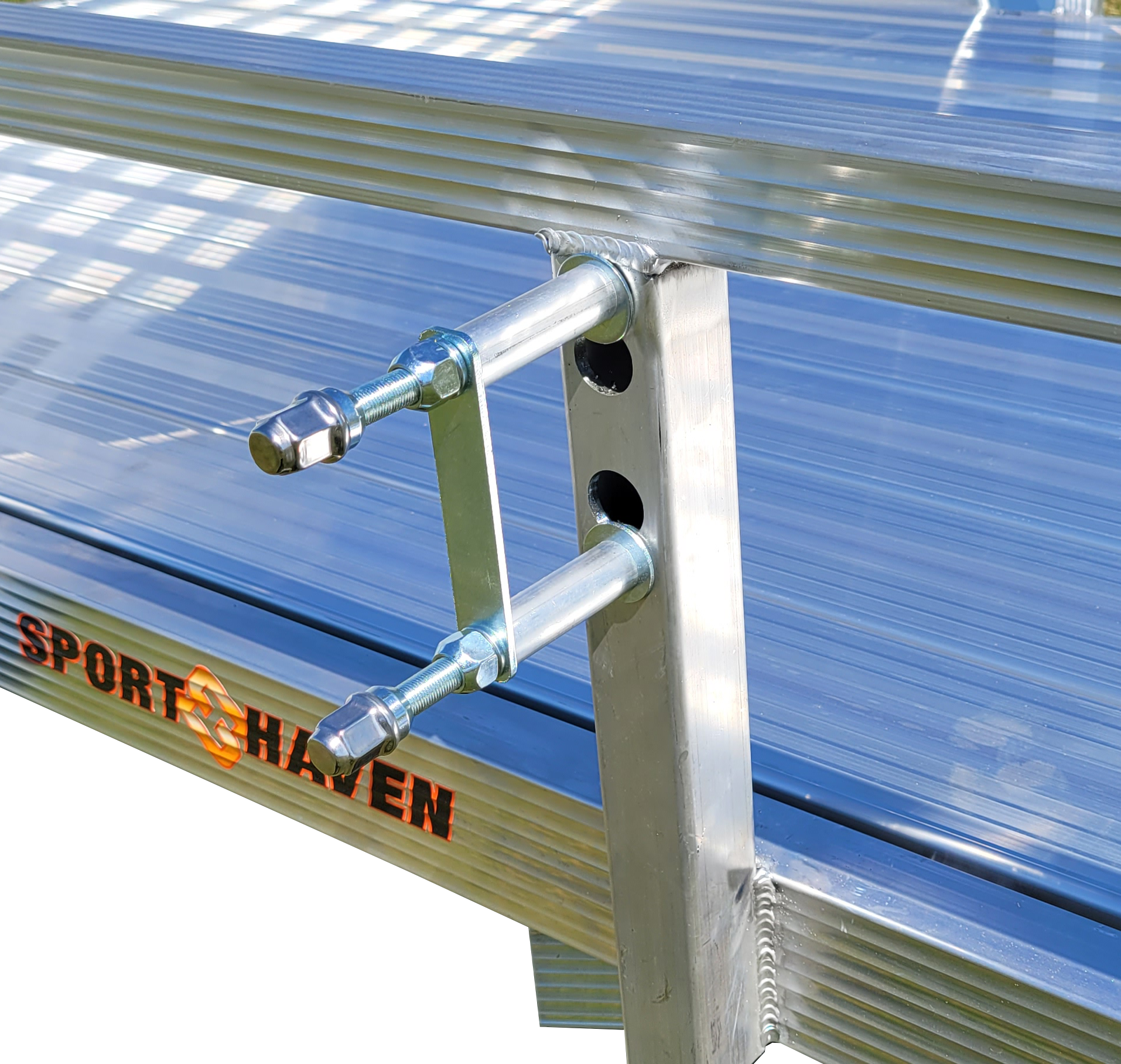

  • spare tire mounting kit for sport haven trailers

    Slide title

    SPARE TIRE MOUNT KIT INSTALLED

    Button

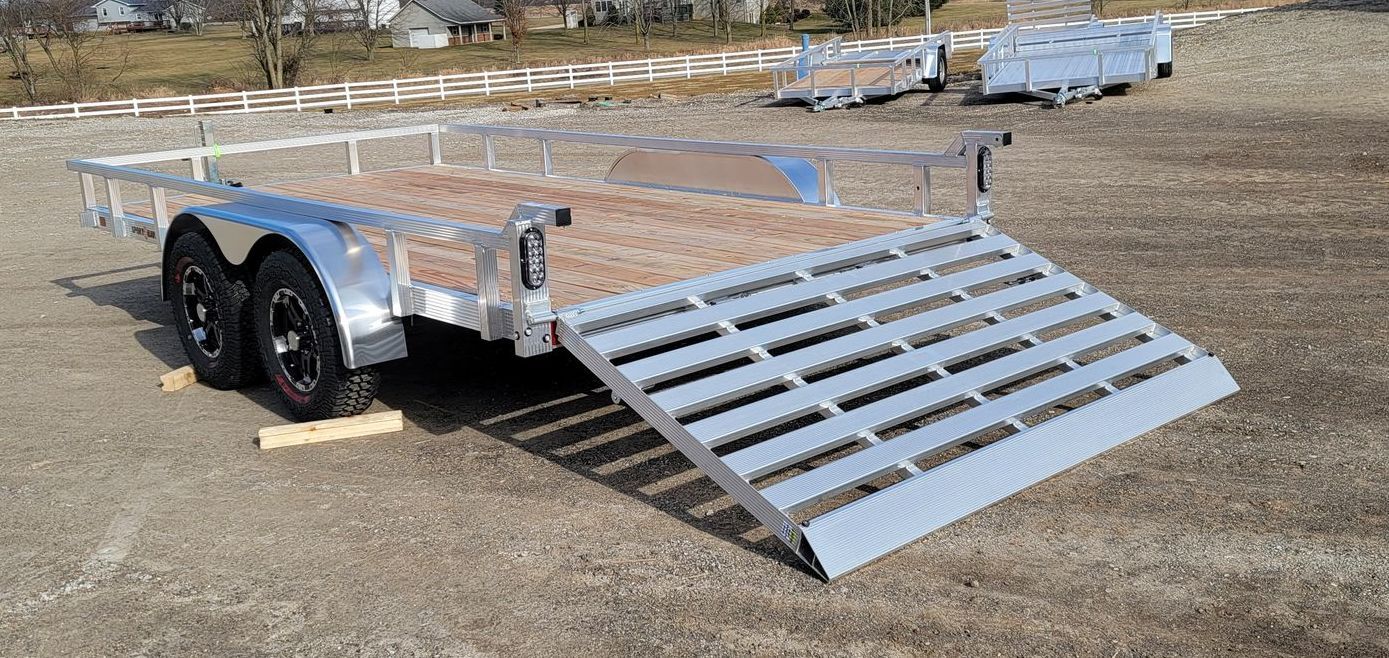

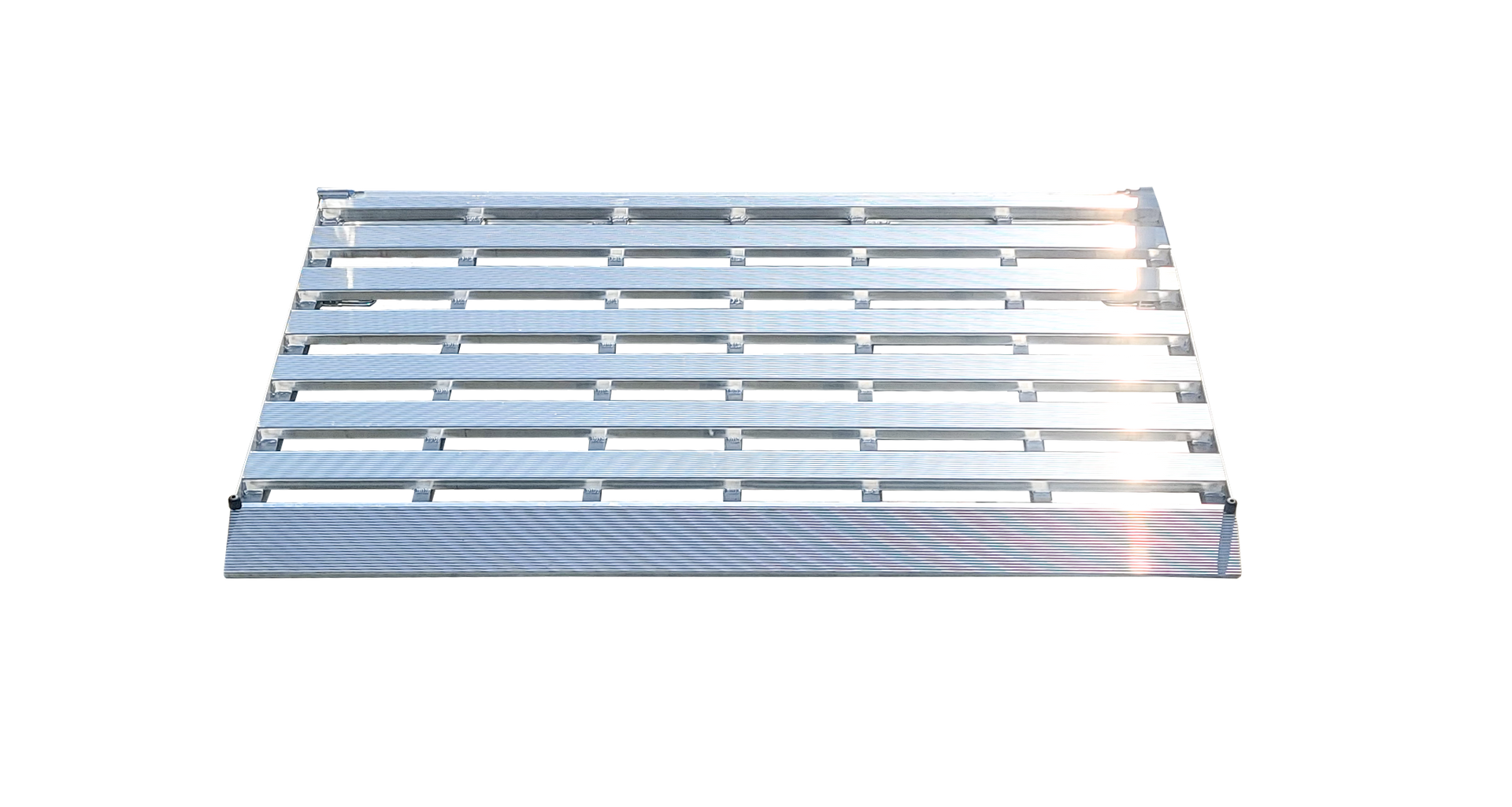

  • rear removable through bolt ramp sport haven trailer

    Slide title

    REAR REMOVABLE 3-POSITION RAMP

    Button

NOTABLE AUTX MODEL FEATURES

Features you might not find on other brands:


  • 2,500 lb. Drop Pad Jack - adjustable height for quick leveling on uneven terrain

  • Aluminum Through-Bolted Hinge - 2 piece bolt through hinge


  • Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position


  • All Terrain Tires - Great for daily driving, most weather conditions, and some dirt or mud.


  • Aluminum Fenders - corrosion resistant, lightweight, and durable


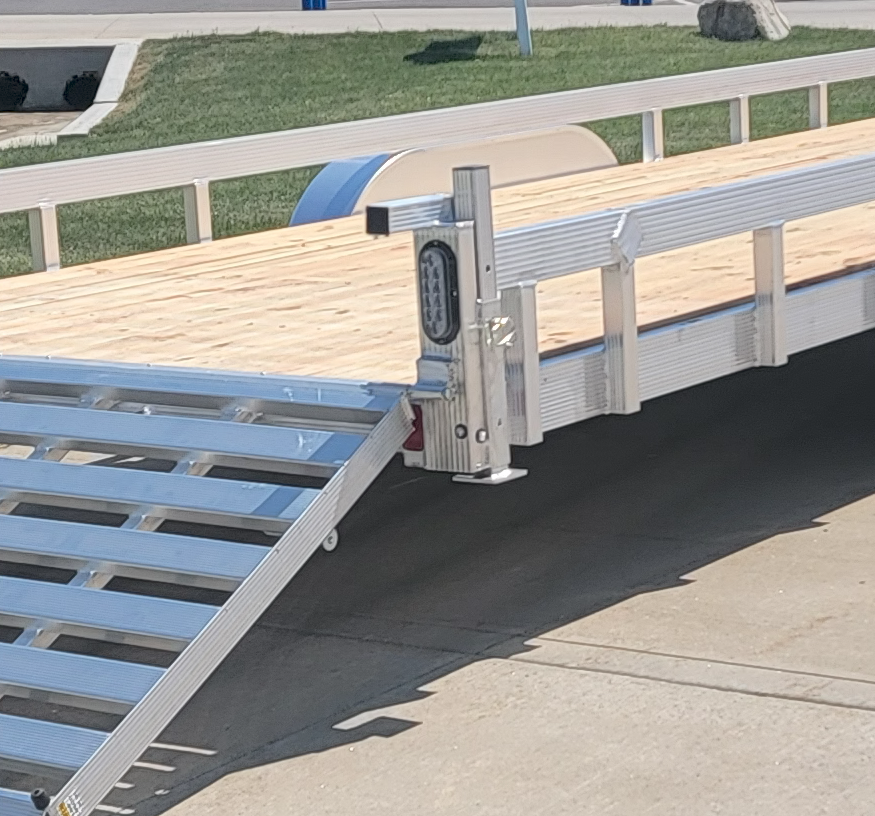

  • LED Lighting - Limited Lifetime LED warranty

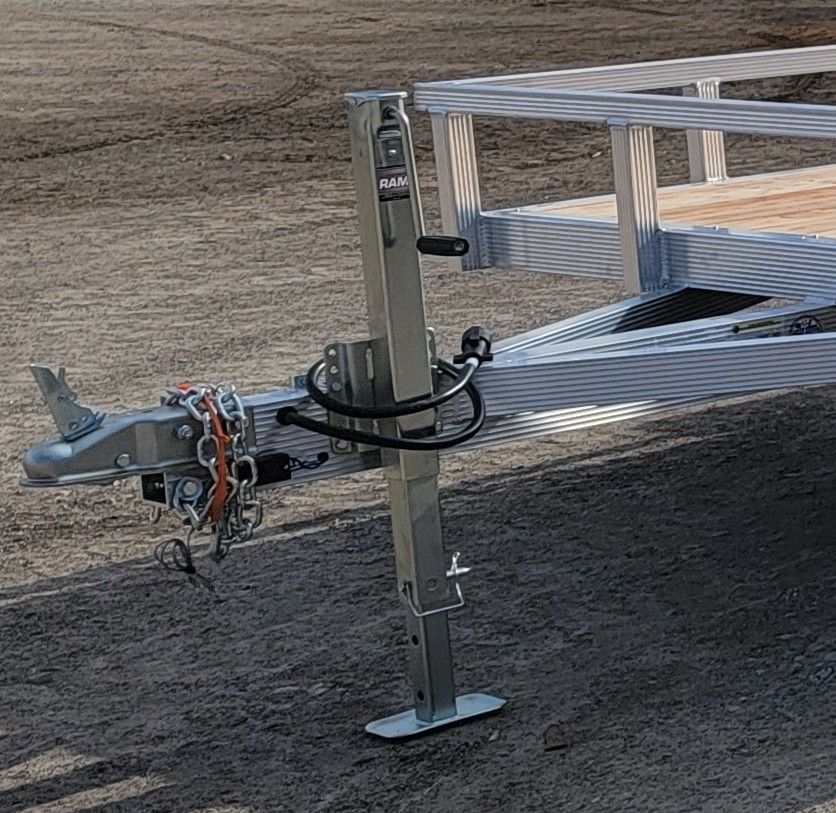

  • drop leg pad jack mounted on aluminum utility trailer

    Slide title

    DROP LEG PAD JACK

    Button
  • autx sport haven trailer ramp

    Slide title

    REMOVABLE THROUGH BOLT HINGE RAMP

    Button

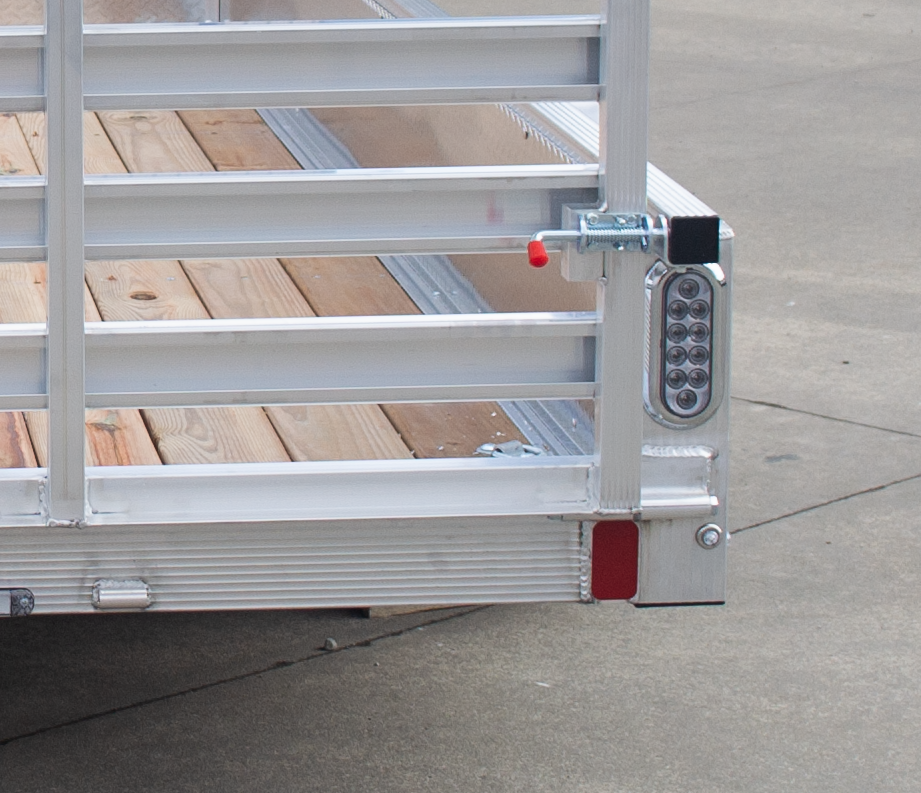

  • spring loaded latch on aluminum ramp sport haven trailer

    Slide title

    SPRING LOADED LATCH GATE

    Button

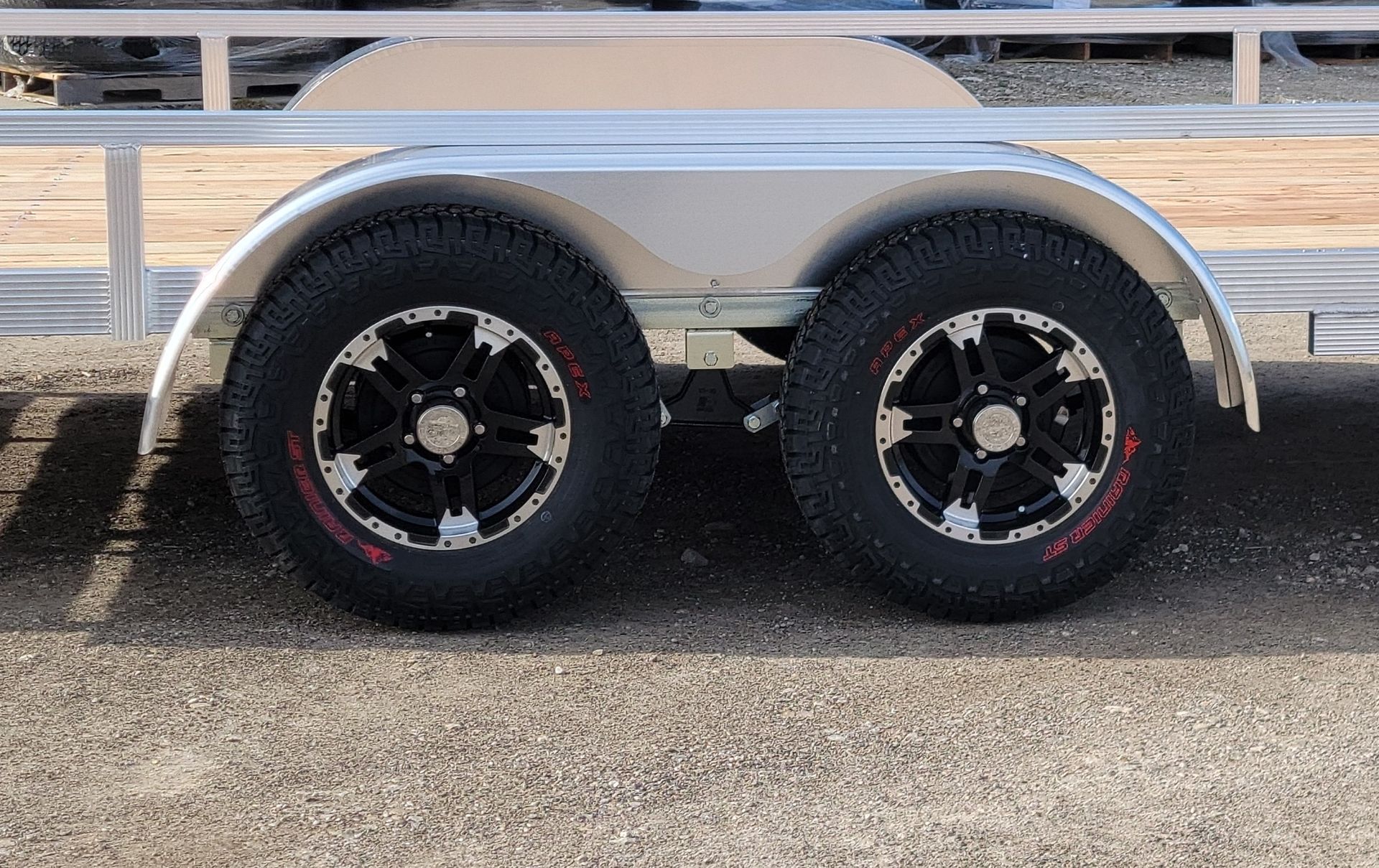

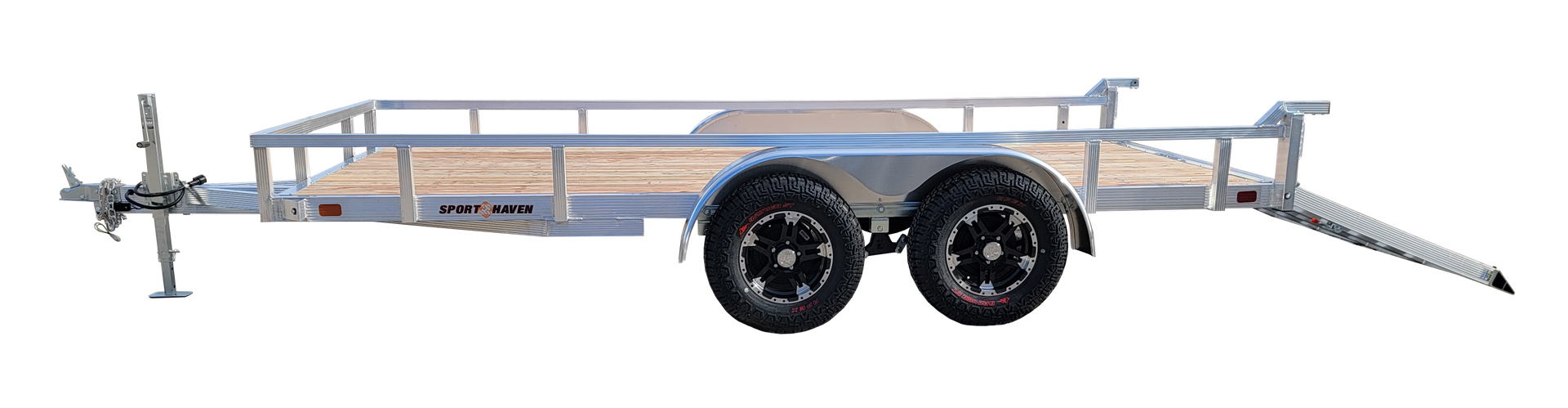

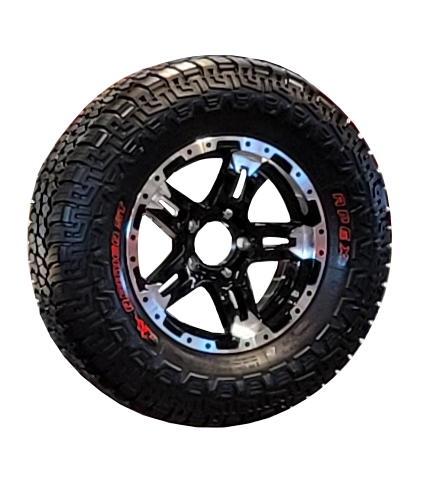

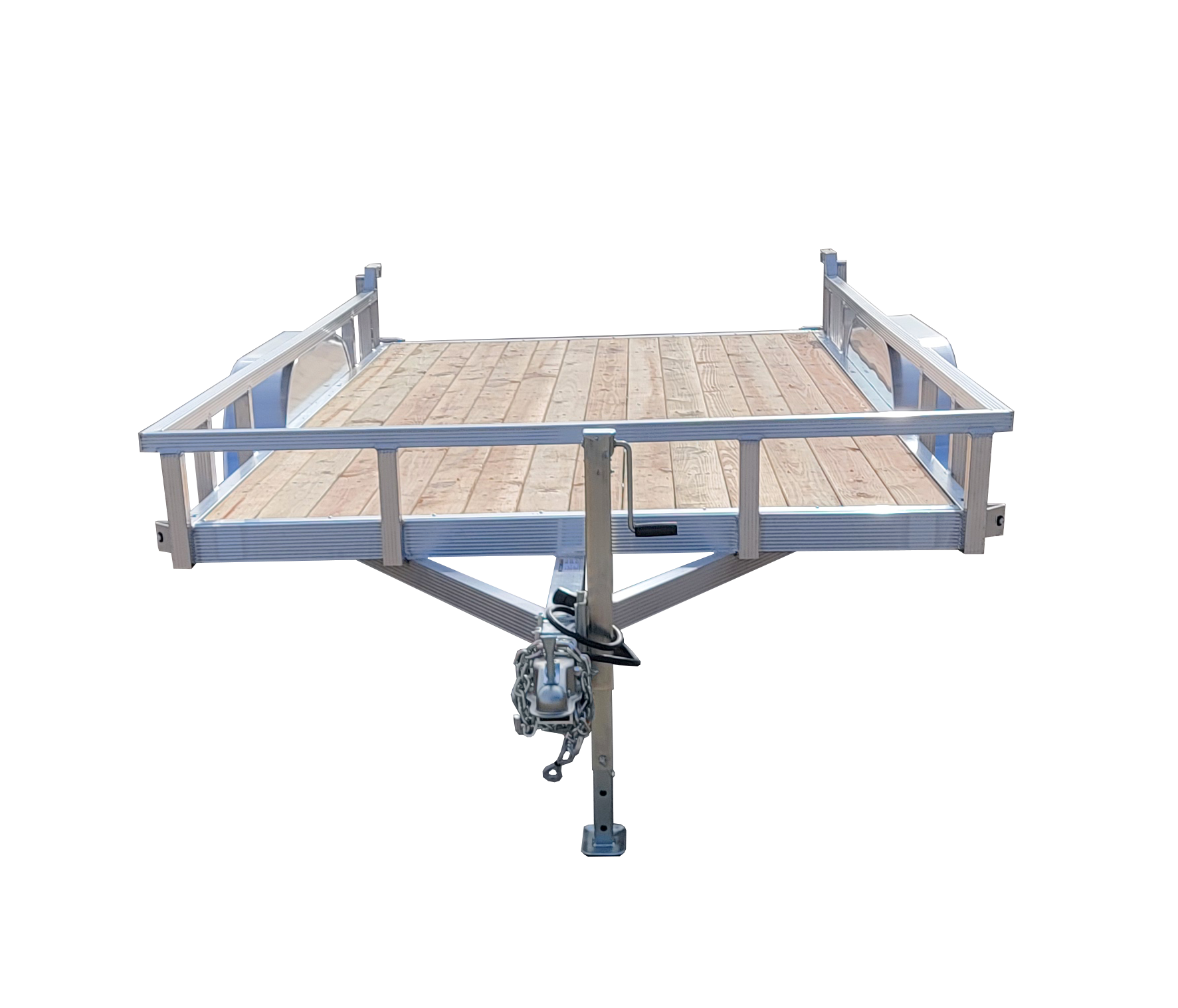

  • all terrain tires on sport haven autx series trailer

    Slide title

    ALL TERRAIN TIRES ON ALUMINUM WHEELS & ALUMINUM FENDERS

    Button

Features you will not find on other brands:


  • Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

  • Integrated Spare Tire Mount Side Rail Upright - made to fit spare tire mount kit.


  • ProWood Dura Color Treated decking- 5/4" x 6" ProWood wooden planks.


  • Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

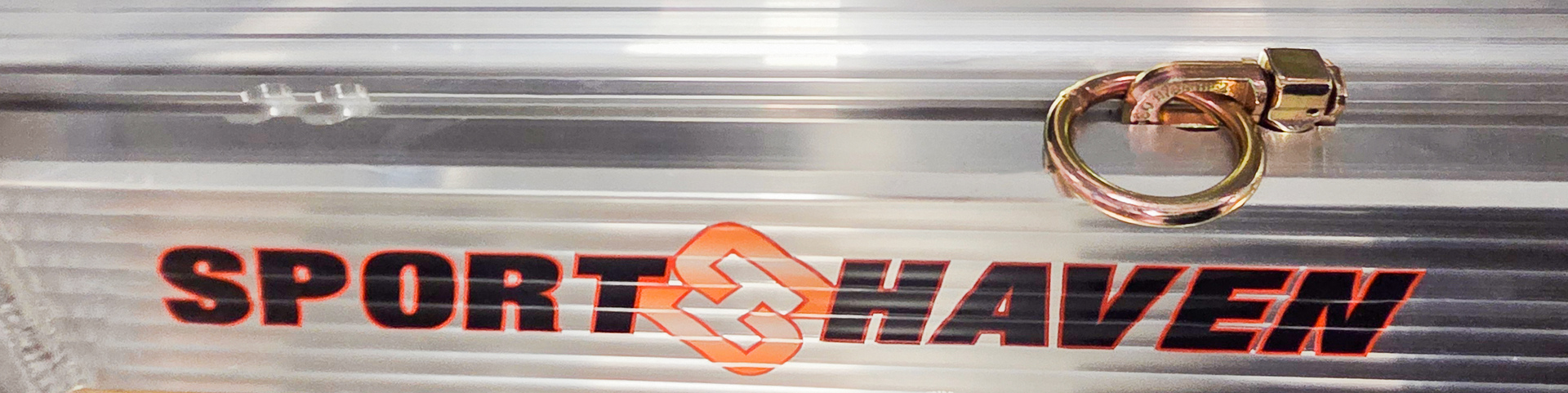

  • Tie down demonstrated in Sport Haven Trailer

    Slide title

    Single Stud Tie Down

    Button
  • s hook in cutout of sport haven trailer

    Slide title

    Receiver Shown w/Optional Ratchet Strap Hook- 700 lb Working Load Limit

    Button
  • spare tire mounting post sport haven trailers

    Slide title

    Spare Mount Side Rail Upright

    Button
  • spare mounting kit autx series sport haven

    Slide title

    Spare Tire Mount Kit Installed

    Button

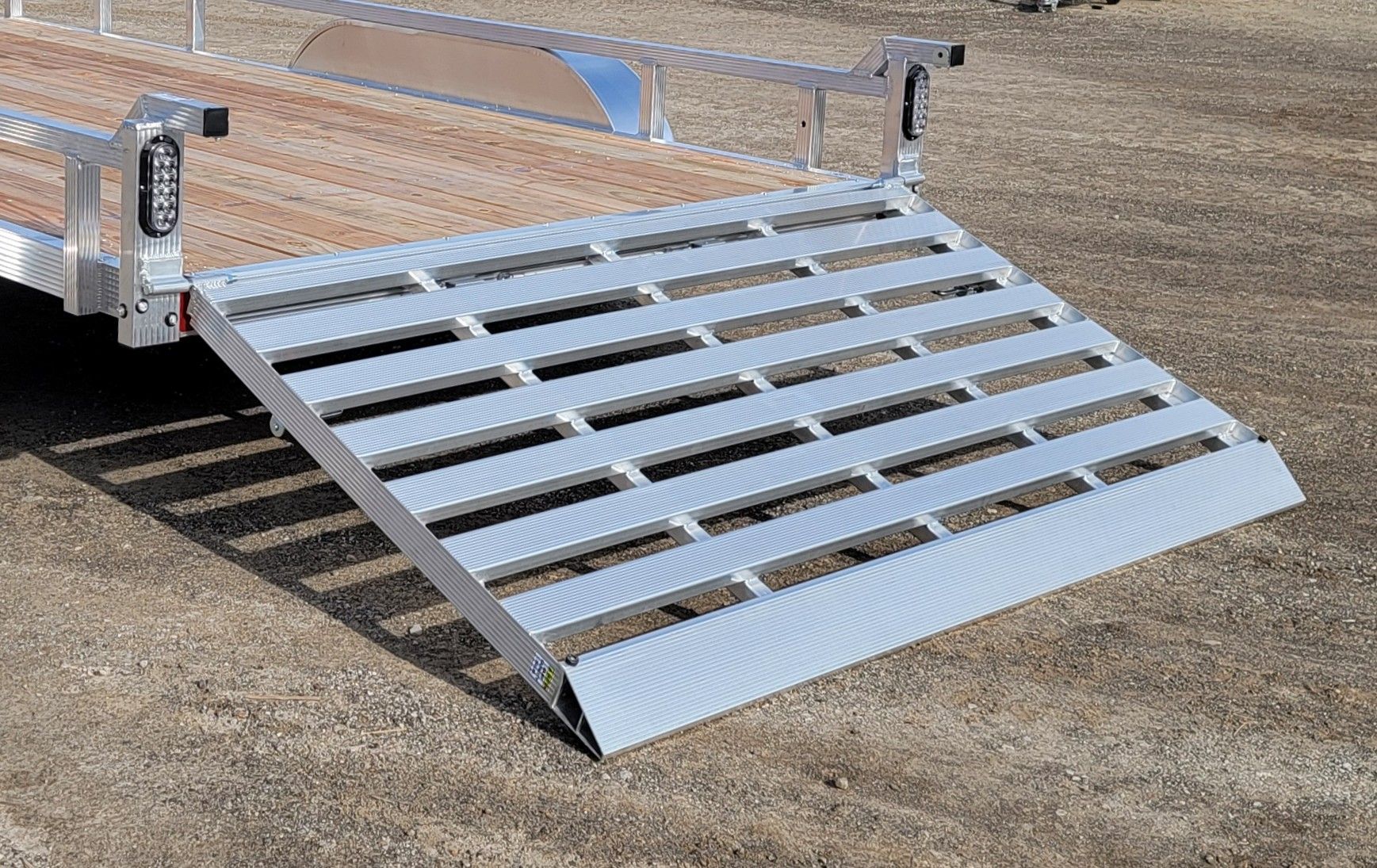

  • three position aluminum ramp

    Slide title

    Rear Removable 3-Position Ramp

    Button

Features you might not find on other brands:


  • 2,500 lb. Drop Pad Jack - adjustable height for quick leveling on uneven terrain

  • Aluminum Through-Bolted Hinge - 2 piece bolt through hinge


  • Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position


  • All Terrain Tires - Great for daily driving, most weather conditions, and some dirt or mud.


  • Aluminum Fenders - corrosion resistant, lightweight, and durable


  • LED Lighting - Limited Lifetime LED warranty
  • drop leg pad jack mounted on aluminum utility trailer

    Slide title

    Drop Leg Pad Jack

    Button
  • autx sport haven trailer ramp

    Slide title

    Removable Bolt Through Ramp

    Button
  • snap lock gate on trailer

    Slide title

    Spring Loaded Latch Gate

    Button
  • all terrain tires on sport haven autx series trailer

    Slide title

    All Terrain Tires on Aluminum Wheels & Aluminum Fenders

    Button

AUTX MODEL CONSTRUCTION

AUTX MODEL CONSTRUCTION

Fluted Aluminum Tubing is Stronger and More Scratch Resistant

 than Regular Smooth Sided Aluminum

  • Jig Welded Construction for Consistency, Quality


  • Fluted Aluminum Tube Tongues and Tongue Supports


  • Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)


  • 2" Wide Aluminum Tube Top Deck Top Rails


  • Aluminum Tube Top Deck Rail Uprights

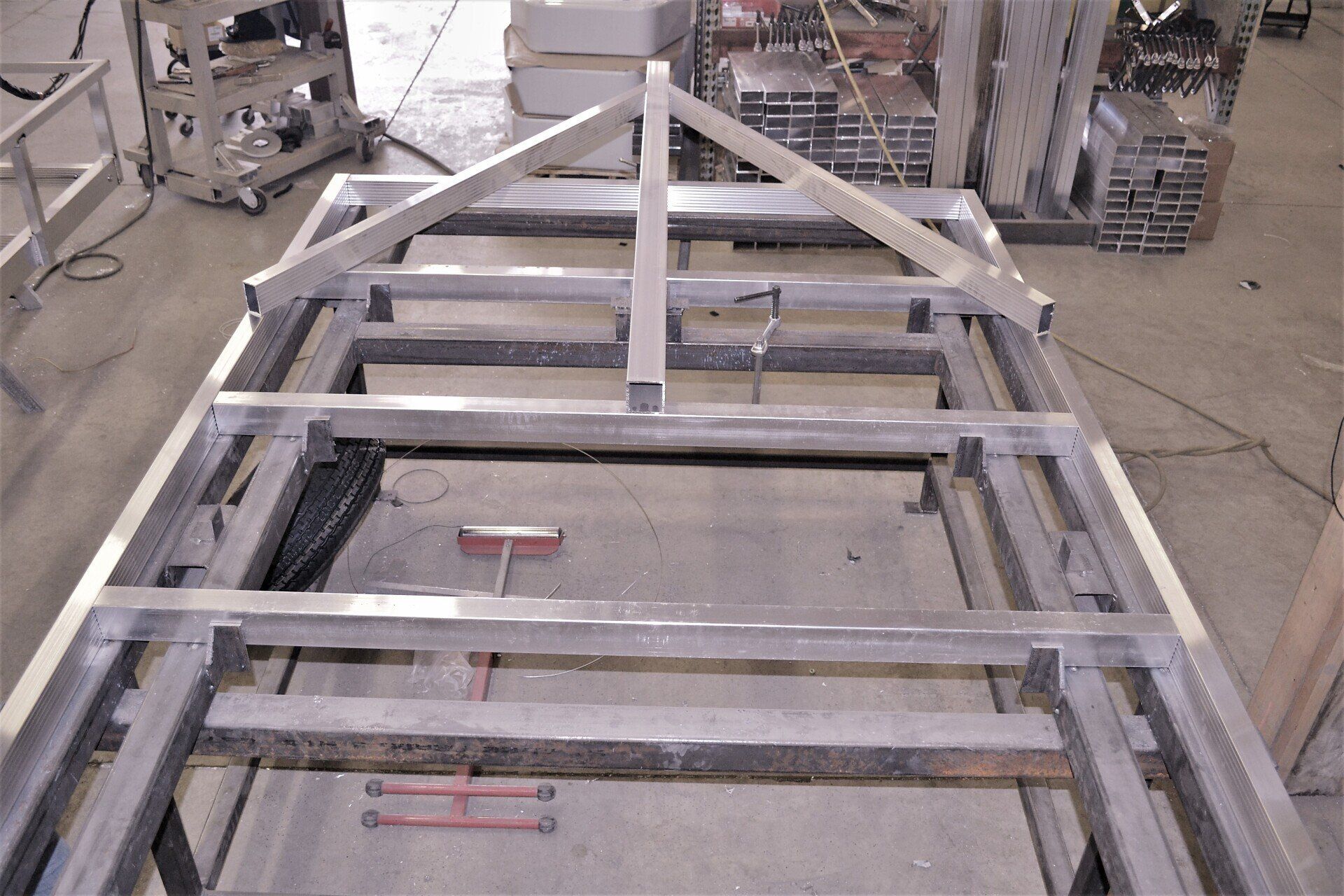

  • welding aluminum trailers

    Slide title

    Jig Welded Construction

    Button
  • welder welding aluminum trailer

    Slide title

    Fluted Aluminum Tube Tongues and Tongue Supports

    Button

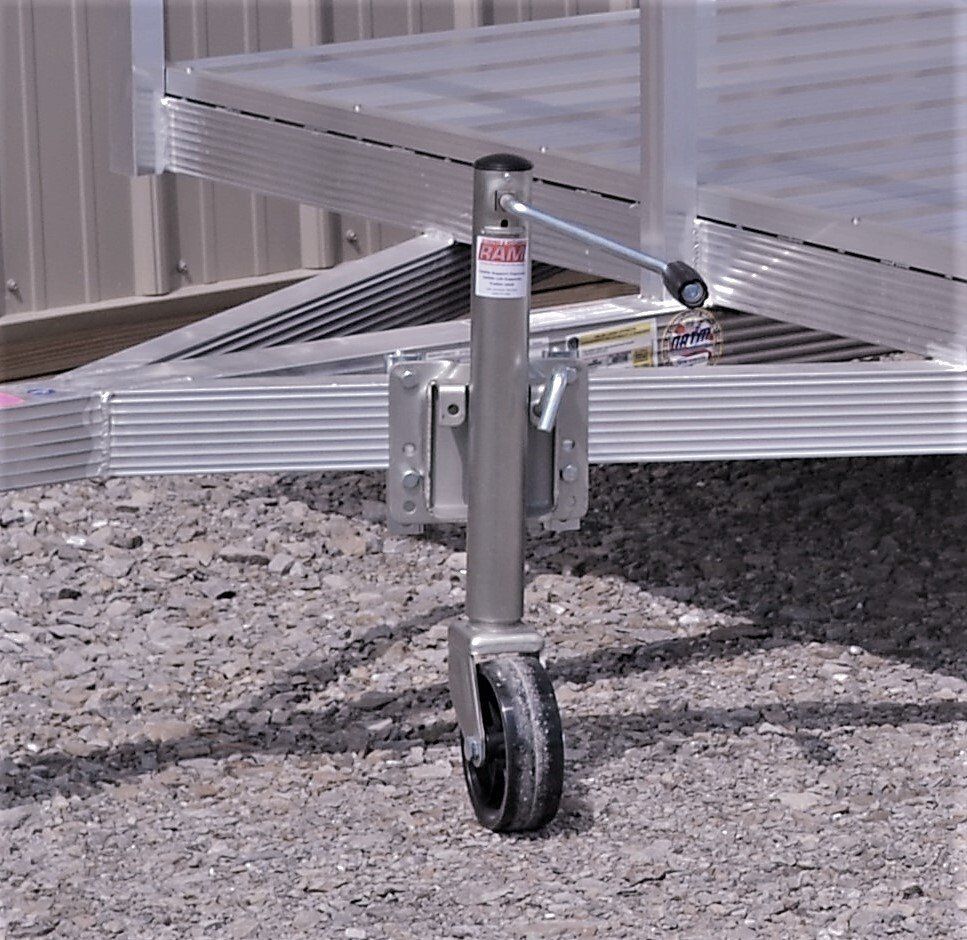

  • utility trailer tongue jack with wheel

    Slide title

    Fluted Aluminum Tube Frames and Cross Members

    Button

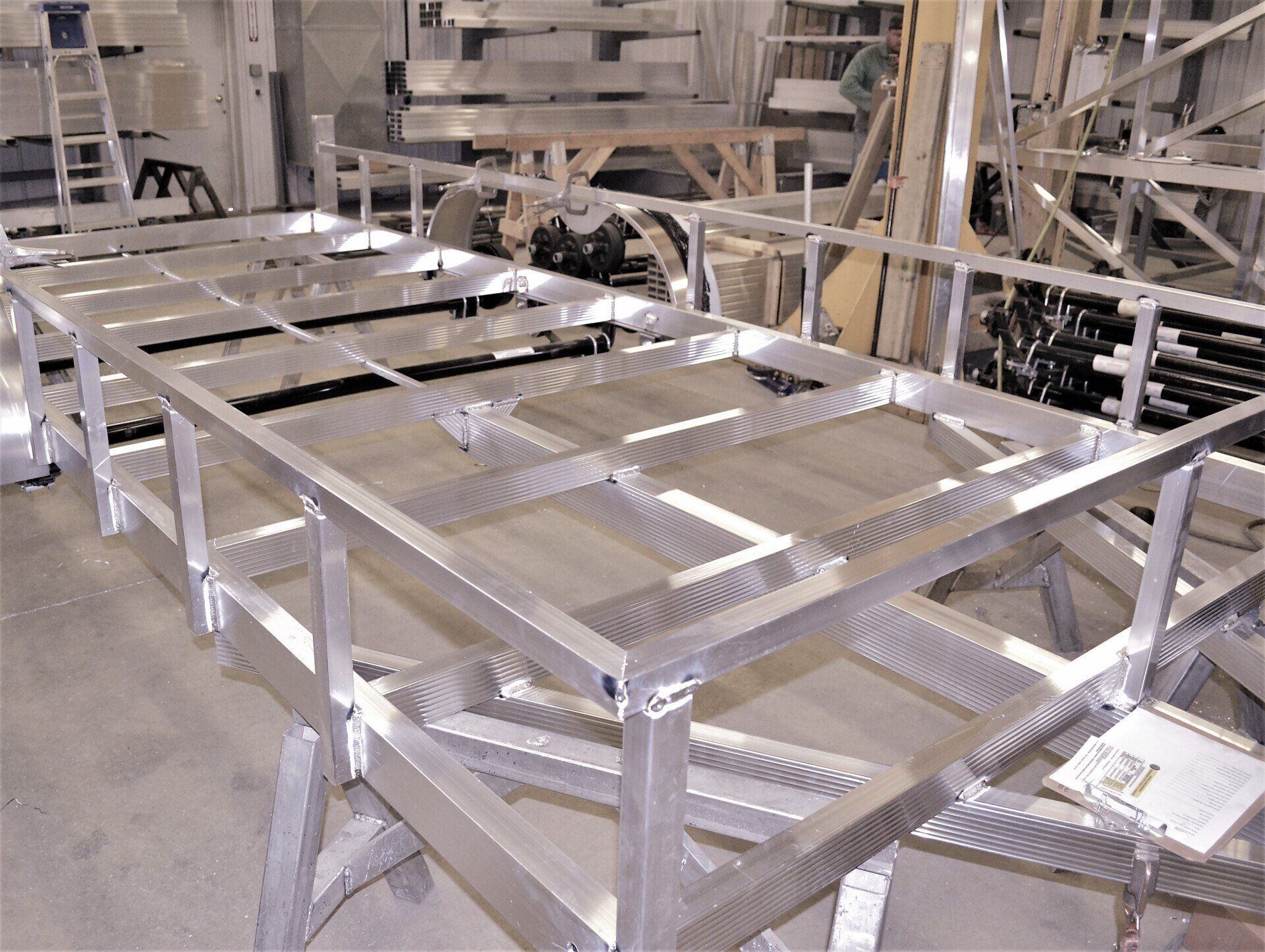

  • utility trailer frame without decking

    Slide title

    2" Wide Top Deck Rails, Tube Top Deck Rail Uprights

    Button
  • double hollow aluminum tubing

    Slide title

    Double Hollow Tube Frame - 18' & up

    Double Hollow Tongue - all tandems

    Button

Fluted Aluminum Tubing is Stronger and More Scratch Resistant

 than Regular Smooth Sided Aluminum

  • Jig Welded Construction for Consistency, Quality


  • Fluted Aluminum Tube Tongues and Tongue Supports


  • Fluted Aluminum Tube Frame Outside Rails and Crossmembers (24" On-Center)


  • 2" Wide Aluminum Tube Top Deck Top Rails


  • Aluminum Tube Top Deck Rail Uprights
  • welding aluminum trailers

    Slide title

    Jig Welded Construction

    Button
  • welder welding aluminum trailer

    Slide title

    Fluted Aluminum Tube Tongues and Tongue Supports

    Button
  • utility trailer tongue jack with wheel

    Slide title

    Fluted Aluminum Tube Frames and Cross Members

    Button
  • utility trailer frame without decking

    Slide title

    2" Wide Top Deck Rails, Tube Top Deck Rail Uprights

    Button
  • double hollow aluminum tubing

    Slide title

    Double Hollow Tube Frame - 18' & up

    Double Hollow Tongue - all tandems

    Button

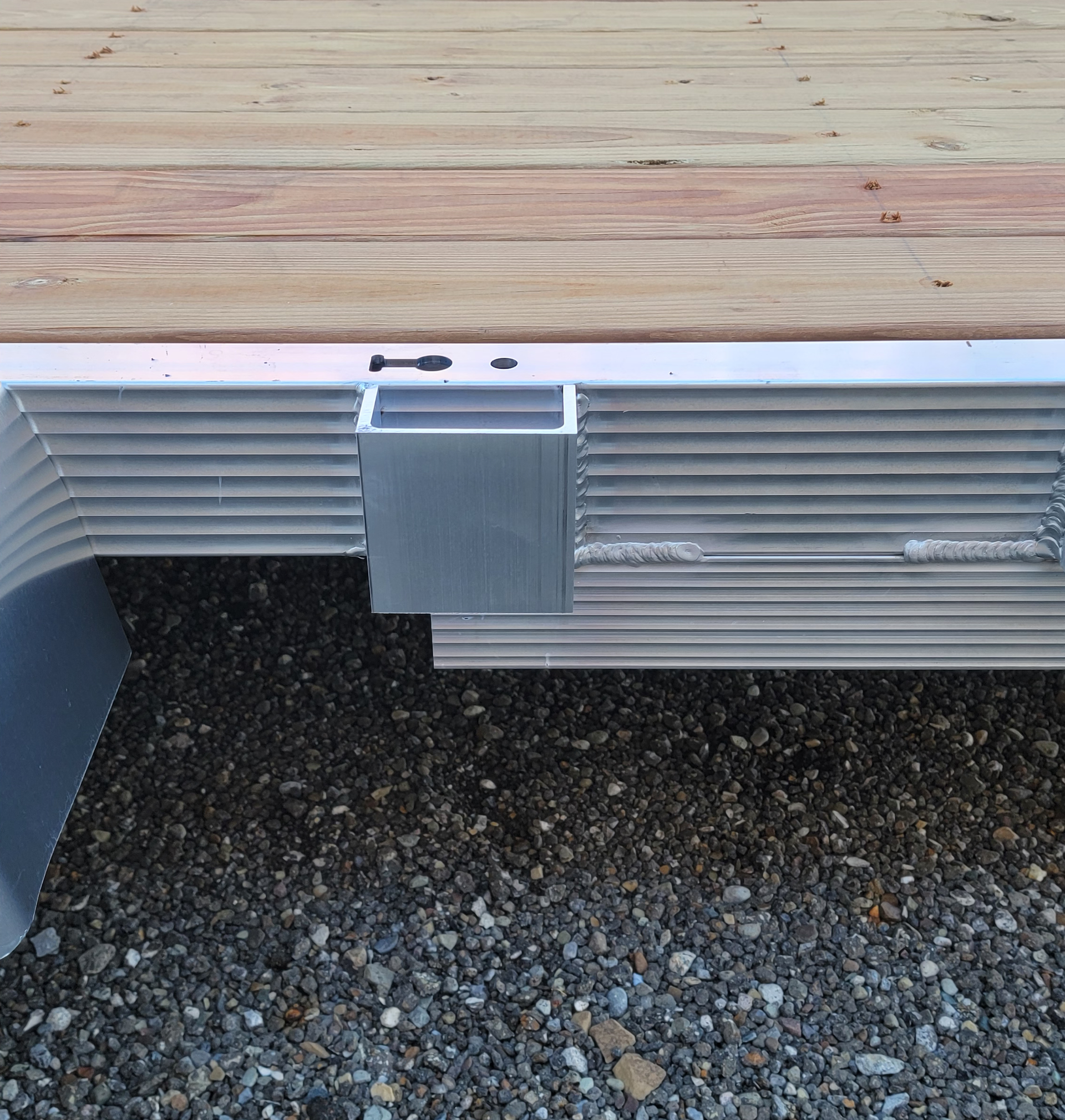

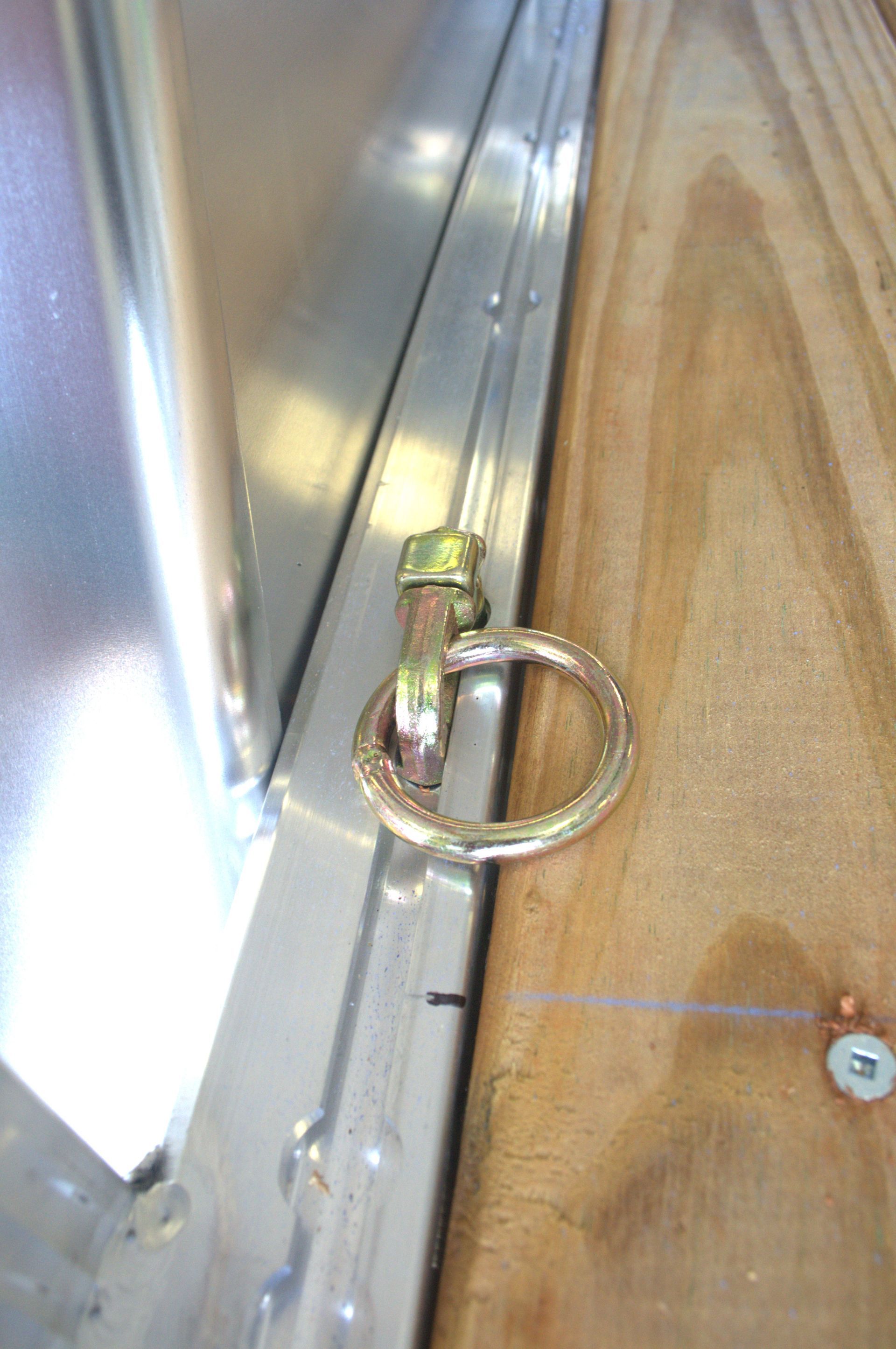

AUTX OPTIONAL ADDED FEATURES

AUTX OPTIONAL ADDED FEATURES

*Some Features need to be added during production of the trailer contact your dealer to order.

*Some Features need to be added during production of the trailer contact your dealer to order.

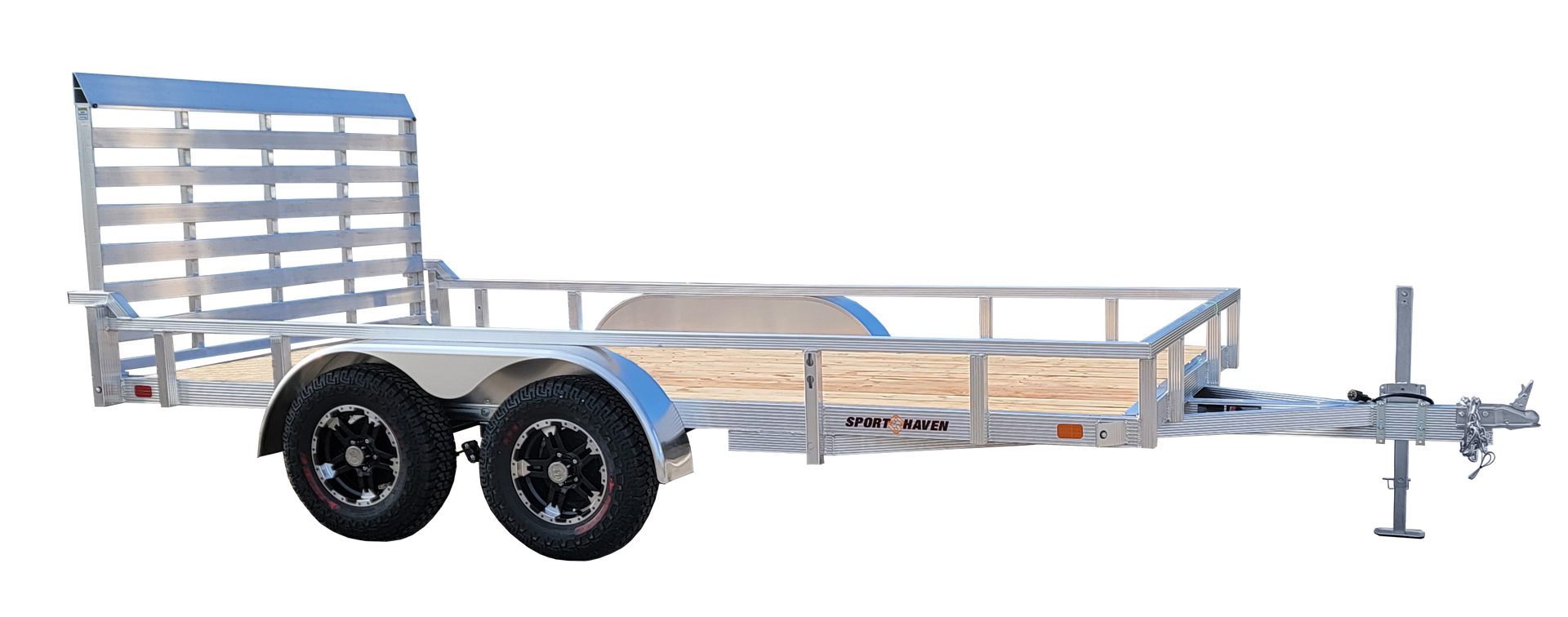

AUTX MODEL TANDEM AXLE SPECIFICATIONS

AUTX MODEL TANDEM AXLE SPECIFICATIONS

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2 x 2"" Wide Top Deck Rail (14'-24' Models)
  • 2" x 4" Wide Top Deck Rail (26'-28' Models)
  • 2" x 2" Top Deck Rail Uprights
  • 5/4" x 6" ProWood DuraColor Decking

Component Specs

  • LED Lights
  • All-Terrain Radial Tires w/Aluminum Wheels
  • 3500lb Dexter Spring Axles
  • Double Eye Spring Suspension
  • 8000 lb Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Safety Chains
  • 2500 lb Capacity Drop Leg Pad Jack

Misc Specs

  • 7 Way Round Harness
  • 2" Ball
  • 21" Deck Height
  • 10" Rail Height Above the Deck (16' & Under)
  • 9" Rail Height Above the Deck (18' & above)
  • 7000 lb Gross Vehicle Weight Rating (GVWR)

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2 x 2"" Wide Top Deck Rail (14'-24' Models)
  • 2" x 4" Wide Top Deck Rail (26'-28' Models)
  • 2" x 2" Top Deck Rail Uprights
  • 5/4" x 6" ProWood DuraColor Decking

Component Specs

  • LED Lights
  • All-Terrain Radial Tires w/Aluminum Wheels
  • 3500lb Dexter Spring Axles
  • Double Eye Spring Suspension
  • 8000 lb Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Safety Chains
  • 2500 lb Capacity Drop Leg Pad Jack

Misc Specs

  • 7 Way Round Harness
  • 2" Ball
  • 21" Deck Height
  • 10" Rail Height Above the Deck (16' & Under)
  • 9" Rail Height Above the Deck (18' & above)
  • 7000 lb Gross Vehicle Weight Rating (GVWR)
MODEL AUTX714T AUTX716T AUTX718T AUTX720T AUTX722T AUTX724T AUTX726T AUTX728T
Deck L x W 168" x 83" 192" x 83" 216" x 83" 240" x 83" 264" x 83" 288" x 83" 312" x 83" 336" x 83"
Overall L x W 216" / 102" 240" / 102" 264" / 102" 288" / 102" 312" x 102" 360" x 102" 408" x 102" 456" x 102"
Tongue* (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports* (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (6) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted (9) 1.75" x 3" Fluted (9) 1.75" x 3" Fluted (12) 1.75" x 3" Fluted (12) 1.75" x 3" Fluted
Tire Size ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D
Curb Weight 1120 1160 1260 1400 1440 1480 1780
Payload Capacity 5880 5840 5740 5600 5560 5520 5224
GVWR 7000 7000 7000 7000 7000 7000 7000 7000
Standard 4' Ramp Weight Capacity*** 1750 1750 1750 1750 1750 1750 1750 1750
Optional 4' Folding Ramp Weight Capacity*** 1500 1500 1500 1500 1500 1500 1500 1500
Download PDF 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

MODEL AUTX714T AUTX716T AUTX718T AUTX720T AUTX722T AUTX724T AUTX726T AUTX728T
Deck L x W 168" x 83" 192" x 83" 216" x 83" 240" x 83" 264" x 83" 288" x 83" 312" x 83" 336" x 83"
Overall L x W 216" / 102" 240" / 102" 264" / 102" 288" / 102" 312" x 102" 360" x 102" 408" x 102" 456" x 102"
Tongue* (1) 3" x 5" Fluted (1) 3" x 5" Fluted (1) 3" x 5" Fluted (1) 3" x 5" Fluted (1) 3" x 5" Fluted (1) 3" x 5" Fluted (1) 3" x 5" Fluted (1) 3" x 5" Fluted
Tongue Supports* (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 5" Fluted (2) 2" x 5" Fluted (2) 2" x 5" Fluted (2) 2" x 5" Fluted (2) 2" x 5" Fluted (2) 2" x 5" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (6) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted (9) 1.75" x 3" Fluted (9) 1.75" x 3" Fluted (12) 1.75" x 3" Fluted (12) 1.75" x 3" Fluted
Tire Size ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D ST215/75R14D
Curb Weight 1120 1160 1260 1400 1440 1480 1780
Payload Capacity 5880 5840 5740 5600 5560 5520 5224
GVWR 7000 7000 7000 7000 7000 7000 7000 7000
Standard 4' Ramp Weight Capacity*** 1750 1750 1750 1750 1750 1750 1750 1750
Optional 4' Folding Ramp Weight Capacity*** 1500 1500 1500 1500 1500 1500 1500 1500
Download PDF 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
