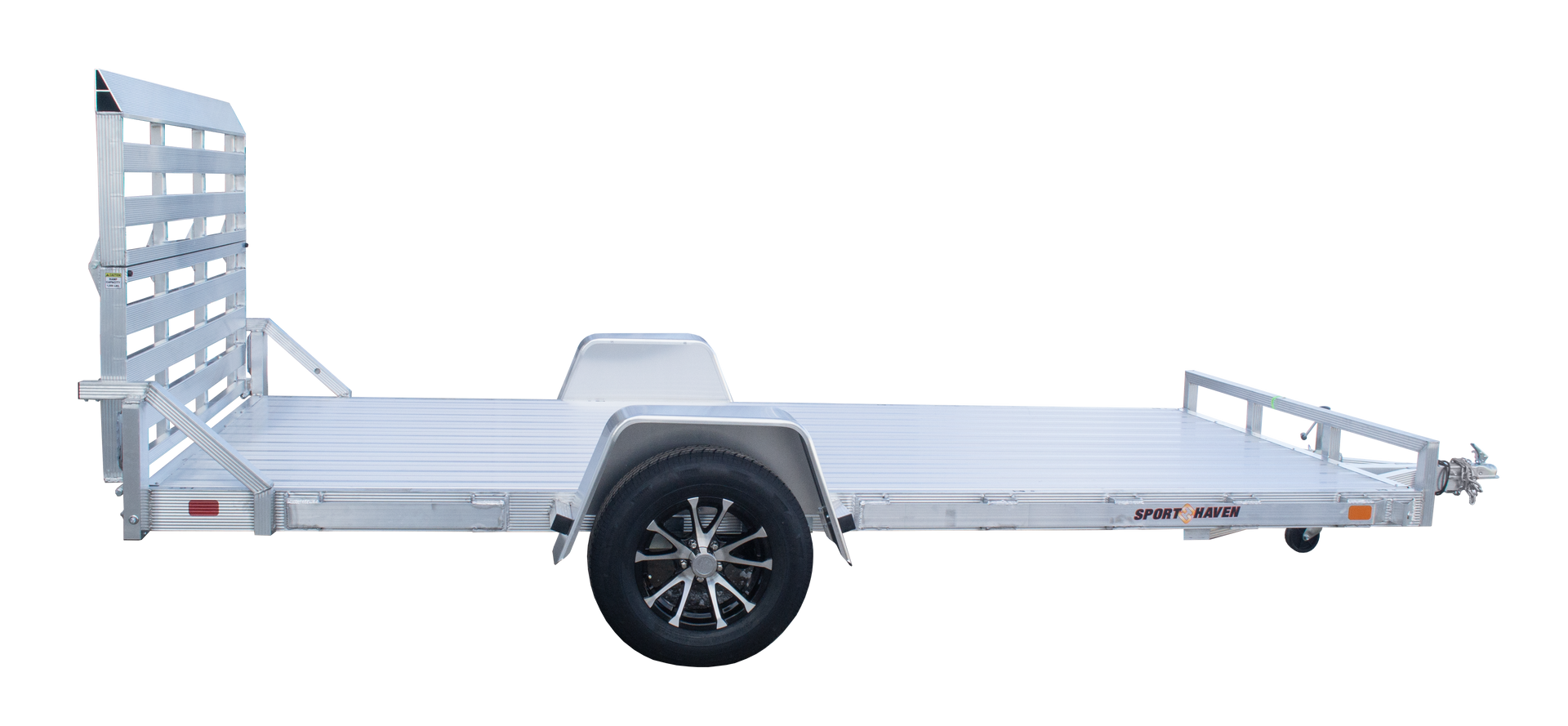

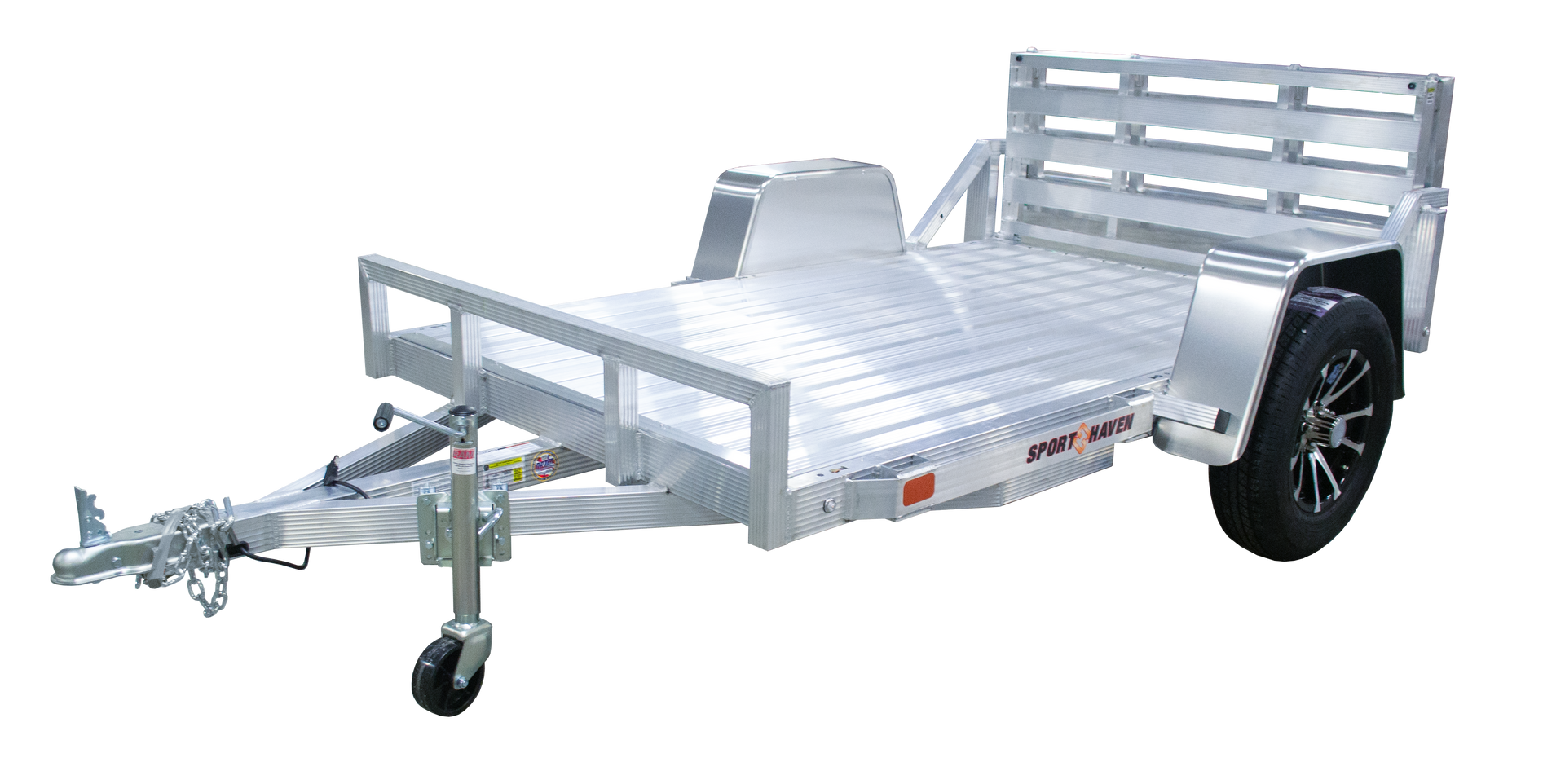

RAIL-LESS DELUXE ALUMINUM UTILITY SERIES - AUD MODELS

RAIL-LESS DELUXE ALUMINUM UTILITY SERIES - AUD MODELS

EXCLUSIVE AUD MODEL FEATURES

NOTABLE AUD MODEL FEATURES

EXCLUSIVE AUD MODEL FEATURES

NOTABLE AUD MODEL FEATURES

Features you will not find on other brands:


  • Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

  • Aluminum Decking - Anti slip aluminum plank decking


  • Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.

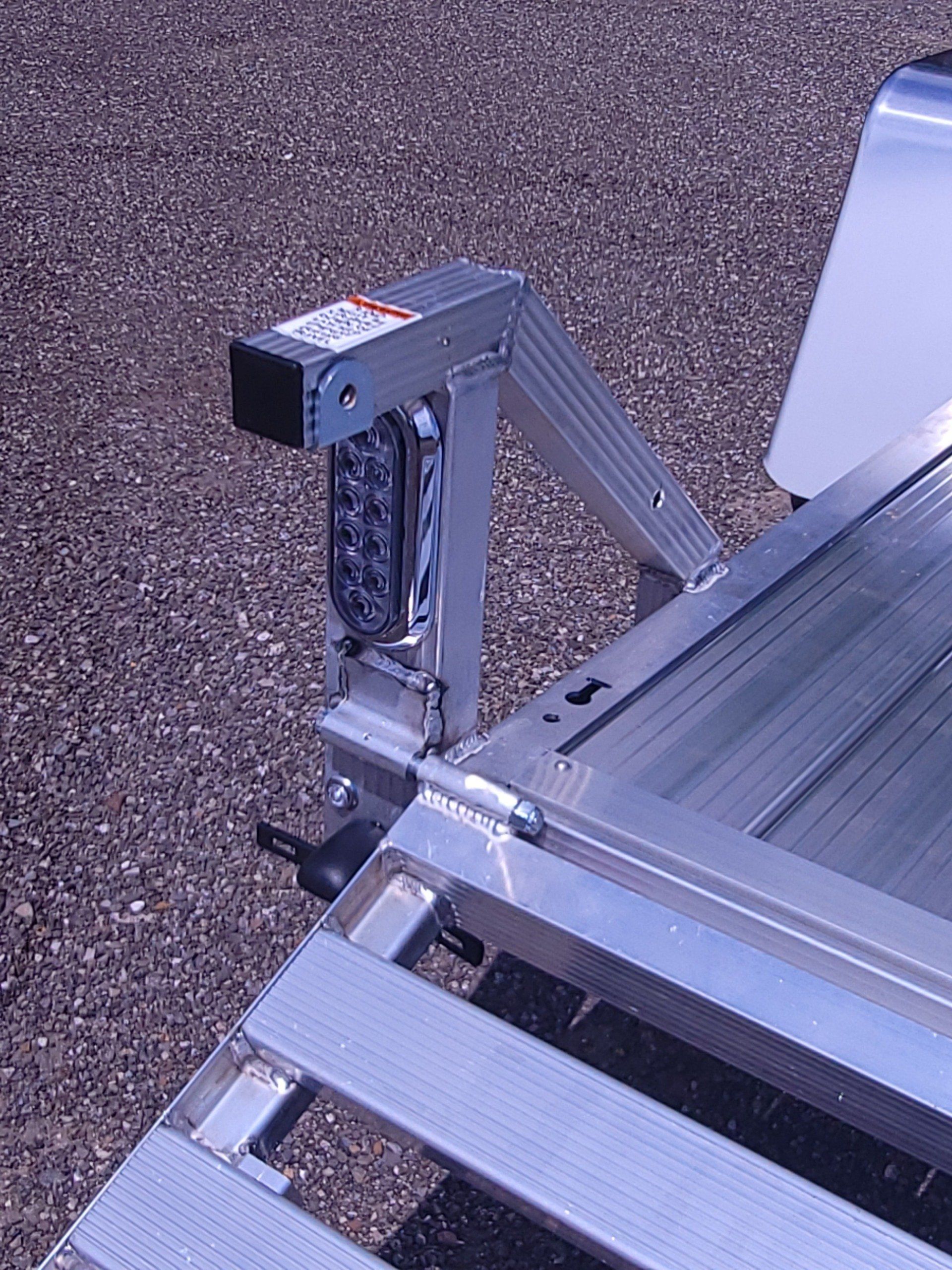

  • deluxe utility trailer led lights

    Slide title

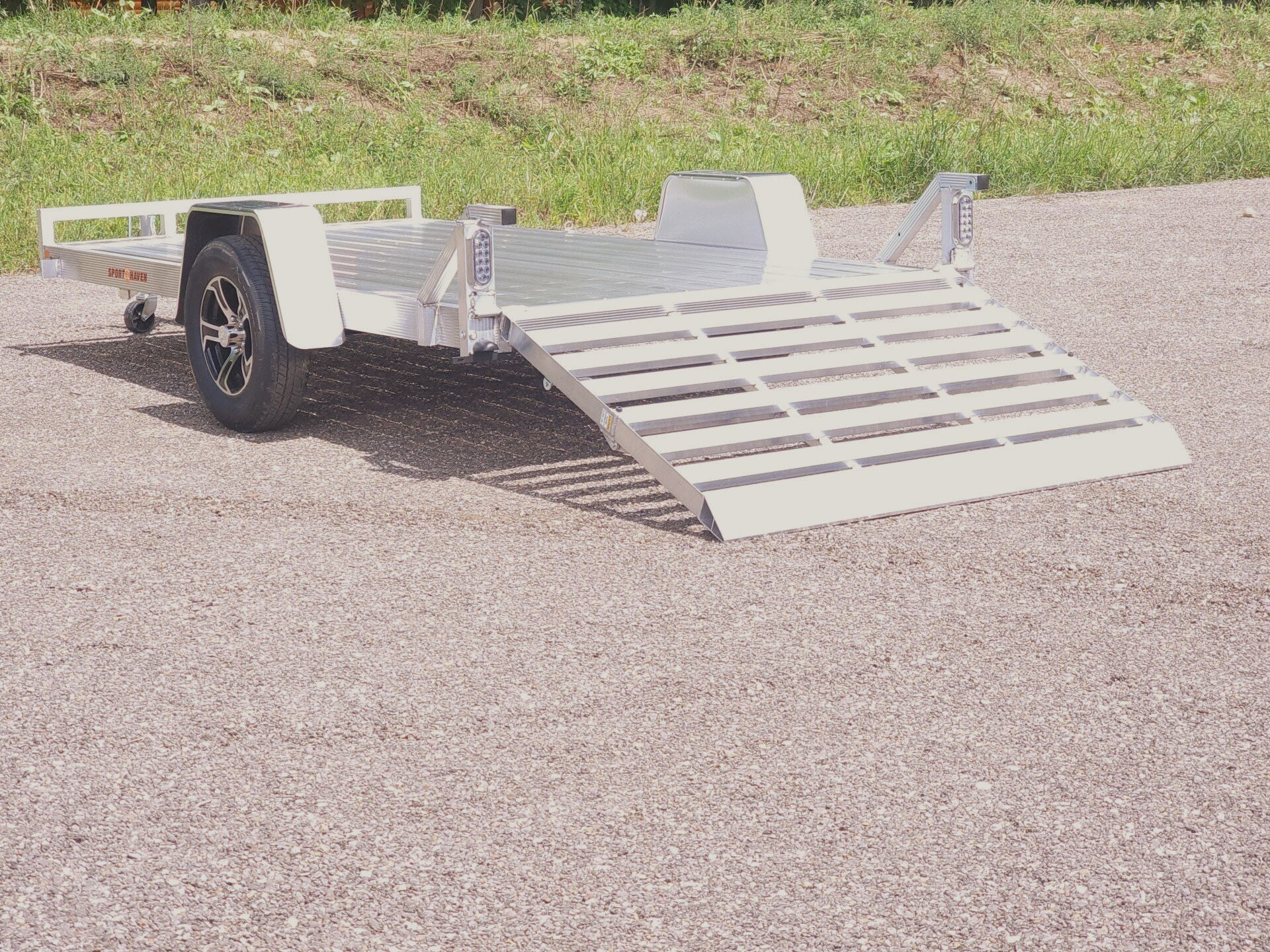

    3 POSITION RAMP

    Button

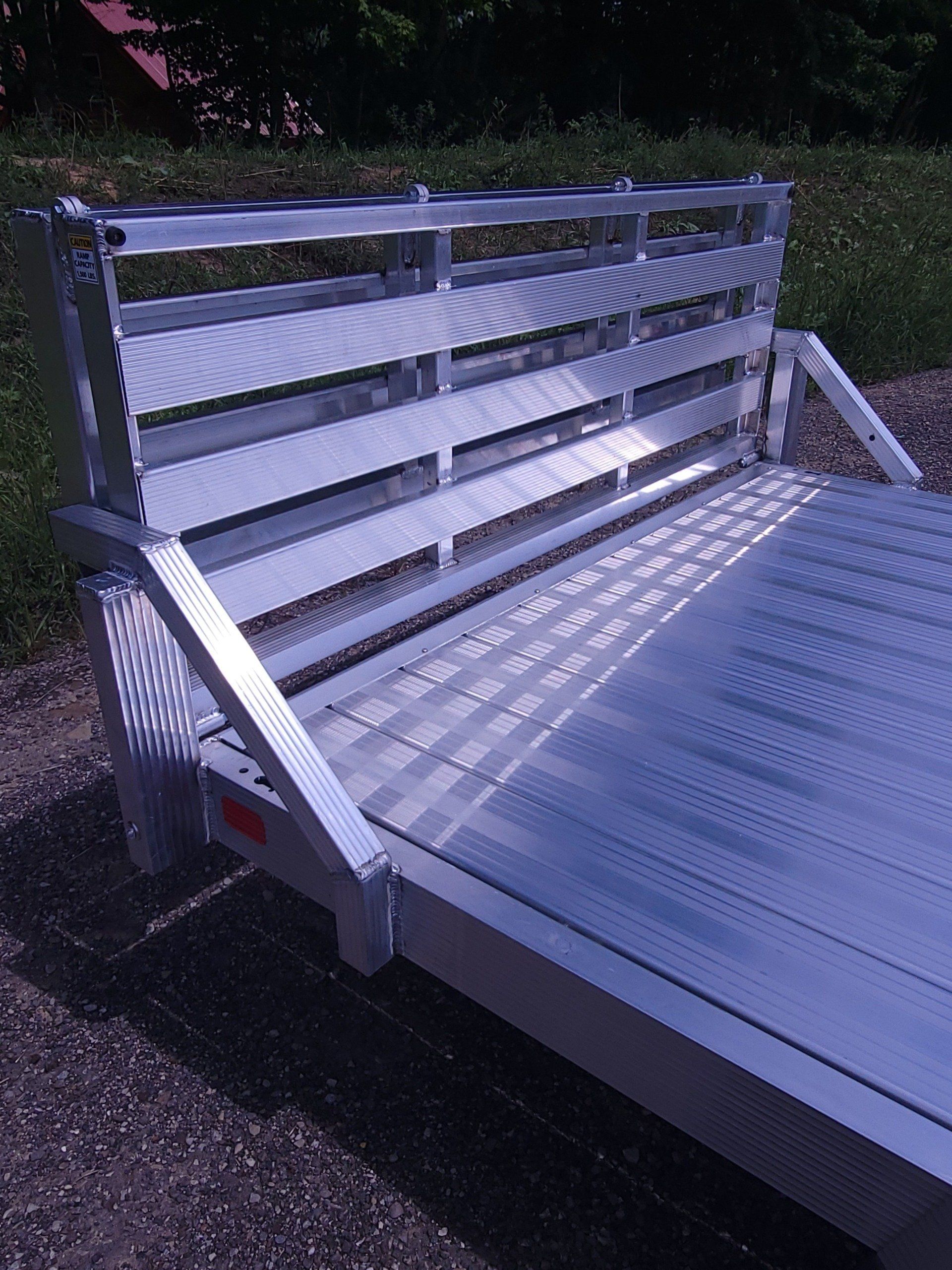

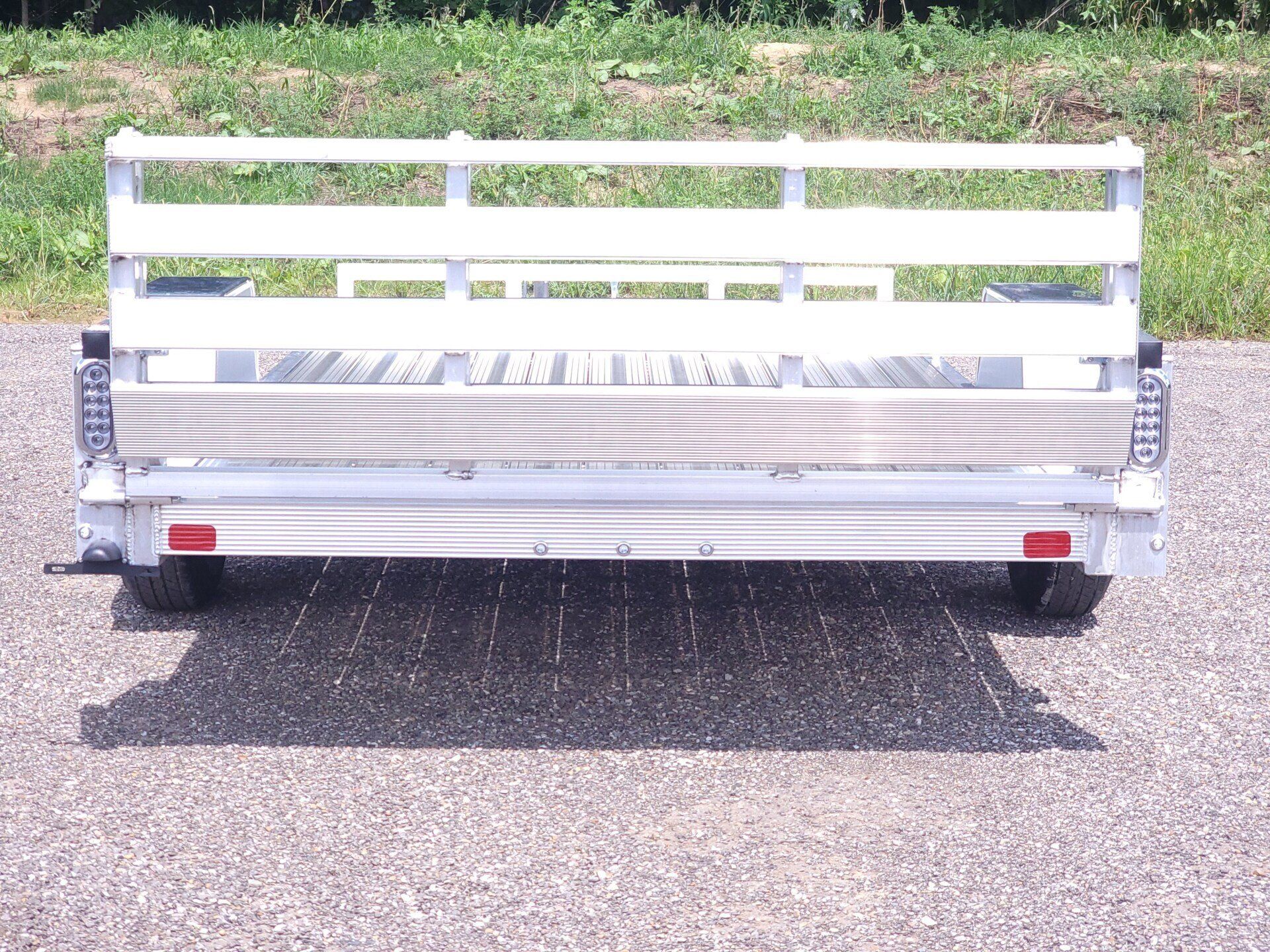

  • folding multi position ramp

    Slide title

    FOLDING RAMPS AVAILABLE

    Button
  • tie down key ring

    Slide title

    SINGLE STUD TIE DOWN

    Button

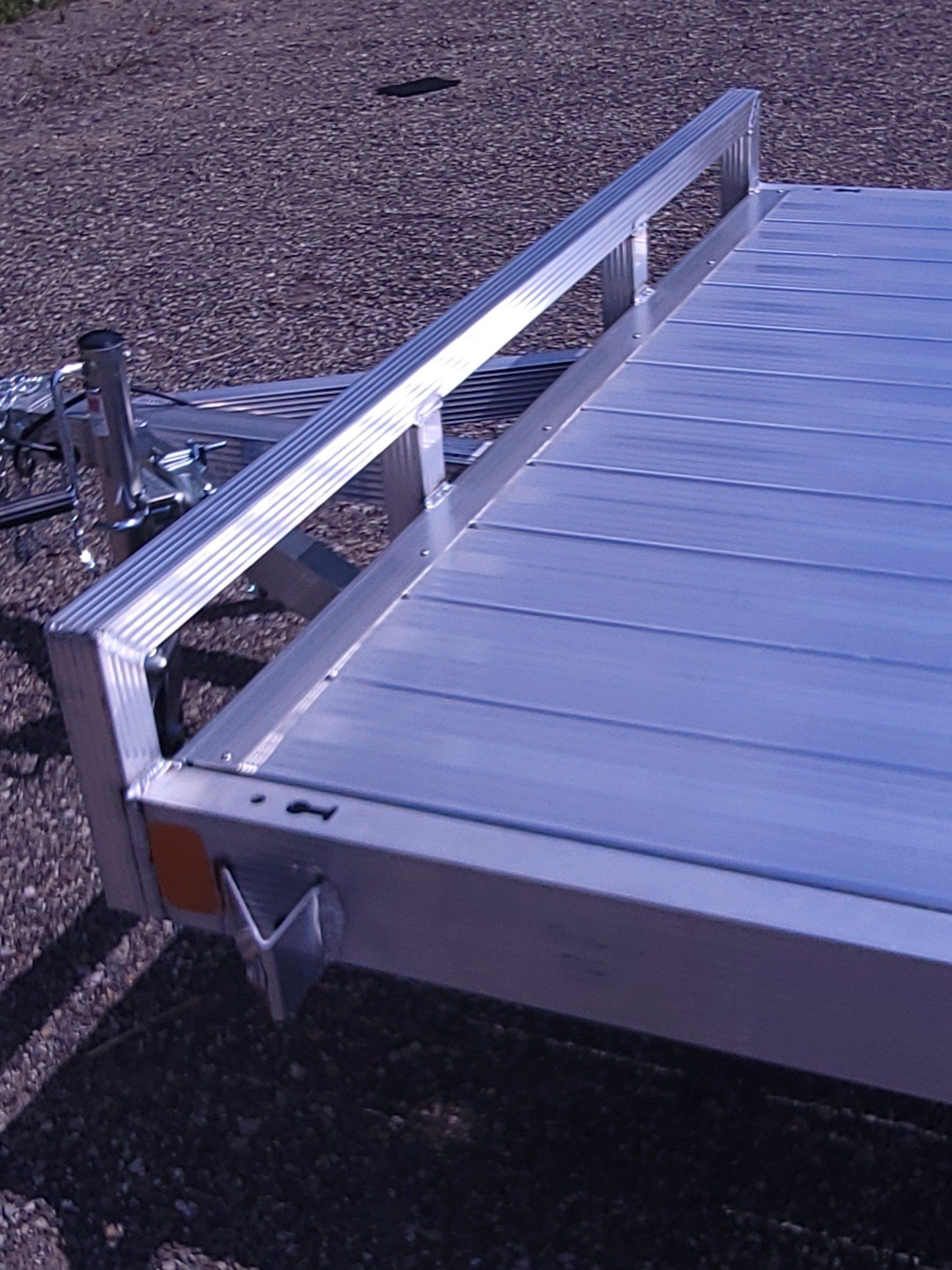

  • front rail on utility series

    Slide title

    FRONT RAIL SUPPORT

    Button

NOTABLE AUD MODEL FEATURES

Features you might not find on other brands:


  • 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing

  • Aluminum Through-Bolted Hinge - 2 piece bolt through hinge


  • Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position


  • 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling


  • Aluminum Fenders - corrosion resistant, lightweight, and durable


  • LED Lighting - Limited Lifetime LED warranty

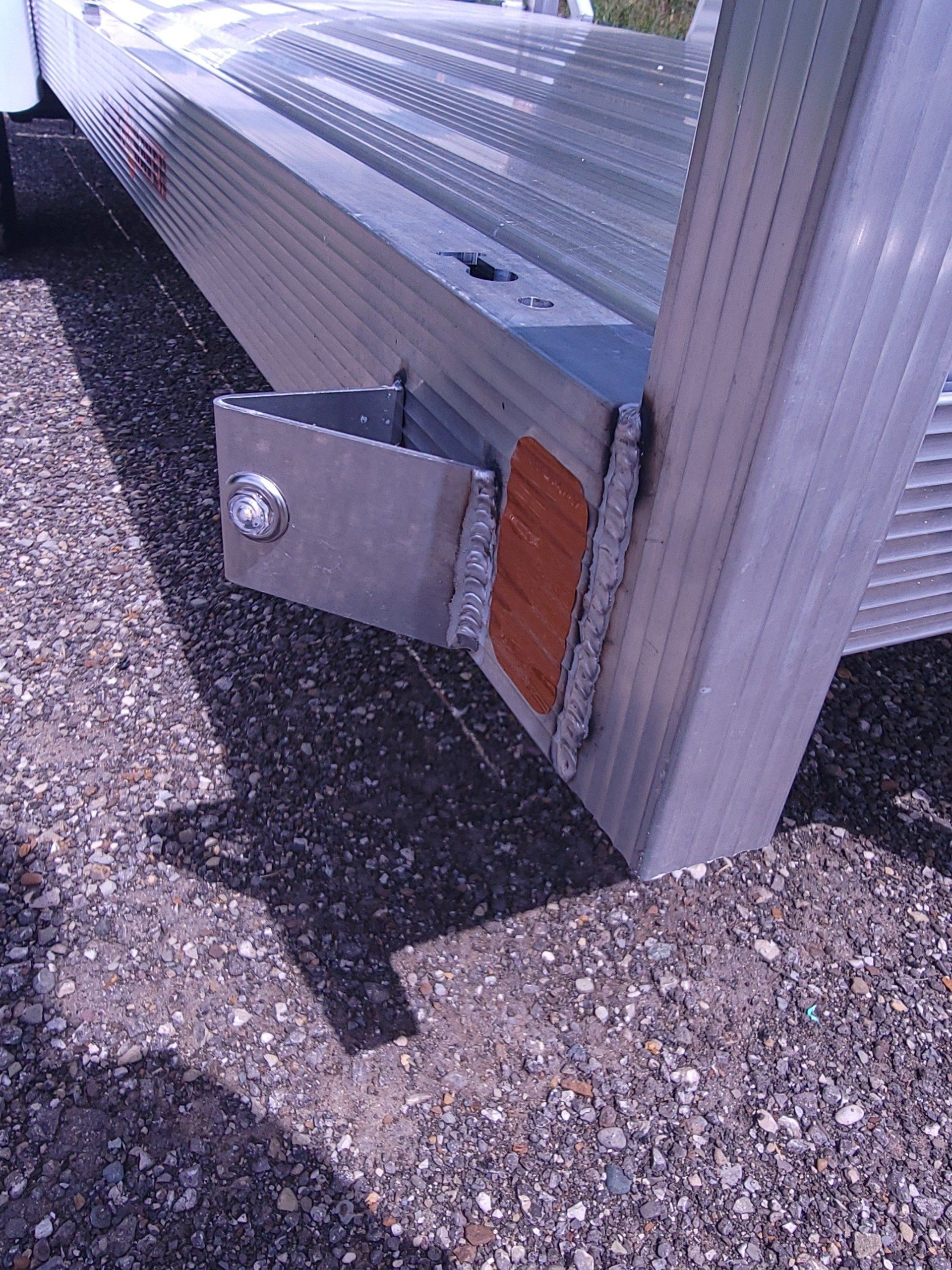

  • side marker lights for utility trailer

    Slide title

    LED LIGHTING

    Button

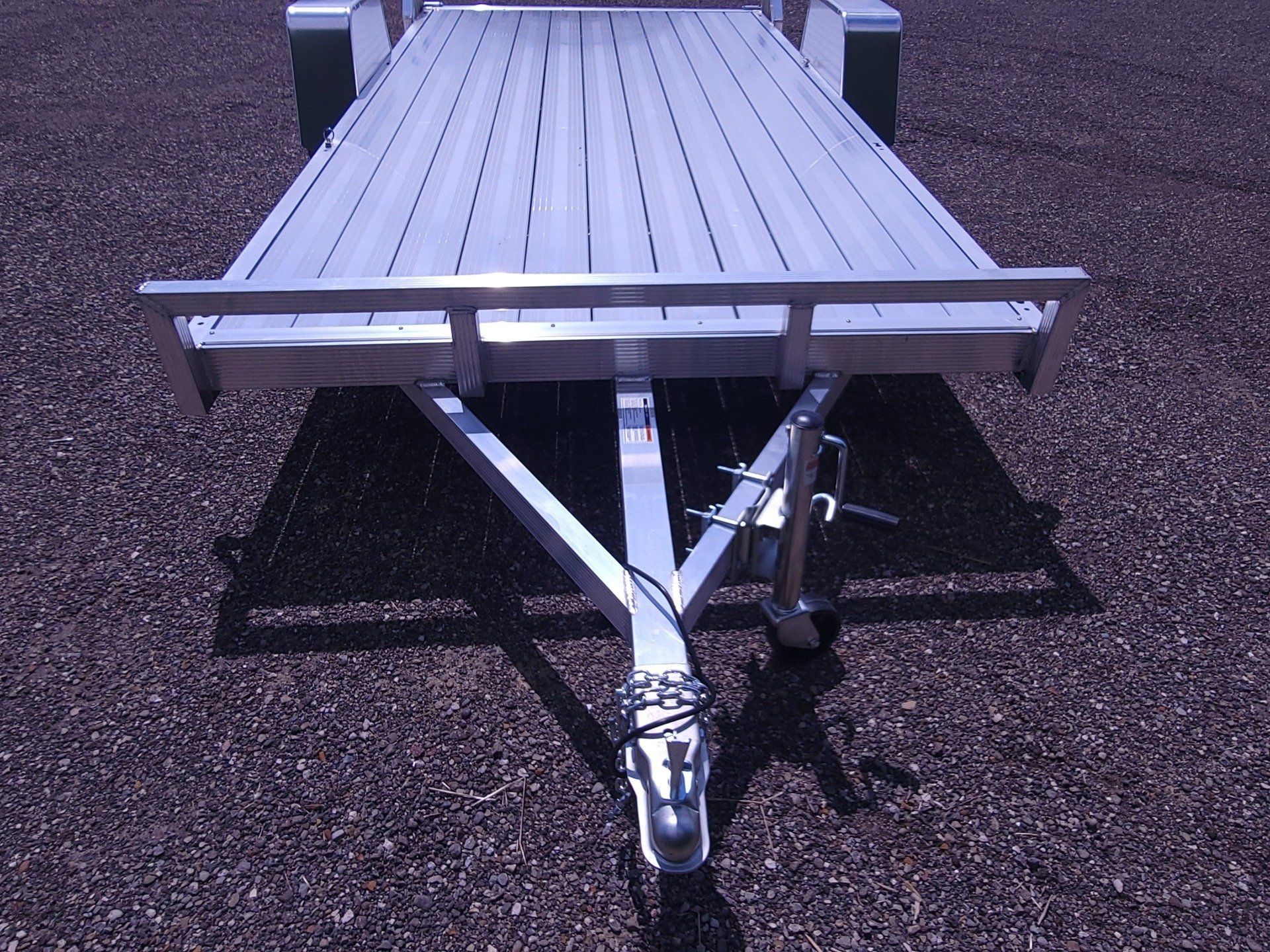

  • lightweight aluminum deck trailer with front rail

    Slide title

    1,200 LB SWIVEL JACK

    Button

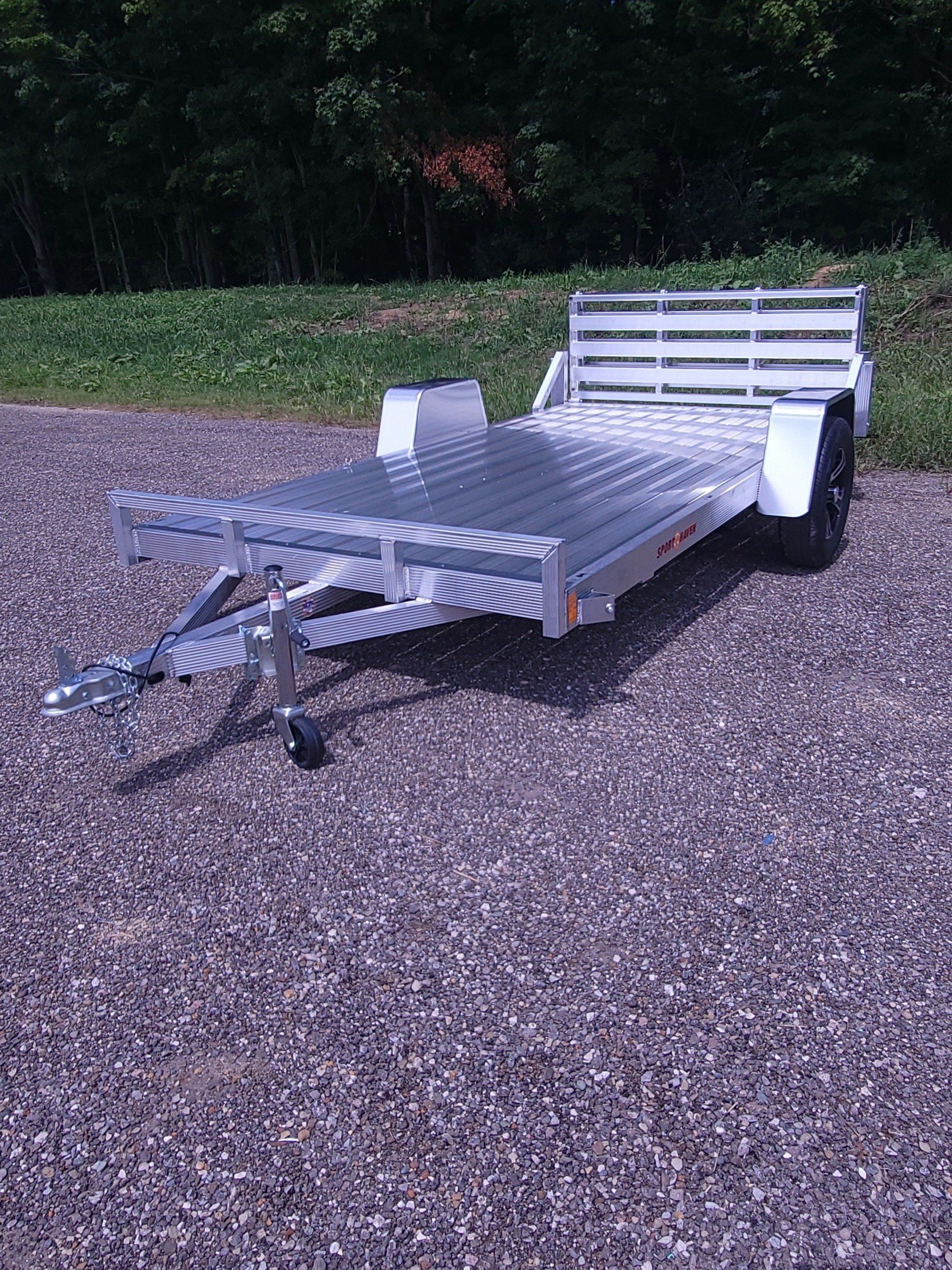

  • aud series trailers

    Slide title

    ALUMINUM FENDERS

    Button

Features you will not find on other brands:


  • Ratchet Strap Hook or Single Stud Tie-Down Receiver - versatile with multiple securement options.

  • Aluminum Decking - Anti slip aluminum plank decking


  • Rear, Removable 3-position Ramp - Bolt through design, locking snap locks position ramp into precut holes for multi position applications.


  • deluxe utility trailer led lights

    Slide title

    3 Position Ramp

    Button
  • folding multi position ramp

    Slide title

    Folding Ramps Available

    Button
  • tie down key ring

    Slide title

    Single Stud Tie Down

    Button
  • front rail on utility series

    Slide title

    Front Rail Support

    Button

NOTABLE AUD MODEL FEATURES

Features you might not find on other brands:


  • 1,200 lb. Swivel Jack with Wheel - Pull pin swings jack out of place for towing

  • Aluminum Through-Bolted Hinge - 2 piece bolt through hinge


  • Spring Loaded Latch Gate - quick pull snap lock latch with integrated pins to hold in open position or spring loaded to hold in closed position


  • 15" Radial Tires - better traction, longer tread life, smooth ride for stability and handling


  • Aluminum Fenders - corrosion resistant, lightweight, and durable


  • LED Lighting - Limited Lifetime LED warranty
  • side marker lights for utility trailer

    Slide title

    LED LIGHTING

    Button
  • lightweight aluminum deck trailer with front rail

    Slide title

    1,200 LB SWIVEL JACK

    Button
  • aud series trailers

    Slide title

    ALUMINUM FENDERS

    Button

AUD MODEL CONSTRUCTION

AUD MODEL CONSTRUCTION

Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum



  • Jig Welded Construction for Consistency, Quality


  • Fluted Aluminum Tube Tongues and Tongue Supports


  • Fluted Aluminum Tube Frame Crossmembers (24" On-Center)


  • 2" Wide Aluminum Tube Top Rail


  • Aluminum Tube Fender Supports


  • welder welding trailer

    Slide title

    Jig Welded Construction

    Button
  • swivel tongue jack on a utility trailer

    Slide title

    Fluted Aluminum Tube Tongues and Tongue Supports

    Button
  • trailer frame

    Slide title

    Fluted Aluminum Tube Frames and Cross Members

    Button
  • aluminum utility trailer frame

    Slide title

    2" Wide Top Deck Rail, Tube Top Deck Rail Uprights

    Button
  • aluminum double hollow tube

    Slide title

    Double Hollow Tube Frame - 18' & up

    Double Hollow Tongue - all tandems

    Button

Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum


  • Jig Welded Construction for Consistency, Quality


  • Fluted Aluminum Tube Tongues and Tongue Supports


  • Fluted Aluminum Tube Frame Crossmembers (24" On-Center)


  • 2" Wide Aluminum Tube Top Rail


  • Aluminum Tube Fender Supports


AUD MODEL SINGLE AXLE TRAILER SPECIFICATIONS

AUD MODEL SINGLE AXLE TRAILER SPECIFICATIONS

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" x 5" Double Hollow Side Frame (2" x 4" - 10' & Under Models)
  • 6" Slip Resistant Aluminum Decking
  • All Aluminum 4' Rear Ramp

Component Specs

  • LED Lights
  • 15" Aluminum Wheels
  • ST207/75R15C Radial Tires
  • 3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
  • 3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
  • 3,500 lb Capacity Zinc Plated Couplers
  • 3,200 lb Capacity, 27" Safety Chains
  • 1,200 lb capacity Swivel Wheel Jack

Misc Specs

  • 4-Way Flat Wiring Harness
  • 2" Ball
  • 14" Hitch Height
  • 18" Deck Height
  • 6.5" Front Rail Height
  • 2,990 lb Gross Vehicle Weight Rating (GVWR)

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" x 5" Double Hollow Side Frame (2" x 4" - 10' & Under Models)
  • 6" Slip Resistant Aluminum Decking
  • All Aluminum 4' Rear Ramp


Component Specs

  • LED Lights
  • 15" Aluminum Wheels
  • 15" Radial Tires
  • 3,500 lb Capacity Torsion Axles - 5' &6' Wide Models
  • 3500 lb Capacity Double Eye Spring Axles - 7' Wide Models
  • 3,500 lb Capacity Zinc Plated Couplers
  • 3,200 lb Capacity, 27" Safety Chains
  • 1,200 lb capacity Swivel Wheel Jack

Misc Specs

  • 4-Way Flat Wiring Harness
  • 2" Ball
  • 14" Hitch Height
  • 18" Deck Height
  • 6.5" Front Rail Height
  • 2,990 lb Gross Vehicle Weight Rating (GVWR)

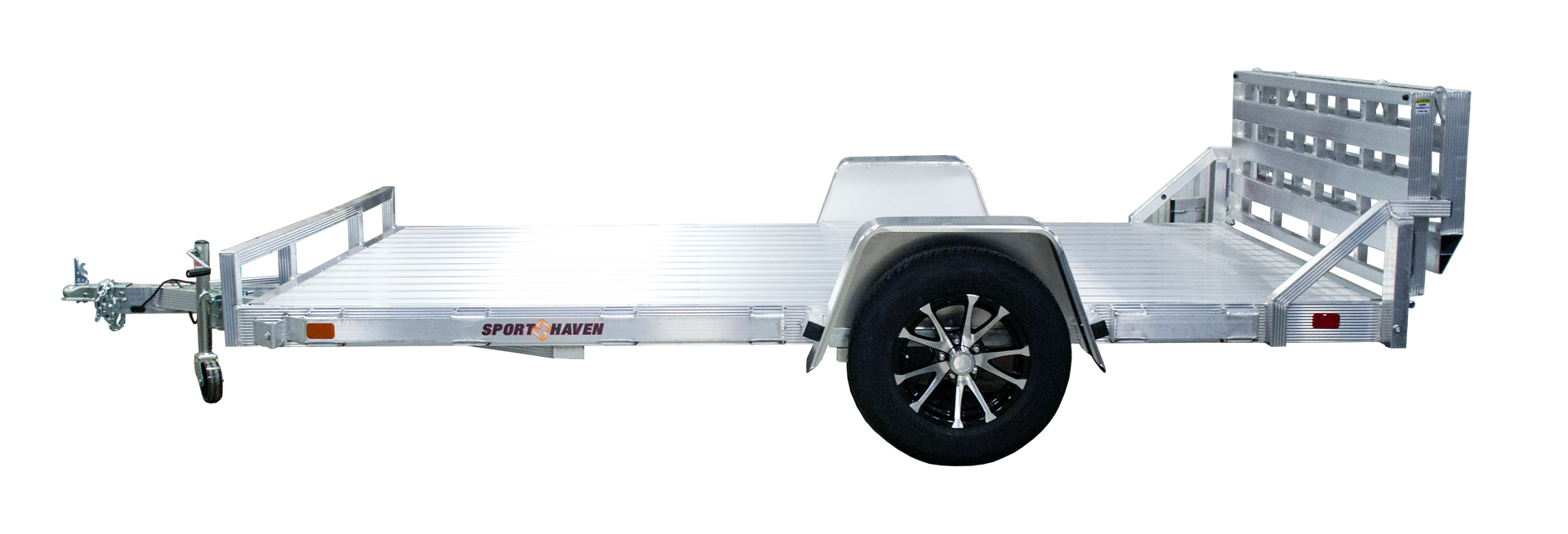

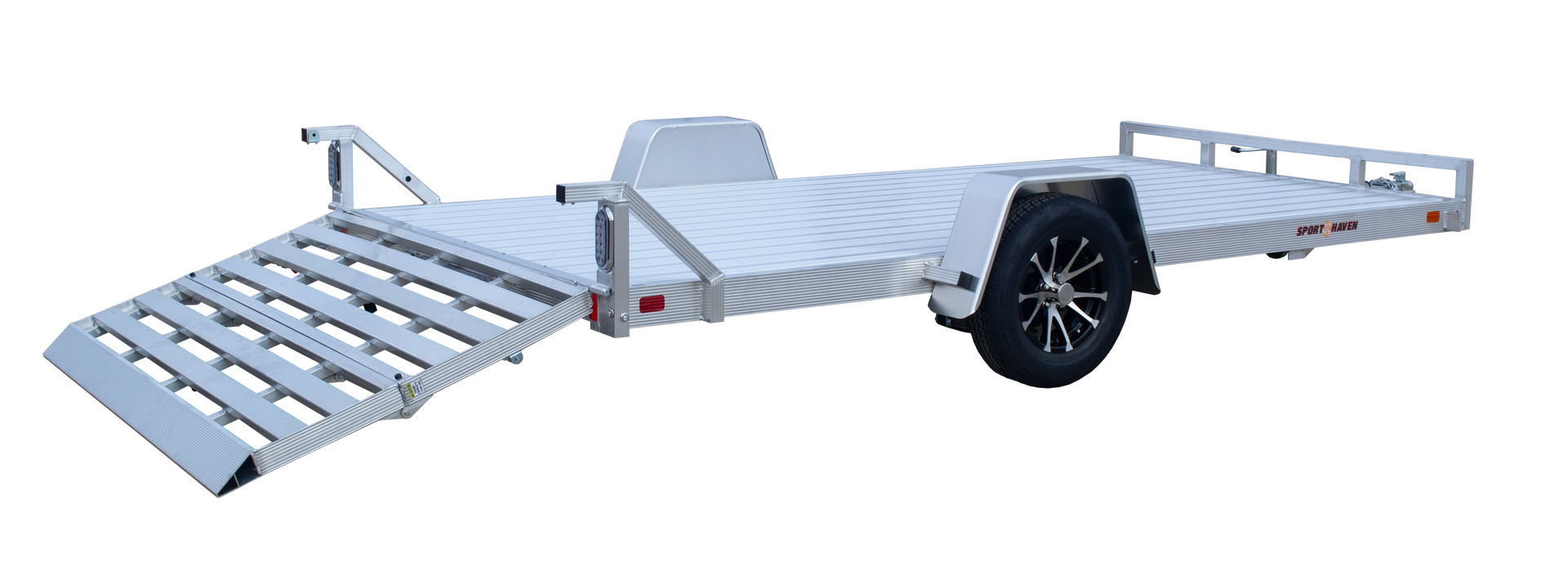

MODEL AU508D AU510D AU512D AU514D AU610D AU612D AU614D AU712D AU714D
Deck L x W 96” x 60” 120” x 60” 144” x 60” 168” x 60” 120” x 72” 144” x 72” 168” x 72” 144" x 83” 168" x 83"
Overall L x W 138” x 78” 162” x 78” 186” x 78” 210” x 78” 162” x 90” 186” / 90” 210” x 90” 195” x 101” 219" x 101"
Tongue* (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 4" (1) 3" x 4" (1) 3" x 4"
Tongue Supports* (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted
Curb Weight 440 lbs 460 lbs 520 lbs 550 lbs 520 lbs 565 lbs 616 lbs 620 lbs 660 lbs
Payload Capacity 2,560 lbs 2,440 lbs 2,480 lbs 2,450 lbs 2,480 lbs 2,425 lbs 2,374 lbs 2,380 lbs 2,340 lbs
Standard 4' Ramp Wieght Capacity*** 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs
Pdf Download 🖨️ 🖨️ 🖨️ 🖨️ 🖨️ 🖨️

* Fluted Aluminum Tubing is stronger and more scratch resistant than regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.


MODEL AU508D AU510D AU512D AU514D AU610D AU612D AU614D AU712D AU714D
Deck L x W 96” x 60” 120” x 60” 144” x 60” 168” x 60” 120” x 72” 144” x 72” 168” x 72” 144" x 83” 168" x 83"
Overall L x W 138” x 78” 162” x 78” 186” x 78” 210” x 78” 162” x 90” 186” / 90” 210” x 90” 195” x 101” 219" x 101"
Tongue* (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 3" Fluted (1) 3" x 4" (1) 3" x 4" (1) 3" x 4"
Tongue Supports* (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails* (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Middle** (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted (5) 1.75" x 3" Fluted (6) 1.75" x 3" Fluted
Curb Weight 440 lbs 460 lbs 520 lbs 550 lbs 520 lbs 565 lbs 616 lbs 620 lbs 660 lbs
Payload Capacity 2,560 lbs 2,440 lbs 2,480 lbs 2,450 lbs 2,480 lbs 2,425 lbs 2,374 lbs 2,380 lbs 2,340 lbs
Standard 4' Ramp Wieght Capacity*** 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs 1,500 lbs
Pdf Download 🖨️ 🖨️ 🖨️ 🖨️ 🖨️ 🖨️

* Fluted Aluminum Tubing is stronger and more scratch resistant than regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

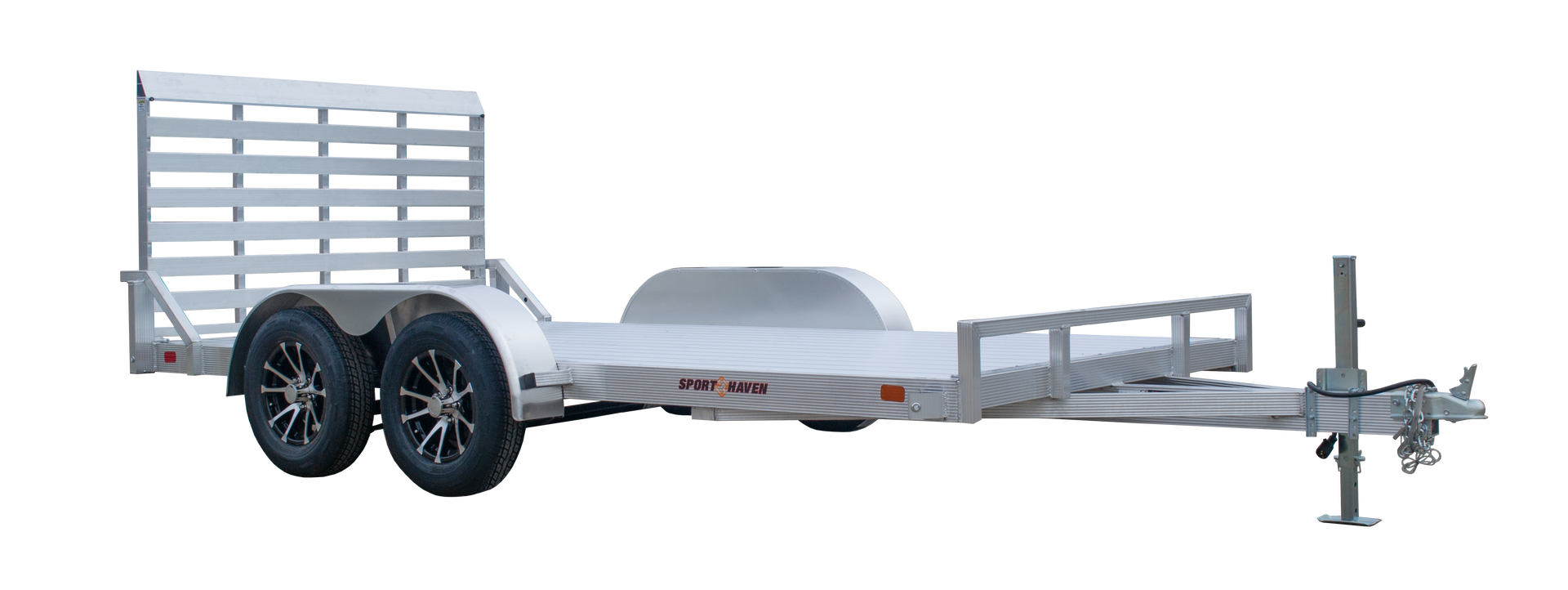

AUD MODEL TANDEM AXLE TRAILER SPECIFICATIONS

AUD MODEL TANDEM AXLE TRAILER SPECIFICATIONS

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" x 2" Front Top Deck Rail
  • 6"  Slip Resistant Aluminum Decking
  • All Aluminum 4' Rear Ramp

Construction Specs

  • LED Lights
  • 15" Aluminum Wheels
  • ST207/75R15C Radial Tires
  • 3,500 lb Capacity Axles
  • 4" Drop Axles
  • Double Eye Spring Suspension
  • 7,000 lb Capacity Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Zinc Plated Safety Chains
  • 2,500 lb capacity Zinc Plated Pad Jack

Misc Specs

  • 7-Way Round Wiring Harness
  • 2" Ball Compatible
  • Electric Brakes On Both Axles
  • 14" Hitch Height
  • 18" Deck Height
  • 6.5" Front Rail Height
  • 7,000 lb Gross Vehicle Weight Rating (GVWR)

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports, Frame & Crossmembers
  • 2" x 2" Front Top Deck Rail
  • 6"  Slip Resistant Aluminum Decking
  • All Aluminum 4' Rear Ramp


Construction Specs

  • LED Lights
  • 15" Aluminum Wheels
  • 15" Radial Tires
  • 3,500 lb Capacity Axles
  • 4" Drop Axles
  • Double Eye Spring Suspension
  • 7,000 lb Capacity Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Zinc Plated Safety Chains
  • 2,500 lb capacity Zinc Plated Pad Jack

Misc Specs

  • 7-Way Round Wiring Harness
  • 2" Ball Compatible
  • Electric Brakes On Both Axles
  • 14" Hitch Height
  • 18" Deck Height
  • 7,000 lb Gross Vehicle Weight Rating (GVWR)

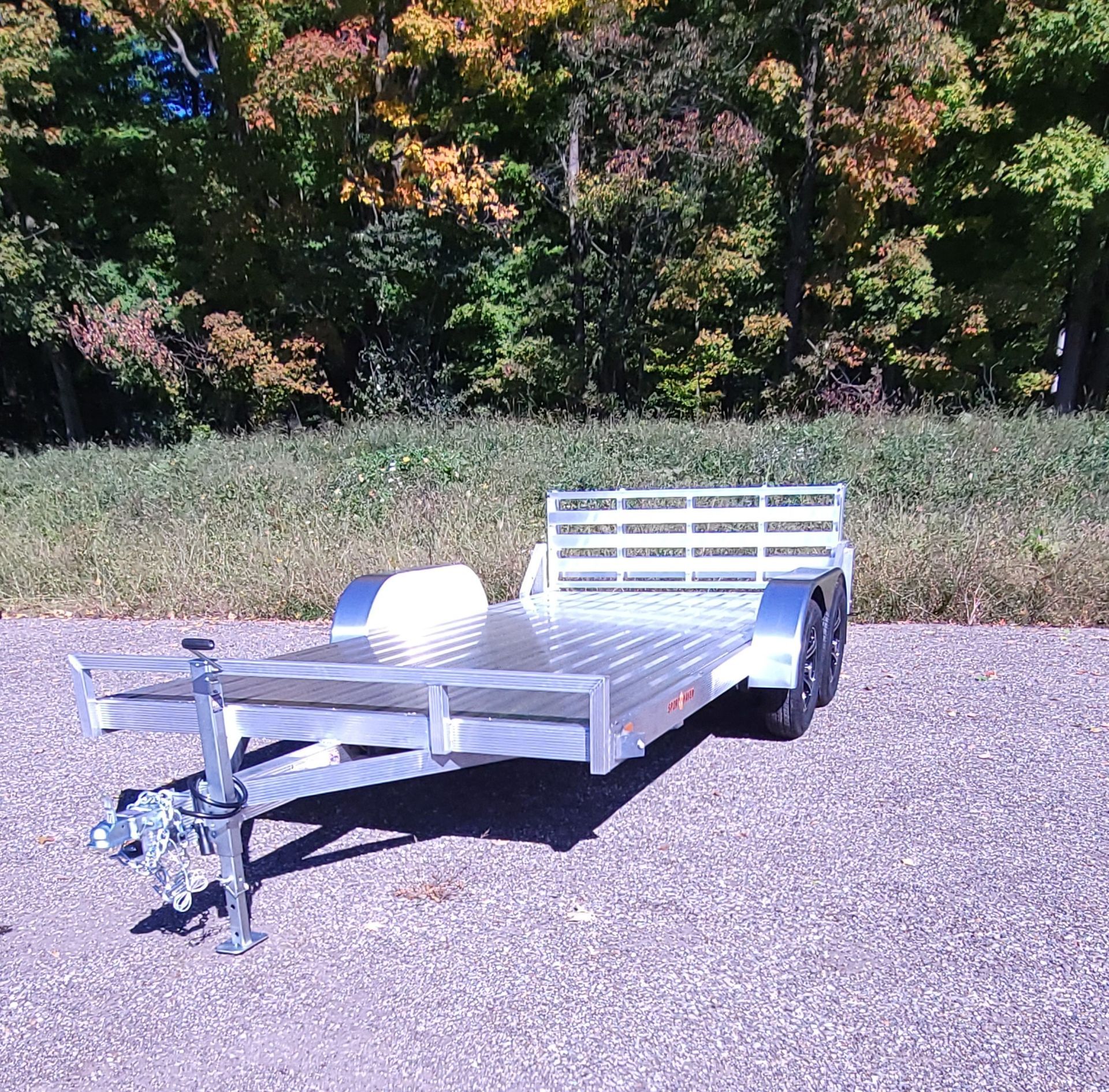

MODEL AU714TD AU716TD
Deck L x W 168” x 83” 192” x 83”
Overall L x W 219” x 101” 240” x 101”
Tongue (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails (2) 2" x 5" Fluted (2) 2" x 5" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Above Tongue (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted
Frame Crossmembers* Middle (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted
Curb Weight 940 lbs 980 lbs
Payload Capacity 5,880 lbs 5,840 lbs
Standard 4' Ramp Wight Capacity*** 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs
Stabilizer Jacks Optional Optional
PDF Download 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.

MODEL AU714TD AU716TD
Deck L x W 168” x 83” 192” x 83”
Overall L x W 219” x 101” 240” x 101”
Tongue (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports (2) 1.75" x 3" Fluted (2) 1.75" x 3" Fluted
Frame Outer Rails (2) 2" x 5" Fluted (2) 2" x 5" Fluted
Frame Crossmembers* Front & Rear (2) 3" x 4" Fluted (2) 3" x 4" Fluted
Frame Crossmembers* Above Tongue (3) 1.75" x 3" Fluted (3) 1.75" x 3" Fluted
Frame Crossmembers* Middle (3) 1.75" x 3" Fluted (4) 1.75" x 3" Fluted
Curb Weight 940 lbs 980 lbs
Payload Capacity 5,880 lbs 5,840 lbs
Standard 4' Ramp Wight Capacity*** 1,750 lbs 1,750 lbs
Optional 4' Folding Ramp Weight Capacity*** 1,500 lbs 1,500 lbs
Stabilizer Jacks Optional Optional
PDF Download 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

*** When considering to overall weight of an ATV/UTV, remember that roughly 1/2 the weight will be on the ramp at any one given time. The other 1/2 will be on the trailer or on the ground.
