HEAVY DUTY UTILITY TRAILERS - AHD MODELS

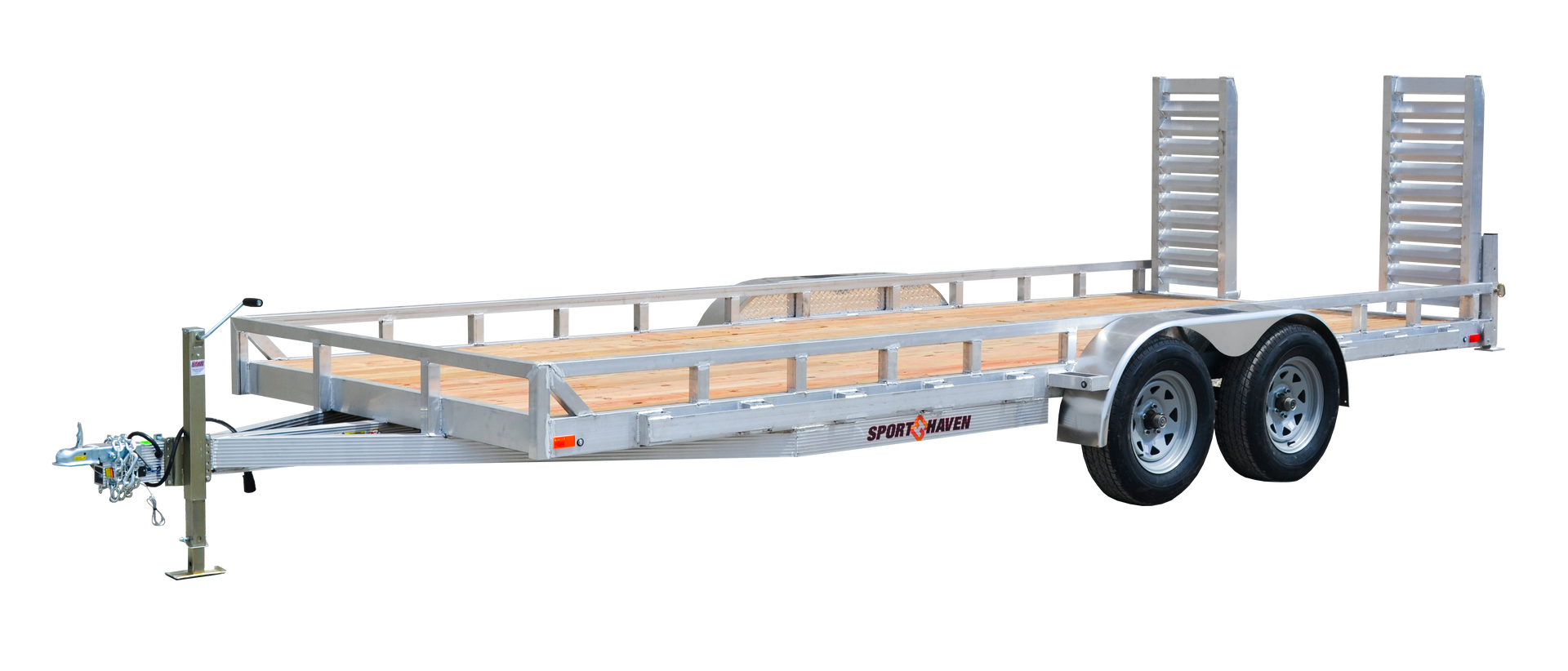

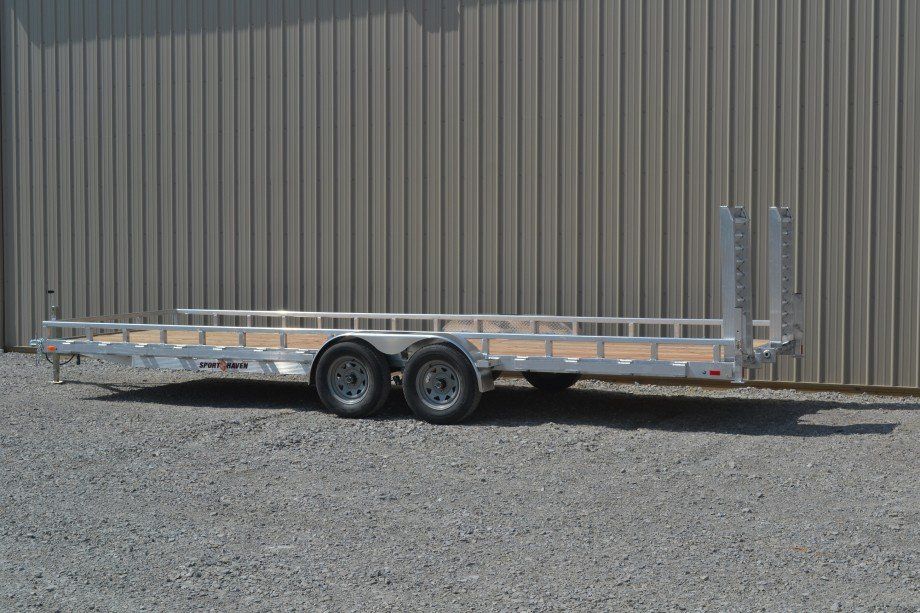

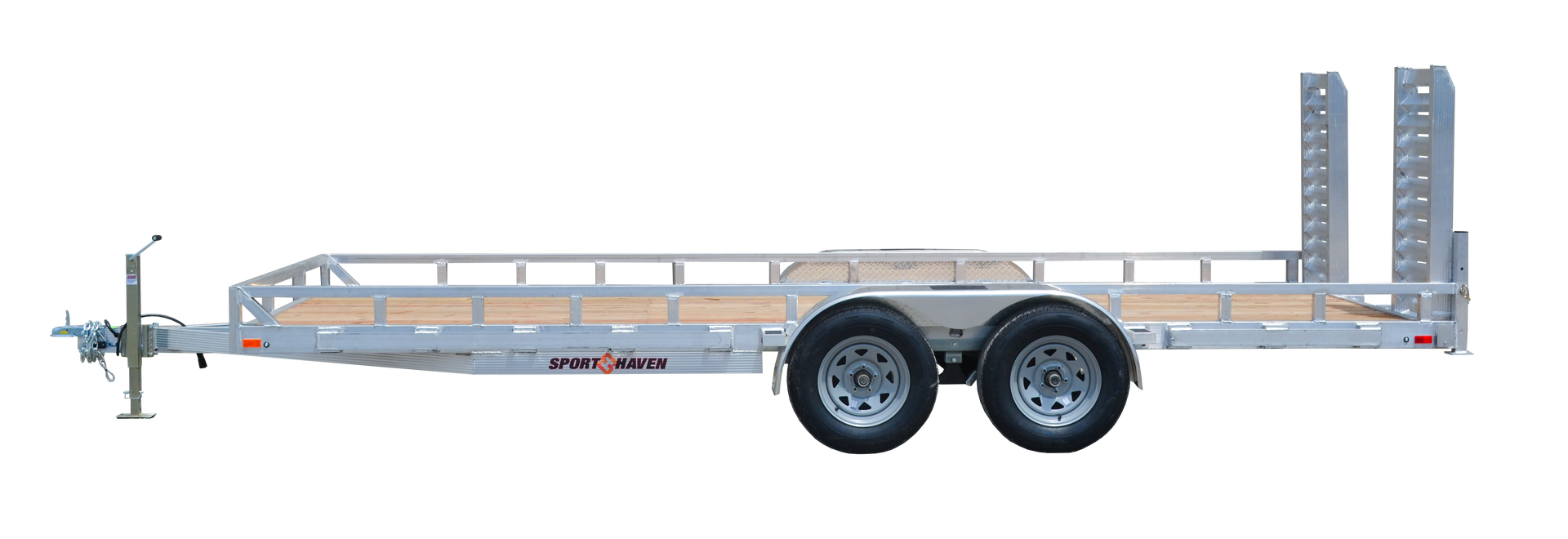

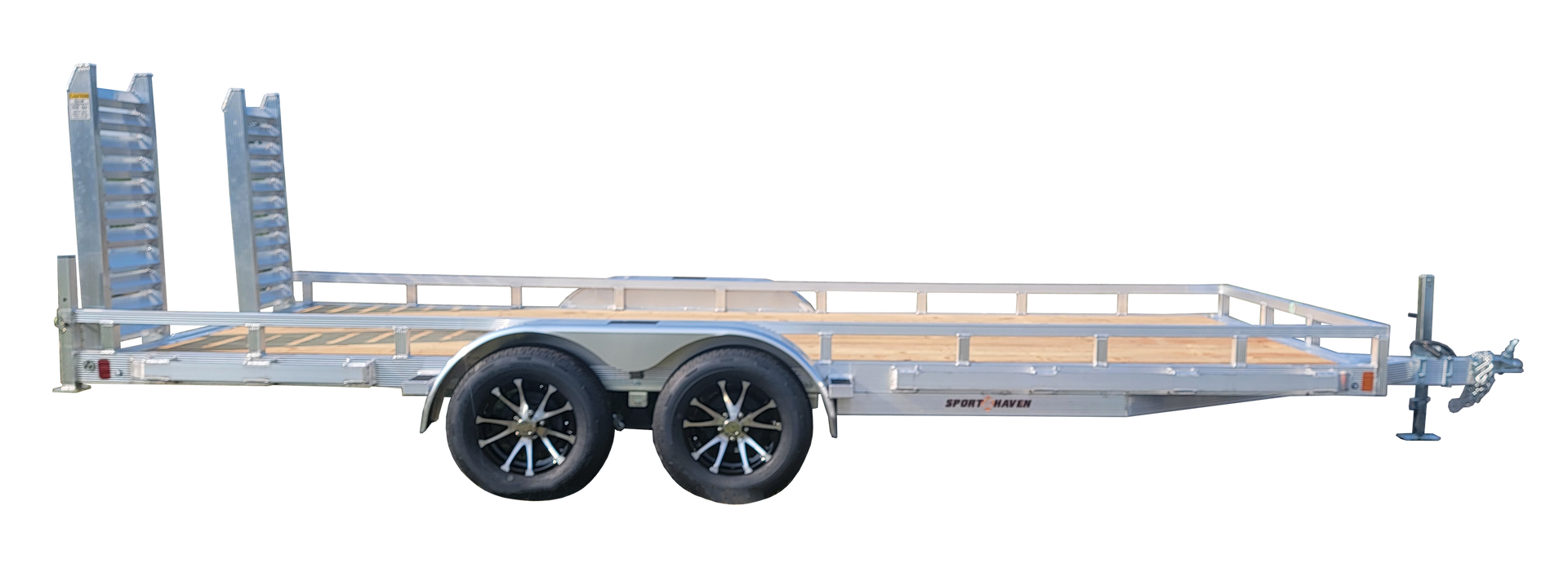

ALUMINUM HEAVY DUTY UTILITY TRAILERS - AHD MODELS

AHD MODEL FEATURES

AHD MODEL OPTIONS

AHD MODEL FEATURES

AHD MODEL OPTIONS

  • Heavy Duty Adjustable Width Loading Ramps


  • Rear Ramp Drop Pad Stabilizers


  • Stake Pockets with 3" x .25" Bar Stock Rub Rail


  • 2" x 6" ProWood Dura Color Decking

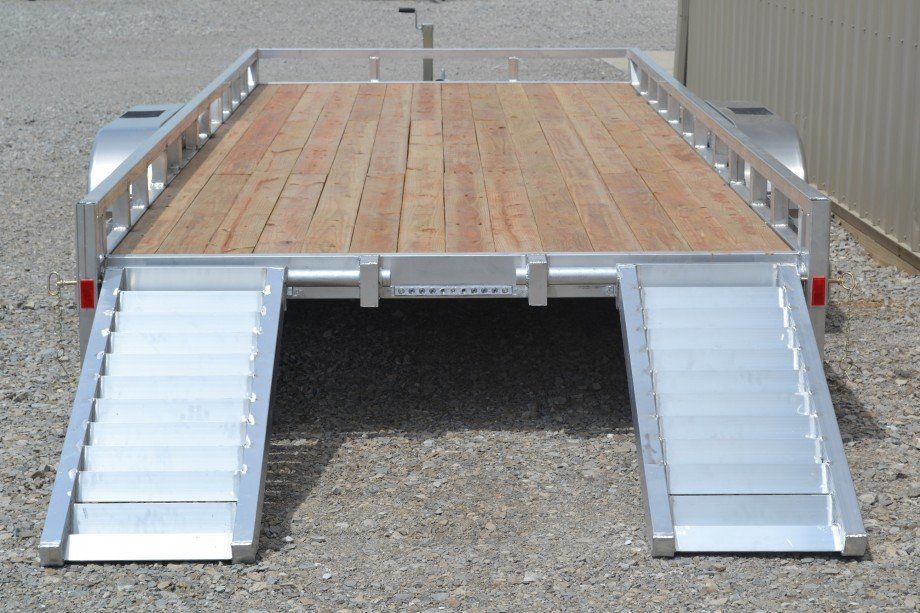

  • heavy duty wood deck trailer

    Slide title

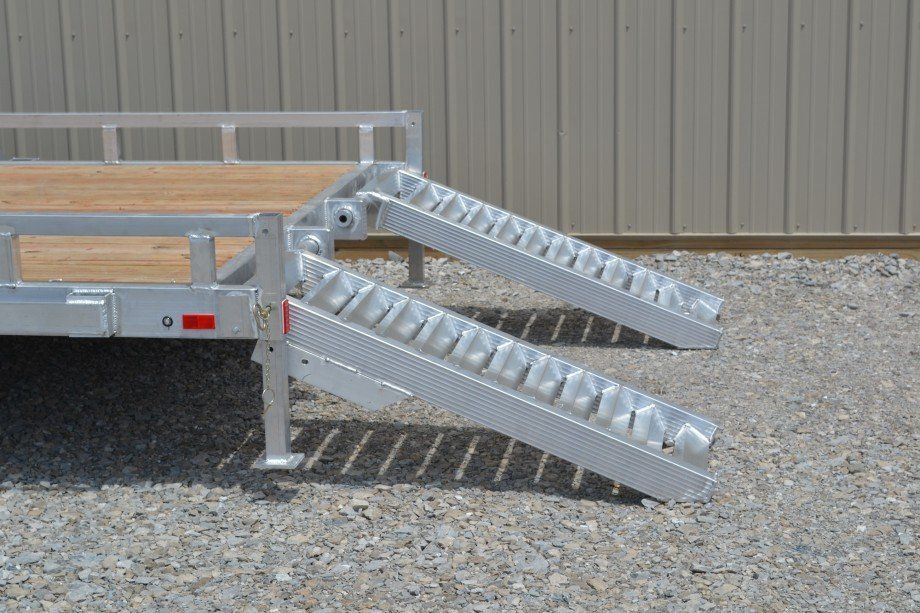

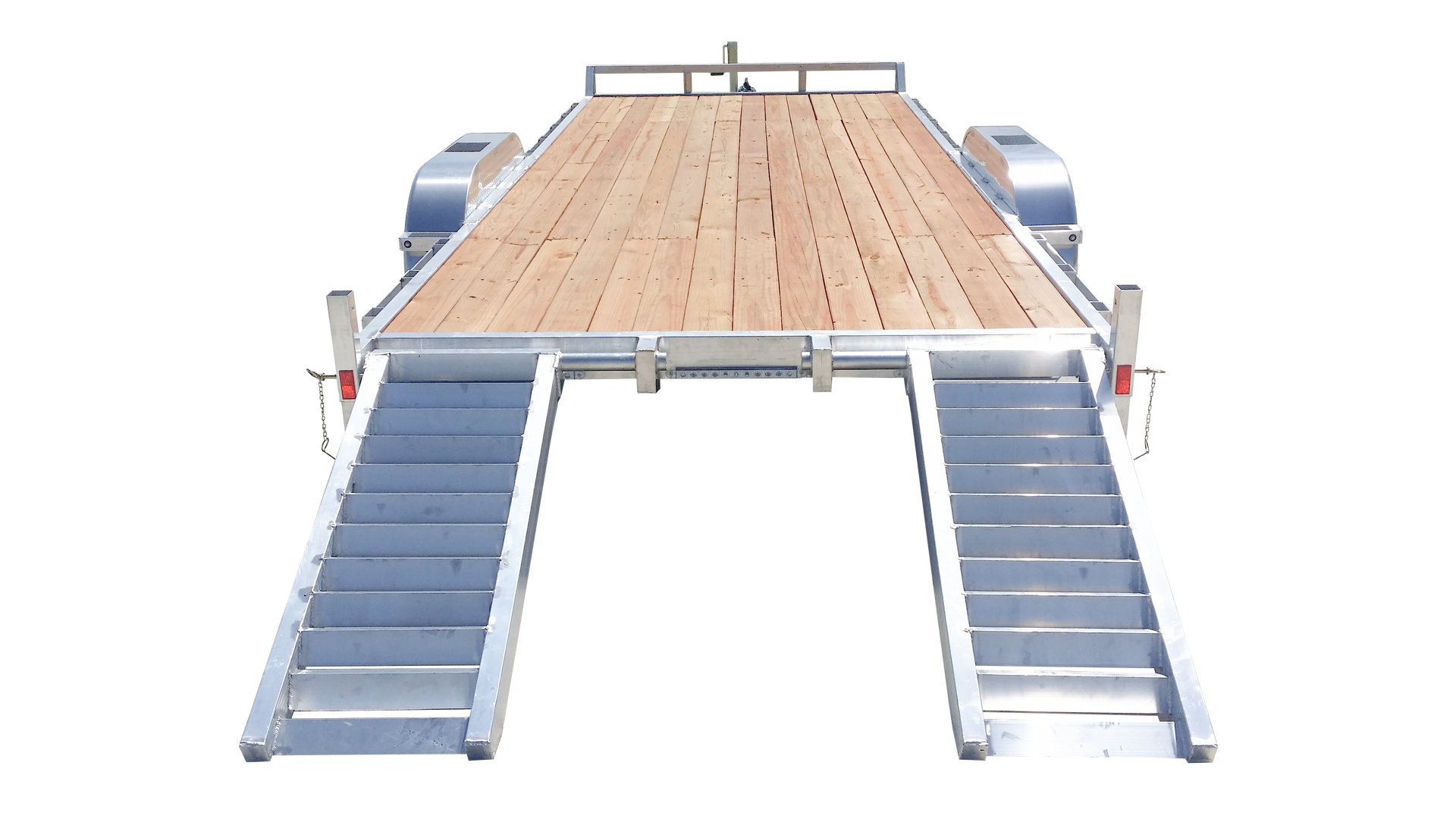

    Heavy Duty Adjustable Width Loading Ramps

    Button

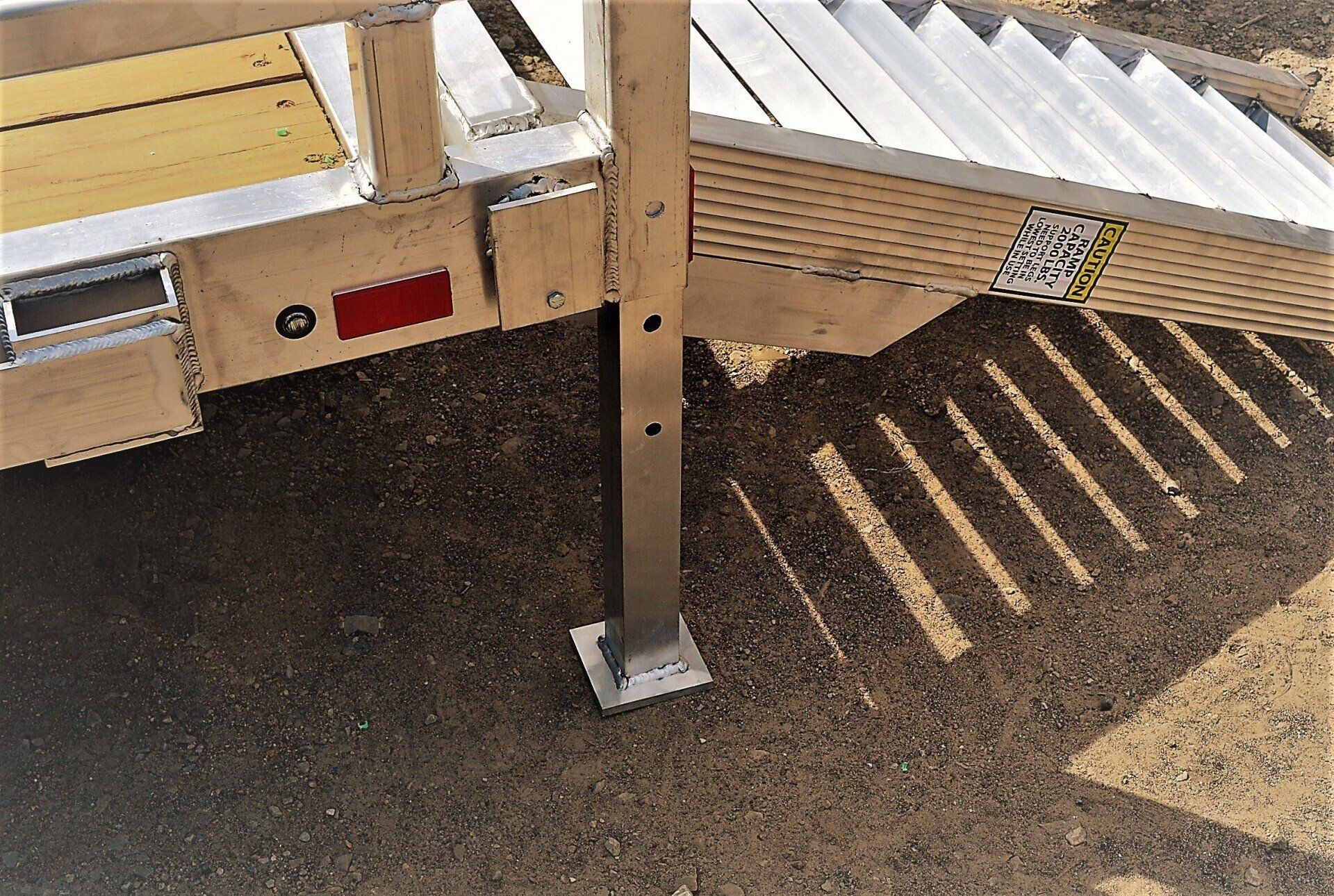

  • drop pad stabilizer on trailer

    Slide title

    Rear Ramp Drop Pad Stabilizers

    Button

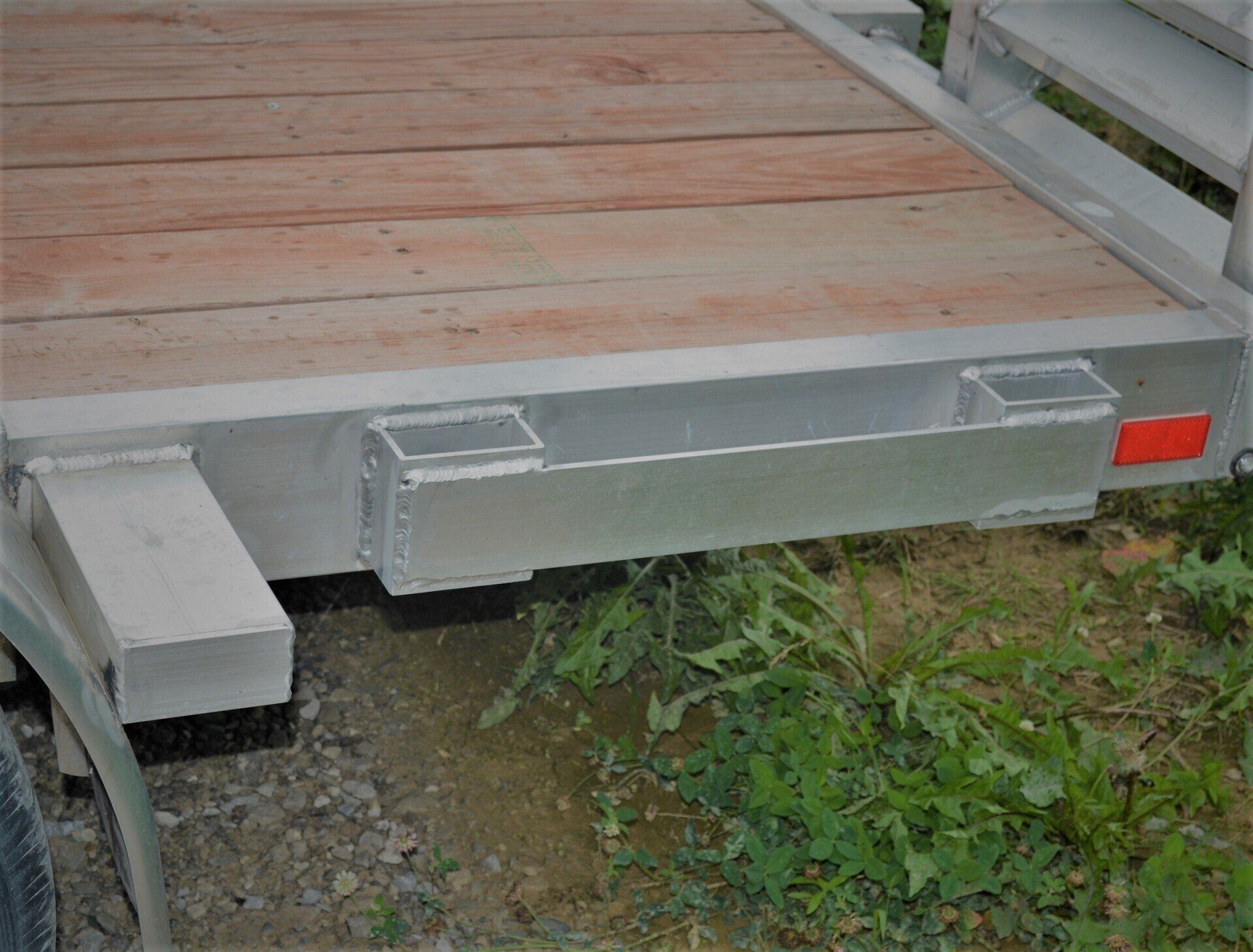

  • rub rails and stake pockets

    Slide title

    Stake Pockets With Rub Rail

    Button

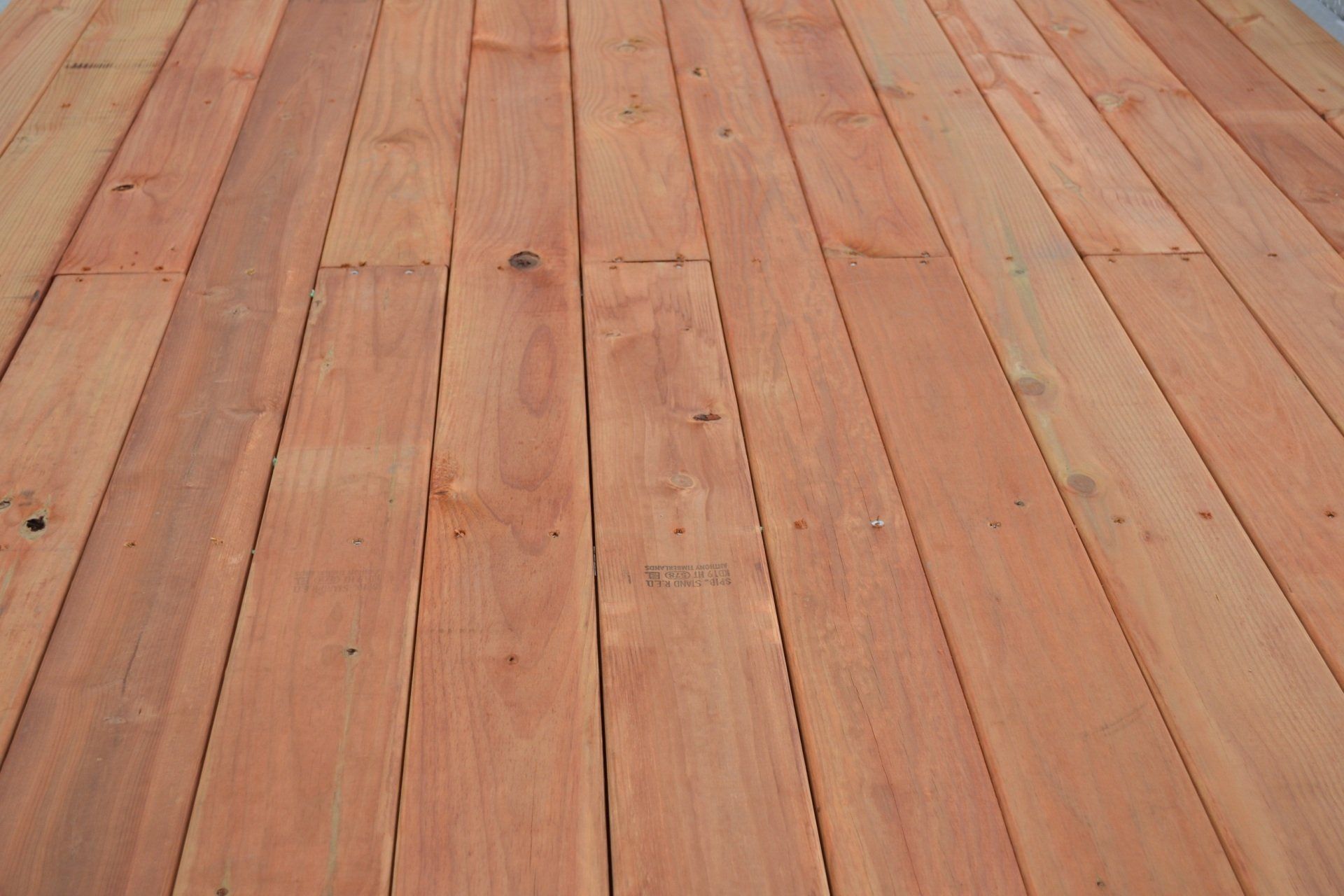

  • wood decking on trailer

    ProWood Dura Color Decking

    Button

AHD MODEL OPTIONS

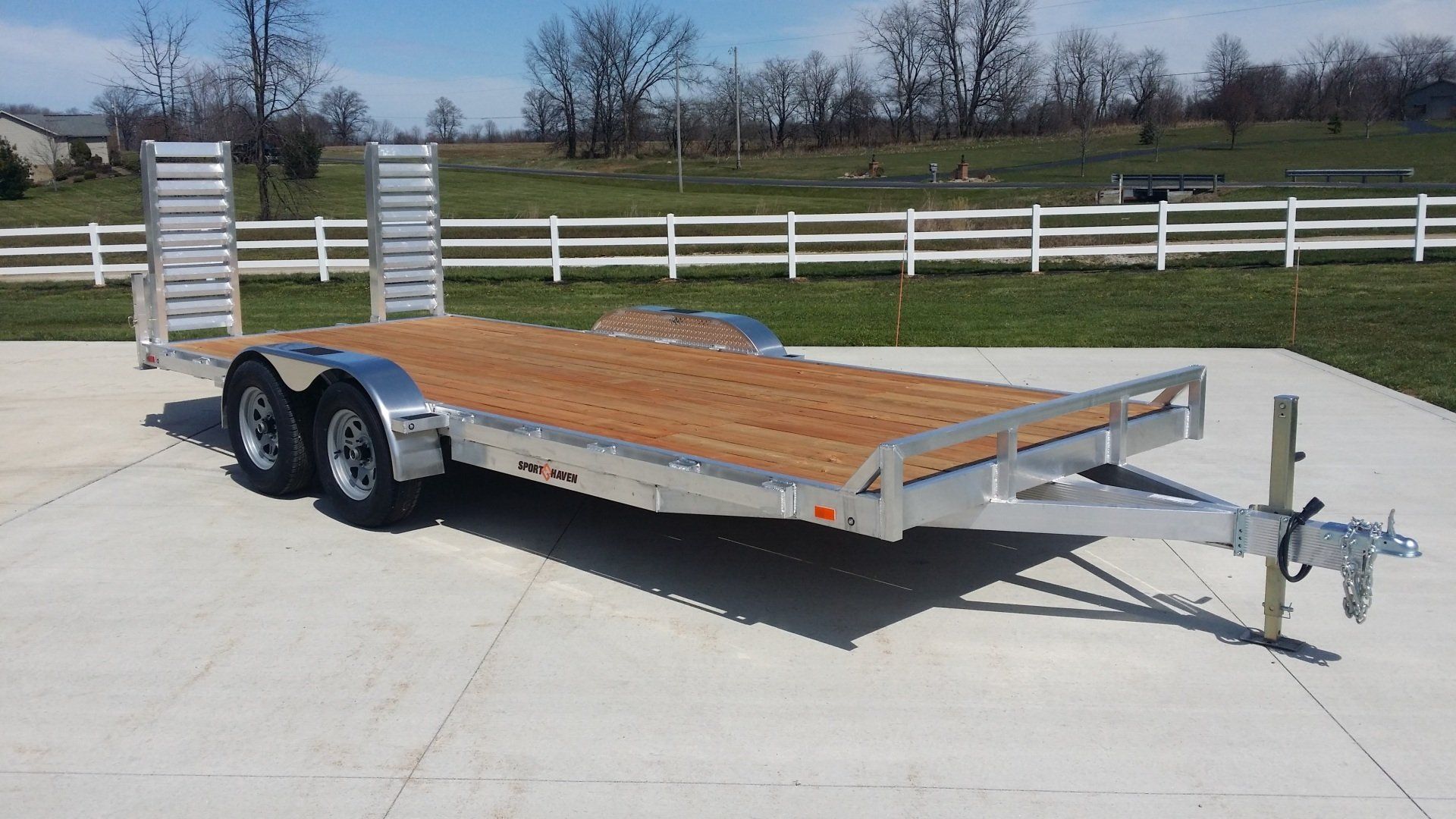

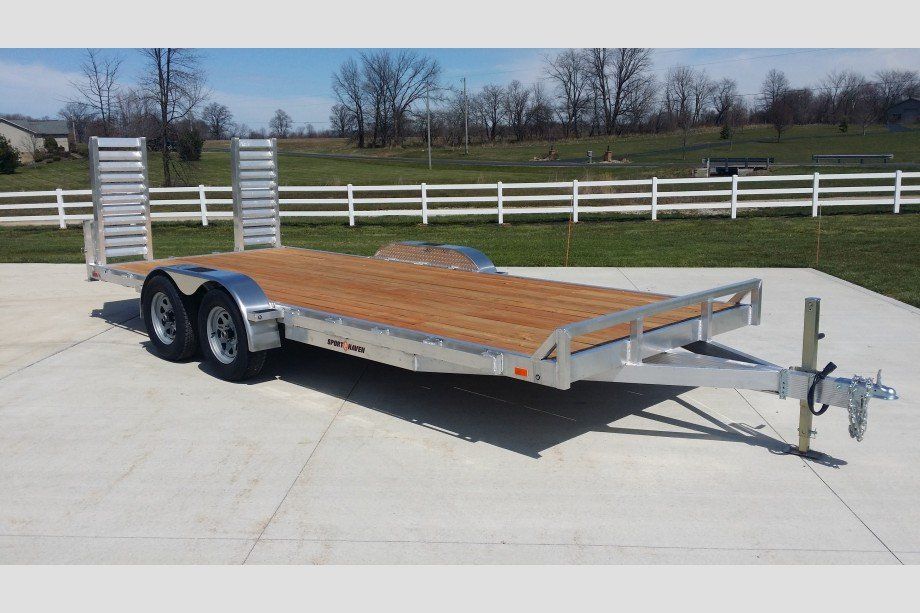

flat bed trailer with ramps

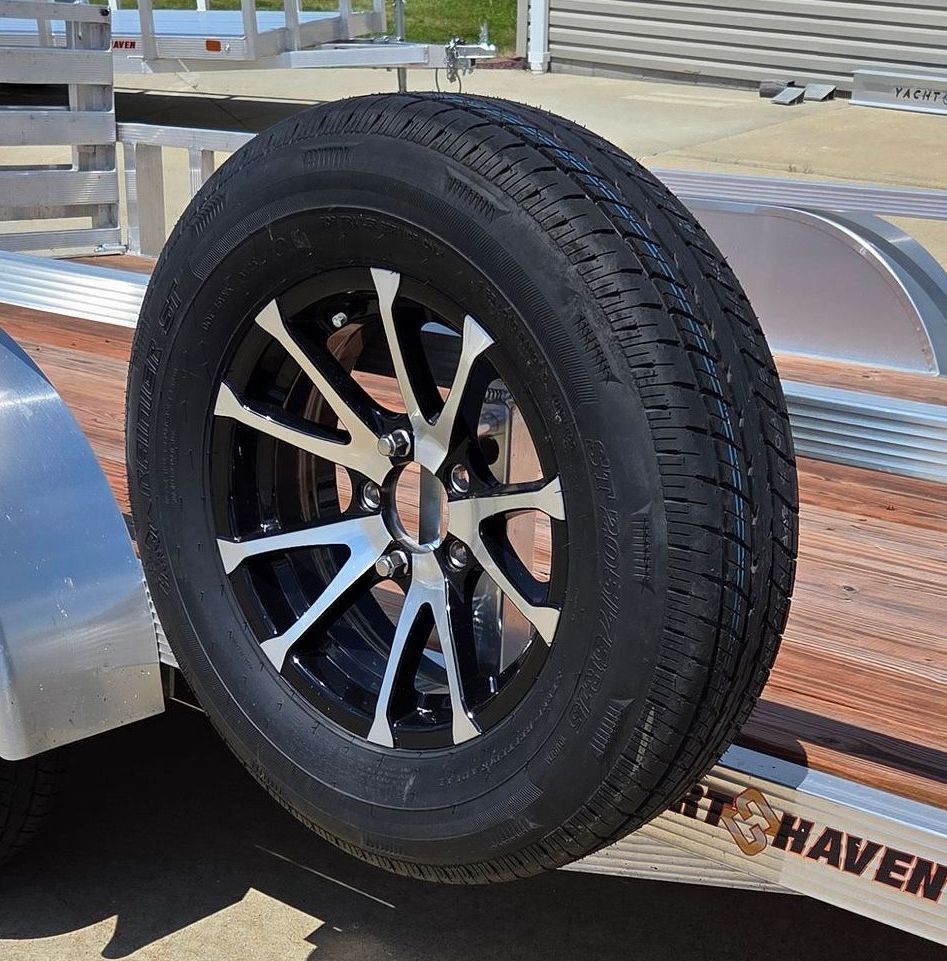

aluminum spare tire
  • Heavy Duty Adjustable Width Loading Ramps


  • Rear Ramp Drop Pad Stabilizers


  • Stake Pockets with 3" x .25" Bar Stock Rub Rail


  • 2" x 6" ProWood Dura Color Decking
  • heavy duty wood deck trailer

    Slide title

    Heavy Duty Adjustable Width Loading Ramps

    Button
  • drop pad stabilizer on trailer

    Slide title

    Rear Ramp Drop Pad Stabilizers

    Button
  • rub rails and stake pockets

    Slide title

    Stake Pockets With Rub Rail

    Button
  • wood decking on trailer

    ProWood Dura Color Decking

    Button
flat bed trailer with ramps
aluminum spare tire

AHD MODEL CONSTRUCTION

AHD MODEL CONSTRUCTION

  • Jig Welded Construction for Consistency, Quality


  • Welded Top Deck Aluminum Tube Uprights and Top Rails for Additional Strength


  • 2" X 5" X .25" Double Hollow Frame Side Rails


  • 3500 lb Dexter Axles w/Leaf Springs

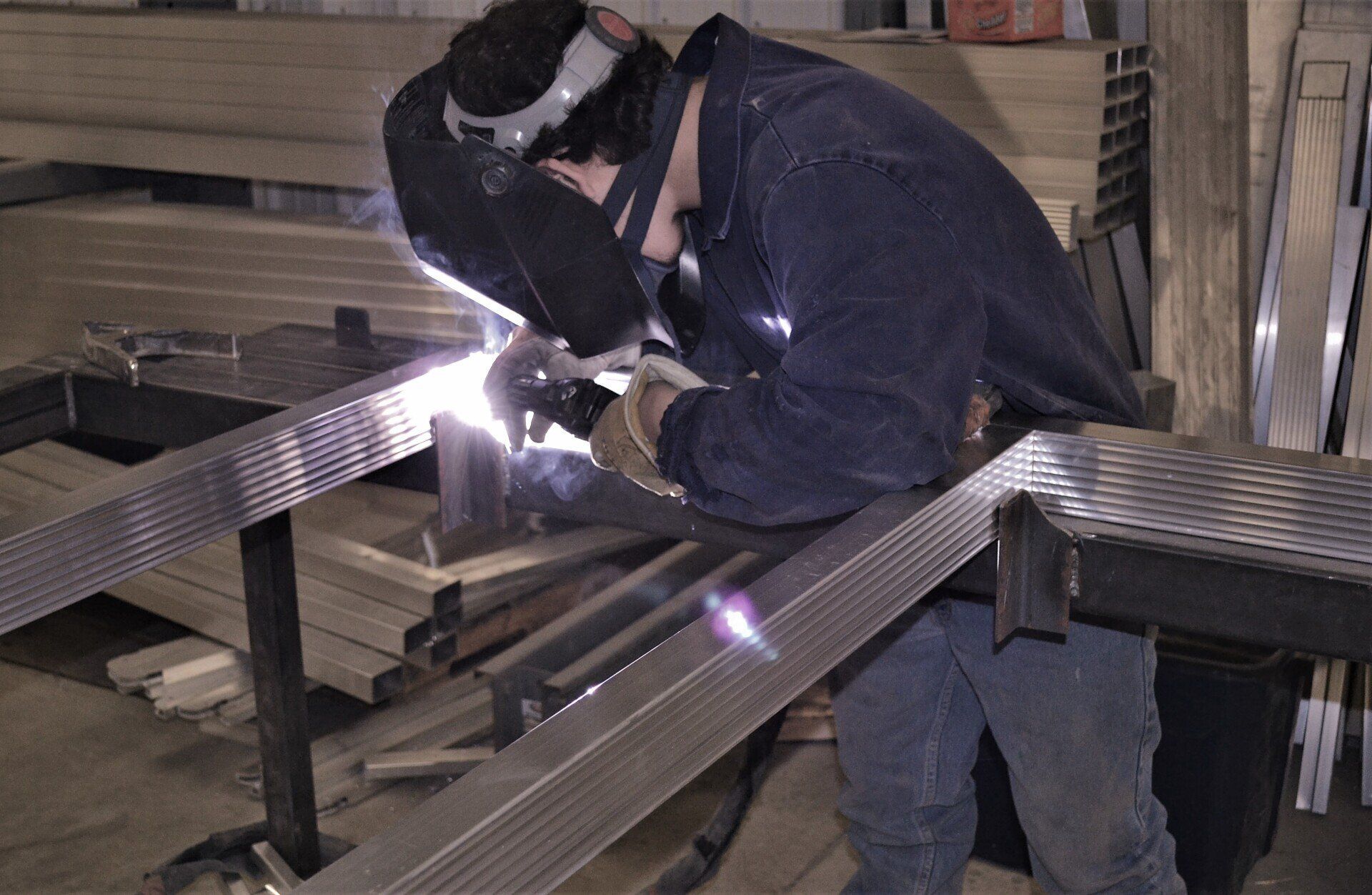

  • welded trailer design

    Slide title

    Jig Welded Construction

    Button
  • trailer with side rails

    Slide title

    Welded Top Deck Aluminum Tube Uprights and Top Rail

    Button
  • aluminum trailer construction

    Slide title

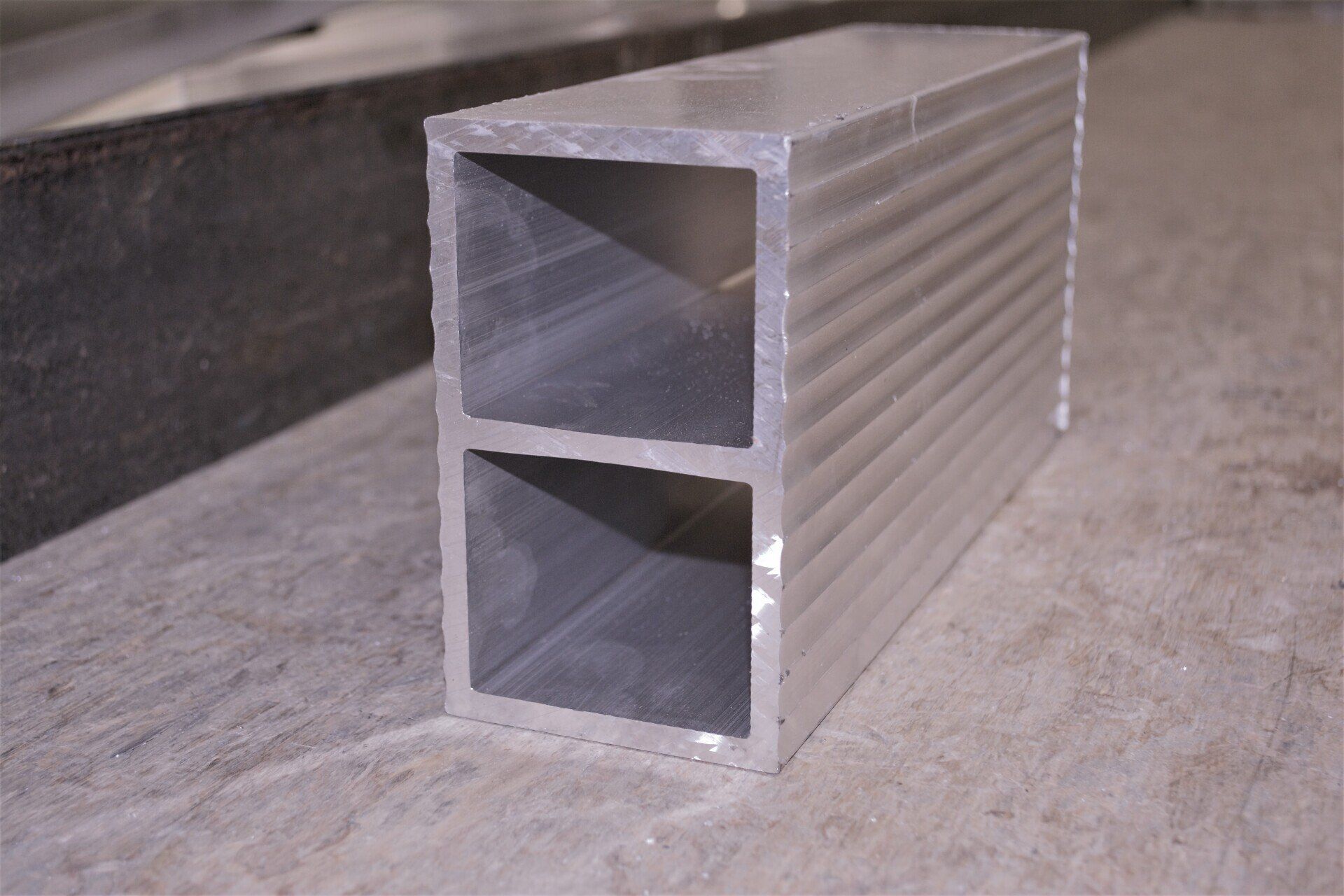

    Double Hollow Tube Frame Side Rails

    Button

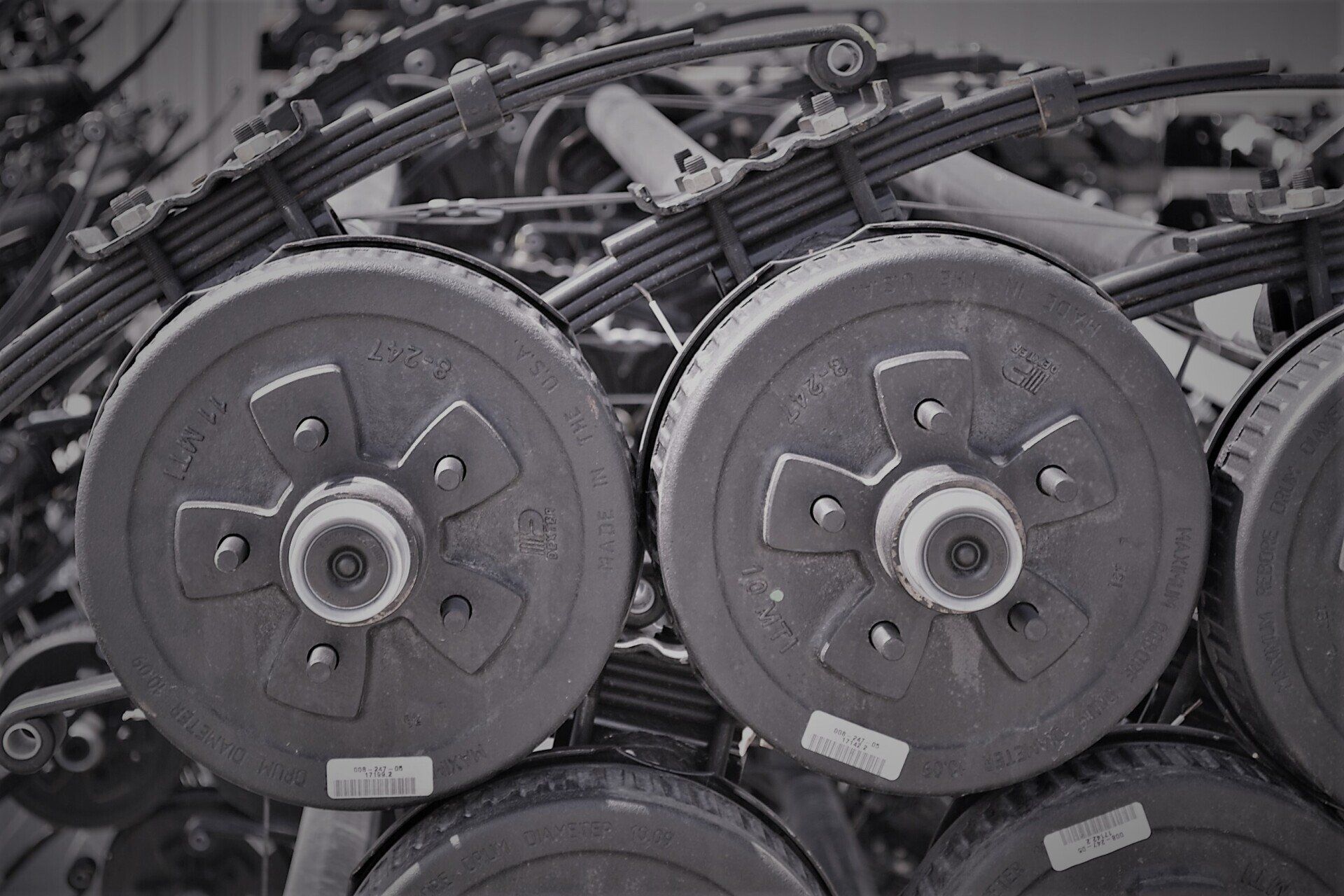

  • trailer with brakes

    Slide title

    3500 lb Dexter Axle w/Leaf Springs

    Button

AHD MODEL SPECIFICATIONS

AHD MODEL SPECIFICATIONS

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports & Crossmembers
  • 2" x 2" Top Deck Rail
  • 2" x 2" Top Deck Rail Uprights
  • Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum
  • 2" x 6" ProWood DuraColor Decking
  • Heavy Duty Adjustable Width Loading Ramps

Component Specs

  • LED Lights
  • 15" Silver Powder Coated Wheels
  • ST205/75R15C Radial Tires
  • 3,500 lb Capacity Axles
  • Double Eye Spring Suspension
  • 8,000 lb Capacity Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Zinc Plated Safety Chains
  • 2,500 lb capacity Zinc Plated Pad Jack

Misc Specs

  • 7-Way Round Wiring Harness
  • 2" Ball
  • Electric Brakes On Both Axles
  • 14" Hitch Height
  • 18" Deck Height
  • 7" Rail Height Above the Deck
  • 7,000 lb Gross Vehicle Weight Rating (GVWR)

Construction Specs

  • Fluted Aluminum Tube Tongue, Tongue Supports & Crossmembers
  • 2" x 2" Top Deck Rail
  • 2" x 2" Top Deck Rail Uprights
  • Side Rub Rail Consisting of 2" x 4" x 4" Stake Pockets & 3" x 1/4" Bar Stock Aluminum
  • 2" x 6" ProWood DuraColor Decking
  • Heavy Duty Adjustable Width Loading Ramps

Component Specs

  • LED Lights
  • 15" SilverE-Coated Wheels
  • ST205/75R15C Radial Tires
  • 3,500 lb Capacity Axles
  • Double Eye Spring Suspension
  • 8,000 lb Capacity Zinc Plated Coupler
  • 7,600 lb Capacity, 30" Zinc Plated Safety Chains
  • 2,500 lb capacity Zinc Plated Pad Jack

Misc Specs

  • 7-Way Round Wiring Harness
  • 2" Ball
  • Electric Brakes On Both Axles
  • 14" Hitch Height
  • 18" Deck Height
  • 7" Rail Height Above the Deck
  • 7,000 lb Gross Vehicle Weight Rating (GVWR)
MODEL AHD1470T AHD1670T AHD1870T AHD2070T AHD2270T
Deck L x W 168” x 79” 192” x 79” 216” x 79” 240” x 79” 264” x 79”
Overall L x W 219” x 102” 243” x 102” 267” x 102” 291” x 102” 315” x 102”
Tongue (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Front Frame Supports (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Frame Outer Rails (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* Front & Rear (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* (6) 1.75" x 3" Fluted (7) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted (9) 1.75" x 3" Fluted (10) 1.75" x 3" Fluted
Curb Weight 1,350 lbs 1,475 lbs 1,560 lbs 1,875 lbs 1,960 lbs
Payload Capacity 5,650 lbs 5,525 lbs 5,440 lbs 5,125 lbs 5,040 lb.
Stabilizer Jacks Standard Standard Standard Standard Standard
PDF 🖨️ 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center

MODEL AHD1470T AHD1670T AHD1870T AHD2070T AHD2270T
Deck L x W 168” x 79” 192” x 79” 216” x 79” 240” x 79” 264” x 79”
Overall L x W 219” x 102” 243” x 102” 267” x 102” 291” x 102” 315” x 102”
Tongue (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow (1) 3" x 5" Fluted Double Hollow
Tongue Supports (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Front Frame Supports (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted (2) 2" x 4" Fluted
Frame Outer Rails (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* Front & Rear (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow (2) 2" x 5" Fluted Double Hollow
Frame Crossmembers* (6) 1.75" x 3" Fluted (7) 1.75" x 3" Fluted (8) 1.75" x 3" Fluted (9) 1.75" x 3" Fluted (10) 1.75" x 3" Fluted
Curb Weight 1,350 lbs 1,475 lbs 1,560 lbs 1,875 lbs 1,960 lbs
Payload Capacity 5,650 lbs 5,525 lbs 5,440 lbs 5,125 lbs 5,040 lb.
Stabilizer Jacks Standard Standard Standard Standard Standard
PDF 🖨️ 🖨️

* Fluted Aluminum Tubing is Stronger and More Scratch Resistant than Regular Smooth Sided Aluminum

** 24" On-Center
